Complete Selection Handbook FD Series Linear Actuators And Compatible Control Accessories For Automation & Smart Furniture
FD Series Linear Actuators cover multiple miniature and medium-thrust DC telescopic drive models, widely adopted in smart furniture, indoor mini automation, agricultural ventilation equipment and laboratory testing devices. Many equipment integrators and furniture OEM manufacturers encounter common difficulties after purchasing linear drive hardware: mismatched control accessories, wrong voltage configuration, asynchronous movement of multiple actuators and unstable power supply. FD Series Linear Actuators are designed with unified electrical interface standards, which greatly simplifies matching work of various controllers, remote switches and power supplies. However, different models within FD Series Linear Actuators have differences in rated current, voltage and functional options, requiring targeted selection of supporting control parts to guarantee long-term stable operation of the whole system.
Electric linear actuator cannot work independently without matched control components. A complete automation linear actuator system consists of three core parts: the actuator body, control unit and stabilized power supply. Incorrect matching will lead to slow response, motor overheating, failure to reach full thrust or even permanent burnout of the electric linear actuator. For bulk OEM orders of smart cabinet, adjustable bed and greenhouse ventilation equipment, standardized matching schemes for FD Series Linear Actuators help manufacturers shorten product development cycles, reduce after-sales failure rate and unify spare parts inventory management. Whether you need simple single-actuator manual control or multi-unit synchronous automatic control systems, you can find suitable control accessories compatible with FD Series Linear Actuators in our complete supporting product portfolio.
Procurement engineers and structural designers often face a confusing situation on the market: most control kits are only compatible with single brand actuator products. Fortunately, all models of FD Series Linear Actuators adopt universal DC wiring definition and limit switch signal output, compatible with mainstream universal linear actuator control accessories available globally. Meanwhile, we provide customized control modules optimized exclusively for FD Series Linear Actuators, realizing seamless plug-and-play assembly without complicated wiring modification. If you are designing compact indoor cabinet automation projects with limited installation space, super mini electric actuator FD17 is the preferred low-thrust model, and we can provide ultra-small size remote control kits to match its narrow layout demand. For mild humid indoor and semi-sheltered equipment, waterproof tiny low force telescopic actuator FD25 supports matching splash-proof control boxes to adapt high-humidity environments. For harsh damp, outdoor and wide-temperature mini automation projects, IP68 Waterproof miniature linear actuator FD16 can be equipped with high ingress protection control assemblies. When developing small agricultural automatic ventilation equipment, Mini 300N electric linear actuator FD16 variant can be combined with timing control modules to realize automatic climate adjustment for planting sheds.

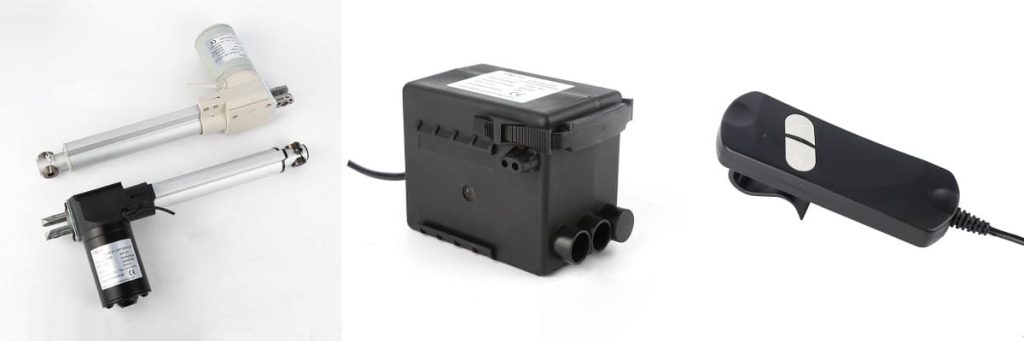

Common Matching Control Parts for Electric Linear Actuators
Selecting suitable control accessories is the foundation to make full use of the performance of electric linear actuator. The mainstream supporting control parts applicable to FD Series Linear Actuators can be divided into four major categories: remote control switches, synchronous control boxes, stabilized DC power adapters and extended functional control modules. Each category targets different application scenarios of automation linear actuator, from simple household furniture manual operation to industrial miniature automatic cycle control.

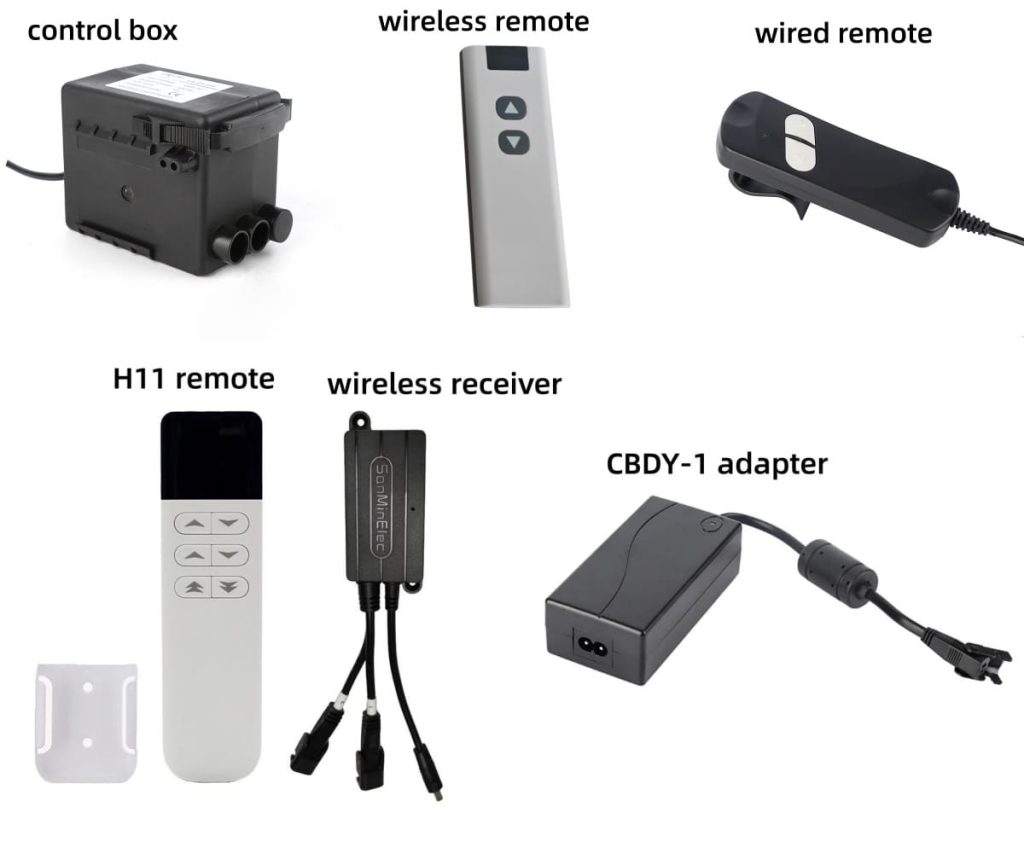

Wired & Wireless Remote Switches For Electric Linear Actuators
Remote switches are the most widely used control accessories for civil smart furniture equipped with FD Series Linear Actuators. They are divided into wired manual switches and RF wireless remote controllers. Wired switches are low-cost and anti-interference, suitable for fixed-position control of hidden cabinet lifting systems. Wireless remote kits allow users to operate electric linear actuator from a distance, commonly used for adjustable beds, RV intelligent equipment and household hidden TV lifts. All remote kits matched for FD Series Linear Actuators support forward and reverse control, matching built-in limit switches of FD Series Linear Actuators to realize automatic stop at maximum and minimum stroke positions.
Synchronous Control Boxes For Multiple Linear Actuators
When two or more electric linear actuators are used together on a single equipment frame, asynchronous stretching will cause frame tilt, deformation and abnormal noise. Synchronous control boxes are specially developed to solve this pain point. This kind of controller can output synchronized signal to drive multiple automation linear actuator to stretch and retract at consistent speed. For king-size adjustable beds, wide multi-panel greenhouse ventilation windows and large intelligent display cabinets equipped with FD Series Linear Actuators, synchronous control boxes become essential matching accessories. It is worth noting that the synchronous controller must match the maximum working current of FD Series Linear Actuators to avoid insufficient driving capacity.
Stabilized DC Power Adapters For 12V & 24V Linear Actuators
All FD Series Linear Actuators support 12VDC or 24VDC input, and non-stabilized power supply will lead to unstable speed and insufficient thrust of electric linear actuator. Ordinary unregulated transformers cannot cope with instantaneous current surge when FD Series Linear Actuators start to push heavy loads. Stabilized DC adapters with sufficient current margin are required. The general selection rule is that the rated output current of the power supply should be 1.5 times higher than the full-load current of the automation linear actuator, to reserve safety margin for frequent startup and shutdown operation cycles.
How to Match Control Accessories Based on Linear Actuator Parameters
Parameter matching is the core principle when selecting control accessories for FD Series Linear Actuators. Wrong parameter configuration is the primary cause of system failure for linear actuator systems. Engineers need to confirm three core indicators before selecting controllers and power supplies: rated voltage, full-load current and functional requirements.
Voltage Matching Principle For DC linear actuator
All FD Series Linear Actuators are dual voltage optional: 12V or 24V DC. Control accessories and power supply must adopt the same voltage as the selected electric linear actuator. A 12V linear actuator cannot connect to a 24V controller and power supply, otherwise the motor will burn out rapidly. Correspondingly, 24V FD Series Linear Actuators cannot be driven by 12V power adapters, and will only output extremely weak thrust unable to complete normal stretching movement.
Load & Current Requirements For Multi-unit linear actuator Synchronous System
When multiple FD Series Linear Actuators work synchronously, the total working current equals the sum of full-load current of every single automation linear actuator. The synchronous control box and power supply must support total current output with safety margin. Many OEM manufacturers underestimate instantaneous startup current and select under-rated power supply, resulting in slow movement and frequent automatic shutdown of electric linear actuator under heavy load. For FD Series Linear Actuators with 300N maximum thrust, higher instantaneous current requires larger current specification control accessories.

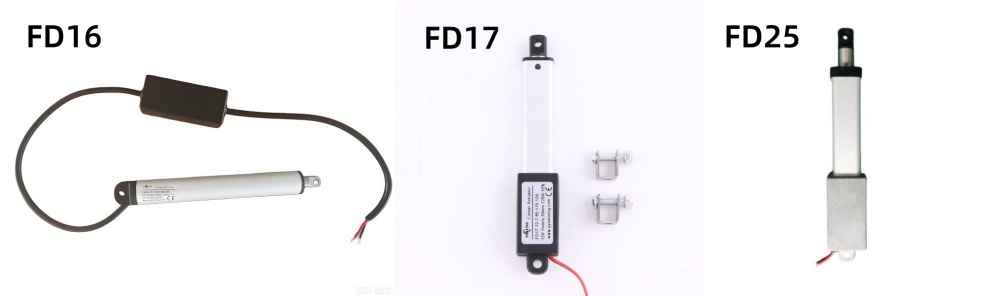

Matching Suggestions of Control Accessories For Different FD Series Linear Actuators
Different models within FD Series Linear Actuators face differentiated application scenarios, so we sort out targeted control matching schemes for procurement reference.
FD17 super mini electric actuator is mainly used for dry indoor small smart lockers and compact cabinets. Its working current is low, so compact small-current wired or wireless remote kits and mini 2A~3A DC adapters are sufficient for stable driving. There is no need to select high-current large-size control accessories, which will waste internal cabinet reserved installation space.
FD25 waterproof tiny low force telescopic actuator works in mild humid indoor environments such as kitchen storage cabinets. It is recommended to select control switches with basic anti-splash shell and sealed wiring terminals, preventing water vapor from entering control circuit and causing short circuit. Single actuator remote control system is the mainstream matching solution for most cabinet OEM projects.
FD16 IP68 Waterproof miniature linear actuator can be applied in outdoor agricultural ventilation and damp laboratory equipment. Apart from high ingress protection grade of the actuator itself, users should select waterproof grade control boxes and power adapters to build a fully protected linear actuator system. For greenhouse automatic ventilation equipment, timing control modules can be added to realize automatic opening and closing according to temperature and humidity sensor signals.
For projects that need two or more FD Series Linear Actuators to operate simultaneously, such as large adjustable beds and wide ventilation windows, synchronous control boxes are mandatory matching accessories to guarantee balanced movement of equipment frames.
As analyzed by motion control industry authoritative media Automation World, standardized matching kits combining miniature electric linear actuator and dedicated controllers can reduce equipment debugging time for OEM factories by more than 35%, and effectively lower the risk of on-site wiring errors during mass assembly.
Common Wiring Mistakes Between linear actuators And Control Parts
Even if users select correct specifications of control accessories for FD Series Linear Actuators, wrong wiring operation will still trigger equipment failure. We summarize several most frequent mistakes encountered by global clients.
First, wrong positive and negative wiring leads to reversed stretching direction of electric linear actuator. If the movement direction is opposite after wiring, users can swap the two power lines of the automation linear actuator without modifying the controller circuit. Second, neglecting limit switch wiring. All FD Series Linear Actuators have built-in limit switches. If limit signal wiring is omitted, the actuator will continue running after reaching stroke end and damage internal gear components. Third, thin low-quality wiring harness causes voltage drop. When the distance between control box and FD Series Linear Actuators exceeds 1.5 meters, thick enough copper wire should be adopted to avoid insufficient voltage at the actuator terminal under full load.
According to equipment testing data released by Machine Design, standardized wiring and parameter matching can extend the average service life of DC linear actuator systems by over 50%, and greatly reduce after-sales maintenance cost of finished automation equipment and smart furniture.
Standard Operation & Installation Tips For FD Series Linear Actuators Control System
After completing matching control accessory selection for FD Series Linear Actuators, follow the installation guidelines to ensure long-term stable operation of the whole linear actuator system.
- Before power-on test, double check voltage consistency of power supply, controller and FD Series Linear Actuators. Confirm positive and negative polarity to avoid instant motor burnout of electric linear actuator.
- Do no-load stroke test first after wiring. Observe whether the actuator can automatically stop smoothly at two ends relying on built-in limit switches of FD Series Linear Actuators.
- Arrange wiring harness reasonably, avoid pulling and squeezing cables during the stretching travel of automation linear actuator. Reserve enough cable margin to prevent wire breakage under repeated movement.
- For equipment installed in humid environment, use waterproof wiring terminals and sealing sleeves for all connection positions between control accessories and FD Series Linear Actuators.
- Regularly check wiring tightness every three months. Loose terminals will generate high temperature under large current and cause unstable operation of linear actuator control system.
Conclusion
FD Series Linear Actuators include a complete product matrix of miniature low-thrust to medium high-thrust DC telescopic drives, widely applied across smart furniture, indoor mini automation, agricultural ventilation and laboratory precision equipment. The stable performance of FD Series Linear Actuators heavily relies on properly matched control accessories, including remote switches, synchronous control boxes and stabilized DC power adapters. Wrong voltage selection, insufficient current margin and non-standard wiring are the main causes of premature failure of electric linear actuator systems.
Through systematic parameter matching guidance and scenario-based selection suggestions, equipment designers and furniture OEM manufacturers can quickly confirm the most suitable control kits for FD Series Linear Actuators. Whether you need simple single-actuator manual control for household smart cabinets or multi-unit synchronous automatic control for agricultural ventilation equipment, standardized matching schemes can shorten product development cycle and reduce after-sales risk. With universal electrical interface design, FD Series Linear Actuators support both exclusive customized control modules and mainstream universal automation linear actuator control accessories on the market, bringing high flexibility for global bulk procurement OEM clients. As market demand for miniature automated equipment continues to rise year by year, reasonable matching between FD Series Linear Actuators and supporting control accessories will become an essential part of finished product design, helping manufacturers launch stable, reliable intelligent equipment and occupy larger global miniature automation hardware market share.
RFQ
Q1: Can different models of FD Series Linear Actuators run together on one controller?
A1: It is not recommended; same model with identical speed parameters achieves best synchronous effect.
Q2: Are control accessories of FD Series Linear Actuators plug-and-play or require complicated wiring?
A2: Standard kits support simple wiring; customized synchronous systems provide detailed wiring diagrams.
Q3: Can one power supply drive multiple FD Series Linear Actuators simultaneously?
A3: Yes, the power supply rated current must reserve enough safety margin for total load.
Q4: Do we need to select separate waterproof controllers for outdoor FD Series Linear Actuators?
A4: Yes, high humidity and outdoor scenes need matched waterproof control accessories.
Q5: Can 12V and 24V FD Series Linear Actuators share the same set of control accessories?
A5: Not allowed, voltage of controller, power supply and actuator must be fully consistent.
