2026 Top Rated Mini 300N electric linear actuator For Small Agricultural Vent Equipment

Mini 300N electric linear actuator FD16 is a high-thrust high-ingress-protection miniature telescopic drive specially engineered for small agricultural vent equipment, including household mini greenhouses, indoor planting box air louvers, poultry miniature side ventilation windows and small farm automated climate control gear. Different from low-force miniature actuators that cannot push thick vent frames and low IP micro drives prone to moisture damage, Mini 300N electric linear actuator delivers stable peak 300N push force to open and close agricultural ventilation structures smoothly, with optional IP68 full waterproof grade and ultra-wide operating temperature range from -25℃ to +80℃, perfectly adapting to humid, dew-covered, freezing winter and high-temperature summer farm environments. Every set of Mini 300N electric linear actuator comes with factory pre-calibrated bidirectional mechanical limit switches and exclusive built-in overcurrent protection circuit, solving three major pain points of small agricultural equipment OEM manufacturers: insufficient thrust to drive heavy vent louvers, motor burnout caused by stall overload, and premature failure from long-term greenhouse humidity and temperature fluctuation.

As global small-scale smart farming market expands rapidly, agricultural hardware factories and greenhouse automation suppliers struggle to find compact linear drive parts that fit narrow vent frame installation space and run reliably in harsh planting environments. Most generic miniature linear actuators only provide maximum 188N low thrust and IP54/IP66 weak dust/water resistance, unable to withstand continuous greenhouse dew, irrigation water splashes and seasonal extreme temperature shifts, leading to frequent after-sales breakdown complaints from end growers. Mini 300N electric linear actuator FD16 fills this market gap by upgrading internal gear structure for higher load capacity and multi-layer fluorosilicone shaft sealing for full waterproof performance, retaining ultra-slim mini body size without sacrificing environmental durability. Whether mass-producing residential mini greenhouse roof vents, indoor hydroponic planting box air baffles or small poultry house micro ventilation windows, Mini 300N electric linear actuator outputs vibration-free repeatable linear movement, helping agricultural equipment brands launch reliable compact automated vent products and capture the fast-growing small smart farm wholesale market share.

For procurement engineers developing multi-scene agricultural automation projects, Mini 300N electric linear actuator has clear differentiated advantages compared with low-thrust FD17 and FD25 miniature series. FD17 and FD25 only reach 188N top push force, insufficient for thick aluminum greenhouse vent frames, and merely support IP54/IP66 basic splash protection that cannot resist long-term greenhouse dew immersion. In contrast, Mini 300N electric linear actuator FD16 hits 300N maximum thrust to handle heavy vent louver weight, offers optional IP68 full waterproof sealing and -25℃~+80℃ wide temperature resistance, stable through cold winter frost and hot summer greenhouse heat. The customizable stroke range of Mini 300N electric linear actuator extends from 10mm up to 800mm, covering short-stroke planting box micro vents and long-stroke greenhouse side wall large ventilation windows in one model, unifying accessory power supply matching with FD17/FD25 via universal 12V/24V dual voltage to reduce multi-model inventory pressure for OEM farm equipment factories.

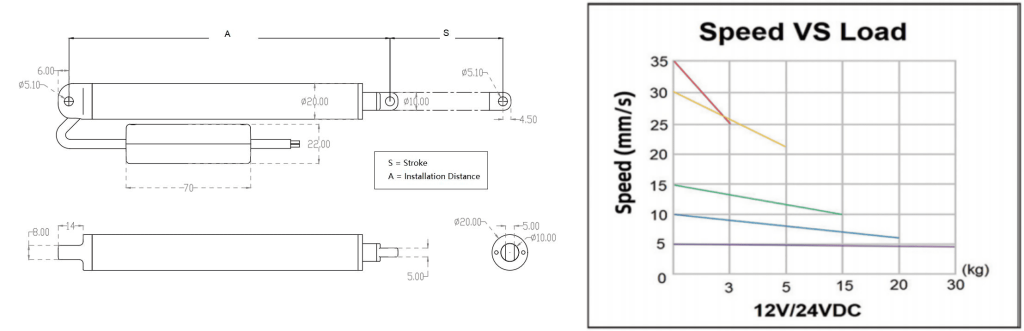

Brief Complete Technical Parameters of FD16 Mini 300N electric linear actuator

All specification indicators of FD16 are optimized around agricultural small vent equipment positioning of Mini 300N electric linear actuator, core agricultural-oriented specs sorted clearly for fast buyer selection:

1. Rated Input Voltage: Dual universal 12VDC / 24VDC low safe voltage, compatible with solar farm battery power systems
2. Graded Max Push Load: 300N / 200N / 150N / 50N / 30N, flagship 300N for thick agricultural vent frames
3. No-Load Telescopic Speed: 5 / 10 / 15 / 30 / 35 mm/s; Full-Load Stable Speed: 4 / 7.5 / 10 / 23 / 25 mm/s, no speed drop under full vent load
4. Customizable Stroke Scope: 10mm ~ 800mm ultra-wide adjustable stroke for mini to medium farm ventilation structures
5. Minimum Installation Distance: Stroke +130 / +150 / +180mm multi-size compact mounting to fit narrow vent frame gaps
6. IP Protection Grade: Optional IP54 basic dustproof or IP68 full waterproof two grades, core anti-humidity advantage for greenhouses
7. Operating Temperature Range: -25℃ ~ +80℃ ultra-wide temperature resistance, adapt freezing northern winter & high-temperature southern planting seasons
8. Exclusive Safety Function: Built-in overcurrent protection circuit, automatic power cut if vent jams to prevent motor burnout
9. Running Noise Level: ≤55dB mild low sound, no harsh buzz disturbing poultry and crop growth environments

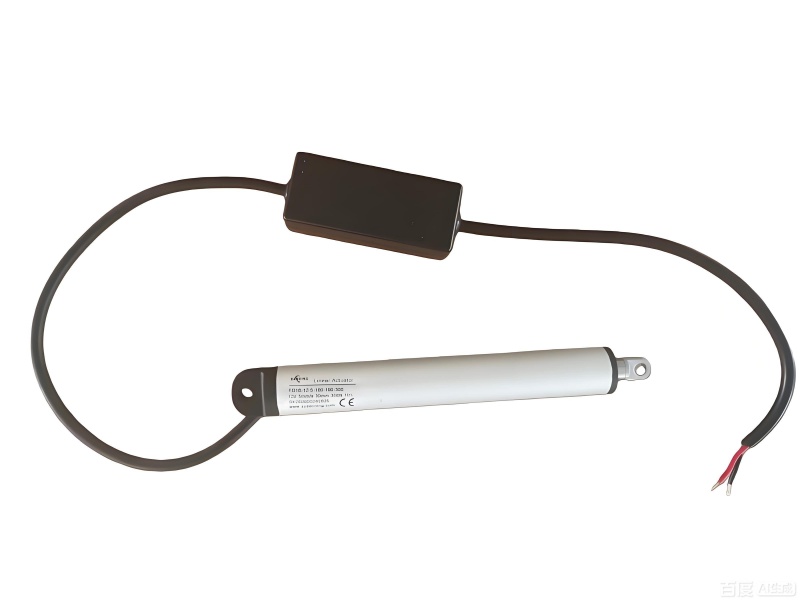

10. Material & Color: Corrosion-resistant aluminum alloy telescopic tube, stainless steel internal wear-resistant gears, silver streamlined housing
11. Safety Certification: CE + RoHS double international export certification, meet global agricultural equipment electrical inspection standards
12. Standard Protection: Factory preset dual limit switches to stop travel automatically and avoid vent frame collision damage

If your agricultural vent projects only involve dry indoor low-load small cabinets without humid farm conditions, you can select cost-effective Tiny low force linear actuator FD17/FD25 series to control raw material budget. For all humid, temperature-varying small farm ventilation equipment requiring strong waterproof and wide temperature performance, Small waterproof linear actuator FD16 series represented by Mini 300N electric linear actuator is the exclusive matching linear drive without premature equipment failure risk.

Main Small Agricultural Vent Equipment Application Scenarios of Mini 300N electric linear actuator

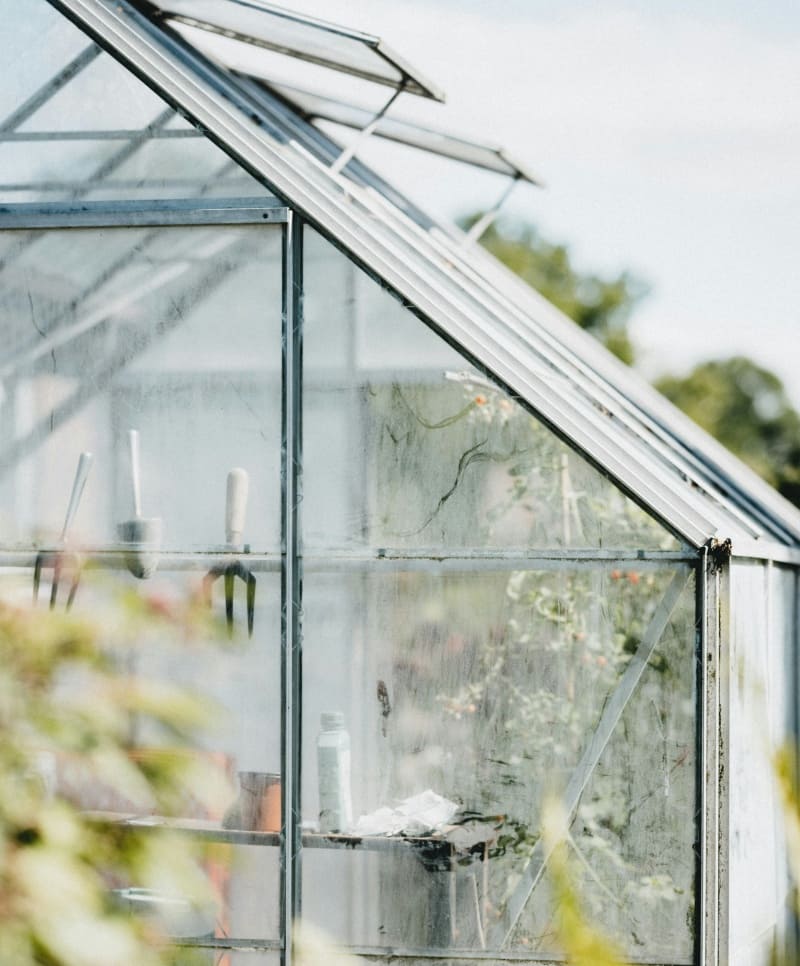

1. Household Mini Greenhouse Automated Roof & Side Wall Vents

Residential small hobby greenhouses and commercial compact planting sheds are the largest downstream agricultural application of Mini 300N electric linear actuator. Daily greenhouse environments feature high humidity, heavy dew, irrigation water splashes and large day-night temperature swings, ordinary low IP miniature actuators easily suffer internal short circuit and gear rust after several months of operation. Mini 300N electric linear actuator FD16 optional IP68 full waterproof grade isolates continuous moisture erosion completely, while its 300N peak thrust smoothly pushes thick aluminum roof vent frames open and closed without jitter. The ultra-compact body of Mini 300N electric linear actuator fits narrow vent frame reserved installation gaps that bulky industrial actuators cannot occupy, and customizable short to long stroke covers small side louvers and large roof ventilation windows in one single model. Small greenhouse automation OEM factories widely adopt Mini 300N electric linear actuator to drastically cut end-user equipment failure return rates.

2. Indoor Hydroponic Planting Box Micro Air Louvers

Indoor vertical hydroponic planting cabinets, small herb growing boxes and seedling cultivation chambers rely on Mini 300N electric linear actuator as core air adjustment driving parts. Long-term constant high humidity water vapor floats inside closed planting boxes, corroding low-protection miniature actuators rapidly. Mini 300N electric linear actuator multi-layer fluorosilicone sealing structure blocks water vapor invasion entirely, built-in overcurrent protection prevents expensive planting equipment damage if air louvers get stuck by plant leaves. Compact mounting size of Mini 300N electric linear actuator can be hidden inside thin cabinet interlayers without occupying crop growing space, 12V low voltage eliminates indoor electric shock hazards for household growers.

3. Small Poultry House Mini Side Ventilation Windows

Backyard small chicken coops, pigeon breeding sheds and miniature livestock raising rooms use Mini 300N electric linear actuator for automatic temperature-controlled side louver adjustment. Poultry sheds generate high ammonia moisture and temperature fluctuation between day and night, requiring linear drives that resist corrosion and wide temperature ranges. Mini 300N electric linear actuator FD16 -25℃~+80℃ temperature range maintains stable thrust in cold winter and hot summer, IP68 waterproof grade resists cleaning water splashes during shed disinfection. Dual limit switches of Mini 300N electric linear actuator stop louver travel to avoid collision with metal shed frames, extending vent service life significantly.

4. Balcony Small Orchard & Patio Automated Sunshade Vents

Outdoor balcony mini fruit tree greenhouses, terrace vegetable planting small shelters and courtyard miniature flower growing sheds also adopt Mini 300N electric linear actuator for automatic ventilation adjustment. Outdoor sheltered planting spaces face seasonal rain, dew and extreme temperature changes, low IP micro actuators age rapidly within one year of outdoor exposure. Mini 300N electric linear actuator IP68 version can operate stably under sheltered outdoor conditions without extra waterproof protective shells, saving agricultural equipment structural design space and accessory cost for OEM brands.

5. Small Farm Seedling Incubator Humidity Control Vents

Commercial small seedling germination incubators and laboratory miniature crop breeding chambers require precise low-noise vent adjustment, and Mini 300N electric linear actuator perfectly meets quiet constant-temperature planting environment demands. ≤55dB low running noise of Mini 300N electric linear actuator will not disturb sensitive seedling growth, customizable precise short stroke achieves micro air flow adjustment to stabilize incubator humidity levels, corrosion-resistant aluminum housing resists long-term nutrient water vapor erosion inside breeding equipment.

Core Agricultural-Oriented Competitive Advantages of FD16 Mini 300N electric linear actuator

1. 300N high thrust + IP68 full waterproof + -25℃~+80℃ wide temperature for farm harsh environments

The most differentiated core advantage of Mini 300N electric linear actuator FD16 is the combination of high load capacity and full environmental resistance that FD17/FD25 low-thrust miniature series cannot match. Most micro linear actuators on the market only offer 188N max thrust and narrow 10℃~50℃ temperature range, unable to drive heavy agricultural vent frames or survive seasonal greenhouse humidity and temperature shifts. Mini 300N electric linear actuator upgrades internal thickened alloy gears for 300N stable push force and multi-layer shaft sealing for optional IP68 full waterproof, forming irreplaceable competitiveness for small smart farming automated vent equipment. As analyzed by authoritative mechanical motion media Automation World, high-thrust wide-temperature waterproof miniature linear actuators customized for agricultural ventilation have become the top upgrade choice for small greenhouse automation OEM factories in 2026.

2. Exclusive built-in overcurrent protection circuit to avoid farm equipment stall damage

All Mini 300N electric linear actuator FD16 integrate factory pre-installed overcurrent protection circuitry, a function entirely absent from low-thrust FD17 and FD25 miniature models. When greenhouse vent louvers get blocked by branches, leaves or debris, the circuit automatically cuts power within 0.5 seconds to prevent internal motor and gear burnout, protecting expensive automated planting and poultry ventilation equipment from collision breakdown. According to test data released by Machine Design, integrated stall protection linear actuators can reduce agricultural equipment after-sales maintenance costs for OEM manufacturers by over 40%.

3. 10-800mm ultra-wide customizable stroke fits all small farm vent sizes

Mini 300N electric linear actuator supports fully customizable stroke ranging from 10mm to 800mm, far breaking the 150mm maximum stroke limit of FD17/FD25 low-thrust models. It covers micro planting box short-stroke air baffles and large greenhouse side wall long-stroke ventilation windows with one single actuator model, allowing agricultural equipment factories to unify accessory supply chains and eliminate the need to purchase multiple different miniature linear actuator series for different vent sizes. Bulk OEM orders support free stroke modification without expensive extra customization fees.

4. Ultra-compact slim body to fit narrow vent frame reserved gaps

Many high-thrust waterproof linear actuators adopt bulky thick motor housing that cannot fit thin agricultural vent frame installation spaces; Mini 300N electric linear actuator FD16 optimizes sealing mold layout to realize IP68 full waterproof performance while retaining ultra-slim miniature body dimensions, perfectly matching the narrow reserved mounting gaps of mini greenhouse aluminum vent frames without structural interference. This slim design simplifies structural drawing development work for agricultural equipment design engineers.

5. Complete CE & RoHS dual certification for global agricultural equipment export

FD16 Mini 300N electric linear actuator passes CE electrical safety and RoHS environmental material dual certification, fully complying with agricultural machinery export inspection standards of Europe, North America, Australia and Southeast Asia. Our team can provide complete load, noise and waterproof test reports, compliance certificates and datasheets to support customs clearance, cross-border farm equipment e-commerce platform filing and finished product registration for OEM wholesale clients.

Standard Farm Installation & Maintenance Guidelines for Mini 300N electric linear actuator

To maintain stable thrust, long-term waterproof performance and extended service life of Mini 300N electric linear actuator installed on small agricultural vent equipment, follow standardized farm operation rules strictly:

1. Mounting specification: Fix Mini 300N electric linear actuator on flat rigid aluminum or steel vent support frames, prohibit long-term lateral eccentric side force; side force will scratch multi-layer waterproof sealing rings and reduce the actual output thrust of Mini 300N electric linear actuator.
2. Power supply matching: Equip matched stabilized 12V or 24V DC power supply per actuator rated voltage, unstable voltage fluctuation triggers frequent overcurrent protection and accelerates miniature motor aging under continuous farm vent daily operation.
3. Duty cycle compliance: Abide by standard 10% duty cycle (2 mins continuous work + 18 mins rest), forbid long-hour continuous frequent vent adjustment to avoid motor overheating and accelerated sealing layer aging in high-humidity greenhouse environments.
4. Environmental maintenance: For IP54 basic version Mini 300N electric linear actuator, avoid long-term greenhouse dew and irrigation water splashes; IP68 waterproof version tolerates short-time water jet cleaning and continuous high humidity, regularly wipe shell with dry soft cloth to remove crop dust and dew stains.
5. Pre-delivery OEM calibration: Before shipping bulk agricultural equipment OEM orders, uniformly calibrate dual limit switch sensitivity and wiring tightness of Mini 300N electric linear actuator to eliminate vent frame collision and stalling failure risk after end-user farm assembly.
6. Quarterly farm safety inspection: Every three months check waterproof sealing ring integrity, wiring connector tightness and overcurrent protection trigger sensitivity, replace aging sealing accessories timely to sustain long-term IP68 waterproof performance in humid planting environments.

Conclusion

Mini 300N electric linear actuator FD16 is an agricultural-exclusive high-thrust waterproof miniature linear drive component, specially developed for small greenhouse roof vents, indoor hydroponic planting box air louvers, miniature poultry house ventilation windows and outdoor patio small farm automated climate control equipment. It solves the core industry pain point of ordinary low-thrust miniature actuators lacking sufficient vent driving force and weak moisture/temperature resistance, integrating flagship 300N peak push load, optional IP68 full waterproof grade, -25℃~+80℃ ultra-wide temperature resistance, exclusive overcurrent stall protection and 10-800mm fully customizable stroke length in one unified product series.

Compared with FD17 and FD25 low-thrust indoor miniature linear actuator models, Mini 300N electric linear actuator FD16 is the optimal matching drive accessory for all small agricultural vent equipment working in humid, high dew, seasonal extreme temperature farm environments. With ultra-compact slim mounting size, complete OEM stroke customization service, dual CE & RoHS export certification and built-in full safety protection functions, Mini 300N electric linear actuator will become the mainstream preferred miniature linear drive for global small smart farming equipment OEM manufacturers, helping agricultural hardware brands launch reliable low-failure automated vent products and occupy fast-growing small greenhouse automation wholesale market share worldwide.

---

RFQ

Q1: Can Mini 300N electric linear actuator drive thick aluminum greenhouse vent frames in high humidity greenhouses?

A1: Yes, 300N thrust + optional IP68 waterproof resists dew and heavy vent weight.

Q2: What temperature range can Mini 300N electric linear actuator adapt to for seasonal small farm planting?

A2: Stable operation from -25℃ freezing cold to +80℃ high greenhouse heat.

Q3: Does Mini 300N electric linear actuator have stall protection if greenhouse vents get blocked by leaves?

A3: Built-in overcurrent protection auto cuts power to avoid motor burnout.

Q4: What maximum customizable stroke length does Mini 300N electric linear actuator support for large side wall farm vents?

A4: Stroke adjustable from 10mm up to 800mm for all small agricultural vent sizes.

Q5: Is Mini 300N electric linear actuator suitable for backyard small poultry house ventilation louver automation?

A5: Fully fit, IP68 version resists shed cleaning water splashes and moisture.
