Practical Selection Guide FD17 Mini Linear Actuator 188N Low Noise 12V DC For Compact Smart Cabinet & Indoor Automation
FD17 Mini Linear Actuator is an ultra-compact low-thrust DC telescopic drive developed exclusively for indoor smart furniture and miniature indoor automation equipment. Many furniture OEM manufacturers and automation system integrators face common difficulties when developing compact intelligent storage products: limited internal cabinet installation space, strict noise requirements for household environments and demand for stable medium thrust to drive hidden cabinet panels. FD17 Mini Linear Actuator adopts slim integrated gearbox structure, delivering peak 188N stable push force under 12V DC power supply, with low-noise transmission design suitable for quiet living room, bedroom and office environments. Equipped with IP54 dustproof protection grade, FD17 Mini Linear Actuator works reliably in dry indoor environments, and supports customizable stroke length between 10mm and 150mm to adapt diversified cabinet lifting and pop-up mechanical structures. All FD17 Mini Linear Actuator come with factory pre-calibrated bidirectional mechanical limit switches to prevent over-travel collision damage to cabinet frames, greatly reducing after-sales failure risk of finished smart furniture products.
Electric linear actuator has become a standard core component of modern intelligent furniture. As consumers’ demand for hidden storage and automatic adjustment furniture keeps rising, designers need miniature linear drive parts that can be embedded into ultra-narrow cabinet interlayers. Most generic mini linear actuator on the market either adopt bulky motor housing which cannot fit thin cabinet gaps, or produce obvious buzzing noise during operation and disturb indoor rest environment. FD17 Mini Linear Actuator solves these two core pain points simultaneously. The optimized internal gear layout shrinks overall body size, and precision grinding gear pair controls operating noise below 55dB. For mass OEM orders of hidden TV cabinets, intelligent shoe cabinets and office display lockers, FD17 Mini Linear Actuator provides stable repeatable linear movement, helping furniture brands launch competitive compact intelligent furniture and capture the fast-growing smart home hardware wholesale market.
When selecting miniature linear drive for multi-scene indoor and semi-humid projects, engineers need to clearly distinguish the positioning difference among FD series models. FD17 Mini Linear Actuator targets dry indoor low-budget compact cabinet projects. If your projects involve humid kitchen, semi-outdoor balcony equipment exposed to water splashes, you can select upgraded waterproof tiny low force telescopic actuator FD25 IP66 version. If you need heavy thrust and full waterproof performance for outdoor agricultural ventilation and damp laboratory equipment, high-spec IP68 Waterproof miniature linear actuator FD16 is the ideal choice. When you need to configure remote controllers, synchronous driver and power supply for the whole set of linear drive system, you can refer to our complete matching scheme in FD Series Linear Actuators accessory selection guide. For small farm automated ventilation equipment requiring high thrust and wide temperature adaptability, Mini 300N electric linear actuator FD16 variant can meet harsh outdoor operating requirements.
Core Performance Parameters of Electric Linear Actuator For Smart Furniture
Clear parameter screening is the first step to confirm whether a mini linear actuator matches your mechanical design. All technical indicators of FD17 Mini Linear Actuator are optimized for indoor smart furniture scenarios, focusing on compact size, low noise and stable medium thrust output.

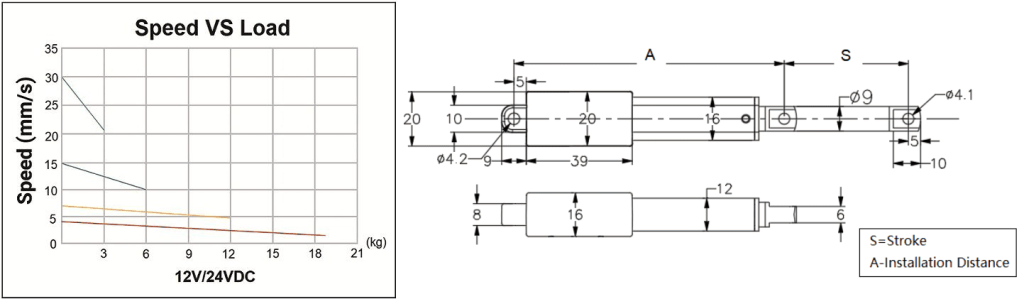

Thrust, Speed and Stroke Range of 12V Mini Linear Actuator
FD17 Mini Linear Actuator supports graded thrust options including 30N, 60N, 120N and peak 188N. Under rated 12V DC voltage, no-load speed ranges from 4 mm/s to 30 mm/s, and full-load speed maintains stable without obvious sharp drop. The customizable stroke covers 10mm to 150mm, covering all common travel requirements of cabinet pop-up, hidden panel lifting and small air baffle adjustment. Designers can confirm specific stroke length according to cabinet structure drawing, and we support free stroke customization for bulk OEM orders of FD17 Mini Linear Actuator without extra modification surcharge.
Noise Standard For Indoor Automation Linear Actuator
Noise performance is a decisive purchasing factor for household intelligent furniture. FD17 Mini Linear Actuator adopts self-lubricating silent lead screw and precision gear assembly, limiting running noise within ≤55dB. Compared with ordinary low-cost electric linear actuator with noise higher than 65dB, FD17 Mini Linear Actuator will not generate harsh mechanical sound during cabinet opening and closing movement, fully adapting quiet bedroom, study and office scenarios.
Other key specifications of FD17 Mini Linear Actuator:
- Rated Voltage: 12VDC (24V optional on request)
- Protection Grade: IP54 dustproof, suitable for dry indoor environments, avoid long-term water vapor and liquid splashes
- Minimum Installation Distance: Stroke +55/60/70mm ultra-short mounting dimension
- Duty Cycle: Standard 10% (2 minutes continuous work + 18 minutes rest)

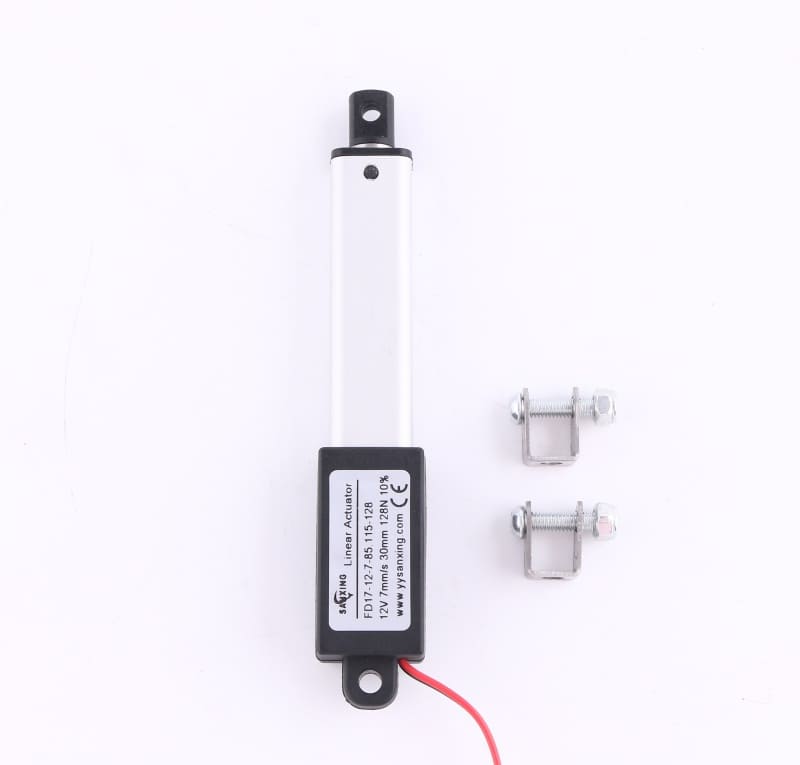

- Housing Material: Aluminum alloy telescopic tube and engineering plastic gearbox, black streamline appearance
- Optional Parts: Top and end U-type mounting brackets, OEM private logo printing
- Certification: CE safety certification for global furniture export
Main Application Scenarios For Compact Electric Linear Actuator

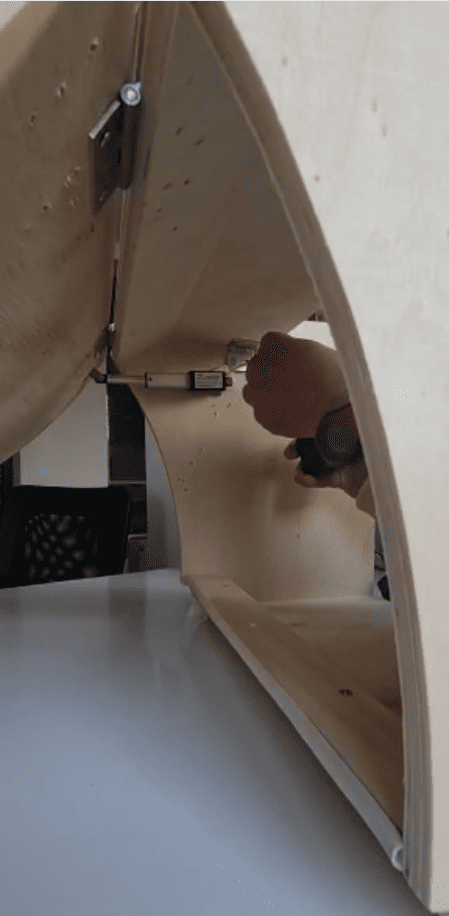

Hidden Household Smart Storage Cabinet
Living room hidden TV lifting cabinet, bedroom invisible storage locker and entrance intelligent shoe cabinet are the largest civil application of FD17 Mini Linear Actuator. The ultra-slim body of FD17 Mini Linear Actuator can be embedded into thin cabinet interlayers that ordinary electric linear actuator cannot occupy. 30–188N adjustable thrust smoothly pushes light and medium cabinet panels to pop up and retract without impact jitter. IP54 dustproof grade effectively isolates indoor floating dust and fabric debris, preventing internal gear jamming after long-term operation. Many customized furniture OEM factories adopt FD17 Mini Linear Actuator for mass production of mid-range intelligent storage furniture, balancing product cost and user experience.
Office Intelligent Display & File Cabinet
Modern minimalist office hidden file cabinet, shopping mall small intelligent sample display locker rely on FD17 Mini Linear Actuator as automatic adjustment driving parts. Office environment keeps constant dry air-conditioning temperature, perfectly matching applicable environment of FD17 Mini Linear Actuator. Low noise performance will not interfere daily office communication and customer visiting experience. Customizable short stroke adapts diversified small cabinet opening and lifting structural design. Furniture hardware suppliers take FD17 Mini Linear Actuator as standard matching mini linear actuator for bulk office furniture wholesale orders.
Dry Laboratory Miniature Testing Jigs
Constant-temperature dry laboratory miniature electronic component calibration fixtures and optical detection micro platforms need compact low-thrust linear motion components, and FD17 Mini Linear Actuator satisfies tiny internal layout requirements of indoor dry testing equipment. Sealed plastic gearbox blocks paper dust and tiny component fragments from entering transmission structure, built-in dual limit switches precisely control short-stroke micro displacement adjustment. Small laboratory equipment manufacturers select FD17 Mini Linear Actuator for low-budget miniature test equipment automation upgrading.
Closed Indoor Hydroponic Planting Cabinet
Fully sealed desktop vertical planting boxes without dew accumulation adopt FD17 Mini Linear Actuator to drive micro air baffles for automatic ventilation adjustment. Internal air of closed planting equipment keeps dry without heavy water vapor erosion, suitable for IP54 grade of FD17 Mini Linear Actuator. Slim mounting size saves limited crop growing space inside planting cabinets, and quiet operation avoids disturbing plant growth environment.
FD17 Mini Linear Actuator Vs Other Miniature Linear Actuator Models
It is necessary to distinguish environmental adaptability and load limit of different FD series miniature linear actuator to avoid wrong model selection leading to finished equipment failure. FD17 Mini Linear Actuator: IP54, max 188N thrust, low cost, suitable for all dry indoor smart furniture, office cabinets and dry laboratory equipment. FD25 miniature linear actuator: IP66 splash-proof, same thrust range, suitable for humid kitchen and semi-sheltered balcony equipment, higher unit price than FD17 Mini Linear Actuator. FD16 miniature linear actuator: optional IP68 full waterproof, maximum 300N thrust, -25℃~+80℃ wide temperature range, oriented to outdoor agricultural equipment and damp high-end automation projects with higher budget.
As analyzed by authoritative motion control media Automation World, ultra-compact low-noise miniature electric linear actuator specially optimized for smart furniture has maintained steady demand growth in global customized furniture market in recent years. Manufacturers can effectively reduce product after-sales complaints by matching actuator specifications according to actual indoor environment.
Matching Control Accessories For 12V Low Thrust Linear Actuator
FD17 Mini Linear Actuator supports matching various common control accessories for electric linear actuator. Single cabinet equipment can choose wired manual switch or RF wireless remote control kit. If multiple FD17 Mini Linear Actuator work synchronously on wide multi-panel cabinet, synchronous control box is required to ensure consistent stretching speed and avoid cabinet frame tilt. Users need to select stabilized 12V DC power adapter with sufficient current margin, unstable power supply will lead to insufficient thrust and inconsistent movement speed of FD17 Mini Linear Actuator. All wiring should strictly distinguish positive and negative poles, and reasonably reserve cable margin during repeated stretching travel.
According to equipment durability test data released by Machine Design, standardized parameter matching and regular maintenance can extend service life of indoor mini linear actuator by more than 40%, effectively cutting long-term maintenance cost of intelligent furniture brands.
Installation & Maintenance Tips For Indoor Furniture Linear Actuator
To keep FD17 Mini Linear Actuator running stably for a long time on smart furniture, follow standardized installation and maintenance specifications:
- Mount FD17 Mini Linear Actuator on flat rigid cabinet support plate; long-term lateral eccentric force will accelerate internal gear wear and reduce actual output thrust of FD17 Mini Linear Actuator.
- Select matched stabilized 12V DC power supply. Voltage fluctuation will accelerate miniature motor aging and affect smooth operation of electric linear actuator.
- Abide by 10% duty cycle specification. Do not allow uninterrupted frequent cabinet adjustment to prevent motor overheating inside sealed gearbox.
- FD17 Mini Linear Actuator only applies to dry indoor environment. Avoid installation in humid kitchen, bathroom and semi-outdoor balcony where water vapor exists.
- Clean floating dust on gearbox surface with dry soft cloth every three months, prevent dust from penetrating into internal transmission clearance and causing movement blockage.
Conclusion
FD17 Mini Linear Actuator is a cost-effective ultra-slim low-noise 12V miniature linear drive component developed for global indoor smart furniture and dry indoor miniature automation equipment. It solves the two core pain points of furniture designers: insufficient reserved cabinet installation space and excessive operating noise of generic mini linear actuator. With peak 188N stable thrust, customizable 10–150mm stroke, IP54 dustproof grade and built-in bidirectional limit switches, FD17 Mini Linear Actuator can be widely used in hidden storage cabinets, office intelligent display lockers and dry laboratory miniature testing equipment.
Compared with FD25 splash-proof model and FD16 high-thrust full waterproof linear actuator, FD17 Mini Linear Actuator achieves excellent balance between performance and procurement cost for all dry indoor intelligent furniture OEM projects. It supports optional mounting brackets, OEM private logo printing and mixed stroke bulk orders. With CE international export certification, FD17 Mini Linear Actuator will become one of the preferred miniature electric linear actuator for mid-range customized smart furniture manufacturers worldwide, helping furniture hardware brands launch silent compact intelligent storage products and occupy growing indoor smart home hardware wholesale market share.
RFQ
Q1: Can FD17 Mini Linear Actuator work normally in humid kitchen cabinet environments?
A1: Not recommended; choose FD25 IP66 model for humid indoor scenarios.
Q2:Can FD17 Mini Linear Actuator support custom non-standard stroke from 10mm to 150mm?
A2: Yes, all stroke specifications support free OEM customization for bulk orders.
Q3: What maximum thrust can FD17 Mini Linear Actuator provide for heavy hidden cabinet panels?
A3: Peak thrust reaches 188N for medium-weight indoor cabinet structures.
Q4: Is FD17 Mini Linear Actuator quiet enough for bedroom hidden intelligent lockers?
A4: Running noise ≤55dB, maybe a little noisy, we recommend buy a sample for test first.
Q5: Does FD17 Mini Linear Actuator supply matching mounting brackets for cabinet assembly?
A5: Top & end U-type brackets are optional extra accessories for bulk orders.
Q6: Can FD17 Mini Linear Actuator work continuously for multiple opening cycles every day?
A6: Please use based on 10% duty cycle ( e.g. stop for 18 minutes after continuously working 2 minutes ), frequent operation will shorten the service life of the linear actuator.
Q7: What input voltage range does the FD17 Mini Linear Actuator accept besides standard 12V?
A7: Standard model works at DC 12V or DC 24V.
