FD16 Linear Actuator
Basic Parameter
The SANXING FD16 linear actuator is a miniature compact electric linear drive designed for confined installation space. Running on 12VDC or 24VDC, this low-noise micro actuator adopts lightweight alloy housing with built-in over-load & over-current protection. Ideal for small push-pull automation in smart home, medical devices, automotive parts and industrial compact equipment.

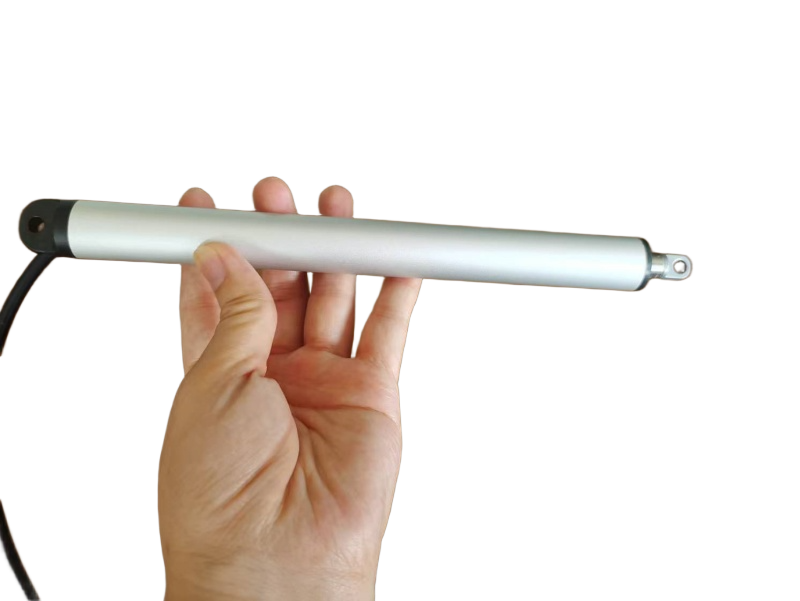

Product overview
The FD16 linear actuator is a compact, high-performance electric linear actuator developed by SANXING, engineered for quiet, reliable linear motion in compact installation spaces. It features a lightweight alloy body and built-in over-load & over-current protective functions, delivering stable performance powered by 12VDC or 24VDC. This micro push-pull actuator is widely used in smart home, automotive accessories, industrial automation, medical equipment and other fields requiring small linear reciprocating movement.
Product video
Features and Benefits
✦ Compact & Lightweight: Slim aluminum alloy tube, small occupied space, easy for concealed installation in limited equipment.
✦ Wide Compatibility: Dual voltage optional (12VDC/24VDC), multiple load/speed specifications to meet different application scenarios.
✦ Reliable Protection: Built-in over-current amd over-load protection and factory preset limit switch, effectively prevent motor burnout and over-stroke damage.
✦ Harsh Environment Adaptable: IP54/IP68 protection grade, wide operating temperature range (-25℃~+80℃), suitable for indoor and outdoor, even under water use.
✦ Low Noise & Stable: Running noise ≤55dB, smooth transmission, stable thrust and speed output, long service life.
✦ Standard Certification: CE certified, conforms to international industrial safety and quality standards.
Control options
Standard version comes with built-in mechanical limit switches to stop automatically at set stroke ends.
We offer optional upgrade solutions:
- switching the positive and negative poles of power supply
- Manual positive/negative switch control
- Matching dedicated linear actuator controllers
- This FD16 Linear Actuator was made with hall sensors, if you need you could connect the wires to achieve position feedback function with your own circuit design
Customers can select matching control schemes according to their circuit design.
Applications
✦ Smart home: Electric lifting furniture, adjustable cabinets & skylight
✦ Automotive accessories: Small vehicle adjustment and opening-closing devices
✦ Medical equipment: Adjustable medical frames, rehabilitation auxiliary apparatus
✦ Industrial automation: Mini fixtures, small automatic switching mechanisms, test equipment
✦ Other equipment requiring miniature linear push and pull motion

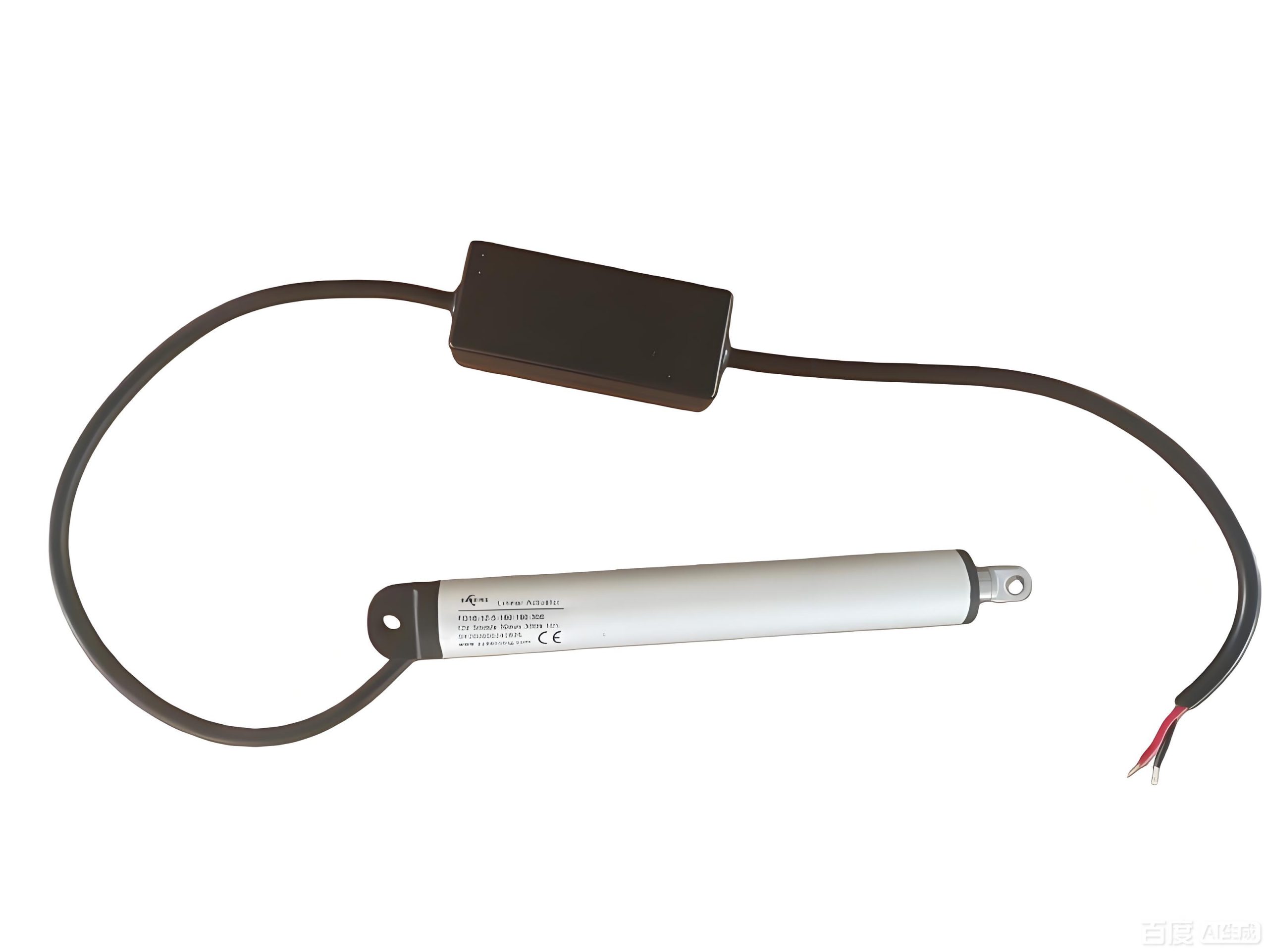

Material & Construction
The outer housing adopts lightweight aluminum alloy with fine surface treatment. Internal structure consists of high-precision gear set, durable DC motor, wear-resistant transmission screw and metal push rod. External control box, enabling program control and featuring limit switch design to avoid over-travel damage. All core components are selected for stable long-term continuous operation.
Product specifications
| Item | Specifications |
| Input Voltage | 12VDC / 24VDC |
| Max. Load Capacity | 300N, 200N, 150N, 50N, 30N (optional) |
| No-Load Speed | 5mm/s, 10mm/s, 15mm/s, 30mm/s, 35mm/s (optional) |
| Full-Load Speed | 4mm/s, 7.5mm/s, 10mm/s, 23mm/s, 25mm/s (optional) |
| Stroke Length | 10~200mm / 201~400mm / 401~800mm |
| Installation Distance | Stroke + 130mm (10~200mm stroke)Stroke + 150mm (201~400mm stroke)Stroke + 180mm (401~800mm stroke) |
| Operating Temperature | -25℃ ~ +80℃ |
| Limit Switch | Built-in, factory preset |
| Duty Cycle | 10% (2 mins continuous working, 18 mins stop) |
| Noise Level | ≤55dB |
| Material | Aluminum Alloy, Plastic, Stainless Steel |
| Color | Silver |
| IP Degree | IP54 / IP68 |
| Protection Function | Overcurrent Protection |
| Certificate | CE Certified |
Product dimension

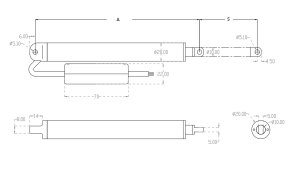

Overall dimensions depend on configured stroke length. Dimension drawings show the contracted length, extended length, installation hole spacing and outline size of FD16 linear actuator. Please refer to attached technical drawing for detailed size data before mechanical design. Contact our team if you need dimension files.
Mounting points
The FD16 linear actuator adopts standard clevis mounting structure at both ends. Mounting hole size and hole spacing follow conventional design for convenient connection with customer brackets. If standard mounting size cannot fit your equipment, we support customized end fitting structures to match your installation structure.
Performance characteristic curves

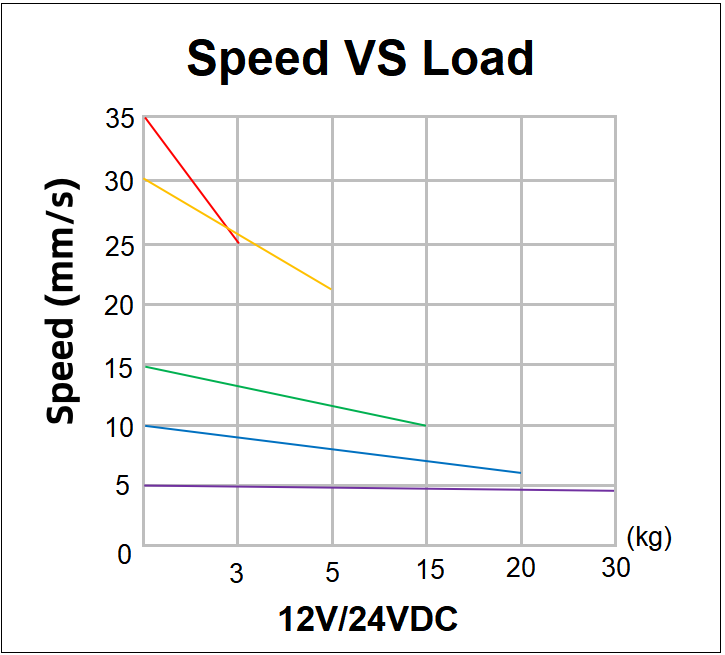

1. Speed VS Load Curve (12V/24VDC)
The output speed presents a negative correlation with load – speed decreases gradually as the external load increases. The 24VDC model maintains higher speed than the 12VDC model under the same load, showing more stable speed attenuation under heavy load.

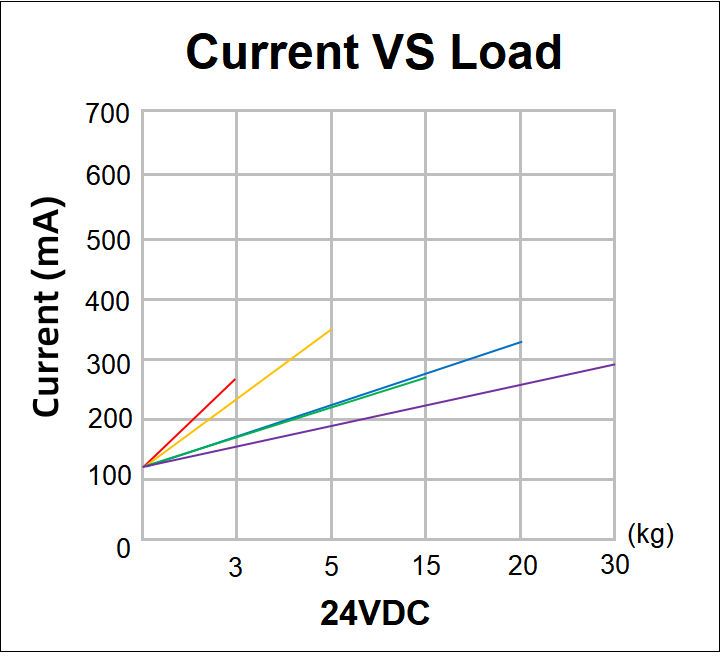

2. Current VS Load Curve (12VDC & 24VDC)
Working current rises linearly with the increase of load, showing a positive proportional relationship. The 12VDC actuator has a faster current growth rate under load, while the 24VDC model features lower operating current and more stable current rise under the same load condition, reflecting better load efficiency.
Similar Mini/Micro Linear Actuator Models
If FD16 dimension or thrust does not match your project, check our alternative compact actuators:
Frequently Asked Questions About FD16 Linear Actuator
Q1: Can FD16 work continuously underwater?
A1: FD16 IP68 version supports short-term underwater use; IP54 model is only suitable for indoor dry environment. Long-term deep immersion is not recommended.
Q2: Is FD16 suitable for narrow installation space?
A2: Yes. FD16 linear actuator is our compact miniature type, specially designed for limited mounting space where large-size actuators cannot be installed.
Q3: Can FD16 work continuously underwater?
A3: Of course yes, FD16 IP68 version supports underwater use; IP54 model is only suitable for indoor dry environment.
Q4: What controllers match FD16 2-wire linear actuator?
A4: It works with simple rocker switches, wired two-button controllers and wireless remote control systems by reversing positive/negative power polarity.
Q5: Can I customize stroke, thrust and logo on FD16?
A5: Yes, we support OEM & ODM customization for stroke, thrust, speed installation distance and surface logo. Contact us for customized solutions.
Q6: What’s the duty cycle of FD16 mini actuator?
A6: Standard duty cycle 10%: 2 minutes continuous operation followed by 18 minutes rest to protect the motor. Do not run continuously for a long time.
Q7: What is your MOQ?
A7: We support small batch trial orders. Samples are available for performance testing before mass purchase.
Get Quotation & Sample Support
If you are looking for reliable compact linear actuators for your equipment project, welcome to send us your required stroke, thrust, voltage, speed, installation and protection grade. We provide free technical consultation and sample support for customer testing.
Need Help Selecting?
Our experts can help you choose the right actuator for your application.
