Cost-Effective Tiny low force linear actuator FD17 FD25 For OEM Mini Automation Equipment

Tiny low force linear actuator covering FD17 and FD25 two miniature series is factory OEM oriented compact telescopic drive with customizable 10-150mm stroke, specially designed for mass procurement of small intelligent furniture, miniature agricultural ventilation gear, laboratory micro testing equipment and light mini automation machinery. Different from large medium-load linear actuators with redundant volume and higher cost, Tiny low force linear actuator focuses on low-load mini motion scenes with 30N to 188N stable push force, supporting universal 12V/24V DC low voltage compatible with all civilian miniature equipment power supply systems. FD17 and FD25 two variants of Tiny low force linear actuator adopt differentiated shell material, IP protection grade and appearance outline to meet OEM customization demands of dry indoor and mild humid mini equipment respectively, with optional top & end mounting brackets, factory pre-installed dual limit switches and CE safety certification, fully supporting private label OEM, stroke modification and accessory matching for wholesale factory clients.

As global small automation OEM market expands rapidly, furniture hardware factories, agricultural intelligent equipment suppliers and laboratory instrument manufacturers are eager to find cost-controllable miniature linear drive parts with customizable specifications. Most generic tiny actuators on the market only provide fixed stroke and single IP grade, failing to match diversified mini equipment design demands and limiting finished product competitiveness in wholesale channels. Tiny low force linear actuator FD17 FD25 solves this industry pain point by separating dry indoor basic version and splash-proof upgraded version, all stroke lengths from 10mm to 150mm support free OEM modification without expensive extra customization fees for bulk orders. Whether clients place monthly stable bulk orders for smart lockers, small greenhouse air vents or mini test jigs, Tiny low force linear actuator delivers smooth, vibration-free short-stroke linear movement, helping OEM manufacturers cut raw material cost and launch differentiated compact finished goods to capture mid-range miniature hardware wholesale market share.

For procurement engineers and structural designers who select miniature linear components for OEM projects, the two models under Tiny low force linear actuator series have clear targeted positioning without overlapping application scenarios. FD17 is the basic compact Tiny low force linear actuator with IP54 dustproof grade and black plastic housing, best suited for dry indoor cabinet and indoor mini automation equipment with low budget demand. FD25 upgrades to IP66 splash-proof silver zinc alloy housing Tiny low force linear actuator, adapting to slightly humid indoor environment and sheltered mild outdoor mini ventilation equipment. Both models share unified thrust, speed and customizable stroke range of 10-150mm, which unifies factory accessory inventory management and reduces multi-model procurement workload for OEM buyers.

Brief Core Technical Parameters of FD17 & FD25 Tiny low force linear actuator

All parameter indicators of FD17 and FD25 Tiny low force linear actuator are optimized around factory OEM mini automation positioning, core specs sorted clearly for fast buyer selection:

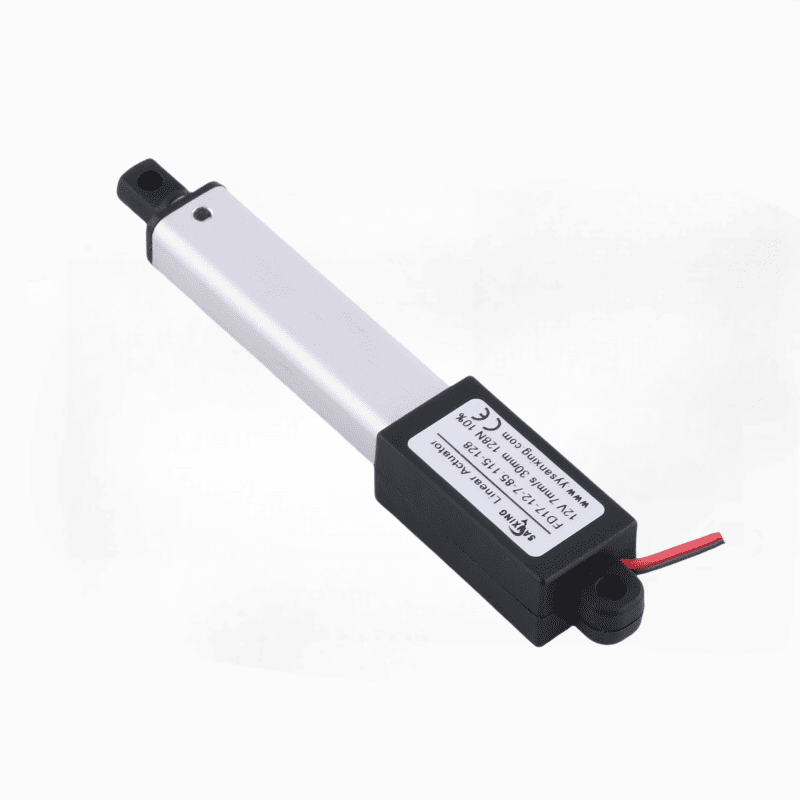

FD17 Tiny low force linear actuator

1. Input Voltage: 12VDC / 24VDC dual universal low voltage
2. Graded Max Push Load: 188N / 120N / 60N / 30N low force options
3. No-Load Speed: 4 / 7 / 15 / 30 mm/s; Full-Load Speed: 2.4 / 4.9 / 10 / 21 mm/s
4. Customizable Stroke Scope: 10mm ~ 150mm full OEM adjustable stroke
5. Minimum Installation Distance: Stroke +55/60/70mm ultra-compact mounting size
6. IP Protection Class: IP54 basic dustproof for dry indoor use
7. Operating Temperature: -10℃ ~ +50℃ normal indoor temperature range
8. Noise Level: ≤55dB mild low running sound
9. Material & Color: Aluminum alloy, plastic, stainless steel, black housing
10. Optional Accessories: Top and end mounting brackets, OEM private label printing support
11. Certification: CE export safety certification, built-in bidirectional limit switches

FD17 upgrades to integrated curved streamlined motor outline, reducing lateral occupied space for embedded installation in thick heavy furniture frames. If you are satisfied with the load performance of old miniature actuator models, switching to FD17 compact miniature automation linear drive requires zero modification of furniture structural drawings, bringing no extra mold development cost to your factory while optimizing internal layout aesthetics.

FD25 Tiny low force linear actuator

1. Input Voltage: 12VDC / 24VDC same dual voltage as FD17
2. Graded Max Push Load: 188N / 120N / 60N / 30N consistent low force grades
3. No-Load Speed: 4 / 7 / 15 / 30 mm/s; Full-Load Speed: 2.4 / 4.9 / 10 / 21 mm/s
4. Customizable Stroke Scope: 10mm ~ 150mm fully OEM customizable stroke
5. Minimum Installation Distance: Stroke +60/70mm compact mounting dimension
6. IP Protection Class: IP66 dustproof & splash-proof for humid mild outdoor scenes
7. Operating Temperature: -10℃ ~ +50℃ standard temperature range
8. Noise Level: ≤55dB consistent low noise performance
9. Material & Color: Aluminum alloy, zinc alloy, silver streamlined shell
10. Optional Accessories: Top & end mounting brackets, OEM custom logo on shell
11. Certification: CE safety certification, factory preset limit protection

FD25 upgrades to IP66 medium waterproof grade with silver streamlined appearance, adapting to indoor slightly humid environment and mild outdoor sheltered scenes, this waterproof tiny low force telescopic actuator is widely matched for humid mini cabinet and small ventilation automation equipment. The unified 12V/24V dual voltage design of Tiny low force linear actuator unifies the accessory supply chain for OEM equipment factories, reducing multi-model inventory pressure and procurement management cost.

Main OEM Mini Automation Application Scenarios of Tiny low force linear actuator

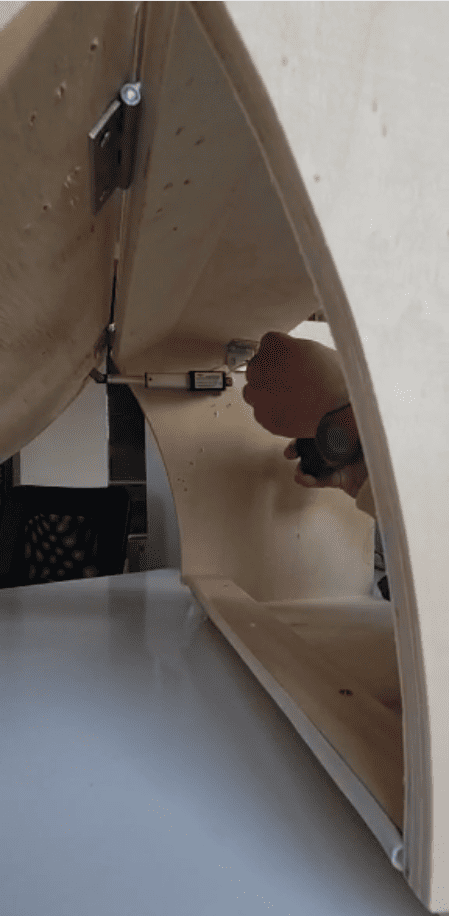

1. OEM Smart Mini Cabinet & Hidden Lifting Furniture

Mass-produced intelligent storage lockers, hidden mini TV lifting frames and bedside compact storage cabinets are the largest OEM downstream application of Tiny low force linear actuator. Ultra-short minimum installation distance enables embedding into narrow cabinet interlayers that ordinary large-size actuators cannot fit. 30N~188N stable thrust smoothly pushes cabinet door pop-up and hidden equipment lifting, 12V/24V low voltage eliminates household electric shock risks, IP54/IP66 optional protection resists living room dust and occasional beverage spills. Furniture hardware OEM factories widely match FD17 and FD25 Tiny low force linear actuator for mass production of compact intelligent storage furniture, effectively controlling raw material cost without sacrificing smooth adjustment experience of finished products.

2. Mini Agricultural Ventilation Window OEM Equipment

Small ventilation windows for household mini greenhouses, indoor planting box automatic air vents and poultry micro air baffle adjustment machinery rely on Tiny low force linear actuator as core OEM driving parts. Mini agricultural equipment often faces humid environment and large day-night temperature difference, FD25 IP66 splash-proof Tiny low force linear actuator can resist dew and irrigation water splashes. Low thrust slow-speed stretching avoids violent impact to fragile small window frames, built-in limit switch prevents over-travel damage of ventilation structure, favored by small agricultural intelligent equipment OEM factories with bulk monthly orders.

3. Laboratory Micro Testing OEM Instruments

Micro experimental fixture adjustment, miniature testing platform displacement mechanism and small medical auxiliary detection instruments need ultra-compact linear drive OEM components, and Tiny low force linear actuator perfectly meets tiny internal layout demand of laboratory precision equipment. Compact slim body design saves limited internal space of micro instruments, customizable 10-150mm short stroke supports multi-distance precision displacement testing, and CE certification meets laboratory electrical safety inspection standards for export OEM orders.

4. Light Industrial Mini Assembly OEM Jigs

Mini packaging machine baffle adjustment, small toy automatic assembly fixture and miniature conveying equipment positioning mechanism all adopt Tiny low force linear actuator to complete short-stroke repeated linear movement. FD17 black low-cost Tiny low force linear actuator has low wholesale unit price, suitable for mass OEM production of low-thrust small automation equipment, 10% standard duty cycle adapts intermittent short-time operation of miniature assembly lines.

5. RV Mini Intelligent OEM Auxiliary Equipment

Recreational vehicle hidden small storage cabinets, miniature sunshade expansion mechanisms and RV bedside compact lifting tables use Tiny low force linear actuator for automatic OEM adjustment. Dual 12V/24V voltage fully matches vehicle-mounted battery power supply system, ultra-small body does not occupy limited RV internal space, FD25 IP66 splash-proof grade resists outdoor dew and light rain during parking. RV modification hardware OEM suppliers select Tiny low force linear actuator series to enrich intelligent auxiliary functions of miniature car interior finished products.

Core OEM Competitive Advantages of FD17 FD25 Tiny low force linear actuator

1. 10-150mm full customizable stroke for flexible OEM matching

The core OEM advantage of Tiny low force linear actuator series is fully adjustable stroke range from 10mm to 150mm, supporting clients to modify travel length according to their furniture and equipment drawing demands without extra high customization fees for bulk orders. Most competing miniature actuators only provide fixed standard stroke, forcing OEM manufacturers to redesign equipment structures to fit actuator travel, which increases mold development cost and delivery cycle. As analyzed by mechanical motion authoritative media Automation World, fully customizable stroke miniature linear actuators represented by FD17 FD25 have become the top choice for OEM mass production factories, greatly shortening finished product development cycle.

2. Two differentiated IP grades to cover all indoor OEM scenarios

Tiny low force linear actuator provides FD17 IP54 dry indoor basic version and FD25 IP66 splash-proof upgraded version, allowing OEM buyers to select targeted models according to equipment working environment. Dry indoor cabinet OEM projects choose low-cost FD17 to control procurement budget; humid mini agricultural and sheltered outdoor OEM equipment selects FD25 waterproof model to avoid after-sales failure caused by liquid splashes. According to test data released by Machine Design, graded protection linear actuator series can reduce comprehensive OEM procurement cost for equipment manufacturers by 15% to 25% compared with single-spec miniature actuators.

3. Complete factory OEM support including private label & mounting brackets

All Tiny low force linear actuator support full OEM services: custom logo printing on aluminum alloy and plastic housing, optional top & end mounting brackets matching diversified equipment installation drawings, mixed stroke/thrust bulk order mixing without minimum single-stroke MOQ restriction. Unified 12V/24V dual voltage design reduces factory spare parts inventory types, helping OEM brands build exclusive finished product appearance without extra accessory matching cost.

4. Ultra-compact mounting size matching miniature OEM equipment layout

FD17 shortest mounting dimension reaches Stroke+55mm, the slimmest Tiny low force linear actuator in same thrust range on the market, can be embedded into extremely narrow miniature equipment frames and thin cabinet interlayers. Different from bulky generic miniature actuators requiring large reserved installation space, Tiny low force linear actuator realizes miniaturization of linear drive function while retaining complete dual limit safety protection configuration, simplifying structural design difficulty for OEM miniature equipment engineers.

5. Low noise stable operation for quiet indoor OEM scenes

All Tiny low force linear actuator models control running noise below ≤55dB, without harsh mechanical buzzing sound during adjustment. It fits quiet indoor OEM scenes such as bedroom intelligent cabinets, laboratory testing rooms and living room hidden furniture, effectively reducing finished product return rate caused by loud adjustment noise for OEM furniture and instrument brands.

Standard OEM Installation & Maintenance Guidelines for Tiny low force linear actuator

To extend service life and keep stable smooth OEM mass production performance of Tiny low force linear actuator installed on mini automation equipment, follow standardized operation rules strictly:

1. Mounting specification: Fix Tiny low force linear actuator on flat thin rigid equipment support plate, prohibit long-term lateral eccentric load; side force will wear internal tiny gears rapidly and reduce actual output thrust of Tiny low force linear actuator.
2. Power supply matching: Equip matched stabilized 12V or 24V DC power supply per actuator rated voltage, unstable voltage fluctuation leads to inconsistent telescopic speed and accelerates miniature motor aging, affecting OEM finished product stability test.
3. Duty cycle compliance: Abide by standard 10% duty cycle (2 mins continuous work + 18 mins rest), forbid long-hour continuous frequent adjustment to prevent miniature motor overheating burnout during OEM mass production testing.
4. Environmental maintenance: For FD17 IP54 Tiny low force linear actuator, avoid long-term damp environment and liquid splashes; FD25 IP66 can be wiped with damp cloth, long-term full water immersion is prohibited for both models.
5. OEM pre-delivery inspection: Before shipping bulk OEM orders, uniformly calibrate limit switch sensitivity and wiring tightness of Tiny low force linear actuator to eliminate abnormal stalling risk of client finished equipment after assembly.

Conclusion

Tiny low force linear actuator FD17 FD25 series is a factory OEM oriented full-spec compact low-thrust linear motion component suite, exclusively developed for global small intelligent furniture, miniature agricultural ventilation equipment and laboratory precision testing instrument mass procurement demands. It breaks the market pain point of single fixed stroke and single IP grade miniature actuators, providing two differentiated OEM models with customizable 10-150mm stroke, different waterproof grades and compact ultra-slim installation sizes, allowing OEM buyers to select cost-matched accessories according to actual equipment working conditions without redundant performance cost waste.

With fully customizable stroke length, complete private label OEM service, optional mounting brackets and built-in dual limit safety protection functions, Tiny low force linear actuator solves multiple core procurement troubles of miniature equipment OEM factories including fixed stroke limitation, mismatched waterproof performance and single appearance without brand customization support. As the global demand for mini intelligent hardware OEM mass orders continues to expand year by year, Tiny low force linear actuator FD17 FD25 will become the mainstream preferred customizable miniature linear drive accessory for small automation OEM manufacturers, helping furniture and instrument brands launch cost-competitive compact finished products and occupy more mid-range miniature hardware wholesale market share globally.

---

RFQ

Q1: What is the main difference between FD17 and FD25 Tiny low force linear actuator for OEM selection?

A1: FD17 IP54 black for dry indoor cabinets; FD25 IP66 silver splash-proof for humid mini application.

Q2: Can I customize stroke length 10mm-150mm on Tiny low force linear actuator for OEM projects?

A2: Yes, all stroke within 10-150mm supports free OEM modification without extra fees.

Q3: Does Tiny low force linear actuator support OEM private logo printing on housing for my brand?

A3: OEM custom logo printing on label of black housing is available for even sample orders. If you require laser marking, it’s based on bulk orders.

Q4: What maximum thrust can Tiny low force linear actuator provide for heavy mini cabinet OEM equipment?

A4: Top thrust option reaches 188N to fit most medium-load miniature lifting structures.

Q5: Are mounting brackets supplied together with Tiny low force linear actuator OEM bulk orders?

A5: Top & end mounting brackets are optional extra accessories for OEM mass orders.
