Comprehensive miniature small linear actuator Guide FD16 FD17 FD25 For Compact Mini Automation Equipment

Miniature small linear actuator covering FD16, FD17 and FD25 three product series is a series of ultra-compact low-thrust telescopic motion components specially developed for mini automation equipment, intelligent small furniture, miniature agricultural ventilation equipment and laboratory tiny testing devices. Unlike medium and heavy-duty linear actuators with large body size and high load output, miniature small linear actuator focuses on ultra-small installation space demand, with thrust range from 30N to 300N, supporting dual universal 12V/24V DC low safe voltage, which perfectly matches the power supply specification of small civil and light industrial automatic equipment. Each model of miniature small linear actuator reserves differentiated protection grade, stroke range and temperature resistance performance to meet diversified environmental demand of different mini automation projects, including IP54 daily dustproof basic version, IP66 medium waterproof model and IP68 high temperature & fully waterproof upgraded model. With built-in factory pre-installed bidirectional limit switches and optional mounting brackets, miniature small linear actuator solves multiple core pain points of miniature equipment developers: insufficient reserved installation space, mismatched waterproof grade, single adjustable stroke and narrow applicable temperature range.

With the rapid expansion of global miniature automation market, equipment OEM factories and intelligent hardware brands are in urgent need of compact linear drive accessories that can be embedded into narrow internal equipment frames. Most ordinary linear actuators on the market have large outer diameter and long minimum installation distance, which cannot be installed inside mini lockers, small ventilation windows and micro test instruments. miniature small linear actuator FD16 FD17 FD25 series fills this market blank, each model optimizes body outline and installation size according to targeted application scenarios, while retaining complete core safety configurations including limit protection and low-noise transmission structure. Whether mass-producing intelligent cabinet lifting mechanisms, miniature agricultural ventilation actuators, laboratory micro testing equipment or hidden small TV lifting frames, miniature small linear actuator can output smooth stable low-thrust linear stretching movement, helping mini automation equipment manufacturers launch differentiated compact finished products and seize the fast-growing miniature intelligent hardware market share.

For procurement engineers and structural designers who need to select miniature linear drive parts, the three models under miniature small linear actuator series have clear differentiated positioning, and customers can select matching models according to load, waterproof grade, stroke length and working temperature demand. FD17 is the most ultra-thin basic miniature small linear actuator with IP54 protection, suitable for indoor dry small cabinet equipment; FD25 upgrades to IP66 medium waterproof grade with silver streamlined appearance, adapting to indoor slightly humid environment and mild outdoor sheltered scenes; FD16 is the high-end flagship miniature small linear actuator with optional IP68 fully waterproof, wide temperature resistance of -25℃~+80℃ and exclusive overcurrent protection function, which can work stably in high temperature, low temperature and long-term damp harsh miniature automation scenes. The unified 12V/24V dual voltage design of miniature small linear actuator unifies the accessory supply chain for equipment factories, reducing multi-model inventory pressure and procurement management cost.

Brief Core Technical Parameters of FD16 FD17 FD25 miniature small linear actuator

All parameter configurations of three series are centered on the compact mini automation positioning of miniature small linear actuator, key differentiated specifications sorted as below for quick selection:

1. FD17 miniature small linear actuator

1. Rated Voltage: 12VDC / 24VDC
2. Graded Max Push Load: 188N / 120N / 60N / 30N
3. No-Load Speed: 4 / 7 / 15 / 30 mm/s; Full-Load Speed: 2.4 / 4.9 / 10 / 21 mm/s
4. Customizable Stroke: 10mm ~ 150mm short miniature stroke
5. Min Installation Distance: Stroke +55/60/70mm ultra-short mounting size
6. Protection Grade: IP54 dustproof, only for dry indoor environment
7. Operating Temperature: -10℃ ~ +50℃ normal indoor temperature
8. Noise Level: ≤55dB, optional top & end mounting brackets
9. Material & Color: Aluminum alloy, plastic, stainless steel, black housing
10. Certification: CE safety certification, basic built-in limit switch

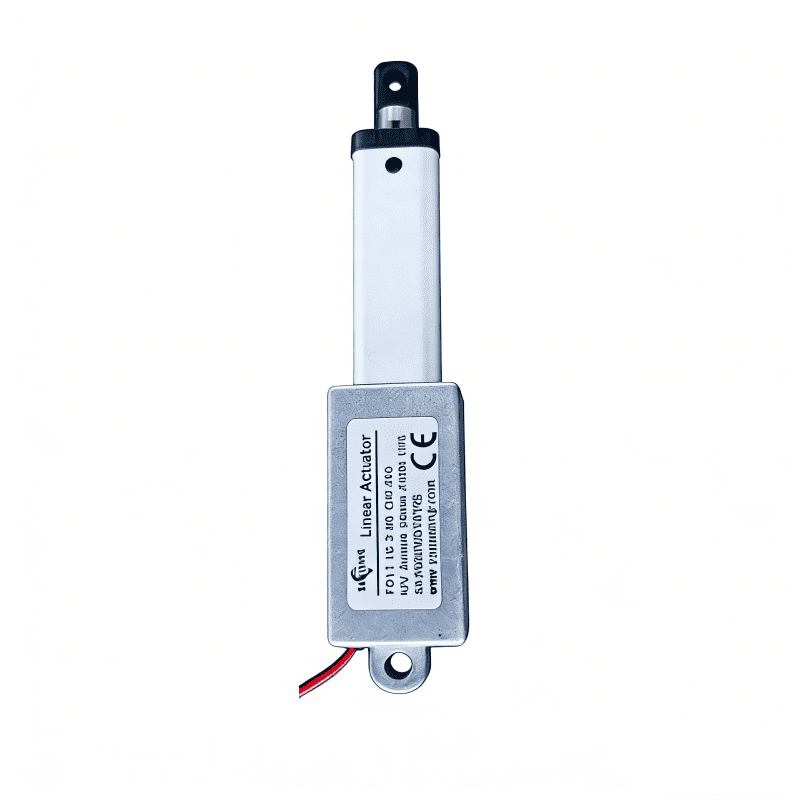

2. FD25 miniature small linear actuator

1. Rated Voltage: 12VDC / 24VDC
2. Graded Max Push Load: 188N / 120N / 60N / 30N consistent load with FD17
3. No-Load Speed: 4 / 7 / 15 / 30 mm/s; Full-Load Speed: 2.4 / 4.9 / 10 / 21 mm/s
4. Customizable Stroke: 10mm ~ 150mm same short stroke range as FD17
5. Min Installation Distance: Stroke +60/70mm compact mounting dimension
6. Protection Grade: IP66 dustproof & splash-proof, resist mild water spray
7. Operating Temperature: -10℃ ~ +50℃ normal temperature range
8. Noise Level: ≤55dB, top and end mounting brackets optional accessories
9. Material & Color: Aluminum alloy, zinc alloy, silver streamlined shell
10. Certification: CE export certification, built-in dual limit switches

FD25 upgrades to IP66 medium waterproof grade with silver streamlined appearance, adapting to indoor slightly humid environment and mild outdoor sheltered scenes, this waterproof tiny low force telescopic actuator is widely matched for humid mini cabinet and small ventilation automation equipment. The unified 12V/24V dual voltage design of miniature small linear actuator unifies the accessory supply chain for equipment factories, reducing multi-model inventory pressure and procurement management cost.

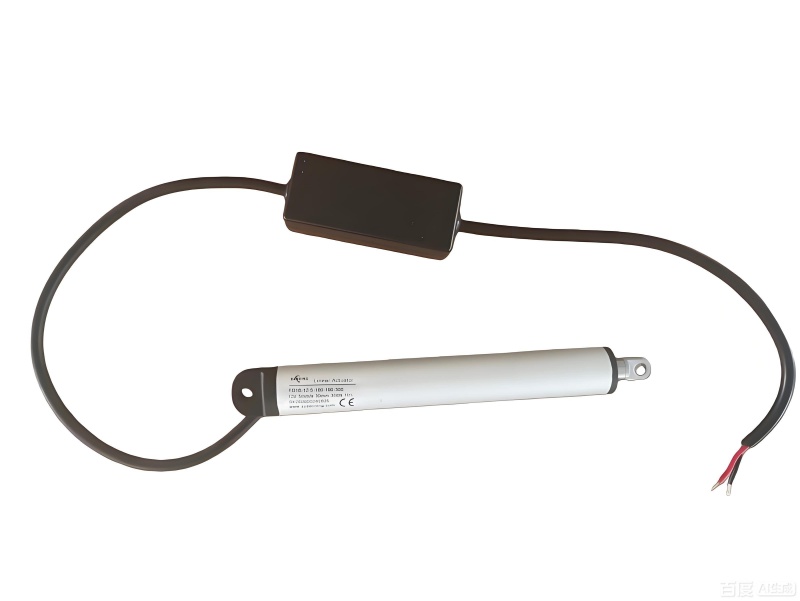

3. FD16 miniature small linear actuator (High-End Flagship Model)

1. Rated Voltage: 12VDC / 24VDC universal low voltage
2. Graded Max Push Load: 300N / 200N / 150N / 50N / 30N stronger maximum thrust
3. No-Load Speed: 5 / 10 / 15 / 30 / 35 mm/s; Full-Load Speed: 4 / 7.5 / 10 / 23 / 25 mm/s
4. Customizable Stroke: 10mm ~ 800mm ultra-wide adjustable stroke range
5. Min Installation Distance: Stroke +130 / +150 / +180mm multi-size mounting option
6. Protection Grade: Optional IP54 or IP68 full waterproof two grades
7. Operating Temperature: -25℃ ~ +80℃ ultra-wide temperature resistance
8. Exclusive Function: Built-in overcurrent protection circuit, avoid motor burnout under stall
9. Noise Level: ≤55dB, aluminum alloy silver shell
10. Certification: CE & RoHS double certification, industrial wide temperature adaptation

The differentiated parameter design of three models of miniature small linear actuator allows buyers to avoid over-specification cost waste. Simple indoor dry mini cabinet equipment can select low-cost FD17 IP54 version; equipment needing anti-splash performance chooses FD25 IP66 model; miniature automation equipment working in high/low temperature or long-term damp environment adopts FD16 IP68 wide-temperature flagship miniature small linear actuator.

Main Mini Automation Application Scenarios of miniature small linear actuator

1. Intelligent Mini Cabinet & Hidden Small Furniture Lifting Mechanism

Small smart lockers, hidden mini TV lifting frames and bedside compact storage cabinets are the largest civil application of miniature small linear actuator. As a compact miniature automation linear drive, miniature small linear actuator’s ultra-short installation distance can be embedded into narrow cabinet interlayers that ordinary large-size actuators cannot fit. 30N~188N stable thrust can smoothly push cabinet door pop-up and hidden equipment lifting, 12V/24V low voltage eliminates household electric shock hidden danger, IP54/IP66 optional protection grade resists living room dust and occasional beverage spills. Furniture hardware manufacturers widely match FD17 and FD25 miniature small linear actuator for mass production of compact intelligent storage furniture, effectively controlling raw material cost without sacrificing smooth adjustment experience of finished products.

2. Miniature Agricultural Ventilation & Greenhouse Small Window Equipment

Small ventilation windows for household mini greenhouses, indoor planting box automatic air vents and poultry micro air baffle adjustment equipment rely on miniature small linear actuator as core driving parts. Agricultural miniature equipment often faces humid environment and large temperature difference between day and night, FD16 wide temperature miniature small linear actuator can work stably under -25℃~+80℃, optional IP68 waterproof grade resists dew and irrigation water splashes. Low thrust slow-speed stretching avoids violent impact to fragile small window frames, built-in limit switch prevents over-travel damage of ventilation structure, which is favored by small agricultural intelligent equipment OEM factories.

3. Laboratory Micro Testing & Mini Precision Automation Equipment

Micro experimental fixture adjustment, miniature testing platform displacement mechanism and small medical auxiliary detection instruments need ultra-compact linear drive components, and miniature small linear actuator perfectly meets the tiny internal layout demand of laboratory precision equipment. FD16 flagship miniature small linear actuator with overcurrent protection function can automatically cut off power when stuck, protecting expensive experimental testing equipment from collision damage. Ultra-slim body design saves limited internal space of micro instruments, customizable long stroke up to 800mm supports multi-distance precision displacement testing, and CE certification meets laboratory electrical safety inspection standards.

4. Light Industrial Mini Automatic Equipment & Small Assembly Jigs

Mini packaging machine baffle adjustment, small toy automatic assembly fixture and miniature conveying equipment positioning mechanism all adopt miniature small linear actuator to complete short-stroke repeated linear movement. FD17 and FD25 miniature small linear actuator have low wholesale unit price, suitable for mass production of low-thrust small automation equipment, 10% standard duty cycle adapts intermittent short-time operation of miniature assembly lines. IP66 FD25 model can resist workshop cutting fluid splashes and floating metal dust, reducing equipment maintenance frequency for small light industrial factories.

5. RV Mini Auxiliary Intelligent Equipment

Recreational vehicle hidden small storage cabinets, miniature sunshade expansion mechanisms and RV bedside compact lifting tables use miniature small linear actuator for automatic adjustment. Dual 12V/24V voltage is fully compatible with vehicle-mounted battery power supply system, ultra-small body does not occupy limited RV internal space, IP66 FD25 splash-proof grade resists outdoor dew and light rain when parking outdoors. RV modification hardware suppliers select miniature small linear actuator series to enrich intelligent auxiliary functions of miniature car interior equipment.

Core Differentiated Advantages of FD16 FD17 FD25 miniature small linear actuator

1. Ultra-compact mounting size exclusive for miniature equipment

The core competitive advantage of miniature small linear actuator series is ultra-short minimum installation distance, far shorter than conventional medium-load linear actuators on the market. FD17’s shortest mounting dimension is Stroke+55mm, which can be embedded into extremely narrow miniature equipment frames, solving the layout difficulty of small automation structural designers. Different from bulky ordinary actuators that need large reserved installation space, miniature small linear actuator realizes miniaturization of linear drive function without sacrificing safety limit protection configuration. As analyzed by mechanical motion authoritative media Automation World, ultra-compact low-thrust miniature linear actuators represented by FD16 FD17 FD25 have become a major development trend of civil light automation components, meeting the explosive market demand of mini intelligent hardware.

2. Multi-model differentiated waterproof & temperature grade matching all scenarios

Most miniature linear actuators on the market only provide single IP protection and narrow temperature range, while miniature small linear actuator covers IP54, IP66 and optional IP68 three protection levels, and FD16 supports ultra-wide -25℃~+80℃ temperature resistance. Buyers can select targeted models according to actual working environment, avoiding extra cost of purchasing high waterproof wide-temperature actuators for dry indoor equipment, or preventing equipment failure caused by insufficient protection grade for damp outdoor miniature devices. According to test data released by Machine Design, graded protection linear actuator series can effectively reduce comprehensive procurement cost for equipment manufacturers by 15% to 25% compared with single-spec miniature actuators.

3. Optional mounting brackets & fully customizable stroke specifications

All three models of miniature small linear actuator support optional top and end mounting brackets, matching diversified equipment installation structural drawings. Stroke length can be customized from 10mm to maximum 800mm (FD16), covering short-stroke mini cabinet pop-up and long-stroke miniature platform lifting demand. Unified 12V/24V dual voltage design reduces factory spare parts inventory types, and bulk orders support OEM private label printing on aluminum alloy shell to help finished equipment brands build exclusive product appearance.

4. Built-in complete safety protection configuration

Every miniature small linear actuator leaves the factory with factory calibrated bidirectional mechanical limit switches, automatically cutting off power supply when reaching maximum/minimum stroke to prevent internal gear and motor damage caused by over-travel. FD16 flagship model adds exclusive overcurrent protection circuit, which can automatically stop operation under stall and overload state, greatly improving the safety of high-value laboratory and agricultural miniature equipment, a function that most low-cost miniature linear actuators do not equip.

5. Low running noise suitable for indoor quiet miniature scenes

The running noise of all miniature small linear actuator models is controlled below ≤55dB, which will not produce harsh mechanical buzzing sound during adjustment. It is very suitable for quiet indoor scenes such as bedroom intelligent cabinets, laboratory testing rooms and living room hidden furniture, avoiding user complaints caused by loud adjustment noise of miniature intelligent equipment.

Standard Installation & Daily Maintenance Guidelines for miniature small linear actuator

To extend service life and keep stable smooth operation of miniature small linear actuator installed on mini automation equipment, follow standardized operation rules strictly:

1. Mounting specification: Fix miniature small linear actuator on flat thin rigid equipment support plate, prohibit long-term lateral eccentric load; side force will wear internal tiny gears rapidly and reduce the actual output thrust of miniature small linear actuator.
2. Power supply matching: Equip matched stabilized 12V or 24V DC power supply per actuator rated voltage, unstable voltage fluctuation will lead to inconsistent telescopic speed and accelerate miniature motor aging.
3. Duty cycle compliance: Abide by standard 10% duty cycle (2 mins continuous work + 18 mins rest), forbid long-hour continuous frequent adjustment to prevent miniature motor overheating burnout.
4. Environmental maintenance: For IP54 FD17 miniature small linear actuator, avoid long-term damp environment and liquid splashes; IP66 FD25 and IP68 FD16 can be wiped with damp cloth, but long-term full water immersion is prohibited.
5. Regular safety inspection: Every 3 months check wiring tightness and limit switch sensitivity of miniature small linear actuator, replace aging thin power cords timely to avoid sudden stalling of miniature automation equipment.

Conclusion

miniature small linear actuator series including FD16, FD17 and FD25 is a full-spec compact low-thrust linear motion component suite specially developed for global miniature automation equipment, intelligent small furniture, micro agricultural ventilation devices and laboratory precision testing instruments. It breaks the market single-specification pain point of miniature linear actuators, providing three differentiated models with different thrust, waterproof grade, stroke range and temperature resistance performance, allowing buyers to select cost-matched accessories according to actual equipment working conditions without redundant performance cost waste.

With ultra-compact mounting size, optional mounting brackets, customizable stroke length and complete built-in safety protection functions, miniature small linear actuator solves multiple core design troubles of miniature equipment structural engineers such as insufficient installation space, mismatched waterproof performance and single adjustable stroke. As the market demand for mini intelligent hardware and micro automation equipment continues to grow year by year, miniature small linear actuator FD16 FD17 FD25 will become the mainstream preferred full-series miniature linear drive accessory for miniature equipment OEM factories, helping manufacturers launch competitive compact finished products and occupy more miniature automation market share globally.

---

RFQ

Q1: What is the core difference between FD16, FD17 and FD25 miniature small linear actuator?

A1: FD17 IP54 indoor basic; FD25 IP66 splash-proof; FD16 IP68 wide temp & max 300N thrust flagship.

Q2: Can miniature small linear actuator be customized with short stroke 10mm for tiny cabinet pop-up?

A2: Yes, all three models support customized stroke starting from 10mm.

Q3: Is FD16 miniature small linear actuator usable for high temperature outdoor miniature agricultural equipment?

A3: Yes, FD16 supports -25℃~+80℃ wide temperature with optional IP68 waterproof.

Q4: Does miniature small linear actuator come with mounting brackets for equipment assembly?

A4: Top & end brackets are optional extra accessories for the FD17 series only at present.

Q5: What maximum thrust can miniature small linear actuator reach for heavy miniature lifting structures?

A5: FD16 flagship model provides up to 300N peak push load for heavier mini equipment.
