Professional Selection Guide Small waterproof linear actuator FD16 Wide Temp High IP Mini Linear Drive

Small waterproof linear actuator FD16 is a high ingress protection miniature telescopic drive designed exclusively for damp, outdoor, high-low temperature mini automation equipment, filling the market gap of ordinary micro actuators with low IP rating and narrow working temperature range. Different from FD17 IP54 indoor basic model and FD25 IP66 splash-proof miniature actuator, Small waterproof linear actuator adopts advanced multi-layer fluorosilicone sealing structure, supporting optional IP68 full waterproof grade and ultra-wide operating temperature from -25℃ to +80℃, with exclusive built-in overcurrent protection circuit to avoid motor burnout under stall or overload state. The thrust range of Small waterproof linear actuator covers 30N to 300N, wider than FD17 and FD25’s max 188N thrust, and customizable stroke extends from 10mm up to 800mm, meeting short-stroke cabinet pop-up and long-stroke miniature lifting platform demand at the same time. Equipped with universal 12V/24V DC low voltage, factory pre-calibrated bidirectional mechanical limit switches and CE & RoHS double certification, Small waterproof linear actuator solves three core pain points of miniature equipment OEM factories: equipment failure caused by water and dust intrusion, unable to work normally in extreme high/low temperature environment, and motor damage due to unexpected stall overload.

With the rapid growth of outdoor miniature automation, mini agricultural ventilation equipment and laboratory precision instrument market, procurement engineers are hard to find compact micro linear drive that can run stably in harsh damp and temperature-changing scenes. Most low-cost miniature linear actuators only provide IP54 or IP66 low protection grade, which cannot resist long-term dew immersion, irrigation water splashes and extreme cold/hot working environment, leading to high after-sales return rate of finished equipment. Small waterproof linear actuator FD16 perfectly solves this industry trouble by upgrading sealing structure and internal circuit protection design, retaining ultra-compact miniature body size without sacrificing waterproof and temperature resistance performance. Whether mass-producing outdoor mini greenhouse ventilation windows, damp laboratory micro testing equipment, RV exterior small intelligent mechanisms or wet workshop miniature assembly jigs, Small waterproof linear actuator delivers smooth stable linear stretching output, helping equipment manufacturers launch high-reliability harsh-environment miniature finished products and occupy differentiated high-end mini automation market share.

For buyers who are choosing miniature linear drive for multi-scene OEM projects, FD16 Small waterproof linear actuator has clear differentiated advantages compared with FD17 and FD25 miniature series. FD17 is only IP54 dustproof for dry indoor cabinet use, FD25 reaches IP66 anti-splash but cannot bear long-term water immersion and wide temperature difference, while Small waterproof linear actuator FD16 supports optional IP68 full waterproof, adapting to fully damp and occasional short-time water immersion working conditions, and its -25℃~+80℃ wide temperature range can work normally in cold northern outdoor and high-temperature southern greenhouse environments. Besides, Small waterproof linear actuator FD16 provides maximum 300N push force, stronger than FD17 and FD25’s 188N top load, suitable for heavier miniature lifting structures that medium-thrust micro actuators cannot support. Unified dual 12V/24V voltage design of Small waterproof linear actuator unifies accessory power supply matching standard with FD17 and FD25, reducing multi-model inventory management pressure for OEM factories.

Brief Complete Technical Parameters of FD16 Small waterproof linear actuator

All specifications of FD16 are optimized around the high IP, wide temperature and heavy mini load positioning of Small waterproof linear actuator, core differentiated indicators sorted as below for fast buyer selection:

1. Rated Input Voltage: Dual universal 12VDC / 24VDC safe low voltage, compatible with all miniature equipment power supply systems
2. Graded Max Push Load: 300N / 200N / 150N / 50N / 30N, top 300N stronger than FD17/FD25 188N max thrust
3. No-Load Telescopic Speed: 5 / 10 / 15 / 30 / 35 mm/s; Full-Load Stable Speed: 4 / 7.5 / 10 / 23 / 25 mm/s, no speed drop under full heavy mini load
4. Customizable Stroke Scope: 10mm ~ 800mm ultra-wide adjustable stroke, far longer than FD17/FD25 max 150mm stroke limit

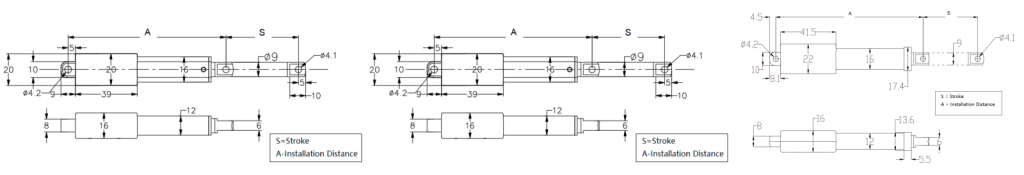

5. Minimum Installation Distance: Stroke +130 / +150 / +180mm multi-size compact mounting options for different equipment layout
6. IP Protection Grade: Optional IP54 basic dustproof or IP68 full waterproof two grades, core high IP competitive advantage
7. Operating Temperature Range: -25℃ ~ +80℃ ultra-wide temperature resistance, adapt extreme cold and high-temperature harsh environment
8. Exclusive Safety Function: Built-in overcurrent protection circuit, automatic power cut under stall/overload to protect motor
9. Running Noise Level: ≤55dB mild low sound, fit quiet laboratory and residential miniature equipment scenes

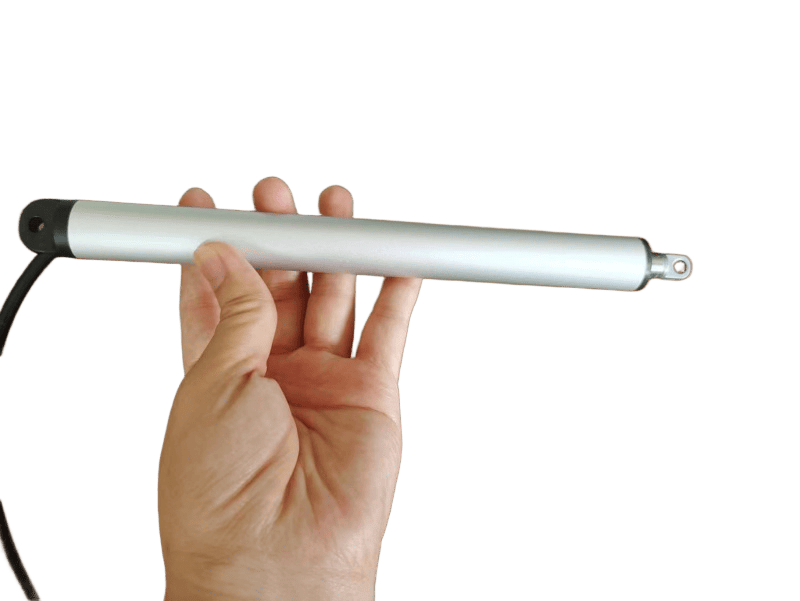

10. Material & Color: Corrosion-resistant aluminum alloy telescopic tube, stainless steel internal gears, silver streamlined housing
11. Safety Certification: CE + RoHS double international export certification, meet global miniature equipment electrical standards
12. Standard Protection: Factory pre-installed bidirectional mechanical limit switches to prevent over-travel damage

FD17 and FD25 miniature series only apply to dry or slightly humid indoor scenes, if your project needs to run in long-term damp, outdoor or extreme temperature environment, Small waterproof linear actuator FD16 is the only reliable matching miniature linear drive without equipment failure risk. If you only need basic indoor dry mini cabinet adjustment, you can choose cost-effective compact miniature automation linear drive FD17 to control raw material procurement budget; if your equipment works in mild humid sheltered indoor scenes without long-term water immersion demand, waterproof tiny low force telescopic actuator FD25 is a balanced cost choice between waterproof grade and unit price.

Main Harsh Environment Application Scenarios of Small waterproof linear actuator

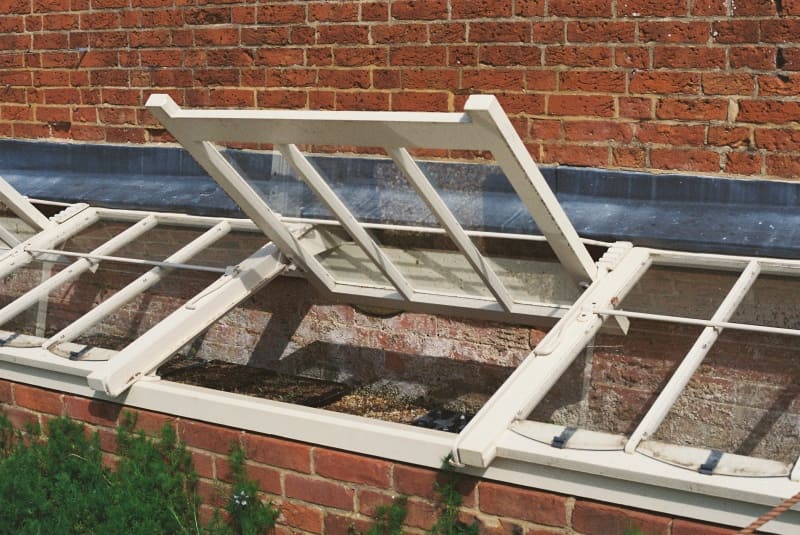

1. Outdoor Mini Greenhouse & Agricultural Humid Ventilation Equipment

Small automatic ventilation windows for household mini greenhouses, planting box micro air baffles and poultry miniature damp air adjustment devices are the largest outdoor application of Small waterproof linear actuator. Long-term high humidity, dew and irrigation water splashes are inevitable in agricultural planting environment, ordinary IP54/IP66 miniature actuators are easy to suffer internal short circuit after several months of operation, while Small waterproof linear actuator FD16 optional IP68 full waterproof grade can resist continuous moisture erosion and short-time water jet impact. Its -25℃~+80℃ wide temperature range adapts winter freezing and summer high temperature seasonal changes, stable 30-300N thrust smoothly pushes small window frame opening and closing without jitter. Agricultural intelligent equipment OEM factories select Small waterproof linear actuator to drastically cut finished product failure complaint rate from end users.

2. Damp Laboratory Precision Micro Testing Instruments

Micro experimental fixture displacement adjustment, miniature water tank testing platform and humid medical auxiliary detection instruments rely on Small waterproof linear actuator as core driving parts. Laboratory constant humidity test environment has long-term water vapor floating in air, low IP miniature actuators will get internal gear rust and circuit short circuit easily. Small waterproof linear actuator FD16 multi-layer fluorosilicone sealing structure completely isolates water vapor invasion, exclusive overcurrent protection function avoids expensive experimental equipment collision damage caused by actuator stall. Customizable long stroke up to 800mm supports multi-distance precision displacement testing, ultra-compact body can be embedded into tiny instrument internal interlayers without layout interference.

3. RV Exterior Mini Intelligent Auxiliary Mechanisms

Recreational vehicle external miniature sunshade expansion frames, exterior small storage cabinet automatic door and water tank miniature baffle adjustment equipment adopt Small waterproof linear actuator for automatic linear motion. RV exterior equipment faces outdoor rain, dew, low temperature winter and high temperature summer environment, IP68 full waterproof Small waterproof linear actuator FD16 can run stably without extra waterproof protective shell, saving RV modification equipment design space. Dual 12V/24V voltage is fully compatible with vehicle-mounted battery power supply system, corrosion-resistant aluminum alloy shell avoids rust after long-term outdoor exposure.

4. Wet Workshop Mini Assembly & Clamping Jigs

Mini packaging machine baffle adjustment, miniature workpiece clamping fixtures and small conveying equipment positioning mechanisms in humid processing workshops are important industrial application of Small waterproof linear actuator. Workshop cutting fluid splash, floating water vapor and temperature fluctuation will damage ordinary miniature actuators, FD16 high IP sealing structure resists liquid splashes and dust mixed with water stains, wide temperature range adapts workshop all-year constant temperature change. Multiple thrust grades from 30N to 300N can match light and medium miniature workpiece clamping demand, built-in limit switch reduces equipment shutdown failure caused by over-travel operation.

5. Outdoor Small Smart Furniture & Balcony Automatic Lifting Gear

Balcony hidden mini storage lifting cabinets, outdoor courtyard small automatic flower rack adjustment frames and terrace miniature sunshade mechanisms also select Small waterproof linear actuator FD16. Long-term outdoor rain and temperature difference will lead to premature aging of low IP micro actuators, Small waterproof linear actuator IP68 version can directly expose to sheltered outdoor environment without extra waterproof housing, ultra-quiet running sound below 55dB will not disturb family daily rest. Customizable short stroke 10mm-150mm matches small balcony furniture compact layout demand.

Core Competitive Advantages of FD16 Small waterproof linear actuator

1. Optional IP68 full waterproof + -25℃~+80℃ ultra-wide temperature resistance

The most differentiated core advantage of Small waterproof linear actuator FD16 is dual high-spec environmental resistance performance that FD17 and FD25 cannot match. Most miniature linear actuators on the market only support IP54/IP66 and narrow 10℃~50℃ temperature range, unable to adapt harsh damp and extreme cold/hot scenes. Small waterproof linear actuator upgrades multi-layer fluorosilicone shaft sealing and internal heat-resistant circuit design, realizing optional IP68 dust-tight & full waterproof and ultra-wide temperature working range, forming irreplaceable competitiveness for outdoor and damp miniature automation projects. As analyzed by authoritative mechanical industry media Automation World, high IP wide-temperature miniature linear actuators represented by FD16 have become an indispensable supporting part of the fast-growing outdoor micro automation industry.

2. Exclusive built-in overcurrent protection circuit for equipment safety

All FD16 Small waterproof linear actuator are equipped with factory integrated overcurrent protection circuit, a function completely absent from FD17 and FD25 low and medium IP miniature series. When the actuator is stuck by foreign objects or overloaded, the circuit will automatically cut off power supply within 0.5 seconds to prevent internal motor and gear burnout, protecting expensive miniature testing and agricultural equipment from collision damage. According to mechanical motion test data released by Machine Design, integrated overcurrent protection design can reduce miniature equipment after-sales maintenance cost by over 40% for OEM manufacturers.

3. 30-300N wider thrust & 10-800mm ultra-long customizable stroke

Small waterproof linear actuator FD16 provides maximum 300N push force, 60% higher than FD17 and FD25’s top 188N thrust, suitable for heavier miniature lifting and clamping structures. Its customizable stroke range extends to 800mm, far breaking the 150mm stroke limit of FD17/FD25, covering both short-stroke cabinet pop-up and long-stroke miniature platform lifting demand, one model meets multi-scene stroke customization without purchasing multiple actuator series.

4. Compact miniature body without sacrificing high environmental protection grade

Many high IP waterproof linear actuators on the market adopt bulky thick shell design, occupying large installation space of miniature equipment; Small waterproof linear actuator FD16 optimizes sealing mold structure, realizing IP68 full waterproof performance while retaining ultra-slim miniature body size, perfectly fitting narrow interlayer layout of mini greenhouse windows and tiny laboratory instruments.

5. Complete CE & RoHS dual certification for global export

FD16 Small waterproof linear actuator passes CE electrical safety and RoHS environmental material double certification, fully complying with export inspection standards of Europe, North America, Australia and Southeast Asia. We can provide complete test reports and compliance documents to support customs clearance, cross-border e-commerce platform filing and finished product registration of miniature automation equipment.

Standard Installation & Maintenance Guidelines for Small waterproof linear actuator

To maintain stable waterproof performance and long service life of Small waterproof linear actuator installed in damp and outdoor miniature equipment, follow standardized operation rules strictly:

1. Mounting specification: Fix Small waterproof linear actuator on flat rigid equipment support frame, prohibit long-term lateral eccentric side force; side force will damage multi-layer waterproof sealing ring and reduce the actual output thrust of Small waterproof linear actuator.
2. Power supply matching: Equip matched stabilized 12V or 24V DC power supply per actuator rated voltage, unstable voltage fluctuation will trigger frequent overcurrent protection and accelerate internal motor aging.
3. Duty cycle compliance: Abide by standard 10% duty cycle (2 mins continuous work + 18 mins rest), forbid long-hour continuous frequent adjustment to avoid motor overheating and sealing layer aging acceleration.
4. Environmental maintenance: For IP54 basic version Small waterproof linear actuator, avoid long-term damp environment and direct water jet impact; IP68 version can resist short-time water immersion and rain splash, regular wipe shell with dry cloth to remove dust and water stains.
5. Synchronous matching calibration: If multiple Small waterproof linear actuator are used together for large miniature lifting platforms, uniformly calibrate controller signal before finished equipment delivery to eliminate height difference during simultaneous stretching and retracting.
6. Quarterly safety inspection: Check waterproof sealing ring integrity, wiring tightness and overcurrent protection sensitivity every three months, replace aging sealing parts timely to maintain long-term high IP waterproof performance.

Conclusion

Small waterproof linear actuator FD16 is a high-end harsh-environment exclusive miniature linear drive component, specially developed for outdoor agricultural ventilation equipment, damp laboratory precision instruments, RV exterior intelligent mechanisms and wet workshop miniature automation jigs. It breaks the industry limitation that ordinary micro actuators only have low IP grade and narrow temperature resistance range, integrating optional IP68 full waterproof, -25℃~+80℃ ultra-wide temperature resistance, exclusive overcurrent protection circuit, wider 30-300N thrust and 10-800mm ultra-long customizable stroke, solving multiple core procurement pain points of miniature equipment OEM factories working in damp and temperature-changing scenes.

Compared with FD17 IP54 indoor basic model and FD25 IP66 mild splash-proof miniature actuator, Small waterproof linear actuator FD16 is the optimal selection for all projects requiring long-term stable operation in humid, outdoor and extreme high/low temperature environment. With complete CE & RoHS export certification, ultra-compact miniature body and full customizable stroke/thrust specifications, Small waterproof linear actuator FD16 will become the mainstream preferred high-reliability miniature linear drive for global outdoor micro automation equipment OEM manufacturers, helping brands drastically cut finished product failure rate and build differentiated high-end market competitiveness.

---

RFQ

Q1: What core advantages does FD16 Small waterproof linear actuator have over FD17 and FD25?

A1: Optional IP68 full waterproof, -25~+80℃ wide temp, max 300N thrust and built-in overcurrent protection.

Q2: Can FD16 Small waterproof linear actuator work stably in outdoor rainy mini greenhouse equipment?

A2: Yes, IP68 version resists short-time rain immersion and long-term high humidity environment.

Q3: What is the maximum customizable stroke length of FD16 Small waterproof linear actuator?

A3: Stroke can be customized from 10mm up to 800mm, longer than FD17/FD25 max 150mm.

Q4: Does FD16 Small waterproof linear actuator have overload stall protection for laboratory instruments?

A4: Unique built-in overcurrent protection automatically cuts power when stuck to protect equipment.

Q5: What temperature range can FD16 Small waterproof linear actuator adapt to in cold northern outdoor projects?

A5: Stable operation from -25℃ freezing low temperature to +80℃ high temperature environment.
