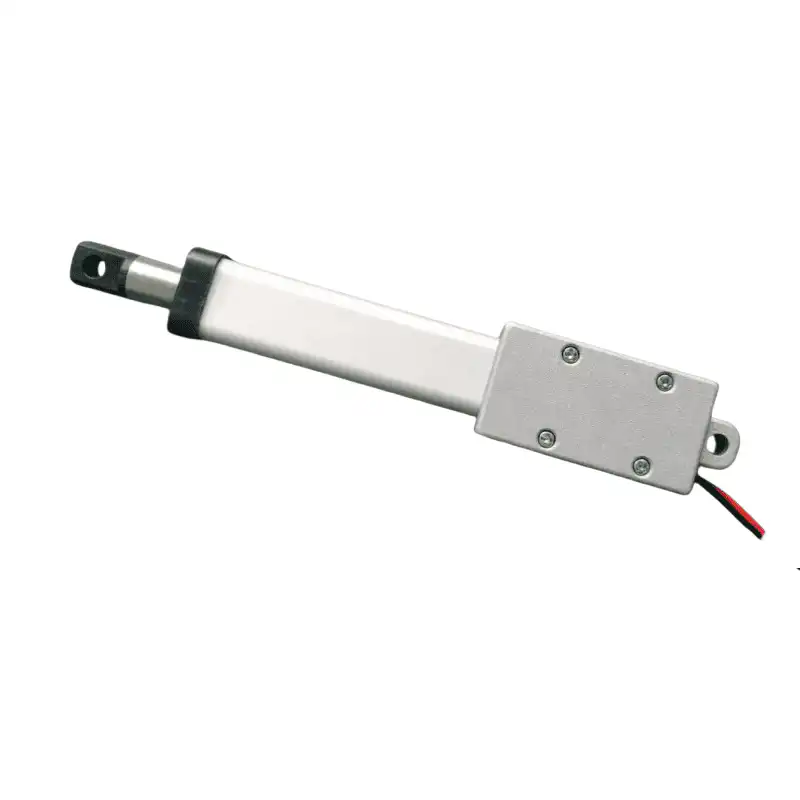

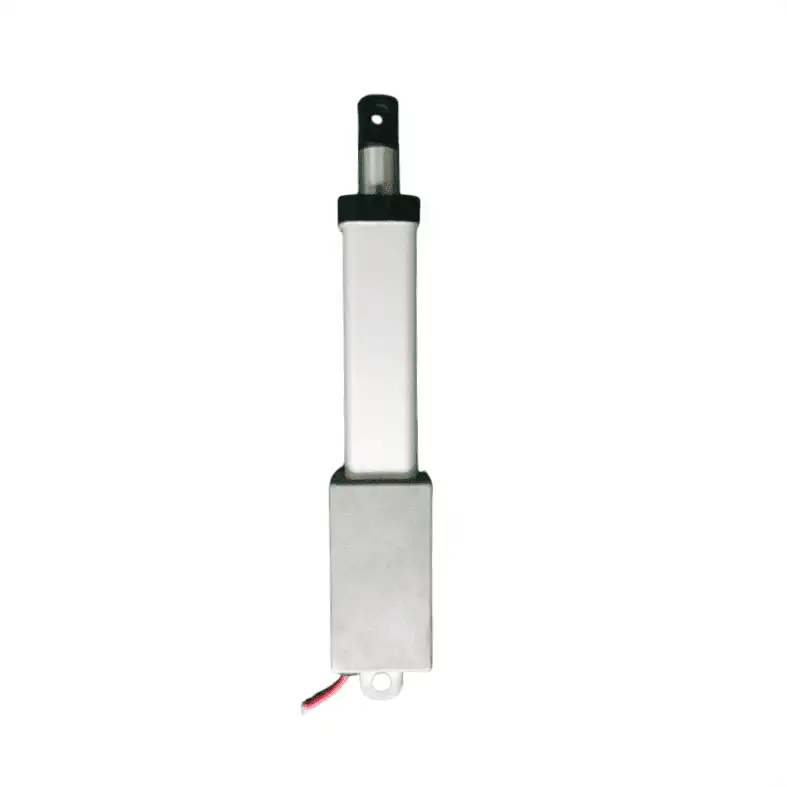

FD25 Micro Linear Actuator
Basic Parameter
Basic Parameter
- Input Voltage (V): 12 / 24
- Max. Load Capacity (N): 188
- Max. Load in pull (N): 150
- No Load Speed (mm/s): 4 ~30
- Stroke Length-S (mm): 10mm ~ 150mm (stroke could be customized )
- Installation Distance-A (mm): Stroke + 55/60/70mm
- Operating Temperature: -10℃ ~ +50℃
- Limit Switch: Built-in, factory present
- Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes
- Noise Level (dB): ≤55dB
- Material: Aluminum Alloy, Plastic, Stainless Steel
- Color: Black
- IP Degree: IP54
- Certificate: CE
- Accessory: Brackets ( Top&End )—Optional
Features and Benefits
Miniature and lightweight design, perfect for small-space installation
Dual voltage (12V/24V) compatible, wide application adaptability
Built-in limit switch, safe and maintenance-free
IP66 protection level, suitable for humid and harsh environments
Low noise operation (≤55dB), quiet running performance
Standardized stroke and installation size, optional mounting brackets for fast assembly
CE certified, meets European safety and quality standards
Stable load-speed-current performance, long service life under rated duty cycle

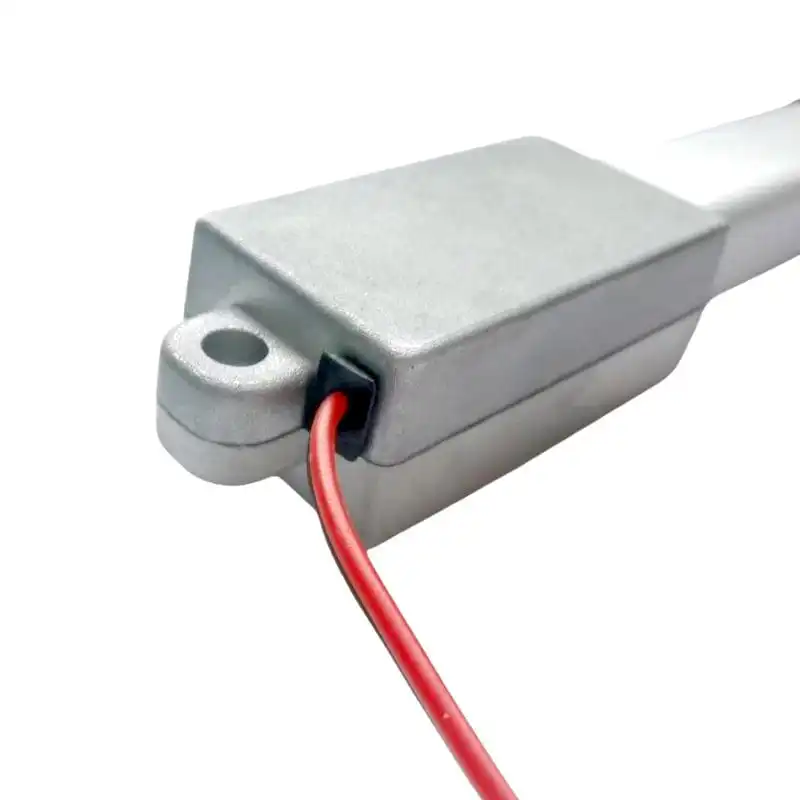

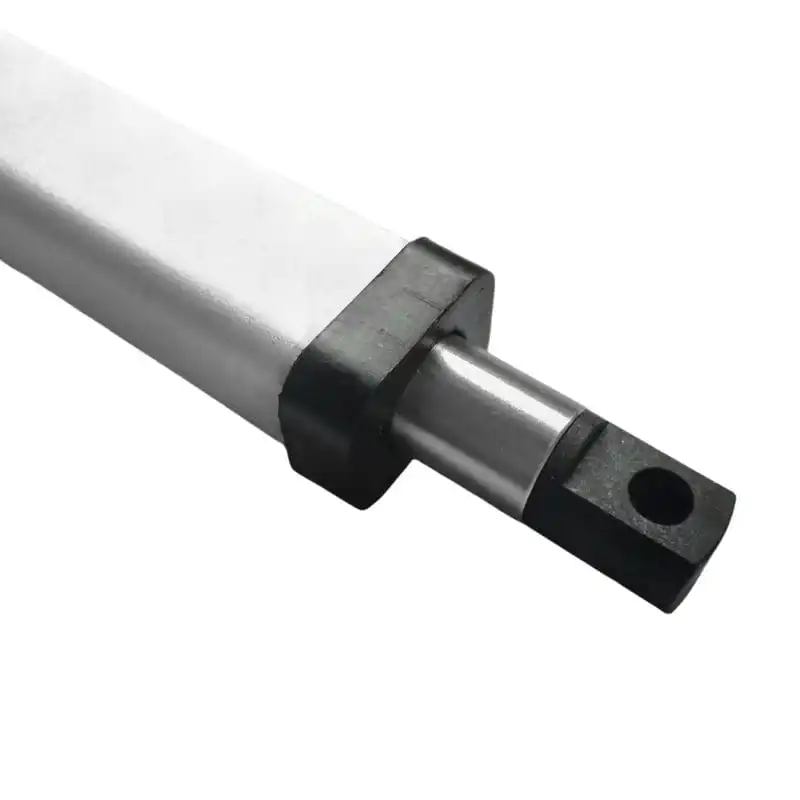

Material & Construction
Made of high-quality industrial materials for durability and corrosion resistance:
Aluminum Alloy
Zinc Alloy
High-strength Engineering Plastic
Stainless Steel
Product specifications
| Item | Parameters |
| Input Voltage | 12VDC / 24VDC |
| Max. Load Capacity | 188N / 120N / 60N / 30N |
| No Load Speed | 4mm/s / 7mm/s / 15mm/s / 30mm/s |
| Full Load Speed | 2.4mm/s / 4.9mm/s / 10mm/s / 21mm/s |
| Stroke Length | 10mm ~ 150mm (customizable range) |
| Installation Distance | Stroke + 60mm / 70mm |
| Operating Temperature | -10℃ ~ +50℃ |
| Limit Switch | Built-in, factory preset |
| Duty Cycle | 10%: Stop for 18 minutes after continuously working 2 minutes |
| Noise Level | ≤55dB |
| IP Degree | IP66 |
| Color | Silver |
| Optional Accessory | Top & end mounting brackets |
| Certificate | CE certified |

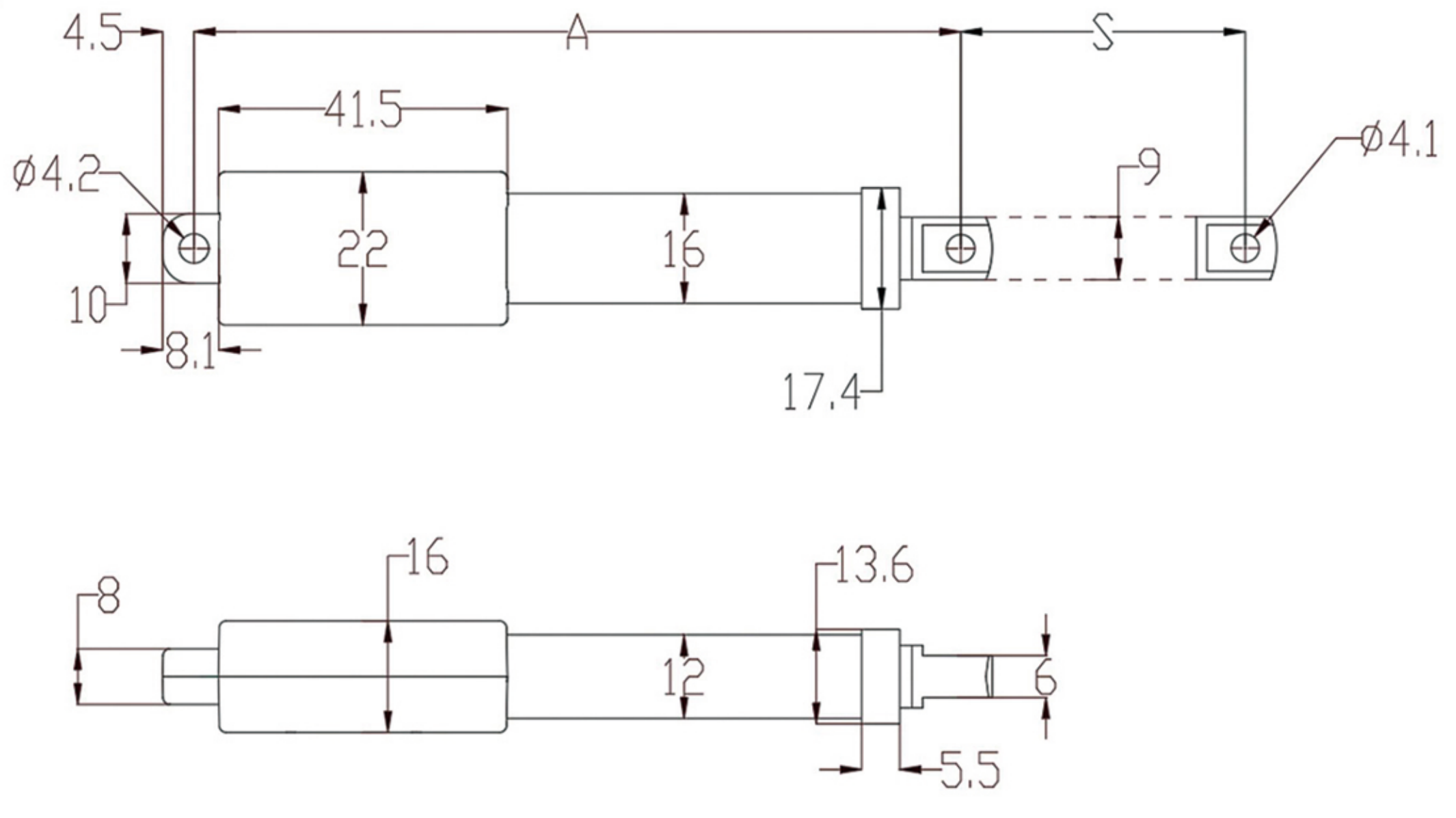

Product dimension
This micro linear actuator features a compact, integrated mechanical structure with standardized machining dimensions for easy installation and integration.
Core installation dimensions: 4.5mm, 41.5mm, 22mm, 16mm, 17.4mm, 9mm, etc.
Connector & mounting hole diameter: φ4.1mm, φ4.2mm
Retracted & extended size matching standard stroke design, with installation distance = Stroke + 60/70mm
Ultra-compact outline for limited installation space
Performance characteristic curves
The FD25 linear actuator presents stable performance curves tested under rated voltage, reflecting the correlation between speed, current and load:
1.Speed VS Load (12V/24VDC): Speed decreases linearly with the increase of load, showing smooth and controllable speed regulation characteristics under different load conditions.
2.Current VS Load (24VDC): Working current rises steadily with the increase of load, presenting low current fluctuation and stable electrical performance.
3.Current VS Load (12VDC): Consistent linear growth rule of current under 12VDC supply, ensuring reliable operation under dual voltage systems.
