FD1 8000N Heavy-Duty Linear Actuator
Basic Parameter
FD1 8000N linear actuator is a heavy‑duty electric push rod for industrial and medical equipment. It delivers up to 8000N push force with low‑noise performance. This standard model adopts fully‑covered lead‑screw structure without manual crank function. It supports customizable stroke length and is widely applied in industrial machinery, hospital beds and furniture lifting systems.

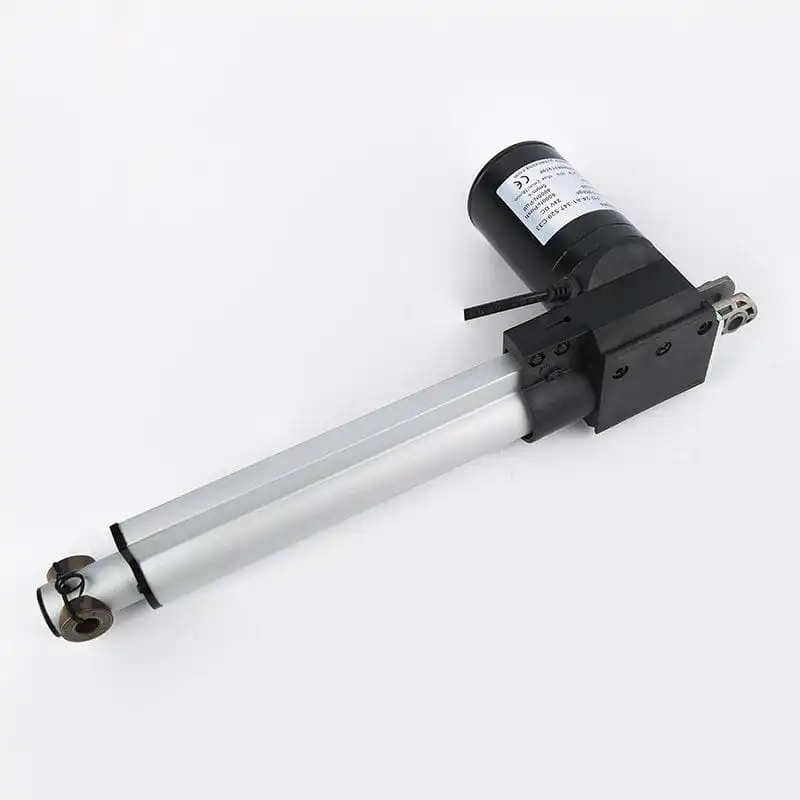

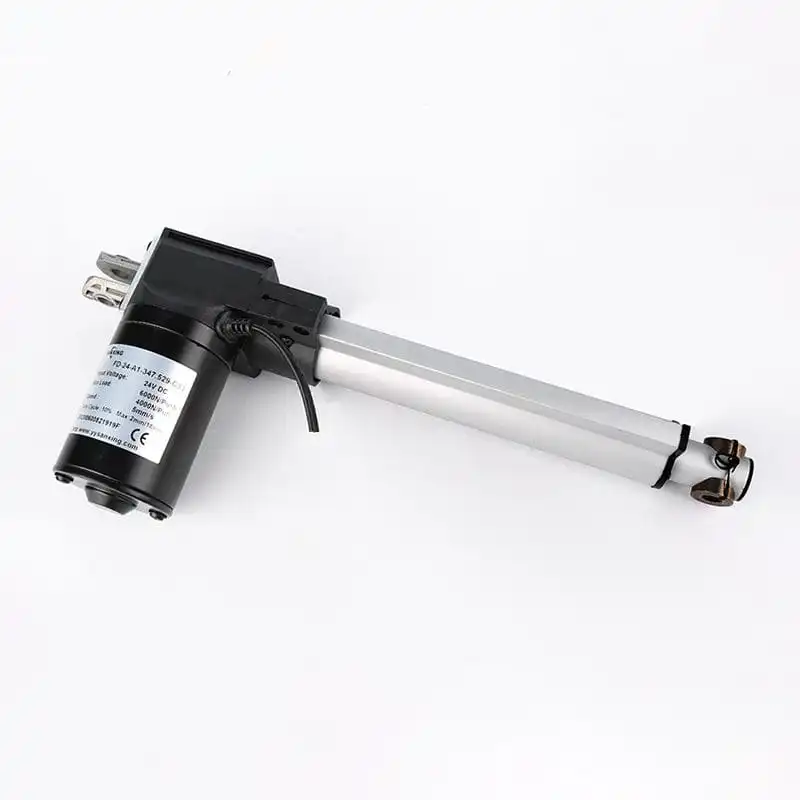

Product overview
The FD1 8000N linear actuator is a CE‑certified heavy‑duty electric linear drive built for industrial automation, medical devices and furniture lifting solutions. Different from FD1‑Y medical linear actuator with manual hand‑crank, this standard FD1 version uses enclosed lead‑screw design and does NOT support manual emergency operation under power‑off condition.
It provides max 8000N thrust and 6000N pull force, running at noise level ≤48dB. Customizable stroke ranges from 26mm to 1000mm together with optional Hall sensor and synchronization function. Reliable mechanical structure makes FD1 8000N linear actuator a versatile motion solution for heavy‑load industrial and medical projects.
Features and Benefits
✦ Max push force up to 8000N for heavy‑duty load scenarios
✦ Low noise operation ≤48dB for medical and indoor working environment
✦ Built‑in limit switches for automatic end‑stop protection
✦ Customizable stroke length: 26mm ~ 1000mm available
✦ Robust alloy construction for long service life
✦ CE certified for global market compliance
✦ Compact enclosed lead‑screw design for dust protection
✦ Optional Hall sensor and multi‑unit synchronization function
✦ Easy mounting and maintenance
Control options
The FD1 8000N linear actuator works with 12V / 24VDC power supply. You can operate it by simple switch, relay, or pair it with Sanxing control box and remote handset for convenient extend / retract control. Built‑in limit switches stop movement automatically at stroke ends to protect the motor. Synchronous control is available when multiple actuators need to work simultaneously.
Note: This standard FD1 model cannot be manually adjusted after power failure. If you need power‑off emergency manual adjustment, please check FD1‑Y medical linear actuator with manual hand‑crank.
Applications
The FD1 8000N linear actuator is ideal for:
‑ Industrial automation and machinery
‑ Medical equipment and beauty devices
‑ Agricultural machinery
‑ Marine and automotive applications
‑ Adjustable furniture & ergonomic lifting systems
Material & Construction
‑ Main tube: Aluminum alloy, lightweight and anti‑corrosion
‑ Gear housing: High strength plastic & zinc alloy
‑ Enclosed lead‑screw, fully covered against dust and debris
‑ External bracket: Iron with anti‑rust coating

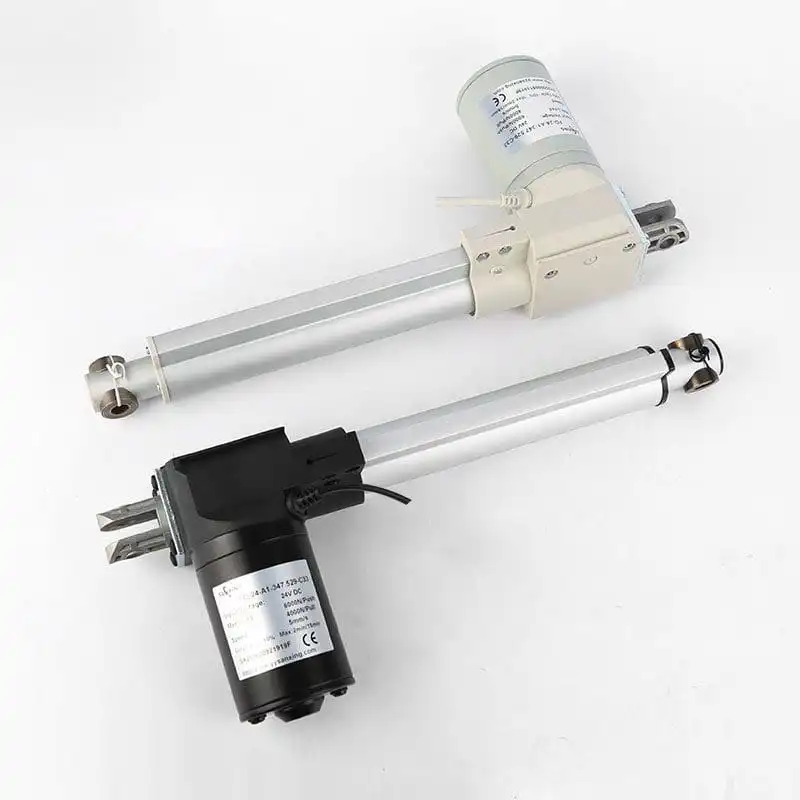

‑ Color: Black / Grey optional
‑ Protection grade: IP44
Product specifications
| Parameter | Details |
| Input Voltage | 12VDC / 24VDC |
| Max. Load in Push (N) | 8000, 6000, 3000, 2000, 1500, 1000, 800, 300 |
| Max. Load in Pull (N) | 6000, 4000, 2000, 1500, 1000, 800, 600, 200 |
| No Load Speed (mm/s) | 4, 4, 8, 12, 16, 18, 30, 35 |
| Full Load Speed (mm/s) | 2.2, 2.5, 4.5, 7, 10, 11, 19, 22 |
| Stroke Length | 26 mm ~ 1000 mm (customizable) |
| Min. Installation Distance | Stroke + 150 mm |
| Operating Temperature | -20°C ~ +40°C |
| Limit Switch | Built-in, factory preset |
| Duty Cycle | 10% (stop for 18 minutes after 2 minutes of continuous operation) |
| Noise Level | ≤48 dB |
| Material | Aluminum Alloy, Plastic, Zinc Alloy, Iron |
| Color | Black / Grey |
| IP Rating | IP44 |
| Certification | CE |
| Optional Functions | Hall Sensor, Synchronization |
Product dimension

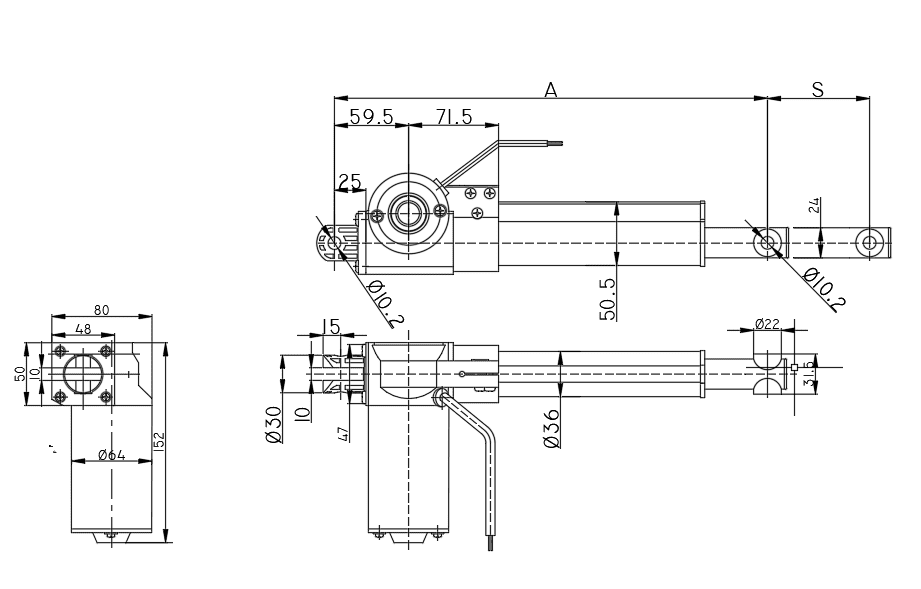

The following is the drawing of the FD1 8000N linear actuator.
The drawing shows retracted length, extended travel, mounting hole positions and motor housing dimensions. Custom stroke options are supported according to project requirements.

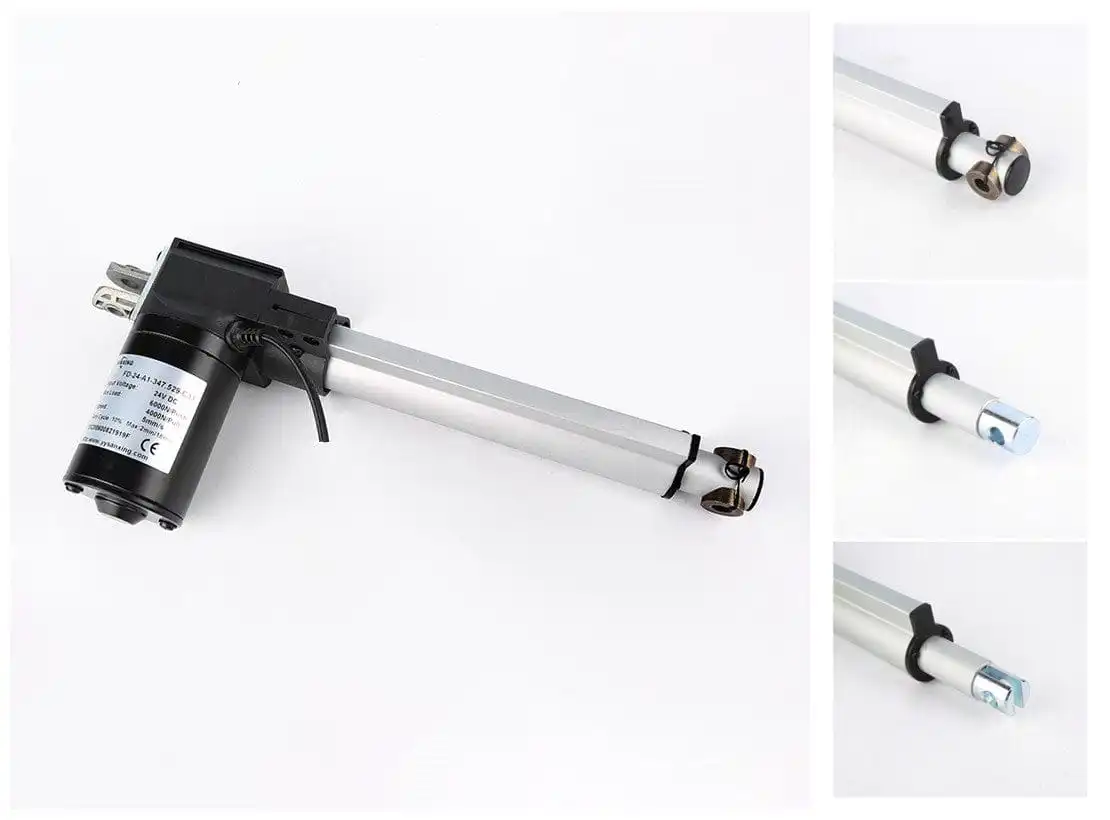

Mounting points
The FD1 8000N linear actuator is designed for pivot-mounted installation, which allows it to pivot freely during operation. It features two mounting points:
A rear pivot (clevis or trunnion mount) attached to a fixed structure.
A front pivot (clevis or eyelet mount) connected to the moving load.
This design ensures smooth linear motion while accommodating the angular changes that occur during extension and retraction. The minimum installation distance is calculated as the stroke length plus 150 mm, which must be maintained to ensure full travel and prevent mechanical interference.
Performance characteristic curves
The FD1 8000N linear actuator’s performance is defined by three key characteristic curves:

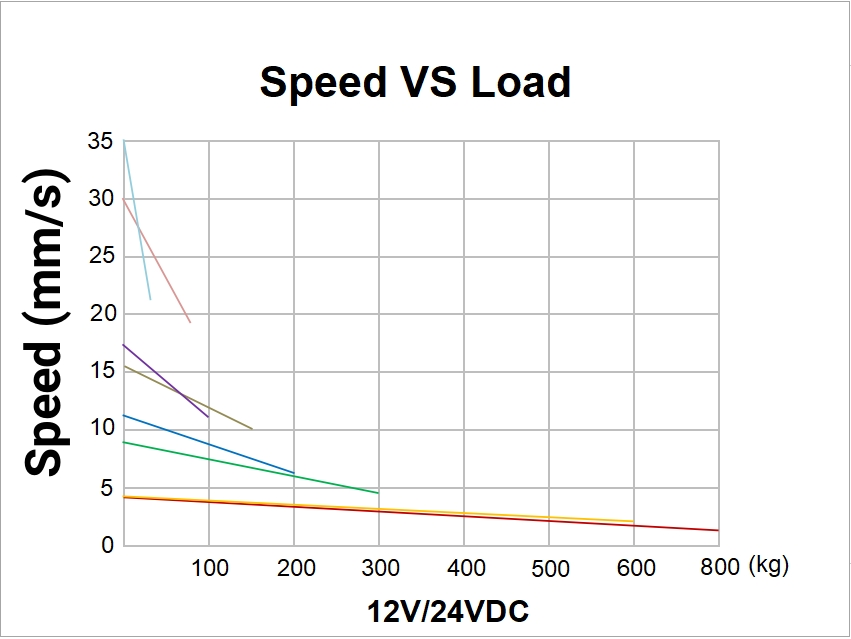

1.Speed vs. Load (12V/24VDC): This curve illustrates the inverse relationship between load capacity and operating speed, ensuring optimal performance across different load conditions.
2.Current vs. Load (24VDC): Demonstrates how current draw increases proportionally with applied load, providing critical data for power system design.

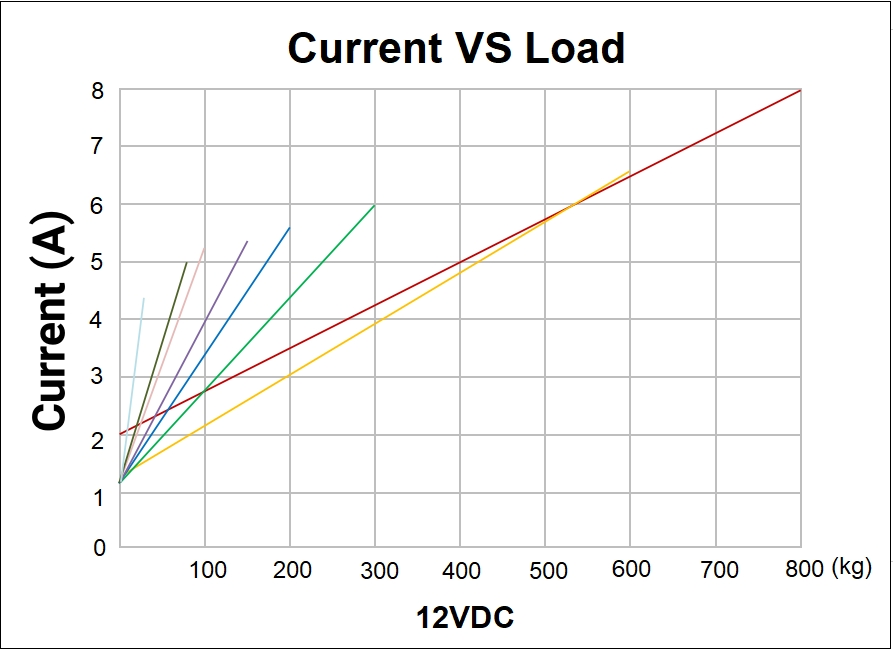

3.Current vs. Load (12VDC): Similar to the 24VDC curve, this data helps engineers size power supplies and control systems for 12V applications.
Frequently Asked Questions About FD1 8000N Linear Actuator
Q1: Do you have manual‑override version for FD1 heavy‑duty actuator?
A1: Yes, check our FD1‑Y medical linear actuator with manual hand‑crank. It shares similar thrust parameters but adds exposed‑screw hand‑crank emergency function for medical power‑failure scenarios.
Q2: Can FD1 be modified to add manual hand crank?
A2: No. Standard FD1 uses fully enclosed lead‑screw housing, mechanical modification is not feasible. Please select FD1‑Y model if power‑off manual operation is required.
Q3: What voltage options are available for FD1?
A3: FD1 supports both 12VDC and 24VDC power input, you can specify voltage when placing inquiry.
Q4: Is stroke customizable?
A4: Yes, stroke length from 26mm‑1000mm can be customized to match your equipment design.
Q5: Is its pull power the same as its push power?
A5: Generally the pull power is less then the push power, like the 8000N push power, its pull power is about 6000N.
