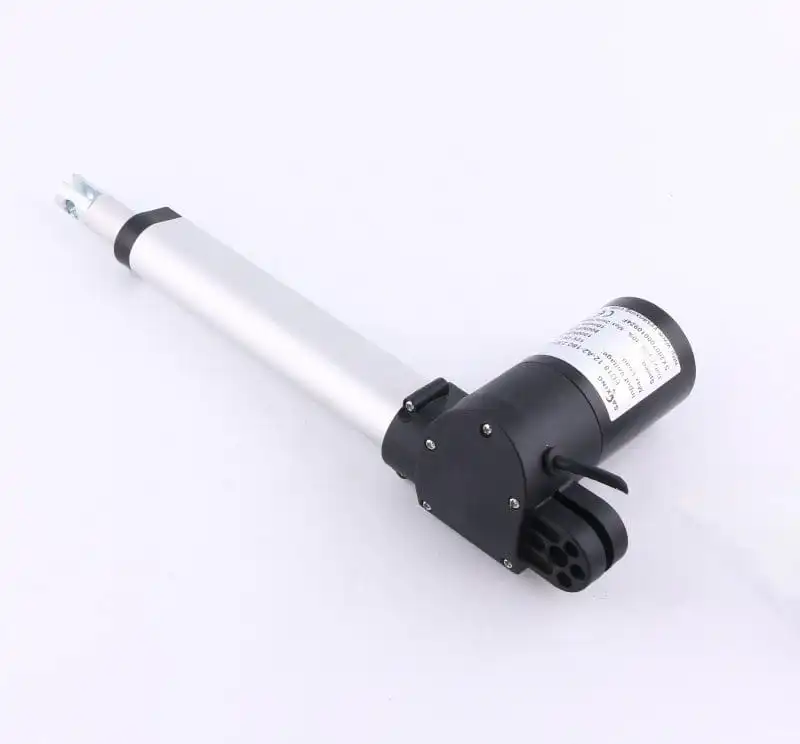

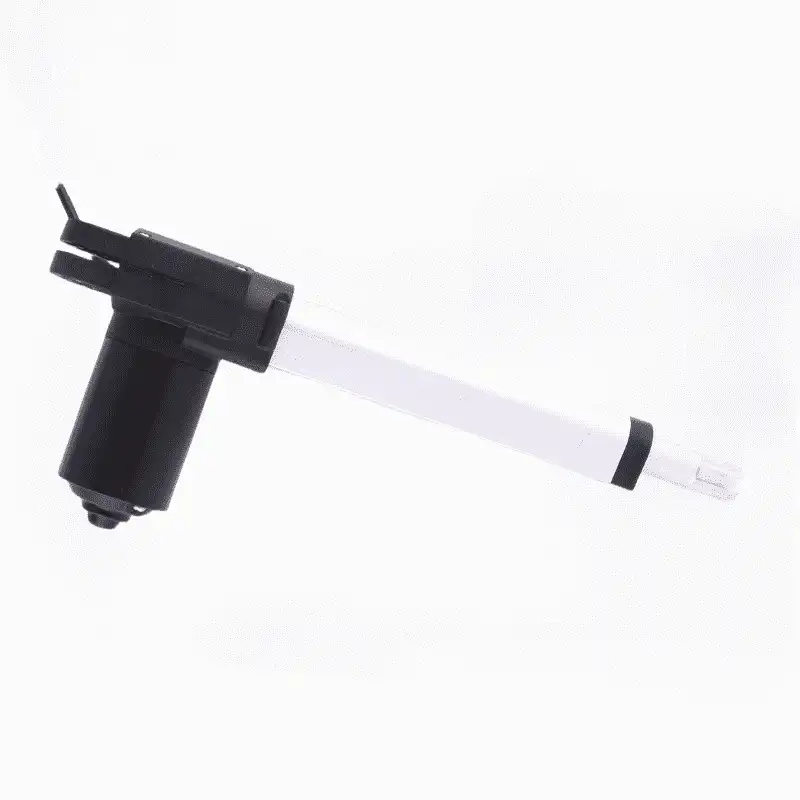

FD18 Linear Actuator
Basic Parameter
Basic Parameter
- Input Voltage (V): 12 / 24
- Max. Load Capacity (N): 3000
- Max. Load in pull (N): 2000
- No Load Speed (mm/s): 8 ~ 30
- Stroke Length-S (mm): 30mm ~ 1000mm (stroke could be customized )
- Installation Distance-A (mm): Stroke + 130mm
- Operating Temperature: -20℃ ~ +40℃
- Limit Switch: Built-in, factory present
- Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes
- Noise Level (dB): ≤48dB
- Material: Aluminum Alloy, Plastic, Iron
- Color: Black/Grey
- IP Degree: IP44
- Certificate: CE
- Function: Synchronization (option)
Product overview
The FD18 Linear Actuator from SANXING is a robust and versatile motion control solution designed for a wide range of furniture and commercial applications. It delivers reliable linear movement with customizable stroke lengths and strong load-bearing capabilities, making it ideal for tasks requiring precision and durability
Features and Benefits
High load capacity: Delivers up to 3000N push force and 2000N pull force for heavy-duty tasks.
Customizable performance: Offers a wide range of no-load speeds (8–30mm/s) and stroke lengths (30–1000mm) to match specific requirements.
Durable and reliable: IP44 protection rating and low noise operation (≤48dB) ensure durability in harsh environments.
Compliant and safe: CE-certified for global market access, with a 10% duty cycle to prevent overheating during continuous use.
Control options
Built-in limit switches for precise position control, factory preset for out-of-the-box use.
Optional synchronization function enables coordinated movement in multi-actuator systems.
Can be controlled via manual switches, Sanxing control box and remote controls, or integrated with PLC systems for automated operation.
Applications
The FD18 Linear Actuator is suitable for a variety of applications, including:
Industrial automation
Medical equipment
Furniture adjustment
Marine and automotive systems
Product specifications
| Parameter | Details |
| Input Voltage | 12VDC / 24VDC |
| Max. Load in Push (N) | 3000, 2000, 1000, 500 |
| Max. Load in Pull (N) | 2000, 1500, 800, 300 |
| No Load Speed (mm/s) | 8, 10, 17, 30 |
| Full Load Speed (mm/s) | 4, 5, 10, 20 |
| Stroke Length (mm) | 30mm ~ 1000mm (customizable) |
| Min. Installation Distance (mm) | Stroke + 130mm |
| Operating Temperature | -20°C ~ +40°C |
| Limit Switch | Built-in, factory preset |
| Duty Cycle | 10%, stop for 18 minutes after 2 minutes of continuous operation |
| Noise Level (dB) | ≤48dB |
| Material | Aluminum Alloy, Plastic, Iron |
| Color | Black/Grey |
| IP Degree | IP44 |
| Certificate | CE certified |
| Function | Synchronization (optional) |
Product dimension

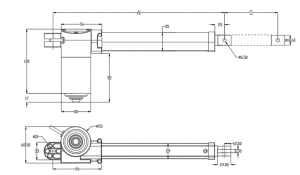

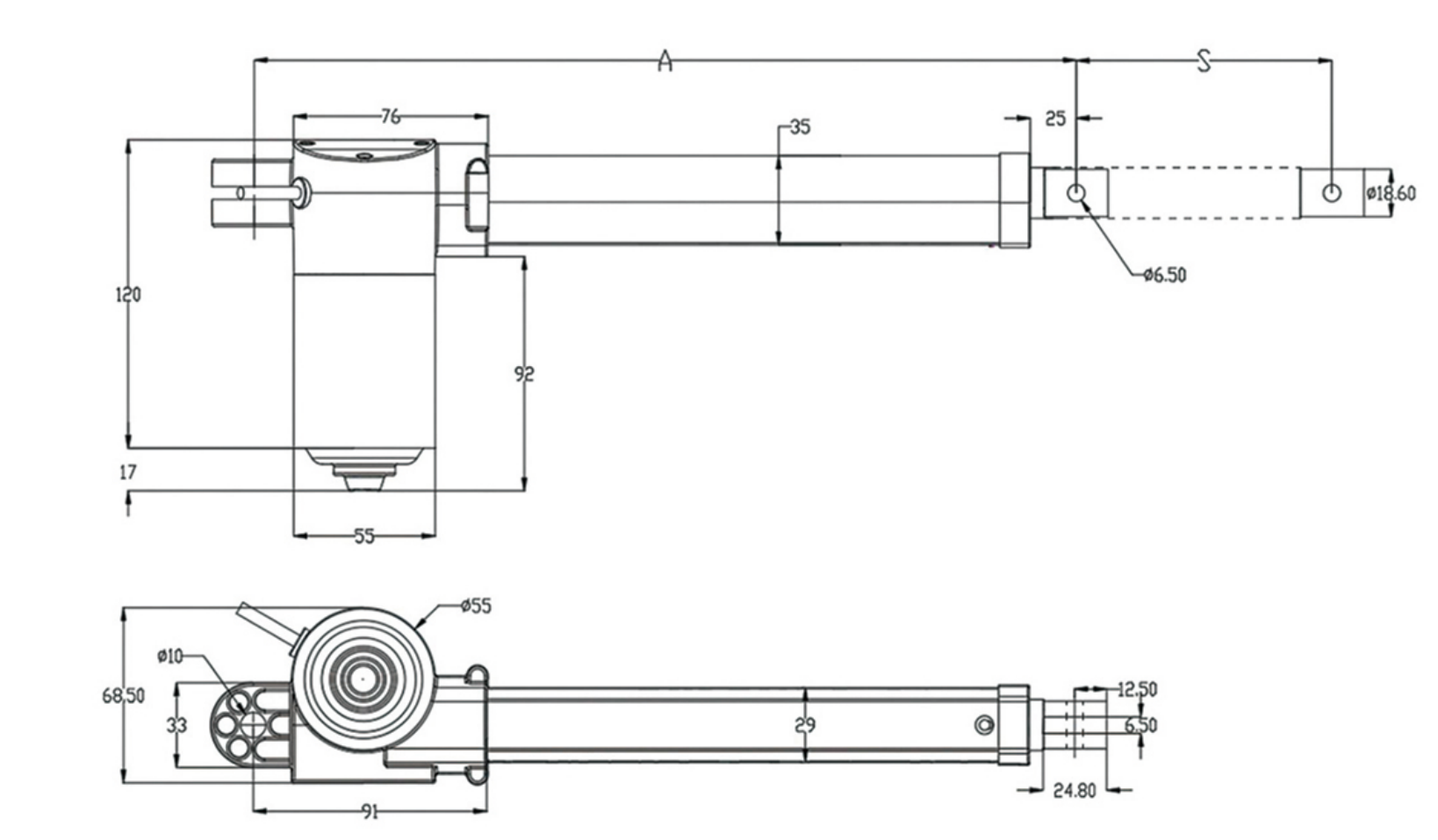

The actuator’s compact and functional design is detailed in the dimension drawings, which provide critical measurements for integration:
The overall length (A) is determined by the selected stroke length.
The minimum installation distance is calculated as the stroke length plus 130mm.
The drawings include precise measurements for the motor housing, mounting points, and the extended/retracted rod, ensuring seamless integration into your system.

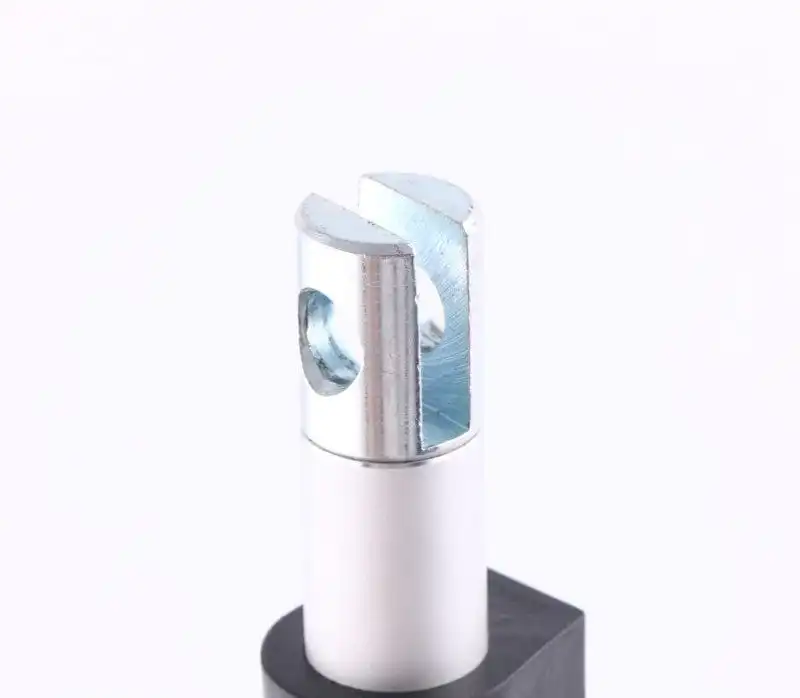

Mounting points
Designed for flexible integration with standard mounting hardware, such as clevis brackets and pin mounts at both ends.
Compact design allows installation in horizontal, vertical, or angled orientations to suit diverse application needs.
Minimum installation distance is calculated as stroke length + 130mm, simplifying system design.
Performance characteristic curves
The FD18 actuator’s performance is defined by its characteristic curves, which illustrate the relationship between speed, load, and current draw:

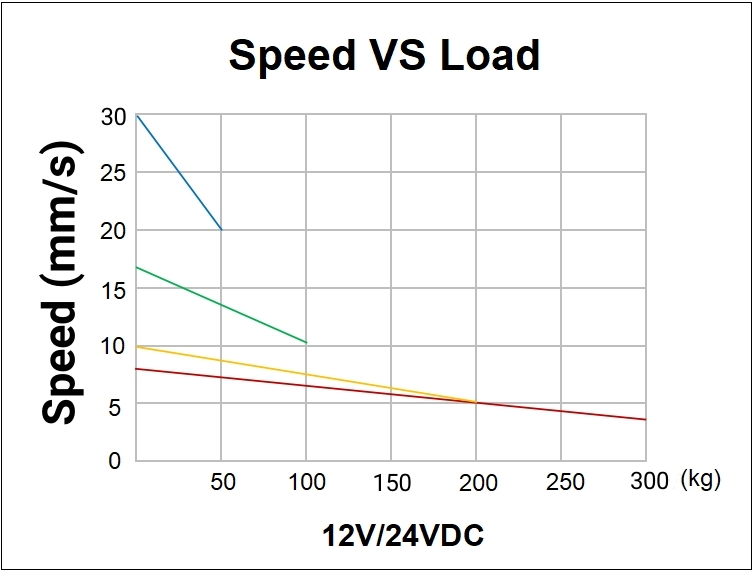

Speed vs. Load (12V/24VDC): This curve shows that the actuator’s speed decreases as the applied load increases, a common behavior in linear motion systems.

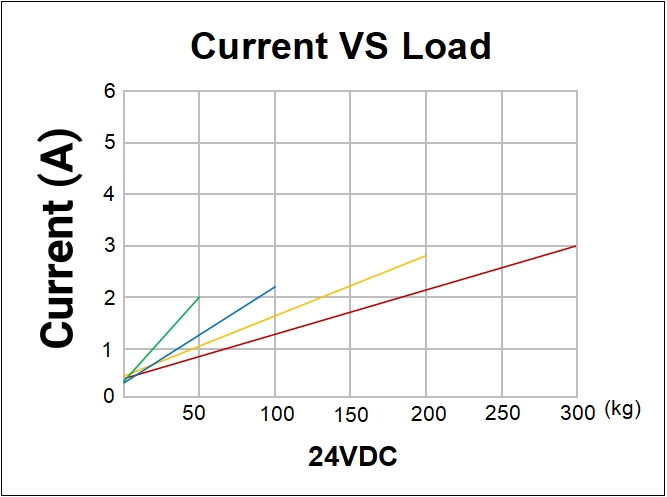

Current vs. Load (24VDC & 12VDC): These curves demonstrate how the electrical current consumption rises proportionally with the load, with the 24VDC model generally drawing less current for the same load compared to the 12VDC model.
