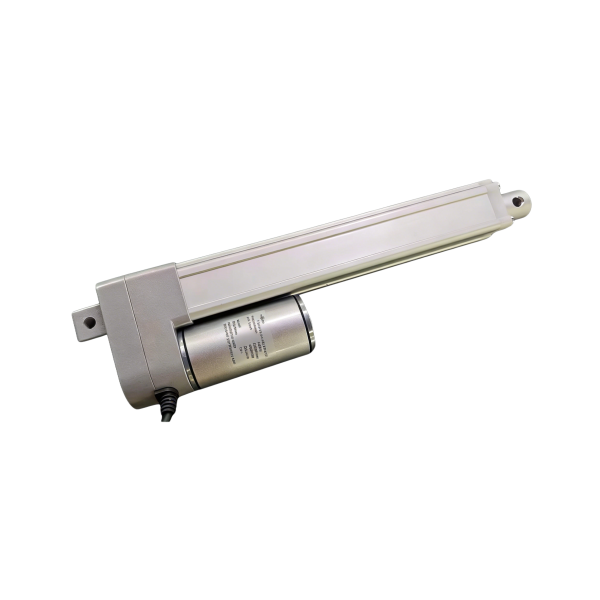

FD10 Linear Actuator
Basic Parameter
SANXING FD10 linear actuator adopts plastic gear transmission, so with low noise less than 48dB, offering quieter operation than metal gear models. Powered by 12V/24V DC, it supports up to 2500N push force with customizable stroke ranging from 20mm to 1000mm. Built-in limit switches enable automatic stop. Not waterproof, suitable for indoor dry environments.
Product overview
The FD10 series linear actuator is a compact, high-efficiency electric linear motion device designed for versatile industrial applications. It converts rotational motion into linear push/pull movement, featuring stable performance, reliable structure, and wide adaptability. With customizable stroke and standard electrical configurations, it is an ideal solution for automated lifting, pushing, telescoping and positioning systems.
Features and Benefits
✦ Wide voltage range (12V/24V DC) and multiple load/speed options to meet different application demands.
✦ Customizable stroke from 20mm to 1000mm, flexible for diversified design requirements.
✦ Rugged construction with aluminum alloy, plastic and iron, durable for long-term use.
✦ Multiple force options: 500N ~ 2500N push force available
✦ Built-in limit switch for safe stroke control, factory preset for convenient use.
✦ CE certified, complying with European safety standards, applicable for global market.
✦ Low noise operation (≤48dB), quiet running performance.
✦ Simple installation, easy to pair with linear actuator controllers
✦ Wide operating temperature range (-25℃~+65℃) for strong environmental adaptability.
Control options
Standard version comes with built-in mechanical limit switches to stop automatically at set stroke ends.
✦ Basic control: Direct positive & negative power connection to extend / retract
Optional: Match with wired hand controller
Optional: Wireless remote control kit
✦ Matching dedicated linear actuator controllers
Applications
Low Noise FD10 linear actuator is widely used in scenarios requiring quiet linear movement:
✦ Electric adjustable furniture, like table/desk lift
✦ Medical rehabilitation and other equipments
✦ Home automation, window, cabinet and skylight opener
✦ Agricultural small automation equipment
✦ Light industrial lifting and pushing mechanism
✦ Camera and stage small lifting systems
Material & Construction
✦ Main housing: Aluminum alloy, silver surface
✦ Gear: Plastic gear (low noise)
✦ Screw: High precision trapezoidal screw
✦ Lead screw accessories: Plastic & iron parts
✦ Protection grade: IP54, not waterproof
Product specifications
| Item | Specification |
| Input Voltage | 12V/24V DC |
| Max. Load-in push | 2500N, 2000N, 1500N, 1000N, 800N, 500N |
| Max. Load-in pull | 1500N, 1200N, 900N, 600N, 300N, 200N |
| No Load Speed | 5mm/s, 6mm/s, 7mm/s, 9mm/s, 12mm/s, 20mm/s |
| Full Load Speed | 3mm/s, 3.5mm/s, 3.7mm/s, 4mm/s, 7mm/s, 10mm/s |
| Stroke Length | 20mm ~ 1000mm (Customizable) |
| Min. Installation Distance | Stroke + 110mm |
| Operating Temperature | -25℃ ~ +65℃ |
| Limit Switch | Built-in, factory preset |
| Duty Cycle | 10% (2 mins continuous working, 18 mins stop) |
| Noise | ≤48dB |
| Material | Aluminum Alloy, Plastic, Iron |
| Color | Silver |
| IP Degree | IP54 |
| Certificate | CE |
Product dimension

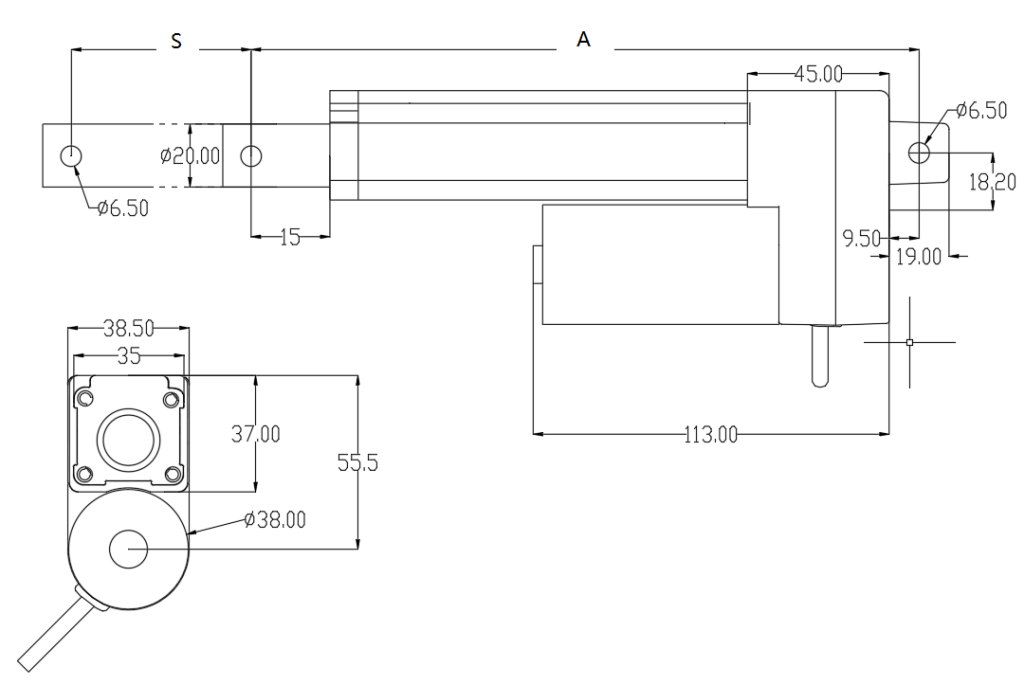

Insert dimension drawing here.
All dimension parameters follow the official FD10 linear actuator drawing. Custom stroke will change overall length.
Please confirm stroke length and installation distance before ordering.

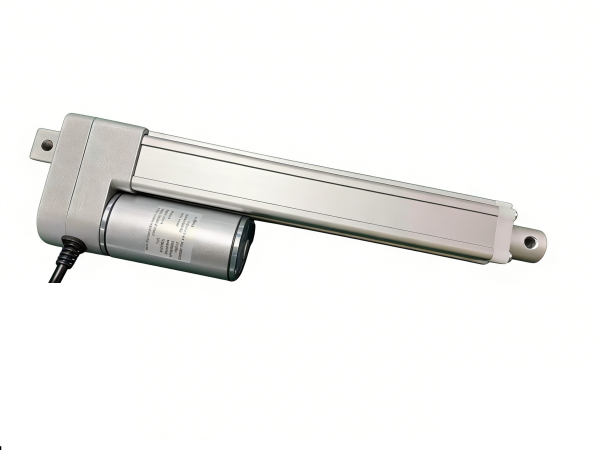

Mounting points

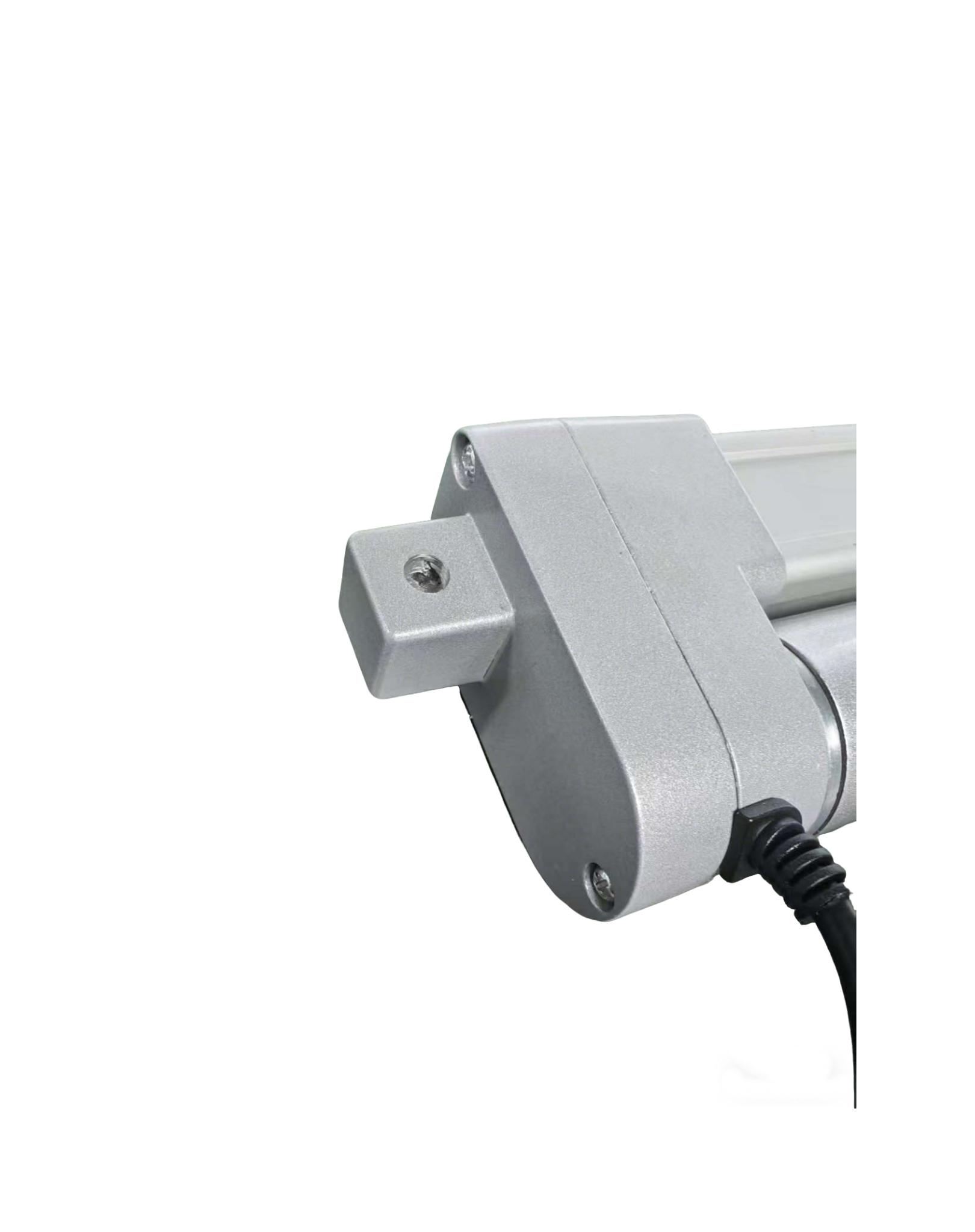

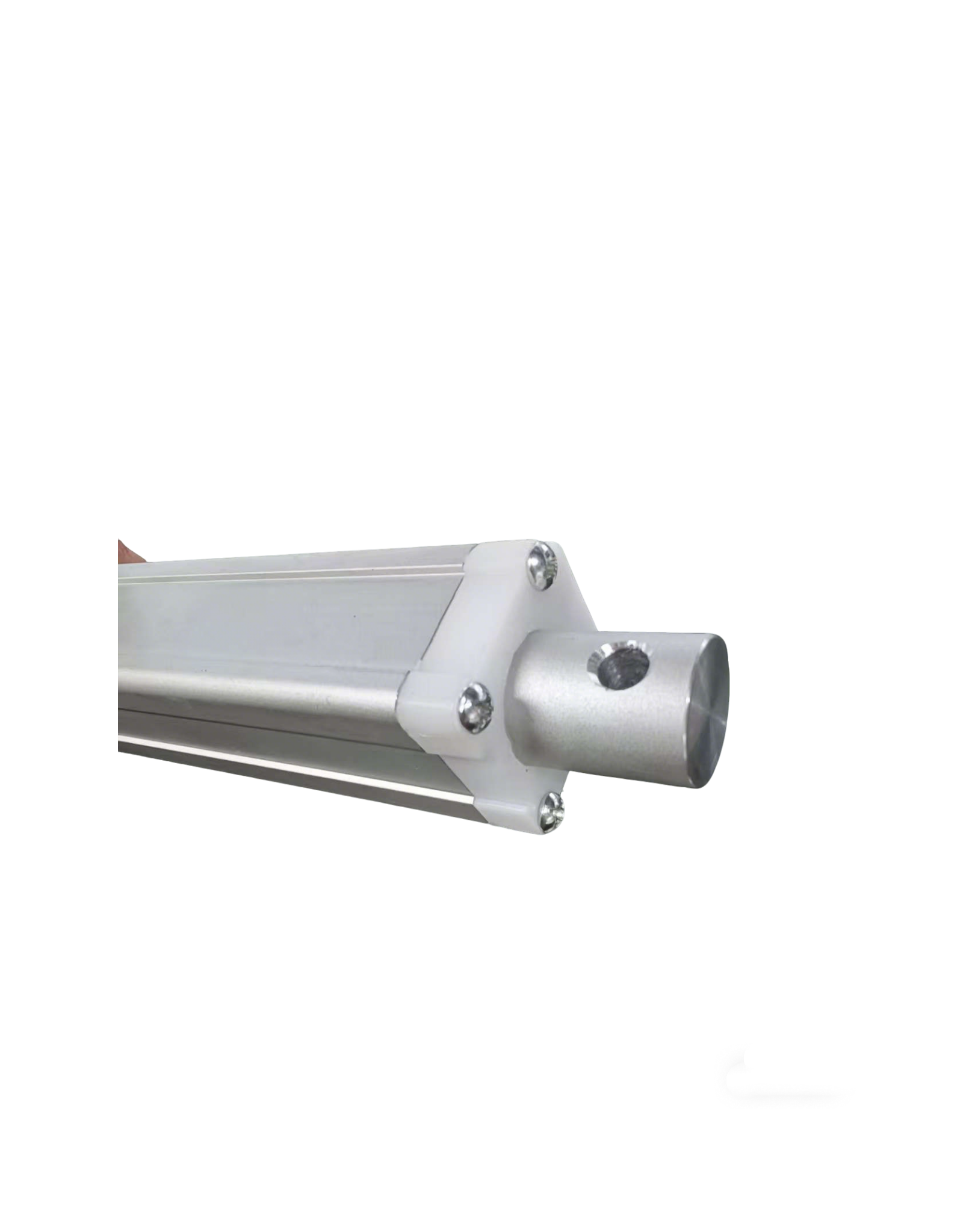

Mount holes at both ends for pin connection. Reference dimension drawing for hole diameter and center distance. Standard mounting accessories can be supplied together if you required.
Performance characteristic curves

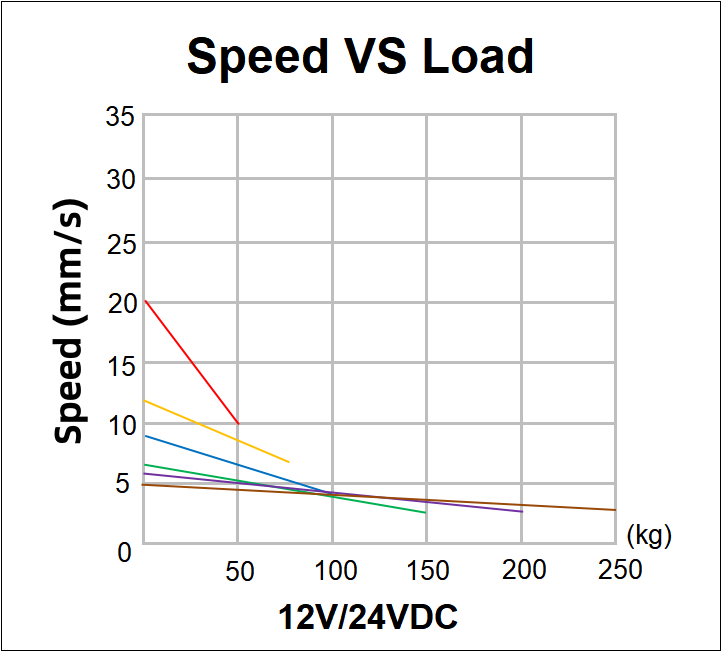

Speed VS Load Curve (12V/24V DC)
The actuator shows a stable speed-load characteristic: speed decreases gradually with the increase of load, presenting a smooth linear decline trend. It maintains stable output speed under different load conditions, ensuring smooth and controllable linear motion.

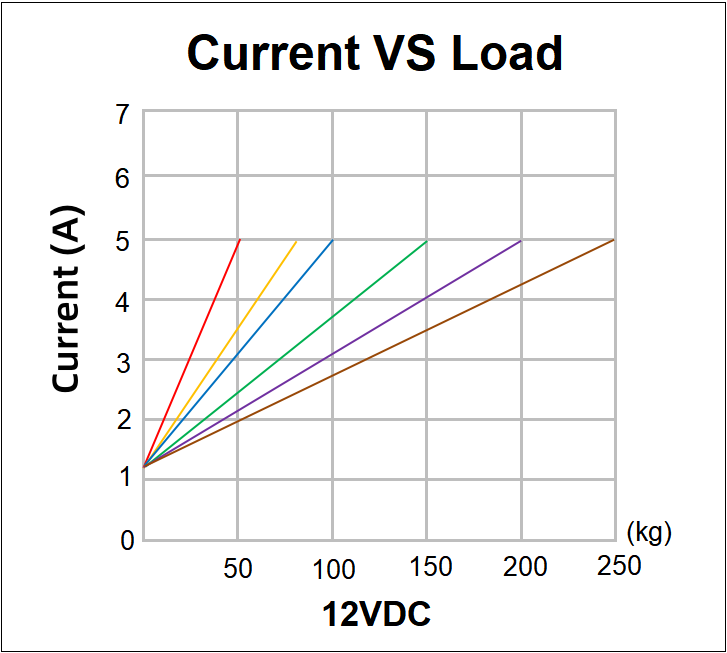

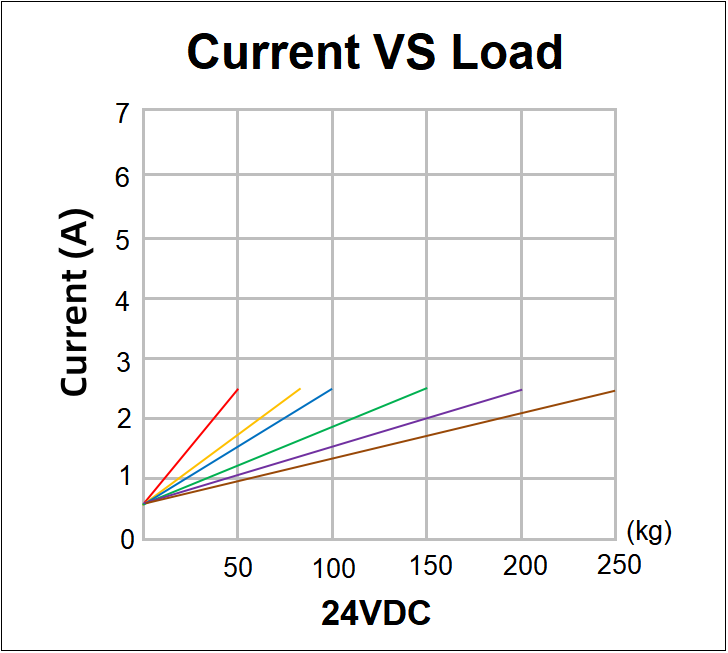

Current VS Load Curve (12V DC & 24V DC)
The working current rises linearly with the increase of load, with low current at no-load and stable current growth under full load. Both 12V DC and 24V DC versions feature low current consumption and stable electrical performance, matching the load change regularly and ensuring safe and reliable operation.
Frequently Asked Questions About FD16 Linear Actuator
Q1: What is the main difference between FD10 and FD5 linear actuator?
A1: The core difference lies in gear material.
FD10 adopts plastic gears, featuring lower working noise, suitable for noise-sensitive occasions.
FD5 linear actuator uses all-metal gears, with stronger wear resistance and much longer service life under long-time heavy load.
FD10 maximum push force reaches 2500N, meeting most medium-load applications.</strong></strong>
Q2: Is FD10 waterproof?
A2: FD10 is IP54 rated and NOT waterproof. It cannot be exposed to rain, water splash or humid outdoor environment. Only for dry indoor use. If you need
waterproof actuator, please check our other waterproof series.</strong></strong>
Q3: Can I customize the stroke length?
A: Yes. Stroke can be customized from 20mm to 1000mm. Please tell us your required stroke when inquiry.
Q4: Does FD10 stop automatically when fully extended?
A: Yes, built-in limit switches cut off power automatically at both ends. Do not use external forced stop.
Q5: What duty cycle should I follow?
A: Rated duty cycle is 10%. Suggest working 2 minutes then resting 18 minutes to avoid overheating.
