Sanxing FD25 Mini Linear Actuator – IP66 Waterproof (FD17 Upgrade) for Small Wet Applications

The Sanxing FD25 mini linear actuator stands out as the top compact waterproof upgrade to the popular FD17 linear actuator, engineered specifically for small-space automation where moisture, dust, and outdoor exposure are constant challenges. Retaining the FD17’s compact form factor and light-duty performance (max load 188N), the FD25 adds a critical IP66 waterproof rating—making it the ideal choice for projects that demand reliable linear motion in wet, humid, or outdoor environments where standard actuators fail. Unlike heavy-duty waterproof models, the FD25’s small size and 188N load limit keep it focused on light, space-constrained applications, delivering targeted waterproof performance without unnecessary bulk or cost. As a leading Sanxing linear actuator for small wet spaces, it fills the gap between non-waterproof mini actuators and oversize heavy-duty waterproof models, catering to a wide range of industries and use cases that require both compactness and environmental resistance.

In today’s automation landscape, small-space projects often face the challenge of finding an actuator that balances size, performance, and durability—especially in wet or outdoor environments. The FD17 was a game-changer for compact light-duty automation, but its lack of waterproofing limited its use in moisture-prone areas. The Sanxing FD25 addresses this critical gap by retaining all the FD17’s proven advantages—including its small footprint, low noise, and light-load capacity—while adding an IP66 waterproof rating that opens up new possibilities for outdoor, bathroom, kitchen, and industrial wet-space applications. Whether you’re a DIY enthusiast building a waterproof smart home project, an engineer designing small outdoor automation equipment, or a manufacturer looking for a reliable component for wet-environment products, the FD25 delivers the perfect combination of size, power, and protection.

To fully grasp why IP66 matters for small actuators, refer to the authoritative IP Code standard guide on Wikipedia, which breaks down waterproof/dustproof ratings for electronic and mechanical components—essential knowledge for selecting the right actuator for wet environments. The IP66 rating is particularly critical for small actuators, as their compact size often means tighter internal components that are more vulnerable to water and dust damage. Unlike lower IP ratings (such as IP54, which only offers limited protection against splashing water), IP66 ensures the FD25 is dust-tight and can withstand high-pressure water jets, making it suitable for direct exposure to rain, cleaning sprays, and even mild submersion in water for short periods.

What sets the FD25 mini linear actuator apart from other waterproof mini actuators on the market is its targeted design—focused solely on small, light-duty applications. Many waterproof actuators on the market are heavy-duty models with loads of 1000N or more, which are overkill for small mechanisms and take up too much space. The FD25, by contrast, is engineered for 188N max load (≈19kg), which is perfectly suited for small doors, vents, lifts, and adjustments—applications where a heavy-duty actuator would be impractical and costly. This targeted design not only saves space but also reduces energy consumption, making the FD25 mini linear actuator ideal for battery-powered or solar-powered small automation projects.

Core Technical Specifications (FD17 Equivalent, IP66 Enhanced)

The FD25 mirrors the FD17’s proven light-duty parameters, with the sole game-changing upgrade of IP66 waterproofing—perfect for small, low-load projects that require moisture protection. Every specification of the FD25 is optimized for compactness, reliability, and performance in wet environments, ensuring it can handle the demands of small-space automation while withstanding the elements:

• Input Voltage: 12V DC / 24V DC (compatible with small automation, solar, and battery-powered systems). This dual-voltage compatibility makes the FD25 mini linear actuator highly versatile, as it can be integrated with standard 12V household power supplies, 24V industrial systems, or even small solar panels (10–50W) for off-grid outdoor applications. The low voltage also ensures safe operation in wet environments, reducing the risk of electrical hazards.
• Max Thrust: 188N (≈19kg), with optional 120N/60N/30N variants for precise light-load matching. The 188N max load is carefully calibrated to handle the most common small-space automation tasks, such as opening/closing small vents, lifting lightweight covers, or adjusting small solar panels. The optional lower-load variants allow for even more precise matching to specific project needs, ensuring optimal performance and energy efficiency—for example, the 30N variant is ideal for ultra-light tasks like adjusting small louvered vents, while the 188N variant can handle heavier loads like small hatch lifts.
• Speed: No-load 4–30mm/s; full-load 2.4–21mm/s (smooth, controlled movement for small mechanisms). The variable speed options ensure the FD25 can be tailored to the specific needs of each application—slower speeds (4–10mm/s) are ideal for delicate adjustments (such as lab equipment or medical device controls), while faster speeds (15–30mm/s) are perfect for applications where quick movement is needed (such as outdoor awning controls). The smooth, jitter-free movement is achieved through precision-machined gears and a high-quality motor, ensuring no sudden jerks that could damage small mechanisms or components.

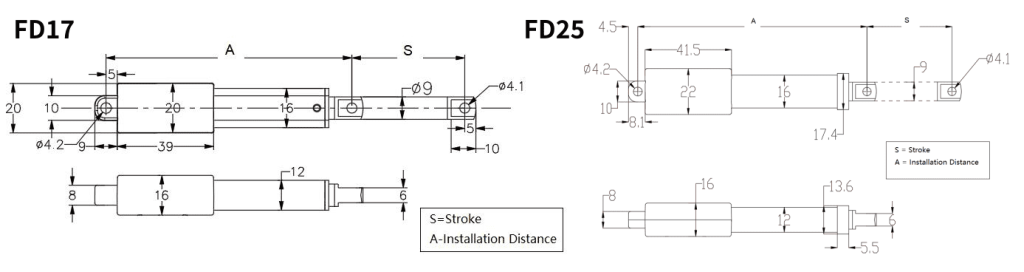

• Stroke: Customizable 10–150mm (installation length = stroke + 60/70mm, ideal for tight spaces). The customizable stroke length is a key advantage for small-space applications, as it allows the FD25 to fit into even the most compact designs. Whether you need a short 10mm stroke for adjusting a small louver or a longer 150mm stroke for lifting a small hatch, the FD25 can be customized to meet your exact requirements. The installation length (stroke + 60/70mm) is designed to ensure easy integration with standard mounting brackets, reducing the need for custom fabrication.

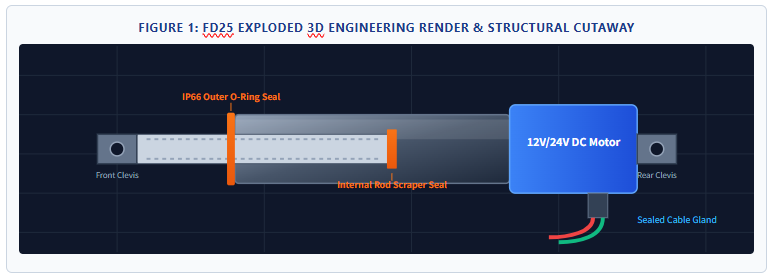

• Waterproof Rating: IP66 (dust-tight, resistant to high-pressure water jets—key upgrade over FD17). The IP66 rating is achieved through a combination of sealed housing, corrosion-resistant materials, and waterproof gaskets that prevent water and dust from entering the actuator’s internal components. This means the FD25 can be used in rain, snow, high humidity, and even areas where it may be exposed to high-pressure cleaning sprays (such as food processing facilities or outdoor equipment). Unlike the FD17, which has no waterproof rating and is only suitable for dry indoor environments, the FD25 can withstand the harshest wet conditions.
• Operating Temp: -10℃ to +50℃ (stable in outdoor, humid, and temperature-fluctuating environments). The wide operating temperature range ensures the FD25 can perform reliably in a variety of climates, from cold winter conditions (-10℃) to hot summer temperatures (+50℃). This makes it ideal for outdoor applications in both temperate and extreme climates, as well as indoor environments with temperature fluctuations (such as greenhouses or industrial facilities).
• Duty Cycle: 10% (2min operation / 18min rest) + built-in limit switches (protects small motors from overheating). The 10% duty cycle is optimized for light-duty applications, ensuring the motor does not overheat during continuous use. The built-in limit switches prevent over-travel, which can damage the actuator or the mechanism it is controlling. This combination of duty cycle and limit switches extends the service life of the FD25 mini linear actuator, reducing maintenance costs and downtime.
• Noise Level: ≤55dB (near-silent, perfect for indoor wet spaces like bathrooms). The low noise level is achieved through precision engineering and high-quality components, making the FD25 ideal for applications where noise is a concern—such as bathrooms, bedrooms, or lab environments. At ≤55dB, the FD25 is quieter than a normal conversation, ensuring it does not disrupt the surrounding environment.
• Materials: Aluminum alloy, zinc alloy, stainless steel (corrosion-resistant for wet/coastal use). The use of corrosion-resistant materials is critical for wet-environment applications, as it prevents rust and degradation caused by moisture, salt spray, or cleaning agents. Aluminum alloy provides a lightweight yet durable housing, while zinc alloy and stainless steel are used for critical internal components that are exposed to moisture. This material selection ensures the FD25 has a long service life even in harsh wet environments.
• Certifications: CE compliant (meets global safety standards for small automation components). The CE certification ensures the FD25 meets strict European safety standards for electrical and mechanical components, making it suitable for use in both European and global markets. This certification is a testament to the FD25’s quality and reliability, giving customers peace of mind that the product is safe and compliant with international regulations.

When compared to the FD17, the FD25’s technical specifications are nearly identical—with the only significant difference being the IP66 waterproof rating. This means existing projects that use the FD17 can be easily upgraded to the FD25 mini linear actuator without any modifications to the mounting brackets or power supply, making it a cost-effective upgrade for customers looking to add waterproof protection to their small-space automation systems. The FD25 mini linear actuator also retains the FD17’s compact dimensions, ensuring it can fit into the same tight spaces as its predecessor.

To further illustrate the FD25’s technical advantages, it’s helpful to compare it to other mini waterproof actuators on the market. Many competing models offer IP66 waterproofing but have a larger footprint or higher load capacity, making them unsuitable for small-space applications. Others have a similar size but lower IP ratings (such as IP54), which do not provide sufficient protection for harsh wet environments. The FD25’s unique combination of IP66 waterproofing, compact size, and 188N load capacity makes it the top choice for small wet-space automation, filling a niche that few other actuators can match.

Top Applications: Where FD25 Shines (Waterproof + Small-Space Focus)

The FD25’s IP66 rating and 188N max load make it the top pick for small, wet-environment automation—scenarios where the FD17 lacked protection and heavy actuators are overkill. As a premium IP66 waterproof actuator, it excels in a wide range of applications across residential, commercial, and industrial sectors, each leveraging its compact size, waterproof protection, and light-load capacity. Below is a detailed breakdown of the top applications where the FD25 mini linear actuator delivers the most value, with specific use cases and benefits:

1. Outdoor Small-Space Automation (IP66 Critical)

Ideal for small outdoor mechanisms that need to withstand rain, dust, and temperature changes—where non-waterproof actuators like the FD17 would fail quickly. Outdoor applications are where the FD25’s IP66 rating truly shines, as it can withstand the elements while delivering reliable linear motion for small mechanisms. These applications often require a compact actuator that can fit into tight spaces (such as within outdoor furniture or equipment) and operate on low power (often solar or battery-powered):

• Solar Micro-Trackers: Adjusts small solar panels (10–50W) for optimal sun exposure; withstands rain, dew, and dust without failure. Small solar panels (such as those used for garden lights, RVs, or off-grid small devices) require precise adjustments to track the sun’s movement throughout the day, maximizing energy production. The FD25’s compact size allows it to be integrated into the solar panel’s mounting system without adding bulk, while its IP66 rating ensures it can withstand rain, dew, and dust that would damage non-waterproof actuators. The 188N load capacity is perfectly suited for lifting and adjusting small solar panels, and the variable speed options allow for precise tracking.
• Garden & Patio Automation: Drives small outdoor vents, retractable awnings, bird feeder lifts, and greenhouse window openers—resists rain and soil moisture. Garden and patio automation projects often require compact, waterproof actuators that can blend into the environment while delivering reliable performance. The FD25 mini linear actuator is ideal for opening/closing small outdoor vents (to regulate temperature in greenhouses or outdoor storage sheds), retracting small awnings (to protect patio furniture from rain), lifting bird feeders (to keep them away from pests), and opening greenhouse windows (to control humidity and temperature). Its low noise level ensures it does not disrupt the peaceful garden environment, and its corrosion-resistant materials withstand soil moisture and rain.
• Marine & Coastal Small Gear: Controls boat cabin vents, small hatch lifts, and dock equipment; withstands salt spray and high humidity (ideal for small watercraft). Marine and coastal environments are some of the harshest for electronic and mechanical components, due to salt spray, high humidity, and frequent exposure to water. The FD25’s IP66 rating and corrosion-resistant materials make it ideal for small marine applications, such as opening/closing boat cabin vents (to improve air circulation and reduce moisture), lifting small hatches (for storage or access), and controlling dock equipment (such as small gate latches or mooring lines). Its compact size fits easily within the limited space of small boats and docks, and its 188N load capacity handles the light loads common in these applications.

In addition to these common outdoor applications, the FD25 mini linear actuator is also suitable for small outdoor lighting controls (adjusting light angles for optimal illumination), outdoor sign adjustments (tilting small signs to face traffic), and even small irrigation system controls (adjusting spray nozzles for targeted watering). Its versatility and waterproof protection make it the go-to choice for any small outdoor automation project that requires reliable performance in wet conditions.

One key advantage of the FD25 mini linear actuator in outdoor applications is its compatibility with solar power. Many small outdoor automation projects (such as solar micro-trackers or garden lights) use solar panels to power the actuator, and the FD25’s 12V/24V voltage compatibility makes it easy to integrate with solar power systems. The low energy consumption of the FD25 mini linear actuator also ensures that solar-powered projects can operate efficiently, even on cloudy days.

2. Indoor Wet & Humid Environments

Perfect for spaces with steam, splashing water, or high humidity—where safety and durability are non-negotiable. Indoor wet environments (such as bathrooms, kitchens, and labs) present unique challenges for actuators, as moisture can cause corrosion, short circuits, and premature failure. The FD25’s IP66 rating and low voltage operation make it safe and reliable for these applications, while its compact size fits into tight indoor spaces:

• Bathroom & Kitchen Automation: Operates bathroom vent louvers, under-cabinet lift mechanisms, and kitchen splash-proof appliance controls—safe in steam and splashing water. Bathrooms and kitchens are two of the most moisture-prone indoor spaces, with steam from showers, splashing water from sinks, and high humidity. The FD25 mini linear actuator is ideal for controlling bathroom vent louvers (to remove steam and reduce mold growth), lifting under-cabinet storage compartments (to access appliances or supplies), and controlling splash-proof appliance controls (such as small garbage disposals or under-sink water filters). Its IP66 rating ensures it can withstand direct splashes of water and steam, while its low noise level makes it suitable for use in quiet bathrooms.
• Lab & Medical Wet Stations: Drives small lab equipment covers, humidifier vents, and medical device adjustments; withstands cleaning sprays and high humidity. Labs and medical facilities often have wet stations where equipment is exposed to cleaning sprays, disinfectants, and high humidity. The FD25 mini linear actuator is ideal for controlling small lab equipment covers (to protect sensitive instruments from moisture or contamination), adjusting humidifier vents (to maintain optimal humidity levels), and making precise adjustments to small medical devices (such as diagnostic equipment or treatment tools). Its IP66 rating ensures it can withstand frequent cleaning with harsh chemicals and sprays, while its smooth, precise movement is critical for lab and medical applications.
• Pool & Spa Small Controls: Adjusts poolside light housings, spa cover locks, and water feature valves—resists chlorinated water splashes. Pool and spa areas are exposed to chlorinated water, which can corrode non-resistant materials. The FD25 mini linear actuator’s corrosion-resistant materials and IP66 rating make it ideal for controlling poolside light housings (adjusting the angle of lights for optimal illumination), spa cover locks (securing spa covers to prevent water evaporation), and water feature valves (controlling the flow of water in small fountains or waterfalls). Its compact size fits easily within pool and spa equipment, and its 188N load capacity handles the light loads of these controls.

In indoor wet environments, safety is a top priority, and the FD25 mini linear actuator’s low voltage operation (12V/24V) reduces the risk of electrical hazards, even in the presence of water. The sealed housing also prevents water from entering the actuator’s internal components, ensuring safe and reliable operation for years to come. Additionally, the FD25’s near-silent operation makes it suitable for use in quiet indoor spaces, such as bedrooms (for under-bed storage lifts) or offices (for small wet-area equipment).

3. Industrial Light-Duty Wet Applications

Tailored for small industrial mechanisms exposed to moisture, cleaning agents, or outdoor elements—no need for heavy-duty, high-cost waterproof actuators. Industrial applications often require reliable, durable components that can withstand harsh conditions, but many small industrial mechanisms do not require the high load capacity of heavy-duty actuators. The FD25 mini linear actuator’s compact size, IP66 rating, and 188N load capacity make it ideal for light-duty industrial wet applications, providing a cost-effective solution that does not sacrifice performance:

• Food Processing Mini Equipment: Controls small conveyor gates, ingredient hopper vents, and packaging machine covers—withstands washdowns and food moisture. Food processing facilities require equipment that can be frequently cleaned with high-pressure water jets and disinfectants, making waterproofing a critical requirement. The FD25 mini linear actuator is ideal for controlling small conveyor gates (to direct food products), opening/closing ingredient hopper vents (to prevent contamination), and covering packaging machine components (to protect them from food moisture and debris). Its IP66 rating withstands high-pressure washdowns, and its corrosion-resistant materials are safe for food contact environments.
• Agricultural Small Tools: Drives small sprayer nozzles, greenhouse vent actuators, and livestock feeder adjustments—resists rain, mud, and farm moisture. Agricultural applications often expose equipment to rain, mud, and high humidity, making waterproofing essential. The FD25 mini linear actuator is ideal for adjusting small sprayer nozzles (to target crops with pesticides or fertilizers), opening/closing greenhouse vents (to control temperature and humidity), and adjusting livestock feeder mechanisms (to dispense feed at specific times). Its compact size fits easily into small agricultural equipment, and its IP66 rating ensures it can withstand rain, mud, and farm moisture.
• RV & Camping Gear: Operates RV roof vents, outdoor storage compartment locks, and camping equipment lifts—withstands outdoor rain and humidity. RVs and camping gear are often exposed to outdoor elements, making waterproof actuators a must. The FD25 mini linear actuator is ideal for opening/closing RV roof vents (to improve air circulation and reduce moisture), locking outdoor storage compartments (to secure gear), and lifting camping equipment (such as small tables or chairs). Its compact size fits within the limited space of RVs and camping gear, and its IP66 rating withstands rain and humidity during camping trips.

Other industrial light-duty wet applications for theFD25 mini linear actuator include small water treatment equipment (controlling valve adjustments), industrial humidifiers (adjusting mist nozzles), and small manufacturing machinery (controlling access doors or component adjustments). The FD25’s versatility and durability make it a valuable component for any light-duty industrial project that requires waterproof protection.

One of the key benefits of the FD25 in industrial applications is its low maintenance requirements. The sealed housing and corrosion-resistant materials reduce the need for frequent cleaning or maintenance, even in harsh wet environments. This saves time and money for industrial users, who can rely on the FD25 mini linear actuator to deliver consistent performance without frequent downtime.

Why FD25 Is the Top Choice Over FD17 & Other Waterproof Actuators

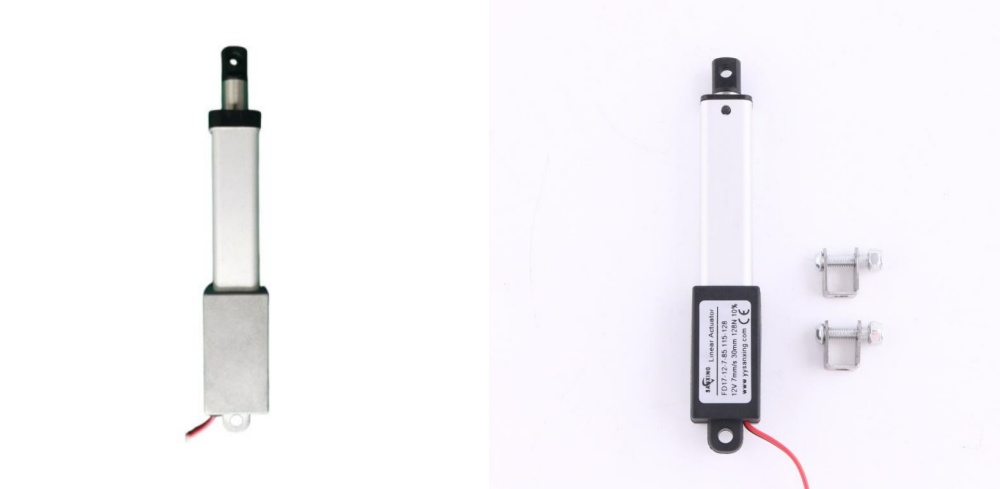

As the upgraded successor to the FD17, the FD25 mini linear actuator addresses the biggest limitation of its predecessor while retaining all its small-space advantages—making it the top mini linear actuator for wet environments. While there are other waterproof actuators on the market, the FD25 mini linear actuator stands out for its targeted design, reliable performance, and cost-effectiveness. Below are the key reasons why the FD25 mini linear actuator is the top choice for small wet-space automation:

1. Targeted Waterproof Upgrade: The FD25 mini linear actuator’s IP66 rating solves the FD17’s biggest limitation—no protection against water/dust—without changing its compact, light-duty design. The FD17 was a reliable mini actuator for dry indoor applications, but its lack of waterproofing made it unsuitable for wet or outdoor use. The FD25 mini linear actuator retains the FD17’s proven design while adding a critical waterproof upgrade, making it a versatile solution that can be used in both dry and wet environments. This means customers who already use the FD17 can easily upgrade to the FD25 mini linear actuator without changing their existing setup, saving time and money.
2. Small-Space Optimized: At 188N max load, it’s purpose-built for small mechanisms; avoids the size and cost of heavy waterproof actuators (1000N+) that are overkill for light tasks. Many waterproof actuators on the market are designed for heavy-duty applications, with large footprints and high load capacities that make them unsuitable for small-space projects. The FD25 mini linear actuator is engineered specifically for light-duty, small-space applications, with a compact size that fits into tight spaces and a load capacity that matches the needs of small mechanisms. This targeted design reduces cost, saves space, and improves energy efficiency, making it the ideal choice for small wet-space automation.
3. Reliable in Wet Conditions: Sealed housing and corrosion-resistant materials ensure long life in rain, humidity, and coastal environments—unlike standard FD17 actuators that corrode or fail in moisture. The FD25 mini linear actuator’s IP66 rating is not just a marketing feature; it’s achieved through high-quality materials and rigorous testing. The sealed housing prevents water and dust from entering the actuator’s internal components, while the corrosion-resistant materials (aluminum alloy, zinc alloy, stainless steel) prevent rust and degradation. This ensures the FD25 mini linear actuator has a long service life even in the harshest wet environments, reducing maintenance costs and downtime.
4. Easy Integration: Same mounting brackets as FD17, so existing FD17-based projects can upgrade to waterproof performance with minimal modifications. Compatibility with the FD17’s mounting brackets is a key advantage for customers who already use the FD17. This means they can upgrade to the FD25 without changing their existing mounting setup, reducing the cost and complexity of upgrading. Additionally, the FD25 mini linear actuator’s 12V/24V voltage compatibility makes it easy to integrate with existing power supplies, further simplifying the integration process.
5. Cost-Effective: The FD25 mini linear actuator offers waterproof protection at a competitive price point, making it an affordable solution for small wet-space automation. Unlike heavy-duty waterproof actuators, which can be expensive, the FD25 is priced competitively for light-duty applications, making it accessible to DIY enthusiasts, small businesses, and large manufacturers alike. Its long service life and low maintenance requirements further reduce the total cost of ownership, making it a cost-effective choice in the long run.
6. Versatile: The FD25 mini linear actuator’s customizable stroke length, variable speed options, and dual-voltage compatibility make it suitable for a wide range of applications across residential, commercial, and industrial sectors. Whether you need an actuator for a small outdoor solar tracker, a bathroom vent, or a food processing machine, the FD25 mini linear actuator can be tailored to meet your exact requirements. This versatility makes it a valuable component for any small wet-space automation project.

When compared to other mini waterproof actuators, the FD25 mini linear actuator’s unique combination of features—IP66 waterproofing, compact size, 188N load capacity, easy integration, and cost-effectiveness—makes it the top choice. Many competing models lack one or more of these features: some have IP66 waterproofing but are too large, others are compact but have lower IP ratings, and some are cost-effective but lack reliability. The FD25 mini linear actuator balances all these features, delivering a product that meets the needs of small wet-space automation projects.

For expert guidance on selecting compact waterproof actuators for light industrial and outdoor use, review the technical resources onEngineering ToolBox—a trusted source for engineering specifications and application best practices. Engineering ToolBox provides detailed information on linear actuator selection, including factors to consider when choosing an actuator for wet environments, such as IP rating, load capacity, and environmental conditions. This resource can help you ensure that the FD25 is the right choice for your specific application.

Another key consideration when selecting a waterproof actuator is testing and certification. The FD25 mini linear actuator undergoes rigorous testing to ensure it meets the IP66 rating and CE safety standards, giving customers peace of mind that the product is reliable and safe. This testing includes exposure to high-pressure water jets, dust, and temperature fluctuations, ensuring the FD25 mini linear actuator can withstand the harshest wet environments.

Final Takeaway

The Sanxing FD25 is the top compact waterproof linear actuator for small, wet-environment automation. As the FD17’s IP66-enhanced successor, it retains the FD17’s light-duty (188N) and space-saving design while adding critical waterproof protection—making it the only choice for projects where small size, low load, and reliable wet-environment performance are non-negotiable. Whether you’re upgrading an existing FD17 system or building a new small waterproof automation project, the FD25 delivers targeted, high-performance linear motion for the most demanding wet spaces. As a leading Sanxing linear actuator, it combines reliability, compactness, and waterproofing to excel in applications where other mini actuators fall short.

In today’s automation landscape, the demand for compact, waterproof actuators is growing, as more projects move to outdoor or wet environments. The FD25 mini linear actuator is perfectly positioned to meet this demand, offering a targeted solution that balances size, performance, and durability. Its IP66 rating ensures it can withstand the elements, its compact size fits into tight spaces, and its 188N load capacity handles the most common small-space automation tasks. Whether you’re a DIY enthusiast, an engineer, or a manufacturer, the FD25 mini linear actuator is the ideal choice for small wet-space automation.

At Sanxing, we are committed to providing high-quality linear actuators that meet the needs of our customers. The FD25 is a testament to this commitment, combining the proven design of the FD17 with a critical waterproof upgrade to deliver a product that is reliable, versatile, and cost-effective. We also offer customizable solutions for the FD25 mini linear actuator, including stroke adjustments, mounting bracket configurations, and voltage options, to fit your exact project requirements. Whether you need a standard FD25 or a custom solution, we are here to help you find the perfect actuator for your small wet-space automation project.

If you’re ready to upgrade your small automation project to waterproof performance, the Sanxing FD25 mini linear actuator is the perfect choice. With its compact size, IP66 waterproof rating, and 188N load capacity, it delivers the reliability and performance you need to succeed in wet environments. Contact us today for a free consultation and personalized quote, and let us help you bring your small wet-space automation project to life.
