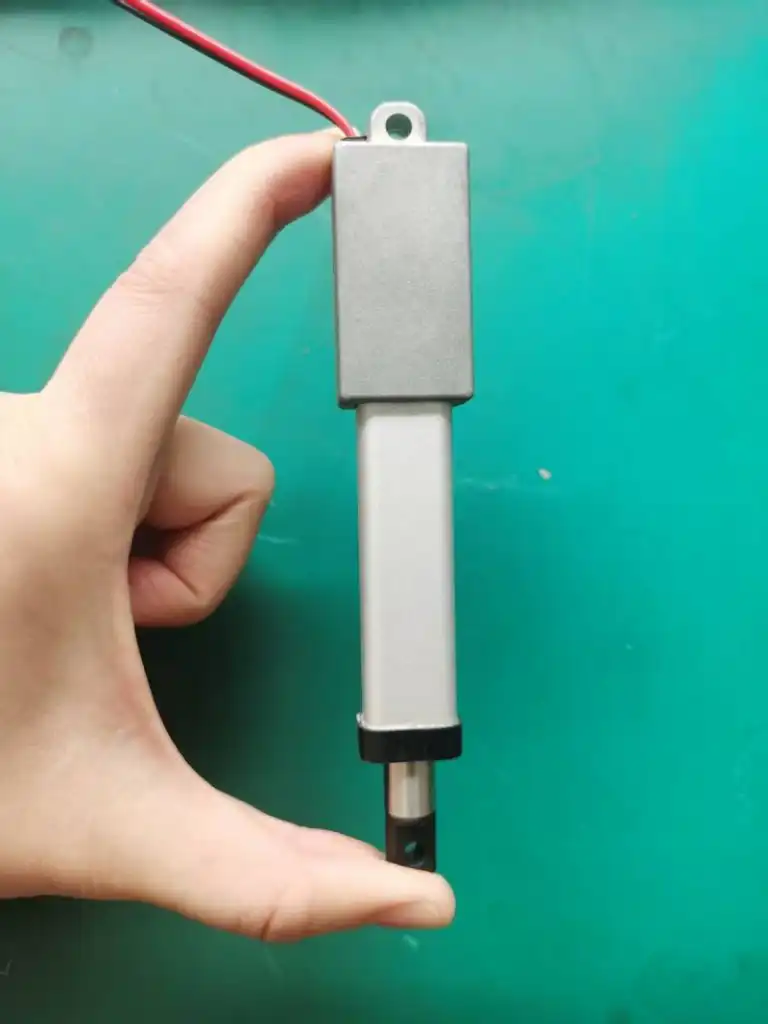

Sanxing FD25 Linear Actuator: IP66 Waterproof Upgrade of the FD17 Mini Actuator

The Sanxing FD25 linear actuator is the upgraded version of the popular FD17 mini linear actuator, engineered to deliver enhanced performance and environmental resistance for light-duty automation projects. Building on the compact design and reliable operation of the FD17, the FD25 introduces a critical upgrade: an IP66 waterproof rating, making it the ideal choice for applications exposed to moisture, dust, or outdoor conditions. Whether you need a robust actuator for outdoor smart home systems, wet-environment industrial equipment, or weatherproof automation projects, the Sanxing FD25 linear actuator combines the familiar form factor of the FD17 with new waterproof capabilities, setting it apart from standard light-duty actuators.

For a deeper understanding of IP ratings and their significance in electronic components, you can refer to the comprehensive guide on Wikipedia’s IP Code page, which provides authoritative information on waterproof and dustproof standards for industrial and consumer devices.

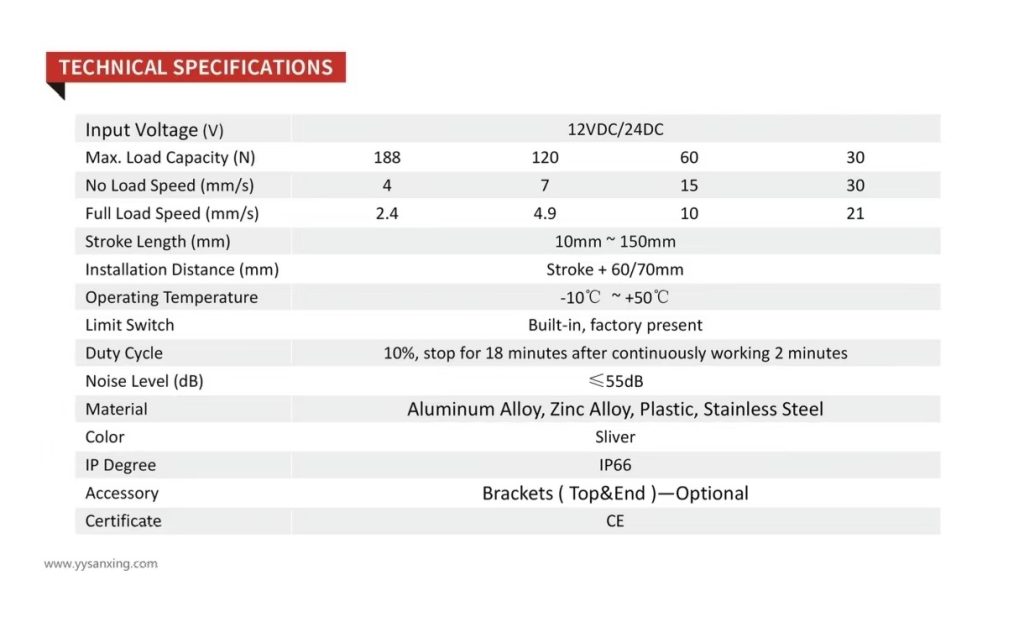

Core Technical Specifications of Sanxing FD25 (FD17 Upgrade)

The FD25 retains the compact dimensions and versatile performance of the FD17 while elevating its environmental durability. Its core parameters are optimized for both indoor and outdoor use:

• Input Voltage: 12V DC / 24V DC, compatible with standard power supplies used in small automation equipment, smart home devices, and outdoor solar-powered systems.
• Load Capacity: Multiple performance variants to match different light-duty needs, with a maximum thrust of 188N (≈19kg), alongside 120N, 60N, and 30N options, allowing you to select the right balance of power and speed.
• Speed Performance: Tailored to load requirements, with no-load speeds ranging from 4mm/s to 30mm/s and full-load speeds from 2.4mm/s to 21mm/s, ensuring smooth, controlled movement even under maximum load.
• Stroke Range: Standard customizable strokes from 10mm to 150mm, with installation distances calculated as “Stroke + 60/70mm” to accommodate tight integration in both indoor and outdoor setups.
• Environmental Durability: The key upgrade over the FD17 is the IP66 waterproof rating, which provides complete protection against dust ingress and resistance to powerful water jets, making it suitable for use in rain-exposed, high-humidity, or wet environments. It operates reliably in temperatures from -10℃ to +50℃, ensuring consistent performance across diverse conditions.
• Operational Reliability: Built-in limit switches prevent over-travel, while a 10% duty cycle (18-minute rest after 2 minutes of continuous operation) protects the motor from overheating, extending the actuator’s service life. The noise level is ≤55dB, delivering near-silent operation that is ideal for noise-sensitive applications.
• Construction & Certifications: Made from high-quality aluminum alloy, zinc alloy, plastic, and stainless steel, the FD25 balances lightweight portability with rugged durability. It comes with optional top/end mounting brackets for flexible installation and holds CE certification, ensuring compliance with international safety standards.

Key Upgrades Over FD17: Why Choose the FD25?

The Sanxing FD25 linear actuator builds on the FD17’s proven design with targeted improvements to meet evolving automation needs, particularly in challenging environments:

1. IP66 Waterproof Rating: The most significant upgrade, this makes the Sanxing FD25 linear actuator suitable for outdoor applications such as automated garden gates, outdoor vents and weather-exposed smart home devices, where the FD17’s lower IP rating would not provide sufficient protection.
2. Enhanced Material Durability: The use of zinc alloy in critical components improves corrosion resistance, ensuring long-term performance in humid or coastal environments where moisture and salt exposure are concerns.
3. Versatile Mounting Options: Optional top and end brackets expand installation possibilities, making it easier to integrate the Sanxing FD25 linear actuator into custom projects where the FD17’s standard mounting setup may have been limiting.

Top Applications of Sanxing FD25 Waterproof Linear Actuator

Thanks to its IP66 rating and compact size, the Sanxing FD25 linear actuator excels in applications where the FD17 could not be used, while still supporting traditional light-duty automation scenarios:

• Outdoor Smart Home Systems: Automated garden vents, outdoor awning controls, rain-exposed window openers, and solar panel trackers, where waterproofing is essential.
• Wet-Environment Industrial Equipment: Laboratory humidifiers, food processing machinery, and marine-grade automation components, where exposure to water and moisture is common.
• Indoor & Commercial Automation: Bathroom vent controls, kitchen cabinet lifts, and light-duty industrial equipment, where low noise and compact design are prioritized.

For guidance on selecting linear actuators for outdoor and wet-environment applications, you can review the technical resources on the Engineering ToolBox, a trusted source for engineering specifications and application best practices.

As a professional linear actuator manufacturer, we offer customized solutions for the Sanxing FD25 linear actuator, including stroke adjustments, mounting bracket configurations, and voltage options to fit your exact project requirements. Whether you need a weatherproof upgrade for an existing FD17-based system or a compact, durable actuator for a new outdoor automation project, the FD25 is designed to deliver reliable, long-lasting performance. Contact us today for a free consultation and personalized quote.
