Cost-Effective super mini electric actuator FD17 188N IP54 For Indoor Compact Cabinet & Mini Automation
Super mini electric actuator FD17 is an ultra-slim low-thrust telescopic drive exclusively designed for dry indoor mini automation projects, focusing on ultra-small installation space, cost-controllable bulk procurement and fully customizable 10–150mm short stroke range. Unlike FD25 IP66 splash-proof miniature actuator and FD16 IP68 high-thrust full waterproof linear drive, super mini electric actuator adopts lightweight black plastic-aluminum integrated housing with IP54 basic dustproof protection grade, matching stable graded thrust from 30N up to peak 188N, perfectly fitting dry office, bedroom and living room intelligent cabinet and small indoor automation equipment without heavy humidity or water splash interference. Every set of super mini electric actuator is equipped with factory pre-calibrated bidirectional mechanical limit switches, universal 12V/24V dual DC low voltage and optional top & end mounting brackets, solving three core procurement pain points of indoor furniture OEM factories and mini automation integrators: excessive reserved installation space required by conventional actuators, fixed non-customizable stroke length, and high unit cost of multi-specification micro linear drives.
With the explosive growth of global indoor smart furniture and miniature office automation market, structural designers and procurement managers are continuously seeking compact, low-cost linear motion components that can be embedded into ultra-narrow cabinet interlayers. Most generic micro electric actuators on the market either adopt bulky motor housing occupying too much equipment internal space, or only provide fixed standard stroke without custom modification support, forcing furniture manufacturers to redesign cabinet frames and raise overall development costs. super mini electric actuator FD17 fills this market gap through miniaturized internal gear and motor optimization design, retaining complete safety limit configuration while shrinking overall body width and length, and fully supporting free stroke customization within 10mm to 150mm without expensive extra customization fees for bulk OEM orders. Whether mass-producing hidden TV lifting cabinets, office intelligent storage lockers, small laboratory dry testing jigs or indoor planting box micro air baffles without dew interference, super mini electric actuator delivers smooth, low-noise repeatable linear movement, helping indoor automation equipment brands launch affordable compact finished products and seize the mid-range mini furniture hardware wholesale market share.
For engineers selecting miniature linear drive for multi-scene indoor and semi-humid OEM projects, super mini electric actuator FD17 has clear differentiated positioning compared with FD25 and FD16 series. FD25 upgrades to IP66 splash-proof silver housing to adapt mild humid kitchen and semi-sheltered balcony scenes, which brings higher production cost than FD17; FD16 supports IP68 full waterproof and maximum 300N heavy thrust, targeting outdoor agricultural and damp laboratory high-end projects with higher unit price. In contrast, super mini electric actuator FD17 only retains IP54 dustproof grade suitable for completely dry indoor environments, cutting redundant waterproof structure cost and becoming the most cost-effective choice for large-scale indoor smart cabinet mass production. The unified 12V/24V dual voltage design of super mini electric actuator unifies power supply matching standard with FD25 and FD16, reducing multi-model spare parts inventory management pressure for all OEM equipment factories.

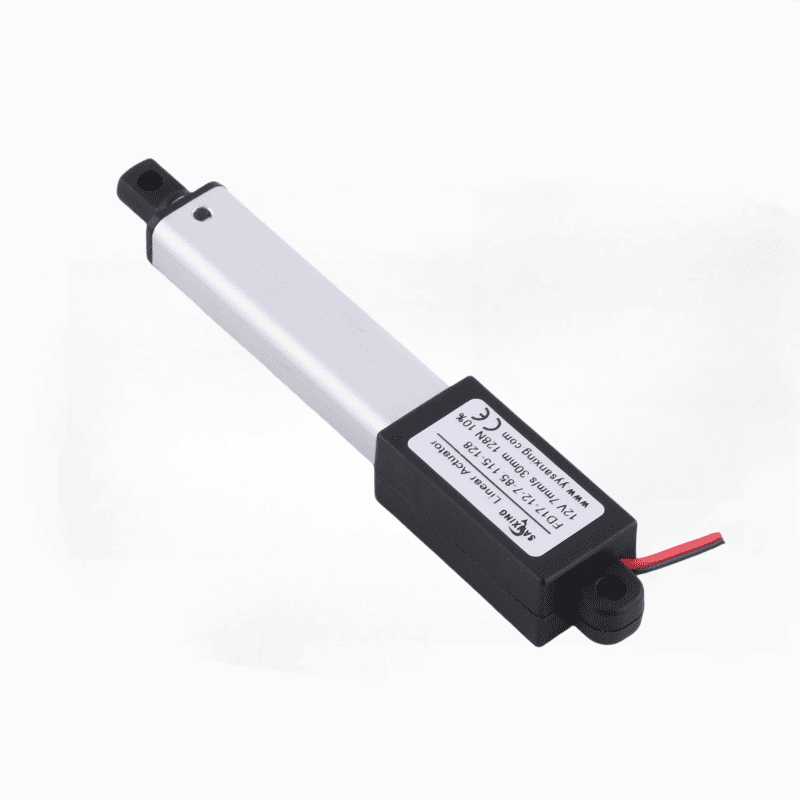

Complete Core Technical Specifications of FD17 super mini electric actuator
All parameter indicators of FD17 are fully optimized around indoor compact cabinet automation positioning of super mini electric actuator, core indoor-oriented specs sorted clearly for fast buyer selection:
- Rated Working Voltage: Dual universal 12VDC / 24VDC low safe voltage, compatible with all indoor smart furniture power adapters
- Graded Max Push Thrust: 188N / 120N / 60N / 30N, flagship 188N for medium-weight cabinet door and panel lifting
- No-Load Telescopic Speed: 4 / 7 / 15 / 30 mm/s; Full-Load Stable Speed: 2.4 / 4.9 / 10 / 21 mm/s, no obvious speed drop under rated load
- Customizable Stroke Scope: 10mm ~ 150mm full adjustable short stroke, fully covering all conventional indoor cabinet pop-up and lifting travel demands
- Minimum Installation Distance: Stroke +55/60/70mm ultra-short compact mounting size, fits ultra-narrow cabinet internal gaps less than 80mm wide
- IP Protection Grade: IP54 basic dustproof, only suitable for dry indoor environments without long-term water vapor or liquid splashes
- Operating Temperature Range: -10℃ ~ +50℃ normal indoor room temperature range, stable operation in constant air-conditioning office and household spaces
- Running Noise Level: ≤55dB mild low mechanical sound, no harsh buzz disturbing quiet home and office environments
- Material & Appearance: Lightweight aluminum alloy telescopic tube, engineering plastic gearbox housing, stainless steel internal wear-resistant gears, black compact streamline shape

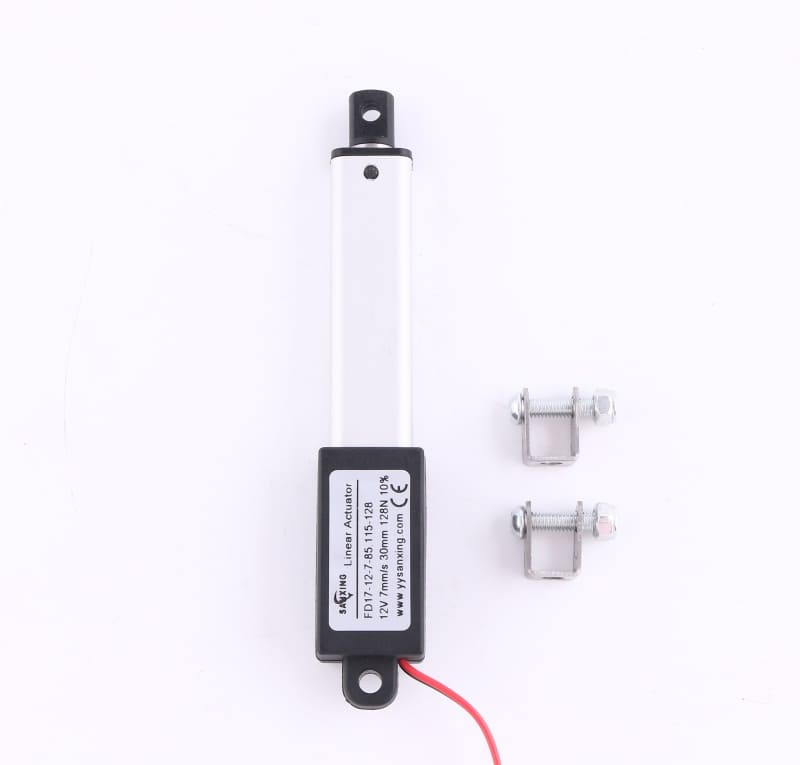

- Optional Accessories: Top and end U-type mounting brackets, OEM private logo printing support on plastic housing
- Safety Certification: CE international export safety certification, factory preset dual bidirectional mechanical limit switches to avoid cabinet frame collision damage
If your automation projects involve humid kitchen cabinets, semi-outdoor balcony intelligent lockers or equipment exposed to regular water splashes, you can select upgraded waterproof tiny low force telescopic actuator FD25 IP66 model to resist moisture and liquid erosion. For heavy-load outdoor agricultural ventilation equipment and damp high-temperature laboratory instruments requiring over 200N thrust and full waterproof performance, high-spec IP68 Waterproof miniature linear actuator FD16 series is the exclusive matching high-power linear drive solution. For all dry indoor intelligent cabinet, office storage and miniature dry testing equipment mass OEM orders with limited budget and narrow installation space, super mini electric actuator FD17 IP54 version is the optimal cost-performance compact linear drive selection.
Main Dry Indoor Application Scenarios of super mini electric actuator

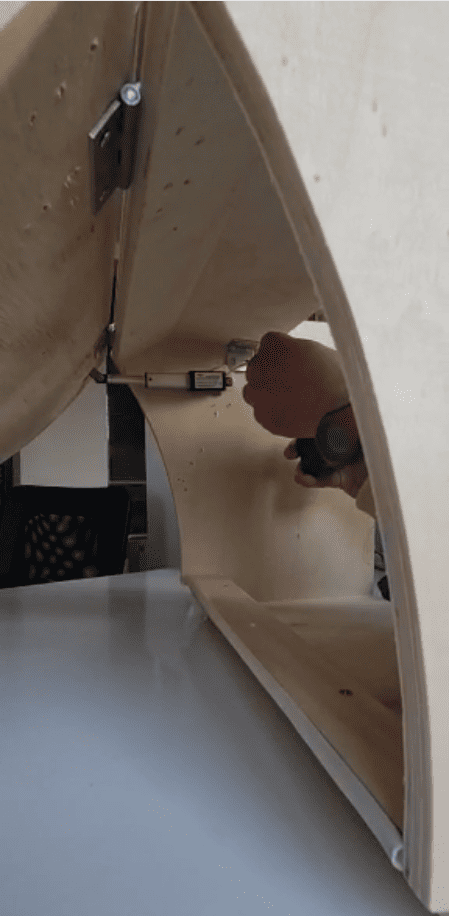

1. Household Hidden Smart Storage Cabinet & Bedroom Locker
Living room hidden mini TV lifting frames, bedroom invisible storage lockers and entrance intelligent shoe cabinets are the largest civil downstream application of super mini electric actuator. The ultra-slim body size of super mini electric actuator can be completely embedded into thin cabinet interlayers that ordinary medium-size linear actuators cannot occupy, and 30–188N adjustable thrust smoothly pushes light and medium-weight cabinet panels to pop up and retract without impact jitter. IP54 dustproof grade effectively isolates daily living room floating fabric dust and paper scraps, preventing internal gear jamming caused by long-term dust accumulation. Furniture OEM factories widely adopt super mini electric actuator FD17 for mass production of low-to-medium price customized smart storage furniture, significantly reducing raw material procurement cost while retaining stable silent operation experience of finished cabinets.
2. Office Intelligent Compact Storage & Display Cabinets
Modern minimalist office hidden file storage cabinets, shopping mall small intelligent display lockers and exhibition hall miniature sample demonstration equipment rely on super mini electric actuator as core automatic adjustment driving parts. Office indoor environment maintains constant dry air conditioning temperature without dew and water splashes, perfectly matching IP54 protection grade of super mini electric actuator. Ultra-low running noise below 55dB will not interfere with daily office communication and customer shopping experience, customizable short stroke from 10mm to 150mm adapts diversified small cabinet opening and lifting structural designs. Commercial furniture hardware suppliers take super mini electric actuator FD17 as standard matching linear drive for bulk office cabinet wholesale orders.
3. Indoor Dry Laboratory Miniature Testing Jigs
Small precision testing instruments used in constant-temperature dry laboratories, miniature electronic component calibration fixtures and micro optical detection equipment need ultra-compact low-thrust linear motion components, and super mini electric actuator perfectly meets tiny internal layout demand of indoor dry lab devices. The sealed plastic gearbox structure of super mini electric actuator blocks lab paper dust and tiny component debris from entering internal transmission structure, built-in dual limit switches precisely control short-stroke micro displacement calibration, 12V low voltage eliminates indoor electric shock hidden danger for experimental operators. Small laboratory equipment manufacturers select super mini electric actuator FD17 for low-budget miniature test jig automation upgrading projects.
4. Indoor Mini Hydroponic Planting Box Air Louvers (Dry Closed Cabinets Only)
Fully closed indoor vertical hydroponic planting cabinets without open water pools and dew accumulation adopt super mini electric actuator for automatic micro air baffle adjustment. Completely sealed planting box internal air keeps dry without heavy water vapor erosion, IP54 dustproof grade of super mini electric actuator can resist floating plant fiber dust and nutrient dry powder pollution, ultra-slim mounting size saves limited internal crop growing space inside planting equipment. Home indoor planting equipment brands match super mini electric actuator FD17 for small desktop closed planting cabinet mass production.
5. Miniature Model & RC Hobby Automation Mechanisms
Large static building miniature models, small RC robot auxiliary lifting structures and miniature exhibition mechanical simulation equipment use super mini electric actuator for compact linear motion adjustment. Hobby model equipment usually reserves extremely narrow internal assembly space, super mini electric actuator’s ultra-short minimum installation distance solves layout difficulty for model designers, graded low thrust from 30N to 188N avoids breaking fragile miniature model frames during movement, customizable short stroke supports diversified simulation mechanical travel design for model hobby OEM factories.
Core Indoor-Oriented Competitive Advantages of FD17 super mini electric actuator
1. Ultra-slim compact body specially optimized for narrow cabinet interlayers
The most distinctive core competitive advantage of super mini electric actuator FD17 is miniaturized integrated structure design, greatly reducing overall body width and length compared with conventional miniature linear actuators on the market. Its shortest minimum installation distance reaches Stroke+55mm, which can be installed inside cabinet gaps narrower than 80mm, solving the biggest structural design pain point of indoor intelligent furniture engineers: insufficient reserved installation space for linear drive components. As analyzed by authoritative mechanical motion industry media Automation World, ultra-compact low-cost micro linear actuators represented by FD17 super mini electric actuator have become the mainstream standard matching component for mass-produced indoor smart cabinet automation in 2026, effectively lowering overall equipment development cycle and raw material TCO for furniture OEM manufacturers.
2. Full 10–150mm customizable stroke without extra OEM modification fees
Most generic micro electric actuators only provide fixed standard stroke options (25/50/100mm), requiring high additional customization fees for non-standard travel length adjustment, increasing project cost for small-batch furniture OEM clients. super mini electric actuator FD17 fully supports free stroke customization within the entire 10mm to 150mm range for all bulk orders, no extra mold or processing surcharge needed, allowing furniture manufacturers to design cabinet frame structure according to functional demand without limiting actuator fixed stroke parameters. This flexible customization feature greatly expands applicable cabinet structural types and improves finished product design flexibility for intelligent furniture brands.
3. IP54 cost-effective dustproof grade for all dry indoor scenarios
super mini electric actuator FD17 abandons redundant multi-layer waterproof sealing structure used by FD25 and FD16 models, only retaining IP54 basic dustproof performance that completely meets all dry indoor environment usage demands, effectively cutting production cost and lowering unit wholesale price for bulk procurement. For 90% of indoor smart cabinet, office storage and dry laboratory automation projects without humid and splash interference, IP54 protection grade can fully extend actuator service life to over 10,000 continuous operation cycles, avoiding over-specification cost waste brought by high IP waterproof actuators. According to durability test data released by Machine Design, indoor-dedicated IP54 miniature linear actuators can reduce comprehensive procurement cost of furniture OEM factories by 20%–30% compared with IP66/IP68 waterproof micro actuators under same thrust and stroke specifications.
4. Low noise stable operation matching quiet household & office environments
All super mini electric actuator FD17 adopt optimized silent lead screw and gear transmission pair, strictly controlling full-load running noise below ≤55dB, without sharp mechanical buzzing sound during cabinet pop-up and retraction movement. This low-noise design perfectly adapts quiet bedroom, study and office working environments, eliminating user complaints caused by loud adjustment noise of intelligent storage furniture, a key selling point favored by mid-range customized furniture brand buyers.
5. Complete OEM supporting service including brackets and custom housing logo
super mini electric actuator FD17 provides full set of OEM supporting services for global furniture hardware wholesale clients: optional top & end U-type mounting brackets matching diversified cabinet installation drawings, custom private brand logo silk printing on black plastic gearbox housing, mixed stroke and mixed thrust bulk order packaging without single-spec minimum order quantity restriction. Unified 12V/24V dual voltage design reduces OEM factory spare parts inventory category quantity, simplifying warehouse management and procurement workflow for mass production furniture manufacturers.
Standard Indoor Installation & Long-Term Maintenance Guidelines for super mini electric actuator
To maintain stable smooth operation and extend service life of super mini electric actuator installed on dry indoor smart cabinet and mini automation equipment, all OEM assembly factories and end after-sales maintenance personnel must follow standardized operation rules strictly:
- Mounting specification: Fix super mini electric actuator on flat thin rigid cabinet wood or metal support plate, prohibit long-term lateral eccentric side force; sustained side load will wear internal tiny gear set rapidly and reduce actual stable output thrust of super mini electric actuator.
- Power supply matching: Equip matched stabilized 12V or 24V DC power adapter according to actuator rated voltage, unstable voltage fluctuation will lead to inconsistent telescopic speed and accelerate miniature DC motor aging under daily frequent cabinet operation.
- Duty cycle compliance: Abide by standard 10% duty cycle technical parameter (2 minutes continuous operation + 18 minutes rest), forbid long-hour uninterrupted frequent cabinet adjustment to prevent miniature motor overheating burnout inside sealed plastic housing.
- Environmental differentiated maintenance: super mini electric actuator FD17 only supports dry indoor usage environments, must avoid long-term placement in humid kitchen, bathroom or semi-outdoor balcony spaces with water vapor and liquid splashes; regularly wipe plastic housing surface with dry soft cloth to remove accumulated floating dust every 3 months to prevent dust entering gearbox gap.
- Pre-delivery OEM calibration workflow: Before shipping bulk indoor furniture OEM orders, uniformly calibrate bidirectional limit switch sensitivity and wiring connector tightness of super mini electric actuator to eliminate cabinet panel collision and sudden stalling failure risk after client assembly.
- Quarterly safety inspection checklist: Every three months check wiring harness tightness, limit switch trigger accuracy and gearbox dust sealing ring integrity, clean accumulated fine dust inside gearbox gap timely to sustain long-term stable silent operation performance of super mini electric actuator.
Conclusion
Super mini electric actuator FD17 is a cost-effective indoor-dedicated ultra-compact low-thrust linear motion component, specially developed for global dry indoor intelligent cabinet, office compact storage locker, dry laboratory miniature testing jig and indoor closed planting box automation OEM mass production projects. It solves two core universal industry pain points of conventional miniature linear actuators: excessive reserved installation space requirement and high non-standard stroke customization cost, integrating ultra-slim miniaturized body design, full 10–150mm free custom stroke, cost-effective IP54 dustproof grade, low-noise silent transmission and complete OEM brand customization supporting functions into one unified product series.
Compared with FD25 IP66 splash-proof humid-environment miniature actuator and FD16 IP68 high-thrust full waterproof outdoor linear drive, super mini electric actuator FD17 is the optimal matching compact linear drive accessory for all dry indoor mini automation projects with budget control demand and narrow cabinet installation space limitation. With ultra-short mounting dimension, flexible stroke modification service, low wholesale unit price and CE international export certification, super mini electric actuator FD17 will become the mainstream preferred low-cost miniature linear drive for mid-range indoor smart furniture OEM manufacturers worldwide, helping customized cabinet hardware brands launch affordable silent intelligent storage finished products and steadily capture fast-growing indoor mini automation hardware wholesale market share.
RFQ
Q1: What is the core applicable environment difference between FD17 super mini electric actuator and FD25/FD16 models?
A1: FD17 IP54 only for dry indoor; FD25 IP66 for mild humid; FD16 IP68 for outdoor & heavy damp scenes.
Q2: Can super mini electric actuator FD17 customize non-standard stroke within 10–150mm for cabinet OEM orders?
A2: Yes, all stroke from 10mm to 150mm supports free OEM modification without extra fees.
Q3: What maximum thrust can super mini electric actuator FD17 provide for medium-weight hidden cabinet panels?
A3: Peak thrust reaches 188N to drive most indoor medium-size cabinet lifting structures.
Q4: Is super mini electric actuator FD17 quiet enough for bedroom hidden intelligent storage lockers?
A4: Running noise ≤55dB, fully suitable for quiet household indoor cabinet scenarios.
Q5: Does super mini electric actuator FD17 supply matching mounting brackets for furniture cabinet assembly?
A5: Top & end U-type mounting brackets are optional extra accessories if you require.
