High Reliable IP68 Waterproof miniature linear actuator FD16 30-300N For All Kinds Mini Automation Equipment

Miniature linear actuator FD16 with IP68 full waterproof grade and 30-300N adjustable thrust is a heavy-duty miniature telescopic drive exclusively developed for damp, semi-outdoor, high-low temperature mini automation projects, solving the core defects of low IP micro actuators such as short service life caused by water vapor, dew and dust erosion. Unlike FD17 IP54 indoor basic model and FD25 IP66 splash-proof miniature linear actuator, miniature linear actuator FD16 adopts multi-layer fluorosilicone integrated sealing structure to achieve dust-tight and long-term short-time immersion resistance, matched with ultra-wide operating temperature from -25℃ to +80℃ and exclusive built-in overcurrent protection circuit to avoid motor burnout under stall or overload state. The thrust range of miniature linear actuator covers 30N to maximum 300N, far stronger than FD17 and FD25’s top 188N load capacity, and customizable stroke length extends from 10mm up to 800mm, simultaneously satisfying short-stroke cabinet pop-up and long-stroke miniature lifting platform design demands. Equipped with universal 12V/24V DC low safe voltage, factory pre-calibrated bidirectional mechanical limit switches and CE & RoHS dual international safety certification, miniature linear actuator eliminates three major procurement pain points of miniature equipment OEM factories: frequent equipment failure in humid environment, insufficient thrust to drive heavy mini frames, and no self-protection function when the actuator is stuck by foreign objects.

As global semi-outdoor mini smart furniture, small agricultural greenhouse automation and damp laboratory precision instrument market expands rapidly year by year, procurement engineers are hard to find compact micro linear drive that can run stably under long-term high humidity and extreme temperature difference environment. Most low-cost miniature linear actuator on the market only provide IP54 or IP66 weak protection grade, which cannot resist continuous dew immersion, irrigation water splashes and cold/hot seasonal changes, leading to massive after-sales product return complaints from end users. miniature linear actuator FD16 perfectly fills this market blank by upgrading internal thickened alloy gear set and full waterproof sealing mold design, retaining ultra-slim miniature body size without sacrificing high environmental resistance performance. Whether mass-producing semi-outdoor balcony intelligent storage cabinets, small greenhouse automatic ventilation windows, damp laboratory micro testing jigs or humid kitchen smart storage lockers, miniature linear actuator delivers smooth vibration-free linear stretching movement, helping miniature automation equipment manufacturers launch high-reliability harsh-environment finished goods and seize differentiated high-end mini hardware wholesale market share.

For structural designers and procurement managers selecting miniature linear components for multi-scene OEM orders, miniature linear actuator FD16 has obvious differentiated competitive advantages compared with FD17 and FD25 miniature series. FD17 is only IP54 basic dustproof, only suitable for completely dry indoor cabinet scenes without any water vapor contact; FD25 reaches IP66 splash-proof standard but cannot bear long-term dew accumulation and short-time water immersion, and its maximum thrust is limited to 188N, unable to push heavy miniature vent and cabinet frames. In contrast, miniature linear actuator FD16 supports optional IP68 full waterproof grade, can work stably in -25℃ freezing cold northern outdoor environment and +80℃ high temperature summer greenhouse environment, and its top 300N push load can handle all heavy mini automation frame lifting demands. The unified dual 12V/24V voltage design of miniature linear actuator unifies the power supply matching standard with FD17 and FD25, greatly reducing multi-model spare parts inventory pressure for OEM equipment factories.

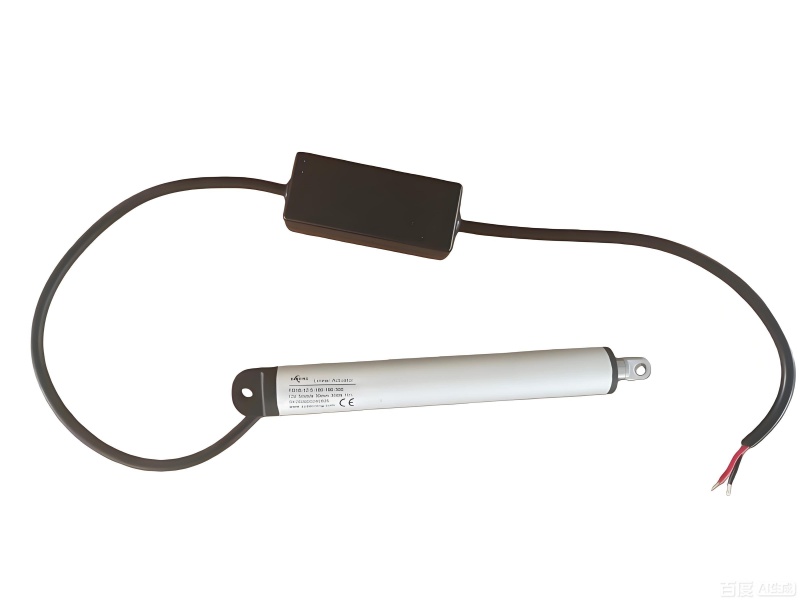

Brief Core Technical Specifications of IP68 Waterproof miniature linear actuator FD16

All parameter indicators of FD16 are optimized around the high IP, wide temperature and heavy mini load positioning of miniature linear actuator, core differentiated specifications sorted clearly for fast buyer selection:

1. Rated Working Voltage: Dual universal 12VDC / 24VDC low voltage, compatible with solar farm batteries and household furniture power adapters
2. Graded Max Push Thrust: 300N / 200N / 150N / 50N / 30N, flagship 300N for heavy mini automation frames
3. No-Load Telescopic Speed: 5 / 10 / 15 / 30 / 35 mm/s; Full-Load Stable Speed: 4 / 7.5 / 10 / 23 / 25 mm/s, no speed drop under full 300N load
4. Customizable Stroke Range: 10mm ~ 800mm ultra-wide adjustable stroke, far exceeding FD17/FD25 max 150mm stroke limit
5. Minimum Installation Distance: Stroke +130 / +150 / +180mm multi-size compact mounting options for narrow mini equipment interlayers
6. IP Protection Grade: Optional IP54 basic dustproof or IP68 full dust-tight & waterproof dual grades, core competitive advantage of FD16 miniature linear actuator
7. Operating Temperature Scope: -25℃ ~ +80℃ ultra-wide temperature resistance, adapt extreme cold and high-temperature harsh working conditions
8. Exclusive Safety Function: Built-in overcurrent protection circuit, auto power cut within 0.5s under stall/overload to protect motor and expensive finished equipment
9. Running Noise Level: ≤55dB mild low operating sound, fit quiet laboratory, bedroom and planting environment scenes
10. Material & Appearance: Corrosion-resistant aluminum alloy telescopic tube, wear-resistant stainless steel internal gears, silver streamlined compact housing
11. International Certification: CE + RoHS dual export safety certification, meet global miniature automation equipment electrical inspection standards
12. Standard Built-in Protection: Bidirectional mechanical limit switches preset before factory delivery to prevent over-travel frame collision damage

If your OEM projects only involve dry indoor low-load small office cabinets without humid and temperature-changing working conditions, you can choose cost-effective compact miniature automation linear drive FD17 model to control raw material procurement budget; if your equipment only works in mild humid sheltered indoor scenes without long-term dew and water immersion risks, waterproof tiny low force telescopic actuator FD25 IP66 version is a balanced cost-performance choice between waterproof grade and unit price. For all semi-outdoor, agricultural, damp laboratory and humid kitchen mini automation equipment requiring full waterproof and wide temperature performance, miniature linear actuator FD16 IP68 version is the only reliable long-term stable matching linear drive solution.

Main Mini Automation Application Scenarios of IP68 Waterproof miniature linear actuator

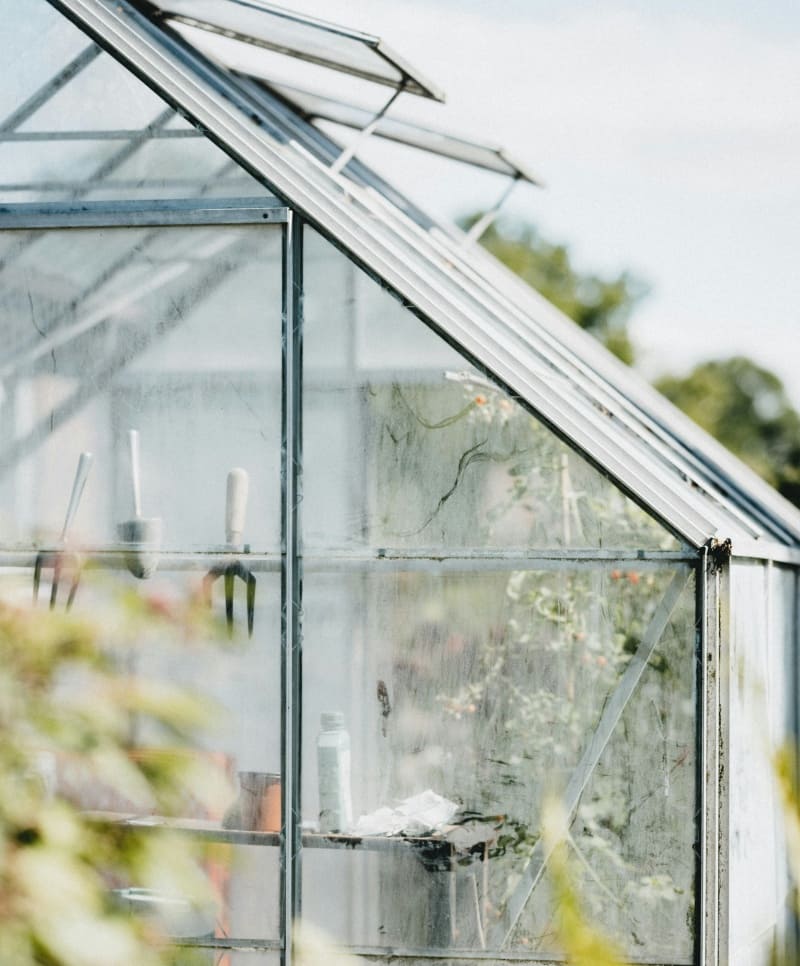

1. Small Agricultural Greenhouse Automatic Ventilation Equipment

Household mini greenhouses, indoor hydroponic planting boxes and small poultry breeding shed micro air baffles are the largest outdoor application of miniature linear actuator. Agricultural planting environment has long-term high humidity, heavy dew, irrigation water splashes and large day-night temperature difference, ordinary low IP miniature linear actuator will suffer internal gear rust and circuit short circuit after several months of continuous operation. miniature linear actuator FD16 IP68 full waterproof grade completely isolates continuous moisture erosion and short-time water jet impact, its -25℃~+80℃ wide temperature range adapts winter freezing frost and summer high temperature greenhouse seasonal changes, stable 30-300N thrust smoothly pushes thick aluminum vent frames open and closed without jitter. Small agricultural intelligent equipment OEM factories widely match miniature linear actuator FD16 to drastically cut finished product failure complaint rate from end growers.

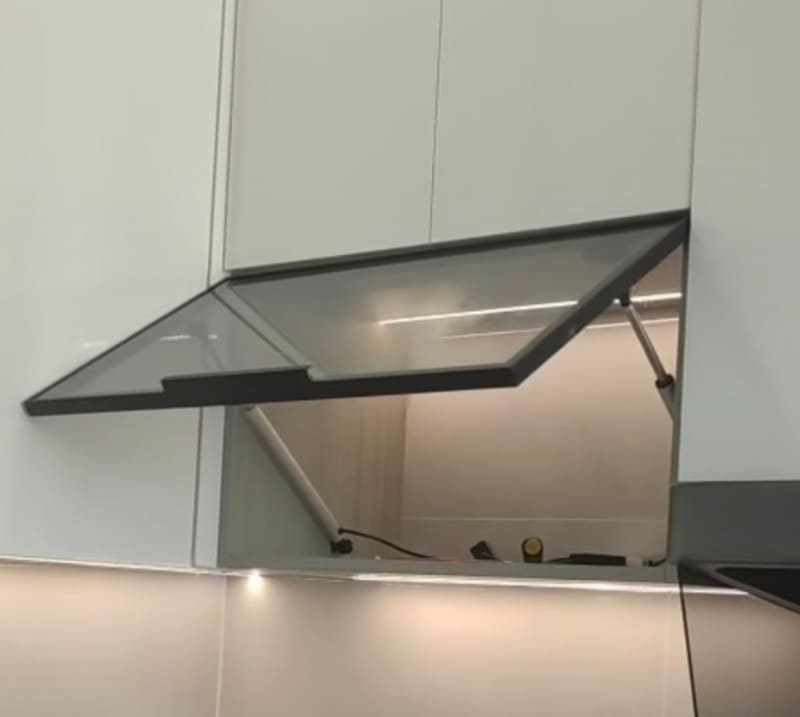

2. Humid Kitchen & Bathroom Smart Storage Cabinet Automation

High-humidity kitchen hidden lifting cabinets, bathroom intelligent storage lockers and basement moisture-proof storage equipment rely on miniature linear actuator as core automatic adjustment driving parts. Long-term water vapor, cleaning liquid splashes and constant damp air are inevitable in kitchen and bathroom space, low IP micro actuators are easy to break down within half a year of use. miniature linear actuator FD16 multi-layer fluorosilicone sealing structure blocks water vapor infiltration thoroughly, customizable short stroke from 10mm to 150mm perfectly fits narrow cabinet interlayer layout, ultra-quiet running sound below 55dB will not disturb family daily rest during cabinet automatic pop-up and retraction. Home furniture customization brands select miniature linear actuator FD16 IP68 version to launch high-reliability damp-resistant intelligent cabinet series for high-end villa renovation projects.

3. Semi-Outdoor Balcony & Courtyard Mini Intelligent Furniture

Balcony hidden sunshade lifting frames, courtyard small automatic flower rack adjustment mechanisms and terrace miniature storage cabinets are important civil semi-outdoor application of miniature linear actuator. These furniture products face seasonal rain, overnight dew and winter low temperature environment, low waterproof miniature linear actuator will age rapidly within one year of outdoor sheltered exposure. miniature linear actuator FD16 IP68 dust-tight waterproof grade can run stably without extra protective shell, saving furniture structural design space and additional accessory cost for OEM manufacturers. Dual 12V/24V universal voltage is fully compatible with household wall-mounted power supply and portable rechargeable power bank systems.

4. Damp Laboratory Precision Micro Testing Instruments

Micro experimental fixture displacement adjustment, miniature water tank testing platform and small medical auxiliary detection instruments need ultra-compact linear drive components with moisture resistance performance, and miniature linear actuator FD16 perfectly meets the harsh constant humidity working environment demand of laboratory precision equipment. Its exclusive overcurrent protection function can automatically cut off power supply when the test fixture is stuck, avoiding expensive experimental equipment collision damage caused by actuator stall. Ultra-slim compact body design saves limited internal tiny instrument interlayer space, customizable long stroke up to 800mm supports multi-distance precision displacement testing for laboratory research projects.

5. Small RV Exterior Mini Intelligent Auxiliary Mechanisms

Recreational vehicle external miniature sunshade expansion frames, RV outdoor small storage cabinet automatic doors and water tank miniature flow baffles adopt miniature linear actuator FD16 for automatic linear motion adjustment. RV exterior equipment faces outdoor rain, dew, winter low temperature and summer high temperature alternating environment, IP68 full waterproof miniature linear actuator can operate stably without frequent maintenance, corrosion-resistant aluminum alloy housing avoids rust after long-term outdoor exposure, matching vehicle-mounted 12V battery power supply standard perfectly. RV modification hardware suppliers take miniature linear actuator FD16 as core waterproof drive accessory to enrich intelligent auxiliary functions of miniature car interior and exterior finished products.

Core Differentiated Competitive Advantages of FD16 miniature linear actuator

1. IP68 full waterproof + -25℃~+80℃ ultra-wide temperature resistance exclusive combination

The most irreplaceable core advantage of miniature linear actuator FD16 is the dual high-spec environmental resistance performance that FD17 and FD25 miniature series cannot match. Most miniature linear actuator on the market only support IP54/IP66 low protection grade and narrow 10℃~50℃ temperature working range, unable to adapt long-term damp and seasonal extreme cold/hot mini automation scenes. miniature linear actuator FD16 upgrades multi-layer shaft sealing and internal heat-resistant circuit design, realizing optional full dust-tight waterproof and ultra-wide temperature working window, forming differentiated competitiveness for agricultural, semi-outdoor and damp laboratory mini automation OEM projects. As analyzed by authoritative mechanical motion industry media Automation World, high IP wide-temperature miniature linear actuator represented by FD16 has become the top upgrading choice for global small outdoor intelligent equipment factories in 2026.

2. Built-in independent overcurrent protection circuit for equipment safety protection

All FD16 miniature linear actuator leave the factory with integrated overcurrent protection circuit, a safety configuration completely absent from FD17 and FD25 low and medium IP miniature series. When miniature linear actuator is blocked by foreign objects or bears overload weight, the internal circuit will cut off power supply instantly to prevent internal motor and gear set burnout, effectively protecting high-value agricultural ventilation equipment, laboratory testing instruments and high-end intelligent cabinets from collision damage. According to mechanical motion durability test data released by Machine Design, integrated stall protection miniature linear actuator can reduce miniature automation equipment after-sales maintenance cost for OEM manufacturers by more than 40%.

3. 30-300N wider thrust & 10-800mm ultra-long customizable stroke range

miniature linear actuator FD16 provides maximum 300N peak push force, 60% higher than FD17 and FD25’s top 188N thrust limit, suitable for heavy mini vent frames and thick cabinet door lifting structures that low-load micro actuators cannot drive. Its customizable stroke range extends to 800mm, completely breaking the 150mm stroke ceiling of FD17/FD25, covering short-stroke cabinet pop-up and long-stroke miniature platform lifting demand in one single model, allowing equipment factories to unify accessory supply chain and reduce multi-model inventory management workload.

4. Ultra-compact slim body without sacrificing high IP waterproof performance

Many full waterproof linear actuator on the market adopt bulky thickened motor housing design, occupying huge installation space of miniature automation equipment; miniature linear actuator FD16 optimizes sealing mold layout structure, realizing IP68 full waterproof performance while retaining ultra-slim miniature body size, perfectly fitting narrow interlayer reserved gaps of mini greenhouse windows, thin kitchen cabinet frames and tiny laboratory instruments, simplifying structural drawing design difficulty for equipment engineers.

5. Complete CE & RoHS dual certification for global cross-border export

FD16 miniature linear actuator passes CE electrical safety and RoHS environmental material double certification, fully complying with export inspection standards of Europe, North America, Australia and Southeast Asia. Our sales team can provide complete waterproof, load and noise test reports, compliance certification documents and detailed technical datasheets to support customs clearance, cross-border e-commerce platform filing and finished miniature equipment product registration for bulk OEM wholesale clients.

Standard Installation & Long-Term Maintenance Guidelines for miniature linear actuator

To maintain stable IP68 waterproof performance and long service life of miniature linear actuator installed on damp and semi-outdoor mini automation equipment, all OEM assembly factories and after-sales maintenance personnel must follow standardized operation rules strictly:

1. Mounting specification: Fix miniature linear actuator on flat rigid metal or solid wood equipment support frame, prohibit long-term lateral eccentric side force; side force will scratch multi-layer waterproof sealing ring and reduce the actual stable output thrust of miniature linear actuator.
2. Power supply matching: Equip matched stabilized 12V or 24V DC power supply according to actuator rated voltage, unstable voltage fluctuation will trigger frequent overcurrent protection and accelerate miniature motor aging under long-term continuous operation.
3. Duty cycle compliance: Abide by standard 10% duty cycle (2 minutes continuous work + 18 minutes rest), forbid long-hour continuous frequent adjustment to prevent motor overheating and sealing layer accelerated aging in high humidity environment.
4. Environmental differentiated maintenance: For IP54 basic version miniature linear actuator, avoid long-term damp environment and direct water jet impact; IP68 full waterproof version can resist short-time water immersion and daily rain splash, regularly wipe outer shell with dry soft cloth to remove dust and dew stains.
5. Synchronous linkage calibration: If multiple miniature linear actuator are used together for large miniature lifting platforms or wide three-section ventilation windows, uniformly calibrate controller signal before finished equipment delivery to eliminate height difference during simultaneous stretching and retracting.
6. Quarterly safety inspection: Every three months check waterproof sealing ring integrity, wiring connector tightness and overcurrent protection trigger sensitivity, replace aging sealing accessories timely to maintain long-term IP68 full waterproof performance in humid working scenes.

Conclusion

miniature linear actuator FD16 is a high-end harsh-environment exclusive miniature linear drive component, specially developed for small agricultural greenhouse ventilation equipment, humid kitchen & bathroom smart cabinets, semi-outdoor balcony intelligent furniture and damp laboratory precision micro testing instruments. It solves the universal industry pain point that ordinary miniature linear actuator only has low IP protection grade and narrow temperature resistance range, integrating optional IP68 full dust-tight waterproof, -25℃~+80℃ ultra-wide temperature resistance, exclusive overcurrent stall protection circuit, wider 30-300N thrust and 10-800mm ultra-long customizable stroke length into one unified product series.

Compared with FD17 IP54 dry indoor basic miniature model and FD25 IP66 mild splash-proof miniature linear actuator, miniature linear actuator FD16 is the optimal matching drive accessory for all mini automation OEM projects requiring long-term stable operation in humid, dew-covered, semi-outdoor and extreme high/low temperature alternating environments. With ultra-compact slim mounting size, full customizable stroke/thrust specifications, optional mounting brackets and complete CE & RoHS export safety certification, miniature linear actuator FD16 will become the mainstream preferred high-reliability miniature linear drive for global outdoor and damp mini automation equipment OEM manufacturers, helping furniture and agricultural hardware brands drastically cut finished product failure return rate and build differentiated high-end market competitive advantages globally.

---

RFQ

Q1: What core advantages does FD16 miniature linear actuator have over FD17 and FD25 models?

A1: Optional IP68 full waterproof, -25~+80℃ wide temp, max 300N thrust and built-in overcurrent protection.

Q2: Can IP68 miniature linear actuator FD16 work stably in rainy semi-outdoor balcony smart cabinets?

A2: Yes, IP68 grade resists short-time rain immersion and long-term dew accumulation.

Q3: What is the maximum customizable stroke length of FD16 miniature linear actuator for large greenhouse vent frames?

A3: Stroke can be customized from 10mm up to 800mm, far longer than FD17/FD25 max 150mm.

Q4: Does FD16 miniature linear actuator have stall protection for expensive laboratory micro testing equipment?

A4: Unique built-in overcurrent protection auto cuts power to avoid motor and equipment damage.

Q5: Can FD16 miniature linear actuator adapt to freezing cold northern small greenhouse planting environments?

A5: Stable operation from -25℃ low temperature to +80℃ high greenhouse temperature.
