FD3 Slider Drive Linear Actuator for Home TV Lift | Low Noise 5000N Slider Type Actuator
The FD3 Slider Drive Linear Actuator for Home TV Lift stands out with its unique internal slider up-and-down moving structure, outstanding mute performance and durable aluminum alloy body. Different from traditional screw push-type actuators that are prone to jitter and unilateral stress, FD3 Slider Drive Linear Actuator for Home TV Lift adopts built-in sliding rail transmission, which makes the lifting process smoother, more uniform in stress and longer in service life. With a maximum thrust of 5000N and ultra-quiet running performance below 48dB, FD3 Slider Drive Linear Actuator for Home TV Lift has become one of the most widely used linear drive components in household hidden lifting equipment, especially in our mature SXTL TV lift system, which uses this actuator as the core power drive.
FD3 Slider Drive Linear Actuator for Home TV Lift is a specially optimized medium-load linear actuator developed for civil smart furniture and small industrial machinery. Many customers confuse common screw actuators with slider-type actuators, but the internal mechanical structure determines the fundamental difference in user experience. The biggest feature of FD3 Slider Drive Linear Actuator for Home TV Lift is that it relies on an internal slider to complete vertical reciprocating movement. The motor drives the gear set and lead screw, and the fixed slider moves up and down along the precision track to complete linear displacement. This working method greatly reduces friction and shaking, which is why this actuator is extremely suitable for high-stability equipment such as hidden TV cabinets. In home living environments and light industrial automated production lines, FD3 Slider Drive Linear Actuator for Home TV Lift can maintain consistent smooth movement even after tens of thousands of lifting cycles.

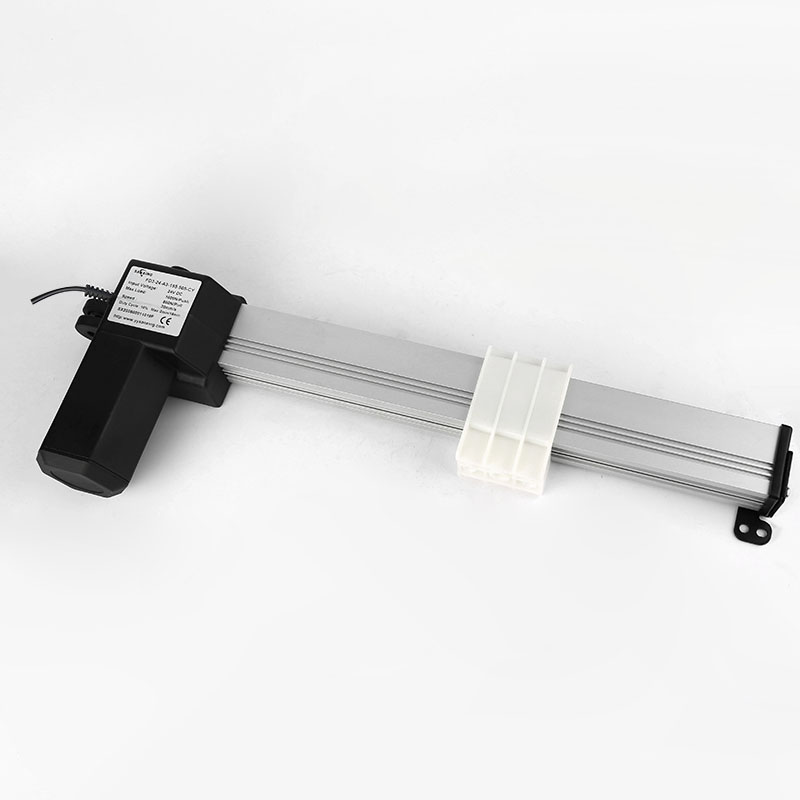

1. Clear Working Principle: Slider Up-Down Moving Mechanism
Most ordinary electric linear actuators on the market use a single screw direct push structure. The push rod bears all the load independently, which is easy to cause tilt, jitter and abnormal noise after long-term use. In contrast, FD3 Slider Drive Linear Actuator for Home TV Lift abandons the simple single-rod pushing mode and adopts an advanced internal slider transmission design. The internal high-precision slider is fixed on the built-in track. When the motor starts, the screw drives the slider to slide vertically up and down steadily. The load is evenly distributed on the entire slider and the track, rather than concentrated on a single screw rod. This structural upgrade brings three core advantages: smoother lifting, stronger lateral stability, and greatly reduced wear of internal parts. Whether it is lifting a heavy television or adjusting the angle of industrial mechanical parts, FD3 Slider Drive Linear Actuator for Home TV Lift will not produce obvious shaking or jitter.
2. Complete Technical Parameters of FD3 Slider Drive Linear Actuator for Home TV Lift
In order to meet the diversified assembly requirements of household furniture and industrial equipment, FD3 Slider Drive Linear Actuator for Home TV Lift is designed with standardized industrial parameters, with moderate thrust, flexible stroke and strong compatibility. All parameters are optimized for long-term intermittent use, fully considering the actual use environment of smart homes and small industrial machines.
| Parameter Item | Specific Specification |
|---|---|
| Rated Voltage | DC 12V / 24V |
| Max Thrust | 5000N |
| Max Pull Force | 4000N |
| No-Load Speed | 4–28mm/s |
| Full-Load Speed | 3–18mm/s |
| Custom Stroke | 30mm–1000mm |
| Working Mode | Slider up and down reciprocating drive |
| Noise Level | ≤48dB Low Noise |
| Duty Cycle | 10% (2min on / 18min off) |
| Protection Grade | IP40 Dustproof |
| Working Temperature | -20℃ ~ +40℃ |
| Shell Material | Aluminum Alloy + Engineering Plastic |
| Optional Function | Synchronous Linkage, Limit Protection |
The parameter configuration ofFD3 Slider Drive Linear Actuator for Home TV Lift is very suitable for medium-load household scenarios. The 5000N thrust can easily bear televisions, sofa cushions and furniture structures, while the low noise level ensures a quiet living experience. The compact body structure does not occupy installation space, which is an important reason why it is widely used in hidden TV cabinets.
3. Core Product Advantages
3.1 Ultra-Stable Slider Transmission Structure
As the most prominent advantage of this model, the internal slider structure fundamentally optimizes the stability problem of traditional actuators. When the equipment is lifted, the slider is locked on the track, and the force is evenly distributed on the metal sliding rail. There will be no shaking or tilting even when bearing heavy objects. As professionally analyzed by Design World, slider-type linear actuators have obvious advantages in stability and mute performance in civilian automation equipment, and are gradually replacing traditional single-rod actuators in the high-end furniture market.
3.2 Ultra-Low Noise Suitable for All Household Scenarios
Home use has extremely strict requirements on noise.FD3 Slider Drive Linear Actuator for Home TV Lift is strictly controlled below 48dB during operation. Whether it is lifting a TV in the living room at night or adjusting an electric sofa during rest time, it will not produce harsh mechanical noise. The internal gears and screws are precisely matched and filled with high-grade lubricating grease to reduce friction resonance, realizing truly silent intelligent lifting.
3.3 Dual-Purpose Design for Home and Industrial Use
Although this actuator is mainly promoted for home use, it also has strong industrial applicability. Its durable shell structure and stable power output can meet the angle adjustment, platform lifting and repeated positioning requirements of small industrial machinery. For manufacturers, one actuator can cover multiple production lines, greatly reducing procurement costs. In industrial assembly lines, packaging machinery and adjustable workbenches, FD3 Slider Drive Linear Actuator for Home TV Lift can maintain stable long-term intermittent operation.
3.4 Mature Matching with SXTL TV Lift System
Our self-developed SXTL TV lift cabinet series has always adoptedFD3 Slider Drive Linear Actuator for Home TV Lift as the standard driving component. Relying on the precise slider up-down movement mode, the TV can be automatically hidden, lifted and height-adjusted. Compared with ordinary actuators, the SXTL TV lift equipped with this actuator has no shaking during operation, stable bearing capacity and longer service life, which is deeply recognized by furniture wholesalers and engineering customization customers.
4. Main Application Scenarios

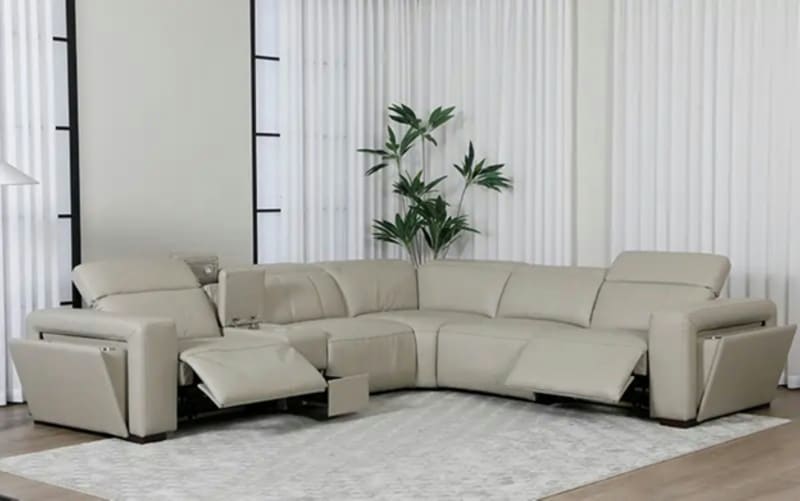

4.1 Smart Home Furniture (Main Application)
slider drive linear actuator is widely used in modern smart furniture. FD3 Slider Drive Linear Actuator for Home TV Lift is commonly installed in hidden TV lift cabinets, electric reclining sofas, adjustable electric beds, lifting coffee tables and smart window openers. Its quiet movement and hidden installation characteristics perfectly fit the minimalist decoration style of modern families. For high-end customized furniture brands, smart home furniture linear actuator has become an indispensable core accessory.
4.2 Light Industrial Automation Equipment
In industrial scenarios, this actuator is used for small lifting platforms, mechanical angle adjusters, assembly line auxiliary propulsion structures, and packaging machine opening and closing mechanisms. The wear-resistant slider structure can adapt to dusty and complex workshop environments, and maintain consistent precision after repeated movements. Many small machinery manufacturers choose industrial lifting slider actuator to replace bulky hydraulic cylinders, because electric actuators are easier to install and maintenance-free.
5. Installation Instructions and Usage Suggestions
When installing FD3 Slider Drive Linear Actuator for Home TV Lift, the mounting base must be kept flat to avoid oblique force, which will cause unilateral wear of the slider track. Users can choose 12V or 24V power supply according to the equipment load. It is forbidden to overload the actuator for a long time to avoid motor overheating. If multiple actuators need to run synchronously, they can be matched with a dedicated synchronous controller to ensure consistent lifting height and speed. According to the industry summary of Automation World, standardized installation is the key to extending the service life of slider actuators, and inclined installation will permanently damage the internal sliding track.
6. Product Advantages in Market Competition
Compared with other medium-thrust actuators on the market, FD3 Slider Drive Linear Actuator for Home TV Lift has three irreplaceable advantages: stable slider structure, ultra-low noise and dual-purpose performance. Many cheap actuators use thin iron shells and simple plastic gears, which are prone to jamming and noise after half a year of use. In contrast, the aluminum alloy shell of this actuator is corrosion-resistant and pressure-resistant, and the internal metal gear set is durable. For furniture factories and machinery purchasers who pursue long-term stability,TV lift dedicated linear actuator represented by FD3 is the most cost-effective choice.
7. Conclusion
With its innovative slider up-down moving principle, 5000N stable thrust, ultra-quiet operation and dual application in home and industry, FD3 Slider Drive Linear Actuator for Home TV Lift has become one of the best-selling medium-load linear actuators in the automation industry. Whether it is the stable lifting requirement of SXTL hidden TV lifts, the silent adjustment of smart sofas, or the repeated movement of small industrial machinery, this actuator can provide reliable long-term power output. As pointed out by Smart Home Automation, low-noise slider actuators will continue to dominate the high-end smart home market in the next few years. For global buyers, furniture manufacturers and automation engineers, FD3 Slider Drive Linear Actuator for Home TV Lift is a high-quality, low-failure and worry-free linear motion solution.
