Electric Actuator with Hand joystick for beds: 8000N Emergency Backup Actuator for Medical Beds & Home Care
The Electric Actuator with Hand joystick for beds solves this life-threatening gap, combining powerful 8000N electric operation with a built-in hand crank for emergency manual adjustment. Unlike standard electric actuators that fail without power, the Electric Linear Actuator with Manual Hand Crank for Medical Beds ensures full functionality in every scenario, making it the gold standard for medical beds, nursing beds, and home care setups. With ultra-low noise, customizable strokes, and optional Hall sensor synchronization, the Electric Actuator with Hand joystick for beds balances safety, power, and convenience for both clinical and residential use.
1. Core Technical Specifications
The Electric Actuator with Hand joystick for beds is engineered to meet the strict safety and performance standards of the healthcare industry. It mirrors the robust performance of our FD1 series while adding the critical manual backup feature. Key specifications include:
表格
| Parameter | Details |
|---|---|
| Input Voltage | 12VDC / 24VDC (dual voltage compatibility for global use) |
| Max. Push Force | 8000N (peak heavy-duty thrust for hospital beds) |
| Max. Pull Force | 6000N (balanced pulling capacity for nursing beds) |
| No-Load Speed | 4–35mm/s (variable speed based on load) |
| Full-Load Speed | 2.2–22mm/s (stable operation under maximum 8000N load) |
| Stroke Length | 26mm–1000mm (customizable for medical bed design) |
| Min. Installation Distance | Stroke + 160mm (compact footprint for tight bed frames) |
| Operating Temperature | -20°C ~ +40°C (reliable in clinical and home environments) |
| Limit Switches | Built-in, factory-calibrated (prevents overextension damage) |
| Duty Cycle | 10% (2 minutes continuous use / 18 minutes rest) |
| Noise Level | ≤48dB (ultra-quiet for patient comfort) |
| Material | Aluminum Alloy, Plastic, Zinc Alloy, Iron (lightweight yet durable) |
| IP Rating | IP44 (dust and water-resistant for easy cleaning) |
| Certifications | CE-approved (meets international medical safety standards) |
| Key Feature | Integrated hand joystick for manual emergency operation |
| Optional Features | Hall sensor for position feedback, multi-actuator synchronization |
The defining feature of the Electric Actuator with Hand joystick for beds is its hand crank mechanism, which allows caregivers to adjust bed height, backrest tilt, and leg support manually during power outages. This feature is not just a convenience—it’s a critical safety tool that ensures patients receive uninterrupted care, even when electricity fails.

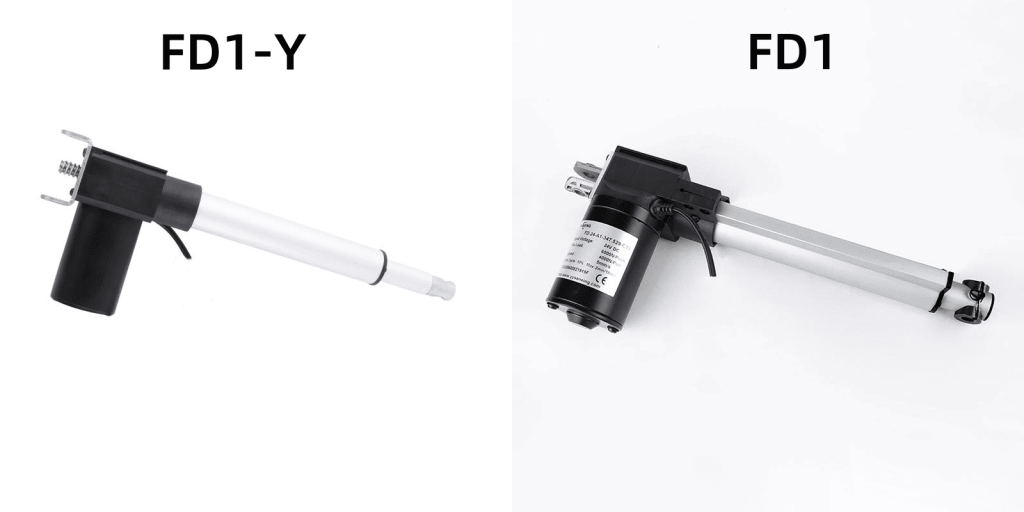

2. Difference Between FD1-Y and Standard FD1 Linear Actuator
Many buyers often confuse this model with the standard FD1 linear actuator, but there is one core functional difference that sets them apart completely. The standard FD1 linear actuator only supports electric lifting and lowering, relying entirely on power supply to complete position adjustment. Once power is cut off or the circuit fails, the ordinary FD1 model cannot rise or fall normally, which will bring great inconvenience to medical beds, nursing beds and home intelligent furniture. In contrast, electric Actuator with Hand joystick for beds adopts a unique integrated hand crank structure based on the original FD1 performance configuration. It retains all the advantages of FD1 such as 8000N high thrust, ultra-low noise, IP44 waterproof and optional Hall sensor function. The biggest highlight is that when power is suddenly cut off, circuit failure occurs or electric adjustment cannot be used normally, users can directly use the reserved hand crank to manually realize rising and falling adjustment freely. This emergency manual backup function makes it more suitable for medical scenarios and home elderly care scenarios that require 24-hour standby and cannot be affected by power failure, solving the pain point that ordinary FD1 linear actuator cannot operate without electricity.
3. Why This Actuator Stands Out for Medical Use
3.1 Power Outage Safety with Manual Backup
The biggest advantage of the electric Actuator with Hand joystick for beds is its failsafe manual operation. For hospitals, nursing homes, and home care users, power outages are not just an inconvenience—they can be life-threatening for bedridden patients who rely on adjustable beds for comfort and medical care. The built-in hand crank eliminates this risk, allowing full control over bed adjustments at any time. As highlighted by Medical Design & Outsourcing, emergency manual backup systems are becoming mandatory for medical beds, as they ensure care continuity in all scenarios.
3.2 8000N Thrust with Ultra-Low Noise Operation
Despite its heavy-duty 8000N maximum push force, this actuator operates at ≤48dB—quieter than a normal conversation. This is essential for medical environments, where noise can disrupt patient rest and recovery. Whether adjusting a hospital bed at night or repositioning a nursing home resident, the Electric Actuator with Hand joystick for beds ensures smooth, silent movement that doesn’t disturb patients or staff. The 8000N thrust also means it can easily handle the weight of fully loaded hospital beds with patients and mattresses, providing reliable performance for years.
3.3 Customizable Strokes and Optional Hall Sensor Functionality
Medical beds come in all shapes and sizes, and the Electric Actuator with Hand joystick for beds is designed to adapt. With customizable stroke lengths from 26mm to 1000mm, it can be tailored to fit any bed frame design. The optional Hall sensor adds even more functionality, providing real-time position feedback for synchronized multi-actuator operation. This is perfect for split-frame beds or beds with multiple adjustment points, ensuring smooth, coordinated movement without jitter or misalignment.
3.4 Durable, Easy-to-Clean Construction
Hospitals and nursing homes require equipment that can withstand frequent cleaning and use. The Electric Actuator with Hand joystick for beds features an IP44 rating, making it resistant to water, dust, and common cleaning solutions. Its aluminum alloy housing is lightweight yet durable, designed to handle years of heavy use in high-traffic environments. Combined with CE certification, this actuator meets the strict safety and hygiene standards of modern healthcare facilities.
4. Versatile Applications Beyond Medical Beds
While designed for medical use, the Electric Actuator with Hand joystick for beds is equally well-suited for home care and smart home applications:
- Nursing Beds: For home care patients or elderly users, the manual backup ensures they can adjust their beds independently, even without power.
- Adjustable Home Beds: The quiet operation and emergency backup make it ideal for home users who want the safety of a hospital-style bed without the noise or complexity.
- Rehabilitation Equipment: Physical therapy beds and rehabilitation devices benefit from the actuator’s precise control and manual backup, ensuring patients can be repositioned safely at all times.
- Industrial Lifting Equipment: Beyond healthcare, the actuator’s 8000N thrust and manual backup make it suitable for industrial lifting platforms that require emergency operation.
In home care settings, the Electric Actuator with Hand joystick for beds provides peace of mind for both users and caregivers. For elderly users living alone, knowing they can adjust their bed during a power outage eliminates the fear of being stuck in an uncomfortable position. For caregivers, the manual backup means they don’t have to worry about rushing to the home during outages to assist with bed adjustments.
5. Installation and Maintenance Tips
Installing the Electric Actuator with Hand joystick for beds is straightforward, with standard mounting brackets that fit most bed frames. To ensure optimal performance:
- Mounting: Secure the actuator to a sturdy frame that can handle the 8000N thrust. Use high-quality fasteners to prevent movement during operation.
- Power Supply: Select a 12VDC or 24VDC power supply rated for the full load current (4A minimum at 24VDC) to ensure stable operation.
- Manual Crank Use: The hand crank is designed for emergency use only. Avoid frequent manual operation, as it can cause unnecessary wear on the mechanism.
- Hall Sensor Calibration: If using the optional Hall sensor for synchronization, calibrate the controller to ensure both actuators move in perfect unison.
- Maintenance: The actuator is maintenance-free, but it’s important to keep the housing clean and free of debris to ensure long-term reliability.
As noted by Automation World, actuators with manual backup systems require minimal maintenance compared to hydraulic alternatives, making them a cost-effective choice for both medical and industrial use.
6. Why This Actuator is the Best Choice for Medical Care
When choosing an actuator for medical beds, safety and reliability are non-negotiable. The Electric Actuator with Hand joystick for beds addresses the most critical pain points of standard actuators: power outage failure, noise disruption, and insufficient load capacity. Its 8000N thrust, ultra-quiet operation, customizable design, and optional Hall sensor functionality make it the most versatile actuator on the market. The built-in hand crank provides an unmatched level of safety, ensuring patients receive uninterrupted care in every scenario.
For hospitals, nursing homes, and home care users alike, this actuator is more than just a motion control component—it’s a critical safety tool that protects patients and gives caregivers peace of mind. Whether you’re upgrading a single home care bed or outfitting an entire hospital ward, the Electric Actuator with Hand joystick for beds delivers the performance, safety, and reliability you need.
