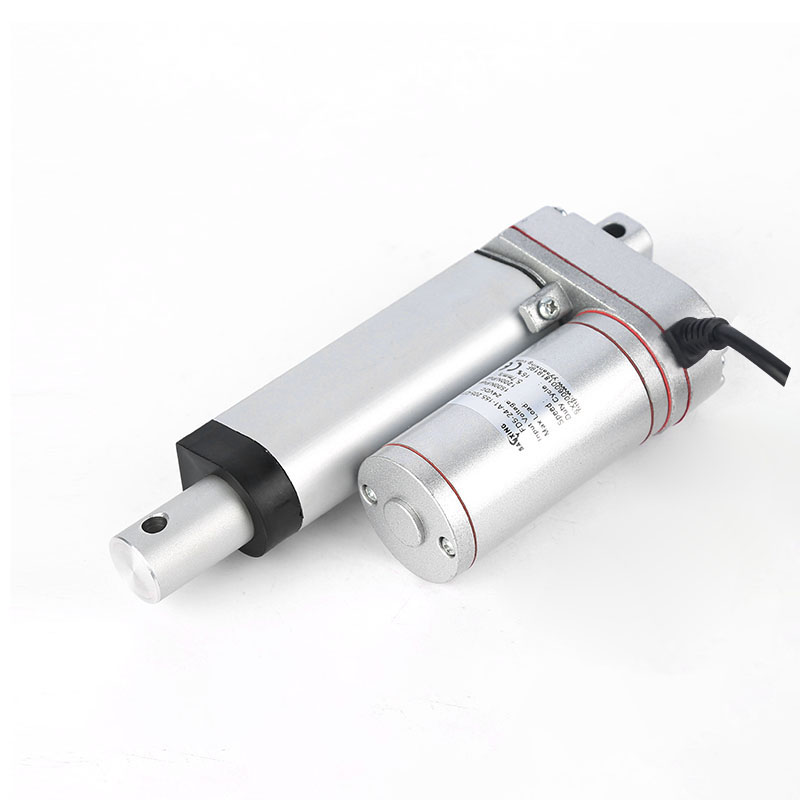

FD5 Metal Gear Mini Linear Actuator: Compact Long-Life Actuator for Desks, Windows & Machinery
FD5 Metal Gear Mini Linear Actuator is a newly upgraded compact linear motion drive designed for modern smart home equipment and miniature industrial machinery. Unlike ordinary mini actuators that use plastic gears and thin casings, FD5 Metal Gear Mini Linear Actuator adopts full internal metal gear transmission structure, which greatly improves durability and service life. Its biggest selling points are small overall size, easy installation in narrow space, stable output power and excellent mute performance. FD5 Metal Gear Mini Linear Actuator is widely used in height-adjustable desks, electric windows, small automation machinery and other equipment. For designers who need compact and long-life linear actuators, FD5 Metal Gear Mini Linear Actuator is one of the most cost-effective mini actuators currently available on the global automation market.
In the consumer automation industry, many low-cost mini push rods use plastic gears. After several months of frequent use, gear slipping, jamming and noise problems often occur. In contrast, FD5 Metal Gear Mini Linear Actuator completely abandons plastic transmission accessories. All built-in gears are made of high-strength metal alloy, which is wear-resistant, pressure-resistant and not easy to deform. Even under long-term repeated telescopic movement, FD5 Metal Gear Mini Linear Actuator can maintain stable transmission efficiency without obvious mechanical loss. This inherent structural advantage makes FD5 Metal Gear Mini Linear Actuator stand out in the field of small-size actuators, especially suitable for home scenes that require daily frequent lifting and opening actions.
1. Complete Technical Parameters of FD5 Metal Gear Mini Linear Actuator
FD5 Metal Gear Mini Linear Actuator is designed with standardized industrial parameters, taking into account household mute requirements and industrial stability standards. The overall structure is compact and streamlined, which can perfectly adapt to various narrow installation positions. The detailed parameters are shown in the table below:
| Parameter Item | Specific Specification |
|---|---|
| Working Voltage | DC 12V / 24V |
| Maximum Thrust | 1500N |
| Maximum Pull Force | 1000N |
| No-load Speed | 5mm/s – 35mm/s |
| Full-load Speed | 3.5mm/s – 30mm/s |
| Custom Stroke | 25mm – 1000mm |
| Minimum Installation Distance | Stroke + 105mm |
| Protection Level | IP54 Dustproof and Waterproof |
| Duty Cycle | 15% (3min on / 17min off) |
| Working Temperature | -25℃ ~ +65℃ |
| Internal Structure | All metal gear transmission |
| Shell Material | High-grade Aluminum Alloy |
| Optional Function | Synchronous control, limit protection |
From the parameter configuration, it can be seen that FD5 Metal Gear Mini Linear Actuator is positioned in the medium-thrust mini actuator market. The 1500N thrust can easily cope with the weight bearing of electric windows and household lifting desks. The ultra-small installation size is an irreplaceable advantage of this model. Many medium-thrust actuators on the market are bulky and cannot be embedded in narrow equipment shells, while FD5 Metal Gear Mini Linear Actuator solves this pain point perfectly and is deeply loved by furniture designers and mechanical engineers.
2. Core Product Advantages of FD5 Metal Gear Mini Linear Actuator
2.1 All Metal Gear Structure Extends Service Life
The biggest core advantage of FD5 Metal Gear Mini Linear Actuator is the internal all-metal gear set. After high-temperature quenching and anti-rust treatment, the metal gears have strong compression resistance and wear resistance. Even after tens of thousands of telescopic cycles, the gear clearance will not increase, and there will be no jitter or stuttering during operation. As we all know, plastic gear actuators are cheap but fragile, and are easy to age after long-term use. According to the mechanical structure research published by Design World, metal gear transmission can increase the service life of small linear actuators by more than three times compared with plastic gears. This also explains why FD5 Metal Gear Mini Linear Actuator has extremely low failure rate in long-term household use.
2.2 Ultra-Small Size Suitable for Narrow Installation Space
In many customized smart furniture and miniature industrial equipment, the internal reserved space is very limited, and ordinary actuators cannot be installed. FD5 Metal Gear Mini Linear Actuator adopts streamlined miniaturized design, with narrow tube body and compact transmission structure. The minimum installation distance is only stroke plus 105mm, which can be easily embedded in window frames, desk support legs and small mechanical boxes. This kind of small size linear actuator is very rare in the medium-thrust actuator market, and it is also one of the important reasons why many custom furniture manufacturers choose this model in batches.
2.3 IP54 Protection Grade and Wide Temperature Adaptability
FD5 Metal Gear Mini Linear Actuator has reached IP54 dustproof and splash-proof level. The fully enclosed aluminum alloy shell can effectively block dust, water mist and debris. Whether it is a humid living room environment or a dusty small workshop, the internal gears and motors can be well protected. The working temperature ranges from -25℃ to +65℃, which can adapt to cold winter and high-temperature working environment, and will not stop due to temperature changes. For electric window linear actuator used for long-term ventilation control, weather resistance is particularly important, and FD5 Metal Gear Mini Linear Actuator fully meets the requirements.
2.4 Low Noise Operation Suitable for Home Scenarios
In home use such as lifting desks and electric windows, noise is one of the key indicators affecting user experience. FD5 Metal Gear Mini Linear Actuator is equipped with precision polished metal gears and high-quality silent lubricating grease. The meshing gap between gears is extremely small, and no harsh friction noise will be generated during operation. The overall running noise is kept at a low level, which will not interfere with daily rest and office work. This quiet optimization makes it a high-quality height adjustable desk actuator in the home automation industry.
3. Main Application Scenarios of FD5 Metal Gear Mini Linear Actuator
3.1 Smart Home: Lifting Desk & Electric Window
Household application is the main positioning of FD5 Metal Gear Mini Linear Actuator. In modern home office space, height-adjustable desks have become mainstream office furniture. This actuator can stably drive the desktop up and down to realize free switching between sitting and standing posture. At the same time, it is widely used in smart electric windows, including automatic skylights, side-hung windows and ventilation windows. Relying on its small size and silent performance, FD5 Metal Gear Mini Linear Actuator can be hidden in the window frame without destroying the home decoration style. As pointed out by Smart Home Automation, compact and silent mini actuators are gradually becoming the standard configuration of high-end smart home systems.
3.2 Light Industrial Automation Machinery
In addition to household use, FD5 Metal Gear Mini Linear Actuator also has excellent industrial attributes. It can be used for small mechanical angle adjustment, miniature lifting platforms, packaging equipment push-pull structures, and laboratory automatic testing equipment. The metal gear structure can withstand frequent industrial cycle work, and the compact size is convenient for mechanical designers to optimize the equipment layout. Many small and medium-sized machinery manufacturers regard this metal gear durable actuator as the preferred miniature linear power component.
4. Installation Guidance and Daily Maintenance Suggestions
When installing FD5 Metal Gear Mini Linear Actuator, users need to ensure that the installation plane is flat to avoid lateral force inclination. Excessive deflection will cause wear of metal gears and reduce the service life. It is recommended to use a stable 12V or 24V DC power supply to avoid unstable current from burning the motor. If multiple actuators need to be lifted synchronously, a matching synchronous controller can be equipped to keep the lifting height consistent. According to the industry analysis of Automation World, standardized installation and regular dust cleaning can extend the service life of miniature linear actuators by more than 40%.
In daily maintenance, FD5 Metal Gear Mini Linear Actuator almost does not need manual maintenance. The internal high-grade lubricating grease can maintain long-term lubrication. Users only need to keep the shell clean and avoid long-term immersion in water. It is strictly forbidden to manually push and pull the actuator vigorously during power-on operation to prevent gear dislocation and mechanical failure.
5. Why Choose FD5 Metal Gear Mini Linear Actuator?
There are many kinds of mini linear actuators on the market, but most of them have problems such as plastic gears, large size, loud noise and short service life. FD5 Metal Gear Mini Linear Actuator solves these common industry pain points one by one. It adopts all-metal gear to ensure durability, miniaturized shell to realize hidden installation, low noise design to adapt to home environment, and IP54 protection to strengthen environmental adaptability. Whether it is bulk procurement by furniture manufacturers or customized use of small industrial machinery, FD5 Metal Gear Mini Linear Actuator can provide stable, low-failure and cost-effective linear motion solutions.
6. Conclusion
