Sanxing FD17 Mini Linear Actuator: Specs, Dual Models & Small-Scale Applications

The Sanxing FD17 mini linear actuator is an ultra-compact, mini-sized electric linear motion solution designed exclusively for ultra-light load small-scale automation projects. With a maximum load capacity of 188N (≈19kg), ultra-short customizable stroke, and an ultra-small footprint, it fits perfectly into the narrowest installation spaces. Powered by 12VDC/24DC, it delivers quiet operation (≤55dB), built-in limit switches, and IP54 protection, making it the ideal choice for miniature automatic devices where large actuators are too bulky and over-powered.

Key Technical Specifications of Sanxing FD17

• Input Voltage: 12VDC / 24DC, compatible with standard small equipment power supplies
• Max. Load Capacity: 188N (≈19kg) at 4mm/s no-load speed, with options of 120N/7mm/s, 60N/15mm/s, 30N/30mm/s for different speed requirements
• Stroke Length: Standard 10mm~150mm (custom strokes available), with installation distance calculated as Stroke + 55/60/70mm for easy integration
• Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes for long service life
• Operating Temperature: -10℃ ~ +50℃, suitable for indoor and mild industrial environments
• Material: Aluminum Alloy, Plastic, Stainless Steel, with CE certification for global safety compliance

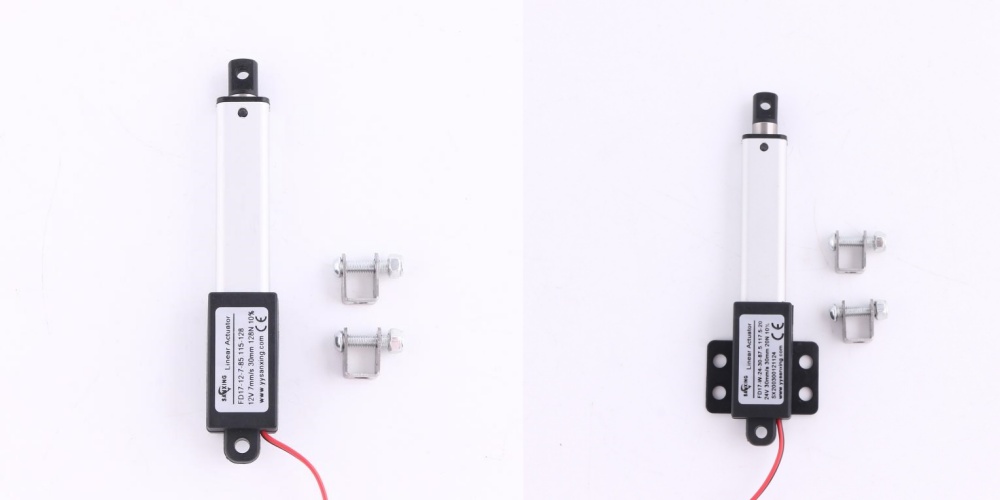

Dual Model Design: Same Function, Different Outer Tube

The Sanxing FD17 micro linear actuator comes in two appearance styles with identical core functions: one with mounting “wings” (flanges) and one without. The only difference lies in the outer tube structure: the winged model features a built-in mounting bracket for direct fixed installation, while the non-winged model has a slimmer outer tube, perfect for scenarios with extremely limited installation space. Both models share the same 188N max load, stroke options, and performance parameters, ensuring consistent reliability regardless of appearance.

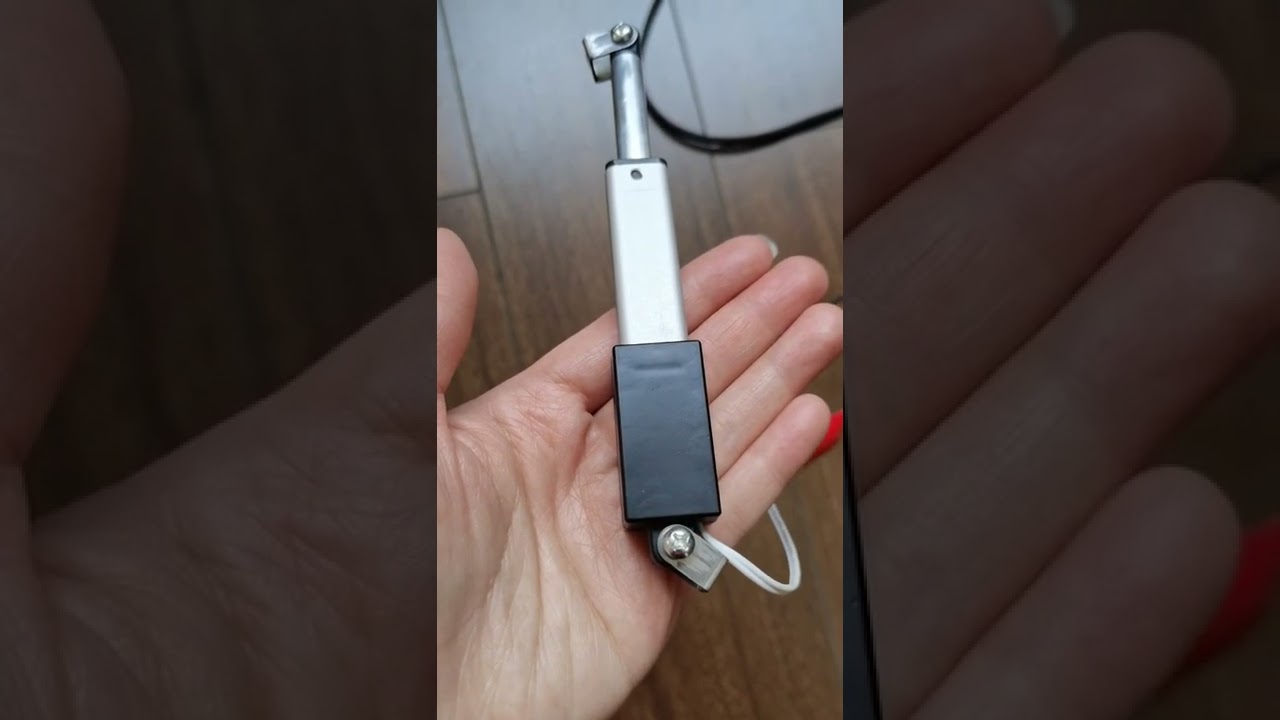

Watch our Sanxing FD17 linear actuator in action:

<https://www.youtube.com/shorts/X4eEVhs5j-s> FD17 micro linear actuator 12V

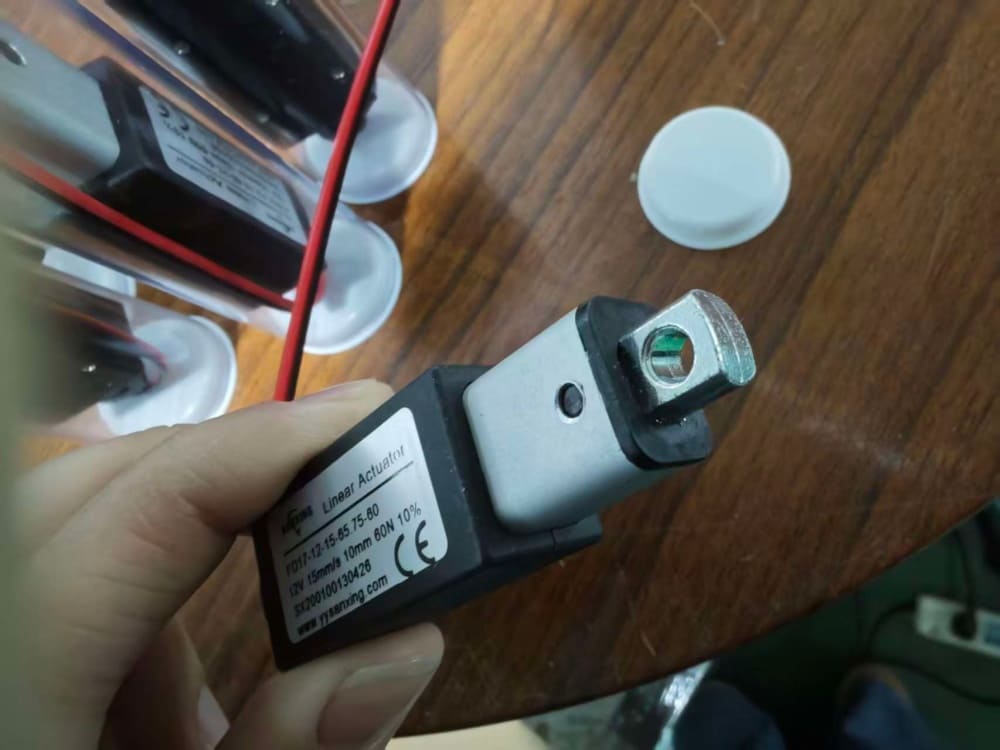

Free Upgrade: Metal Head for Enhanced Strength

We offer a free upgrade service for all FD17 linear actuators: the original plastic inner tube head can be replaced with a high-strength metal head at no extra cost. This metal head significantly increases the structural strength of the actuator, effectively reducing the risk of breakage during long-term use, especially in frequent operation scenarios, and extending the overall service life of the product.

Top Applications of Sanxing FD17 Mini Linear Actuator

1. Mini Smart Home & Small Furniture Automation

The FD17 linear actuator is perfectly suited for ultra-small smart home applications, such as mini cabinet door openers, small drawer automatic pushers, toy and robot for compact spaces. Its 188N load capacity easily supports the weight of small furniture components and light household items, while the ultra-compact size can be hidden in furniture gaps without affecting the overall appearance. Quiet operation ensures no noise interference in daily home use, and built-in limit switches guarantee precise positioning.

2. Small Medical & Lab Mini Equipment

For miniature medical and laboratory devices—such as small sample tray lifters, micro instrument position adjusters, and tiny dental chair auxiliary components—the FD17 linear actuator excels. Its smooth, stable linear motion meets the precise positioning requirements of lab instruments, and the small size fits perfectly into compact medical device structures. The wide operating temperature range ensures reliable performance in lab and medical environments, with CE certification for global safety compliance.

3. Mini Industrial Automation & Robotics

In micro industrial automation scenarios, the FD17 linear actuator drives small sensor positioning, miniature robotic arm joints, tiny conveyor belt adjustments, and small electronic component testing fixtures. Its ultra-small size and light load capacity are tailored for miniaturized industrial equipment, where space is extremely limited. The IP54 protection level resists dust and moisture, ensuring long-term stable operation in light industrial environments.

As a professional linear actuator manufacturer, we provide customized Sanxing FD17 solutions for ultra-small, ultra-light load automation needs—including stroke, mounting brackets, and voltage options. If you need a mini actuator for small home automation, lab equipment, or mini industrial projects, contact us for a free quotation and customized solution!
