Sanxing FD17 micro Linear Actuator: Full Technical Specifications

The Sanxing FD17 micro linear actuator is an ultra-compact, mini-sized electric linear actuator designed for ultra-light load small-scale automation scenarios. As a type of electromechanical linear actuator, it operates on the core principle of converting rotary motion into linear motion, a key characteristic of linear actuators as detailed in Wikipedia’s linear actuator entry. With its compact structure, reliable performance, free metal head upgrade, and dual model options, it is widely used in smart home accessories, mini medical equipment, micro industrial automation, and other light-duty applications. Below is the complete and detailed technical parameter introduction to help you quickly understand its performance and adaptability.

Core Technical Specifications of Sanxing FD17 Micro Linear Actuator

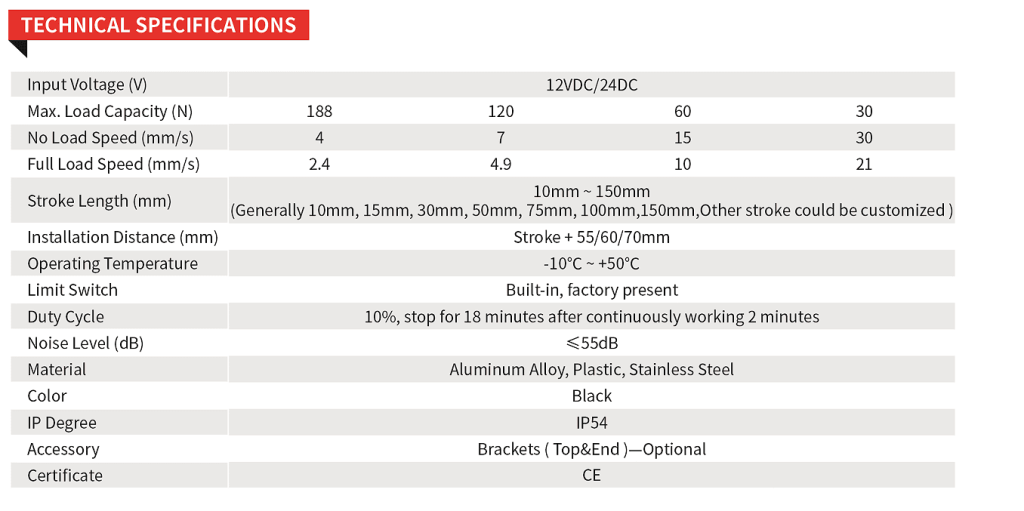

• Input Voltage: 12VDC / 24VDC (optional), compatible with standard small equipment power supplies, easy to integrate into various mini automation devices, with CE certification for global safety compliance.
• Load Capacity & Speed: Maximum load capacity is 188N (≈19kg) with a no-load speed of 4mm/s; optional load-speed combinations include 120N/7mm/s, 60N/15mm/s, 30N/30mm/s, which can be selected according to different application speed and load requirements.
• Stroke Length: Standard stroke ranges from 10mm to 150mm, and custom strokes are available to meet the specific needs of different small-scale projects; installation distance is calculated as Stroke + 55/60/70mm, facilitating quick and easy integration into equipment.
• Duty Cycle: 10%, which means it can work continuously for 2 minutes and then needs to stop for 18 minutes to ensure long service life and stable operation under long-term use.
• Operating Temperature: -10℃ ~ +50℃, suitable for indoor and mild industrial environments, able to maintain stable performance in different temperature conditions without being affected by ambient temperature changes.
• Protection Level: IP54, effectively resisting dust and splashing water, ensuring reliable operation in light humid or dusty environments, and extending the product service life.
• Noise Level: ≤55dB, achieving quiet operation, which is suitable for home, medical and other scenarios that require low noise, without causing noise interference.
• Material: Made of high-quality aluminum alloy, plastic and stainless steel, with high structural strength, corrosion resistance and wear resistance, ensuring the durability of the product even in frequent operation scenarios.
• Weight & Package: Net weight is about 0.6kg, package size is 14x3x3cm, small and lightweight, easy to transport and install in narrow spaces.

Dual Model Design & Free Metal Head Upgrade

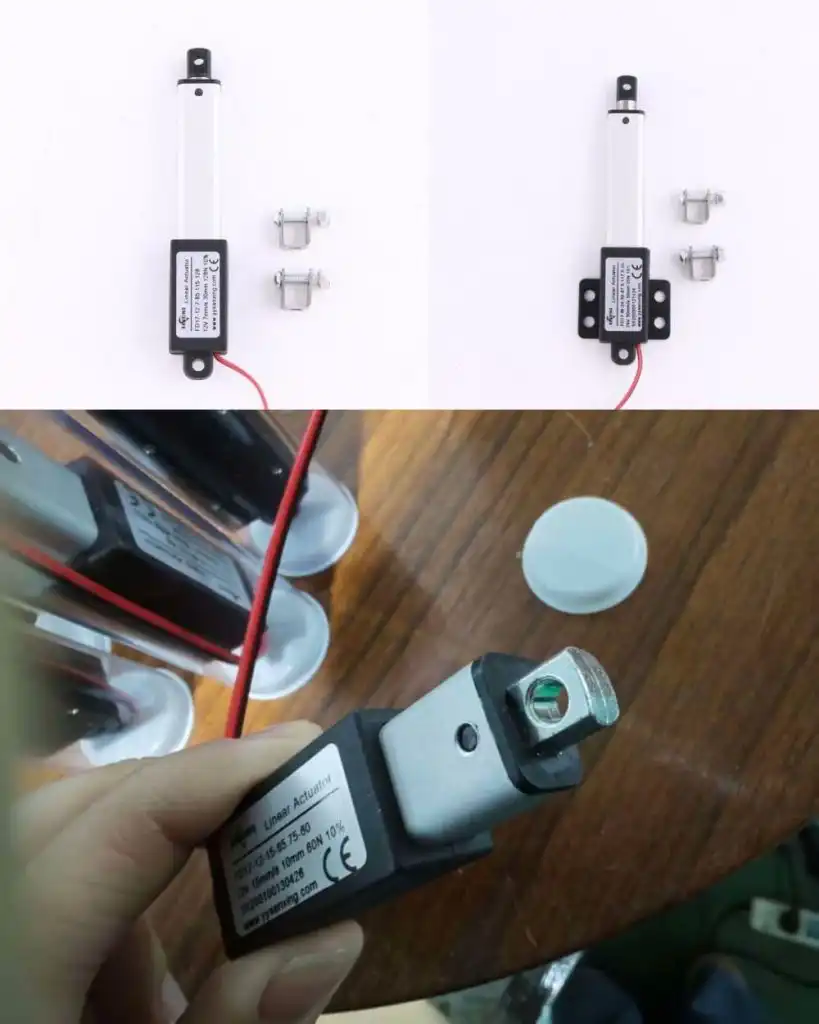

To meet the needs of different installation spaces, the Sanxing FD17 mini micro linear actuator is available in two appearance versions with identical core performance: the flange-wing version and the standard non-wing version. The two models share the same 188N load capacity, speed parameters and functional characteristics, with the only difference lying in the outer tube structure and installation method. The flange-wing version is integrated with integrated mounting lugs, suitable for flat fixed installation with screws; the standard non-wing version features a slimmer outer tube, which is perfectly adapted to small equipment with extremely limited installation space, providing flexible configuration options for various installation scenarios.

To further improve the reliability of the FD17 micro linear actuator in long-term and high-frequency use, we provide a free internal tube head upgrade service for all products. All Sanxing FD17 micro linear actuators originally equipped with plastic inner tube heads can be upgraded to high-strength metal inner tube heads at no extra cost. This upgrade brings two key improvements: first, it enhances structural strength— the metal material has better wear resistance and impact resistance, which can effectively reduce the risk of head wear and breakage caused by long-term repeated movement; second, it extends service life— compared with plastic heads, metal heads perform significantly better in high-frequency working scenarios, which can greatly reduce failure rates and improve product durability. This is a completely free quality upgrade that does not affect the delivery cycle or increase additional costs.

As a professional linear actuator manufacturer, we strictly control the quality of each Sanxing FD17 micro linear actuator, ensuring that all parameters meet the standard and the performance is stable and reliable. Whether you need to understand parameter details or customize specifications, you can contact us for a free consultation and quotation.

Video Demonstration

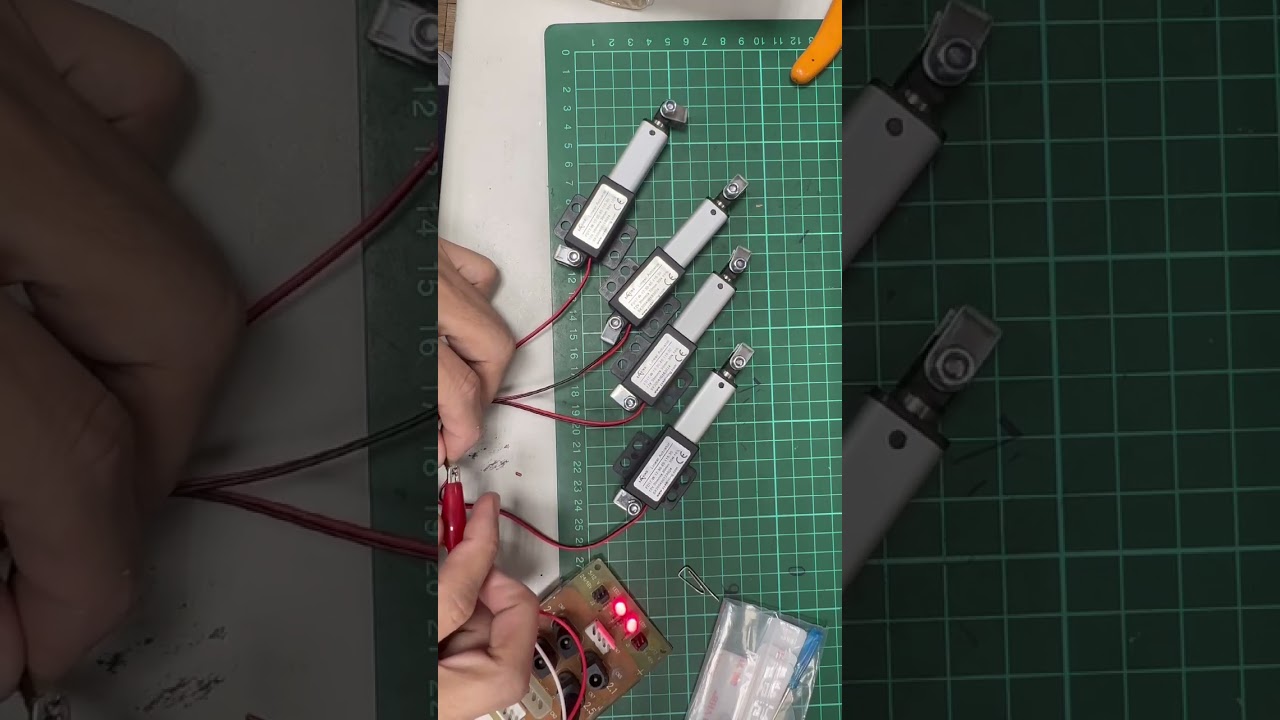

we have shot a special video for the winged (flange) model, which clearly shows the appearance, installation method and operation effect of the winged version, helping you better understand the product performance.
