Top Sanxing FD10 LOW NOISE Linear Actuator: High Load, Low Noise & Reliable

The Sanxing FD10 low noise linear actuator is a robust, compact electric linear motion solution designed to deliver exceptional power and precision in a space-saving form factor. Engineered for both industrial and commercial applications, it stands out with a maximum push force of 2500N (≈255kg), ultra-low noise operation, and versatile performance, making it one of the most reliable and adaptable actuators in its class. Whether you need heavy-duty lifting for industrial equipment or smooth, quiet movement for smart furniture, the FD10 low noise linear actuator is built to meet diverse requirements with consistent performance. For a deeper understanding of the core technology behind these devices, you can explore <a href=”https://en.wikipedia.org/wiki/Linear_actuator” target=”_blank”>Wikipedia’s guide to linear actuators</a>.

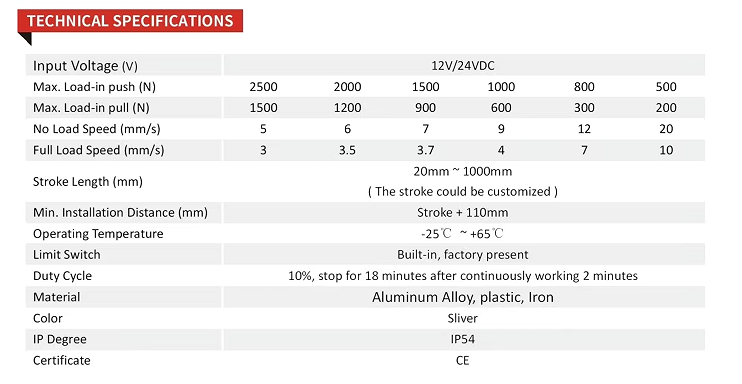

Core Technical Specifications of Sanxing FD10

• Input Voltage: Available in 12V DC and 24V DC options, the FD10 low noise linear actuator is compatible with standard power supplies used in industrial machinery, smart home systems, and outdoor equipment, ensuring seamless integration into a wide range of setups without requiring specialized power solutions.
• Comprehensive Load & Speed Configurations: The FD10 low noise linear actuator offers multiple performance variants to match different project needs. At its peak, it delivers an impressive 2500N push force (1500N pull force) with a no-load speed of 5mm/s, making it ideal for heavy-duty applications. Additional variants include 2000N, 1500N, 1000N, 800N, 500N, and 200N push force, paired with no-load speeds ranging from 6mm/s to 20mm/s, allowing you to select the perfect balance of power and speed for your specific use case. Full-load speeds are also optimized, ranging from 3mm/s to 10mm/s, ensuring reliable performance even under maximum load conditions.
• Flexible Stroke Range: Standard stroke lengths span from 20mm to 1000mm, with fully customizable strokes available to accommodate unique installation and movement requirements. The minimum installation distance is calculated as “Stroke + 110mm”, simplifying design and integration into tight spaces where every millimeter counts.
• Durability & Safety Features: Built-in limit switches ensure precise stroke control and prevent over-travel, protecting both the actuator and the equipment it operates. With a 10% duty cycle (requiring an 18-minute rest period after 2 minutes of continuous operation), the FD10 low noise linear actuator is designed to withstand repeated use without overheating, extending its service life significantly. Constructed from high-quality aluminum alloy, plastic, and iron, it balances lightweight portability with robust structural integrity, offering resistance to wear, corrosion, and impact for long-term reliability.
• Environmental Performance: Rated IP54 for dust and water resistance, the FD10 low noise linear actuator operates reliably in temperatures ranging from -25°C to +65°C. This makes it suitable for use in diverse environments, from climate-controlled indoor spaces to harsh outdoor conditions like factories, workshops, agricultural settings, and solar tracking systems.
• Ultra-Low Noise Operation: Engineered with precision-machined gears and smooth-running components, the FD10 low noise linear actuator delivers ultra-quiet performance, eliminating disruptive noise even during continuous operation. This makes it an excellent choice for noise-sensitive environments such as offices, medical facilities, residential spaces, and commercial buildings where quiet operation is essential for user comfort and productivity.

Top Applications of Sanxing FD10 Linear Actuator

1. Industrial Automation & Heavy Machinery: The FD10’s 2500N maximum push force makes it ideal for heavy-duty tasks such as lifting platforms, conveyor systems, automated assembly equipment, and material handling machinery, where consistent power and reliability are critical for smooth operations.
2. Smart Home & Commercial Furniture: Perfect for large adjustable beds, heavy-duty TV lifts, standing desks, and cabinetry, the FD10’s compact design and ultra-quiet operation ensure smooth, unobtrusive movement without disrupting daily activities, even with heavy loads.
3. Medical & Healthcare Equipment: Used in patient lifts, examination tables, rehabilitation devices, and adjustable medical beds, the FD10’s quiet, smooth motion meets the strict requirements of medical environments, prioritizing patient comfort, safety, and dignity.
4. Agricultural & Outdoor Equipment: With its wide temperature range and IP54 protection, the FD10 is suitable for solar tracking systems, agricultural machinery, outdoor lifts, and automated farm equipment, performing reliably in varying weather conditions and rugged outdoor settings.
5. Custom Projects & Specialized Applications: From robotics and automotive accessories to laboratory equipment and stage automation, the FD10’s customizable strokes and multiple load-speed options make it adaptable to a wide range of specialized linear motion needs.

As a professional linear actuator manufacturer, we offer tailored solutions for the Sanxing FD10, including custom strokes, voltage adjustments, and load configurations to fit your exact requirements. Whether you need a high-thrust actuator for industrial use or a quiet, compact model for commercial applications, the FD10 is designed to deliver consistent, reliable performance. If you’re ready to find the perfect actuator for your project, contact us today for a free consultation and personalized quote.
