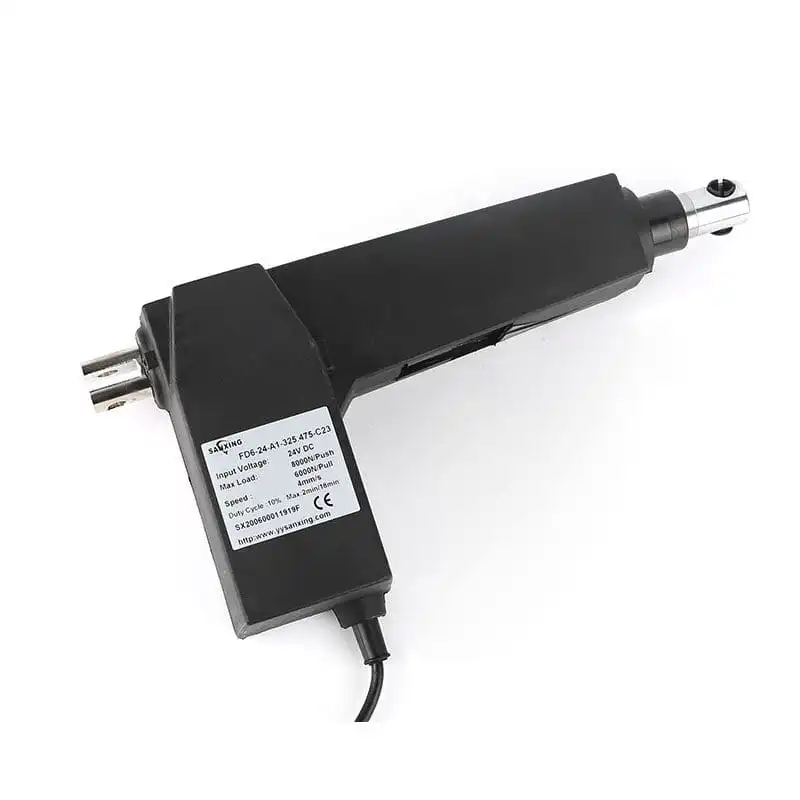

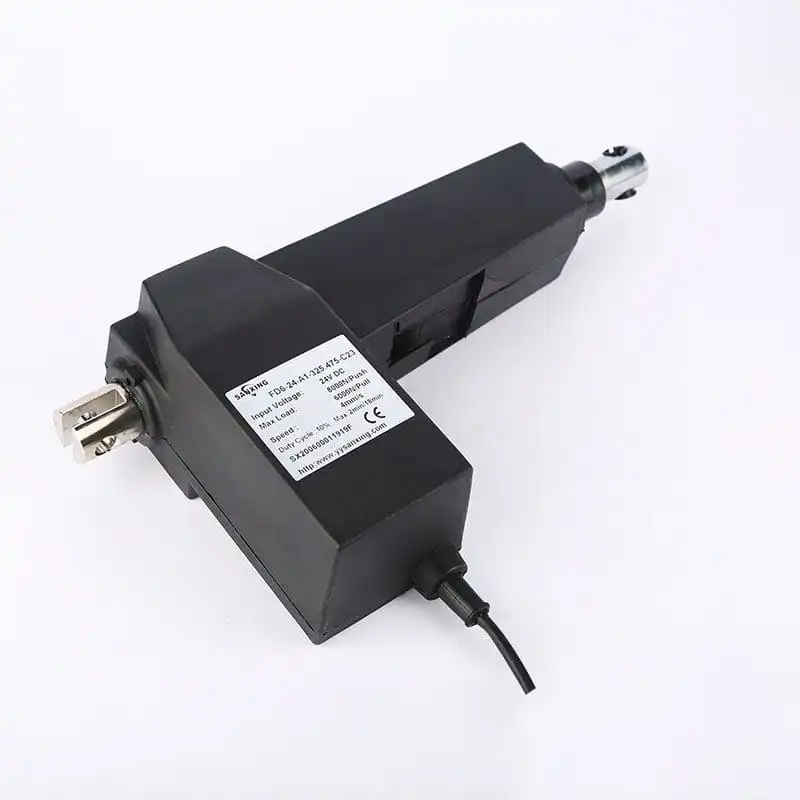

FD6 Linear Actuator
Basic Parameter
Basic Parameter
- Input Voltage (V): 12 / 24
- Max. Load Capacity (N): 8000 / 4000
- Max. Load in pull (N): 6000 / 2000
- No Load Speed (mm/s): 4 / 10
- Stroke Length-S (mm): 50mm ~ 450mm (stroke could be customized )
- Installation Distance-A (mm): Stroke + 175mm ( ≥325mm )
- Operating Temperature: -20℃ ~ +40℃
- Limit Switch: Built-in, factory present
- Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes
- Noise Level (dB): ≤48dB
- Material: Plastic, Iron

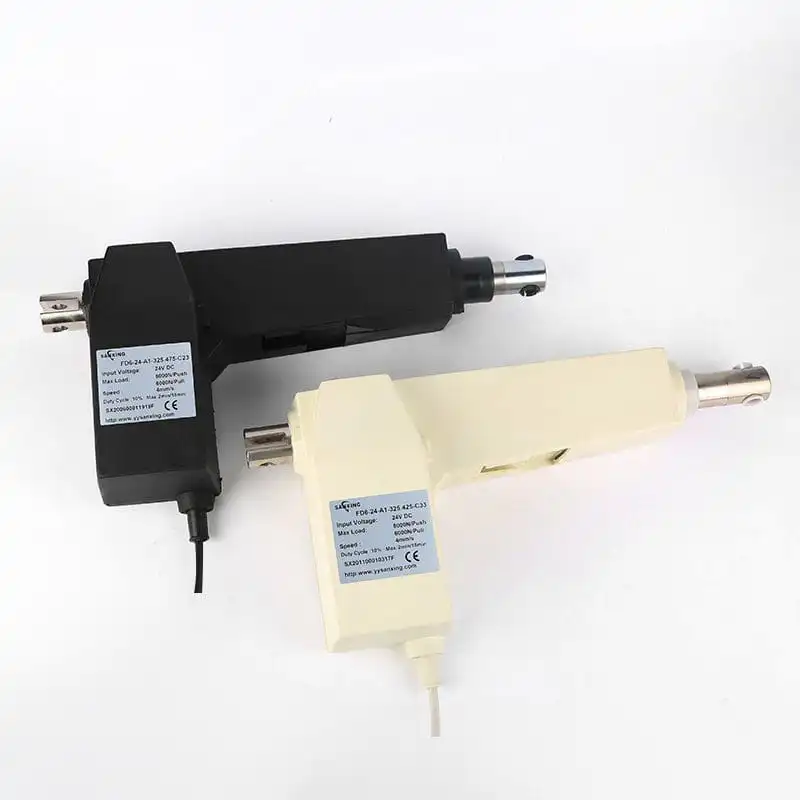

- Color: Black / Grey
- IP Degree: IP54
- Certificate: CE
Product overview
The FD6 Linear Actuator from SANXING is a heavy-duty, high-performance linear motion solution designed for industrial and medical applications requiring reliable, powerful linear movement. This robust actuator combines precision engineering with durable construction to deliver consistent performance in demanding environments.
Features and Benefits
High load capacity: Delivers up to 8000N of push force (12V) and 6000N of pull force (12V), making it ideal for heavy-duty applications.
Low noise operation: Operates at ≤48dB, creating a quieter working environment.
Customizable stroke: Stroke lengths from 50mm to 450mm can be tailored to specific application needs.
Compliance and safety: CE certified, with built-in limit switches and a 10% duty cycle to prevent overheating and ensure safe operation.
Control options
The FD6 linear actuator supports multiple control options for flexible integration:
Manual control: via on/off switches or hand controllers for direct operation.
Remote control: wireless remote systems for convenient operation from a distance.
Automated control: compatible with PLCs, control panels, or custom electronic systems for programmed movement.
Built-in limit switches: factory preset to automatically stop the actuator at the end of its stroke, ensuring safe and precise positioning.
Installation Methods
The FD6 is designed for easy and versatile installation:

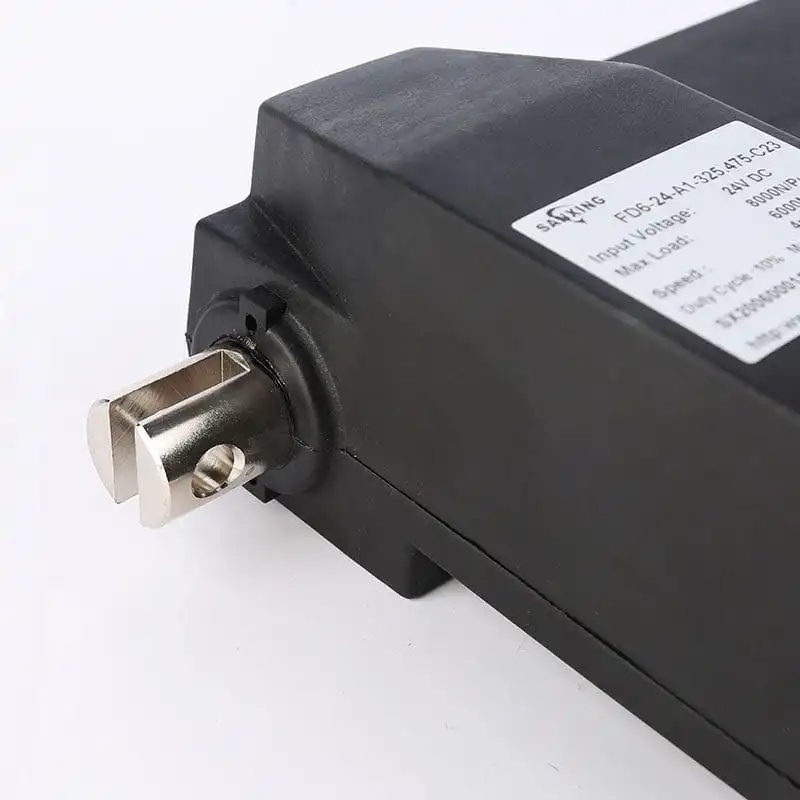

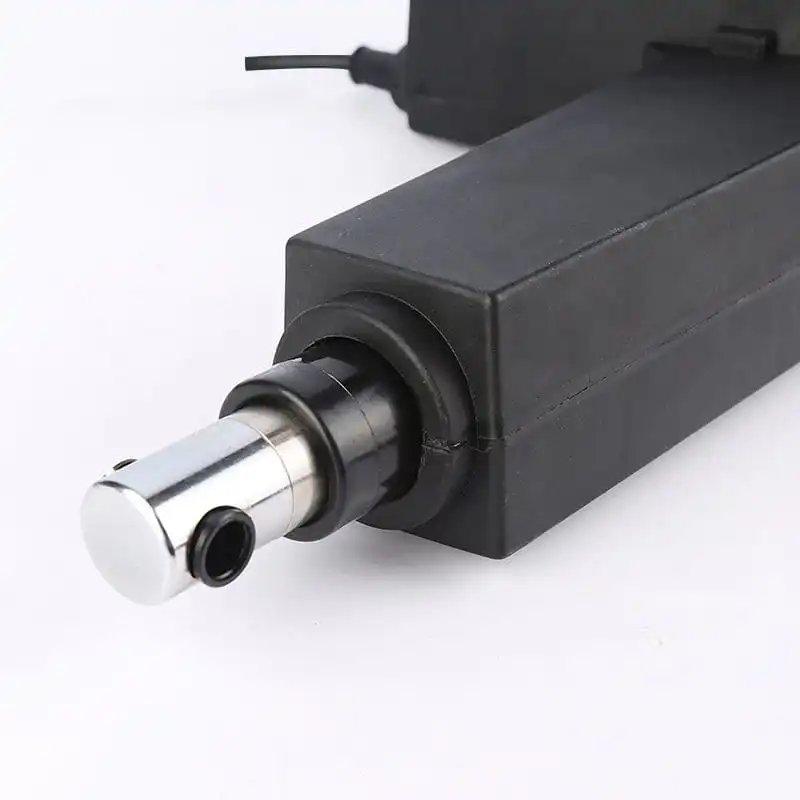

Mounting options: Features standard clevis mounts and brackets at both ends, allowing installation in horizontal, vertical, or angled orientations.
Minimal installation distance: Requires a minimum installation space of “Stroke + 175mm” (≥325mm), making it suitable for compact equipment designs.
Customizable fit: Compatible with a range of mounting hardware to adapt to different equipment configurations.
Applications
The FD6 Linear Actuator is ideal for:
Industrial machinery
Medical equipment
Automotive systems
Any application requiring heavy-duty linear motion
With its high load capacity, customizable stroke, and reliable performance, the FD6 is a versatile choice for engineers and designers seeking a robust linear actuation solution.
Product specifications
| Parameter | Specification |
| Input Voltage | 12VDC / 24VDC |
| Max. Push Load | 8000N (12V) / 4000N (24V) |
| Max. Pull Load | 6000N (12V) / 2000N (24V) |
| No-Load Speed | 4mm/s (12V) / 10mm/s (24V) |
| Full-Load Speed | 1.5mm/s (12V) / 3.5mm/s (24V) |
| Stroke Length | 50mm – 450mm (customizable) |
| Min. Installation Distance | Stroke + 175mm (≥325mm) |
| Operating Temperature | -20°C to +40°C |
| Limit Switch | Built-in, factory preset |
| Duty Cycle | 10% (stop for 18 minutes after 2 minutes of continuous operation) |
| Noise Level | ≤48dB |
| Material | Plastic, Iron |
| Color | Black / Grey |
| IP Rating | IP54 |
| Certification | CE |
Product dimension
The FD6 has a compact, ergonomic design with precise dimensions:
Overall length (A): 261mm (base unit)
Additional length (S): Equals the selected stroke length

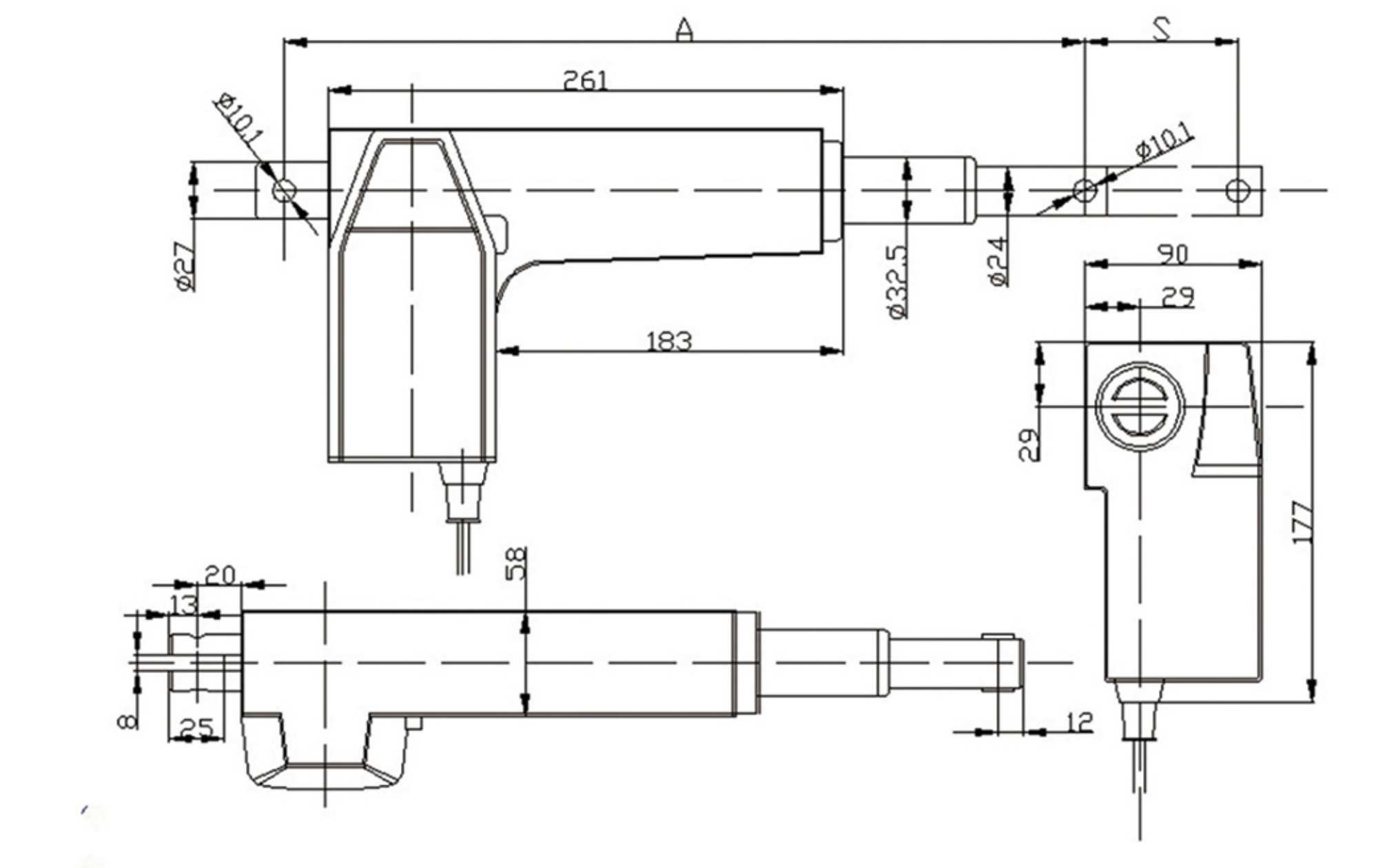

Key mounting dimensions: 183mm, 422.5mm, 177mm, and other critical measurements as shown in the technical drawing.
These dimensions ensure easy integration into a wide range of equipment and systems.
Performance characteristic curves

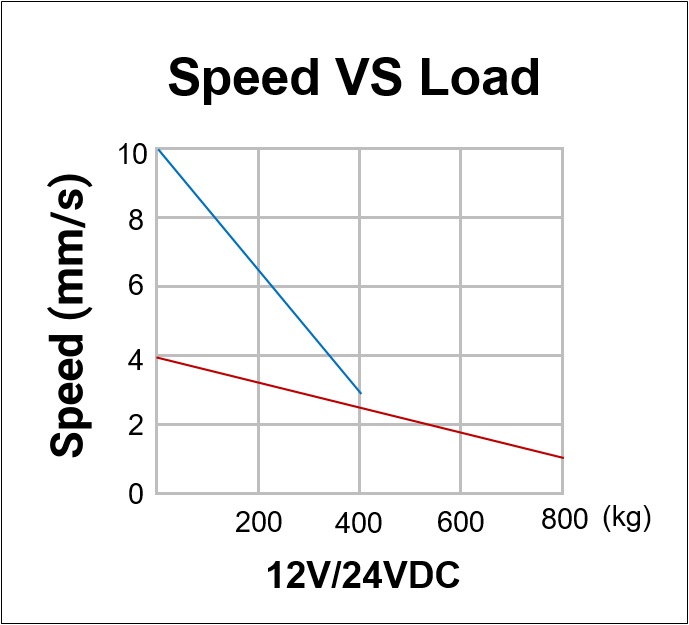

The FD6 actuator features a Speed vs. Load characteristic curve that demonstrates its performance under varying load conditions. For both 12V and 24V configurations, speed decreases linearly as load increases, ensuring predictable and controlled motion. At maximum load, the actuator maintains stable operation while delivering the specified full-load speed.
