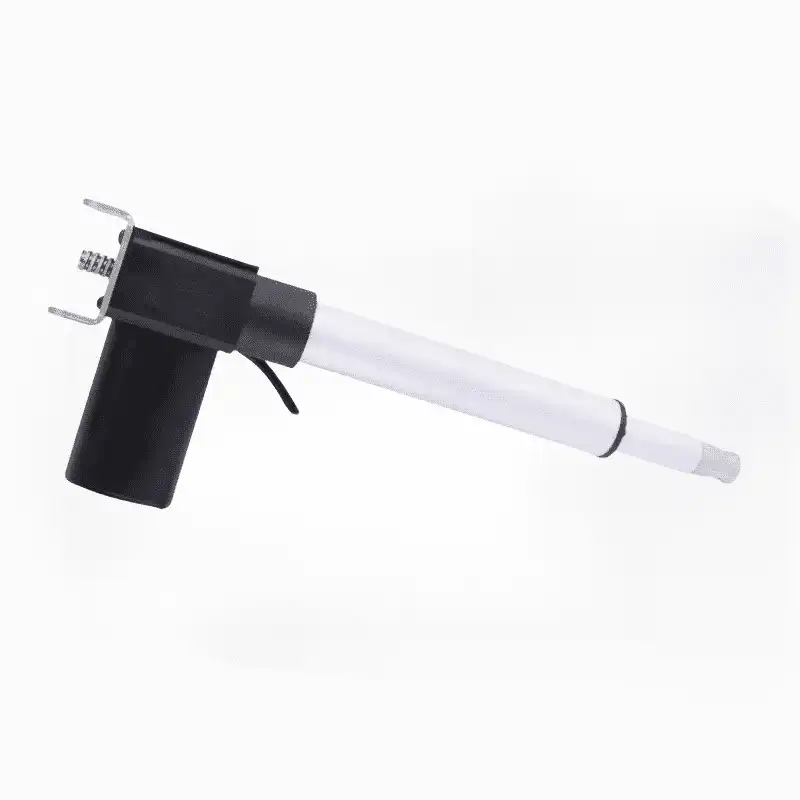

FD1-Y 8000N Medical Linear Actuator
Basic Parameter
FD1-Y 8000N medical linear actuator is a heavy-duty electric push rod built for medical equipment. Compared with standard FD1 model, FD1-Y adopts exposed lead screw design and supports manual hand crank operation. When power fails, users can manually extend or retract the actuator for emergency safety adjustment. It runs quietly with ≤48dB noise and supports customized stroke length, widely used in hospital beds, operating tables and rehabilitation medical devices.
Product overview
The FD1-Y 8000N medical linear actuator is a heavy-duty electric push rod specially engineered for medical motion control systems. The biggest difference between standard FD1 and FD1-Y 8000N medical linear actuator is its exposed lead screw structure and optional manual hand crank override function. In case of sudden power loss or electrical malfunction, operators can manually drive the actuator to adjust the position of medical equipment, which provides critical safety backup for medical applications.
This linear actuator can deliver up to 8000N maximum thrust while maintaining low noise operation below 48dB. It supports customizable stroke from 30mm to 1000mm and flexible mounting layout. Robust structure and reliable performance make FD1-Y 8000N medical linear actuator a preferred motion solution for hospital beds, surgical tables, rehabilitation devices and other medical machinery.
Features and Benefits
✦ Up to 8000N heavy thrust for heavy load medical equipment
✦ Manual hand crank emergency override: exposed lead screw design enables manual adjustment during power outage
✦ Low noise operation ≤48dB, comfortable for medical environment
✦ Built-in limit switches for automatic stop at stroke ends
✦ Customizable stroke length: 30mm ~ 1000mm available
✦ Stable operation with long service life
✦ CE certified, meets medical equipment safety standards
✦ Compact structure, easy to install and maintain
✦ Synchronization function optional for multi-actuator linkage system
Control options
The FD1-Y 8000N medical linear actuator supports common low-voltage DC control by 12V / 24VDC power supply. It can work with hand controllers, control boxes to realize synchronous or independent extension & retract control for multiple actuators. Built-in limit switches will cut off power automatically when reaching fully extended or fully retracted position to protect the motor.
Applications
– Hospital adjustable beds
– Surgical & examination tables
– Rehabilitation therapy equipment
– Beauty medical treatment machines
– Patient lift devices
– Adjustable medical furniture
Material & Construction
– Main tube: Aluminum alloy, lightweight and anti-corrosion
– Gear housing: High strength plastic & zinc alloy
– Lead screw: Carbon steel, wear-resistant
– External bracket: Iron with anti-rust coating
– Color: Black / Grey white optional
– Protection grade: IP44
Product specifications
| Parameter | Details |
| Input Voltage | 12VDC / 24VDC |
| Max. Load in Push | 8000N, 6000N, 3000N, 2000N, 1500N, 1000N, 800N, 300N |
| Max. Load in Pull | 6000N, 4000N, 2000N, 1500N, 1000N, 800N, 600N, 200N |
| No Load Speed | 4, 4, 8, 12, 16, 18, 30, 35 mm/s |
| Full Load Speed | 2.2, 2.5, 4.5, 7, 10, 11, 19, 22 mm/s |
| Stroke Length | 26mm ~ 1000mm (customizable) |
| Min. Installation Distance | Stroke + 160mm |
| Operating Temperature | -20°C ~ +40°C |
| Limit Switch | Built-in, factory preset |
| Duty Cycle | 10% (stop for 18 minutes after 2 minutes of continuous operation) |
| Noise Level | ≤48dB |
| Material | Aluminum Alloy, Plastic, Zinc Alloy, Iron |
| Color | Black / Grey |
| IP Degree | IP44 |
| Certificate | CE |
| Optional Functions | Hall Sensor, Synchronization |
Product dimension

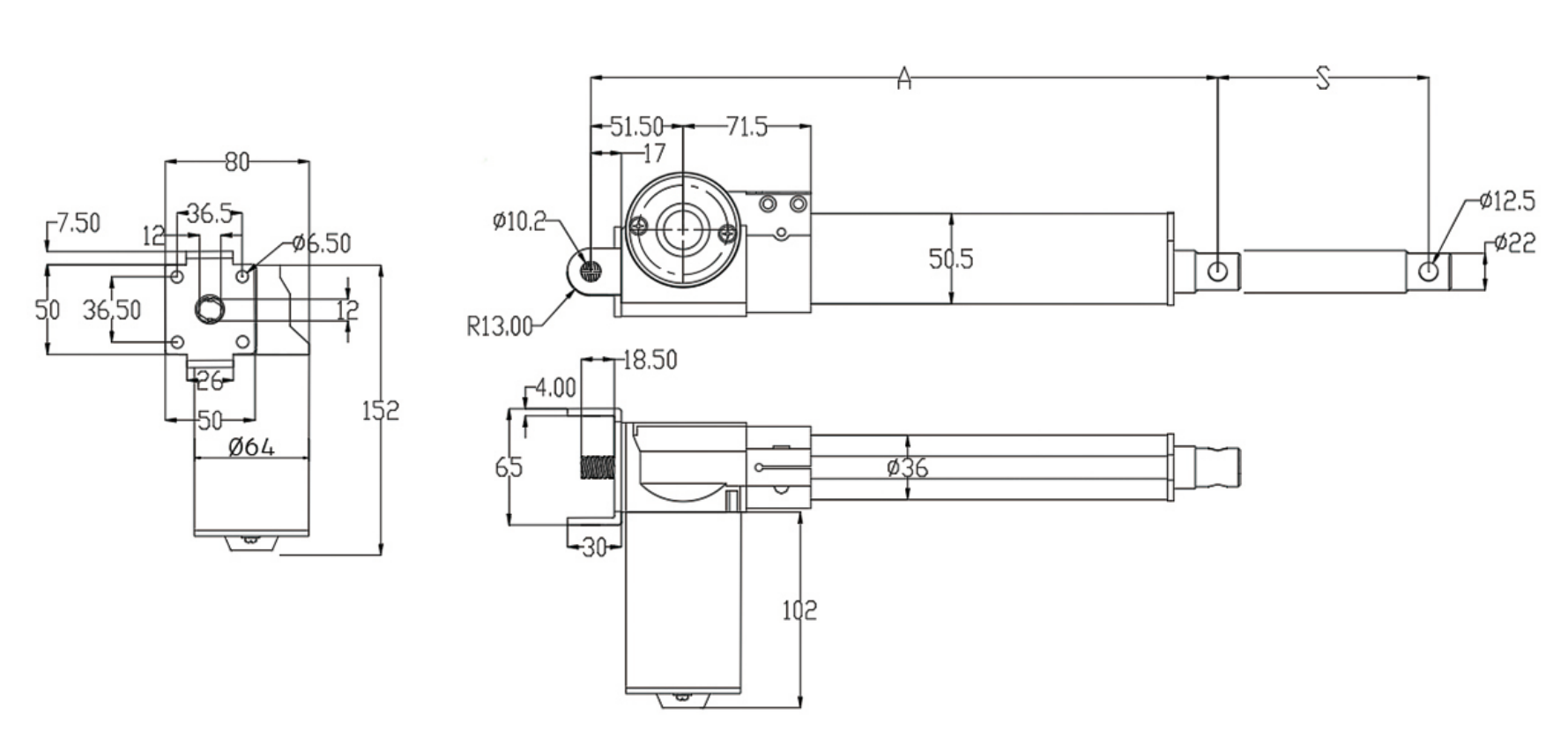

The dimension drawing of FD1-Y 8000N medical linear actuator shows all structural size of the actuator including retracted length, extended length, mounting hole position and motor housing size.
Customizable stroke: Available from 26mm to 1000mm to fit specific application requirements
Mounting points
FD1‑Y 8000N medical linear actuator adopts single end mounting bracket. The front mounting hole is designed for easy connection with medical frames. The mounting hole size and layout can be verified from dimension drawing, suitable for fast assembly on hospital beds and medical tables.
Performance characteristic curves
The FD1-Y 8000N medical linear actuator’s performance is characterized by two key relationships:

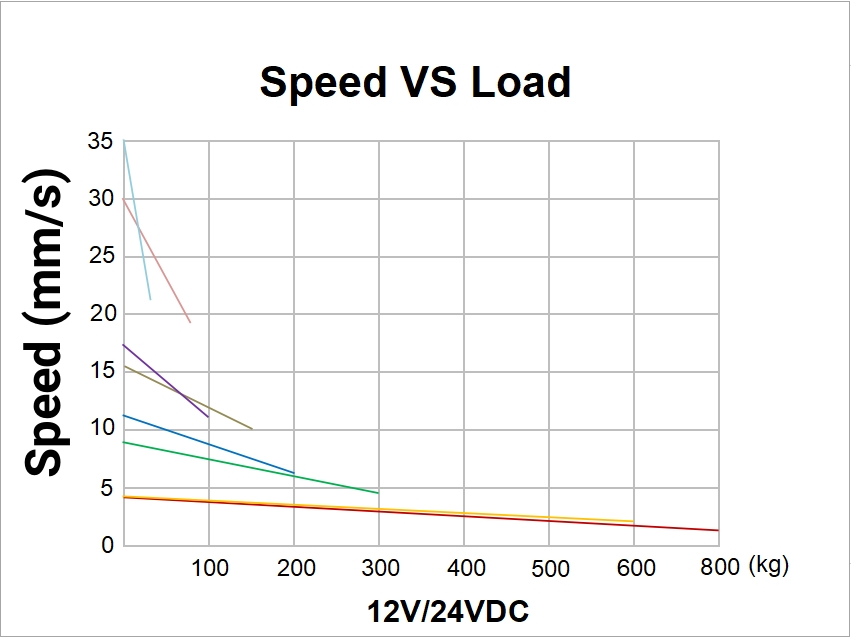

1.Speed vs. Load: Speed decreases as load increases, with consistent performance across 12VDC and 24VDC inputs.

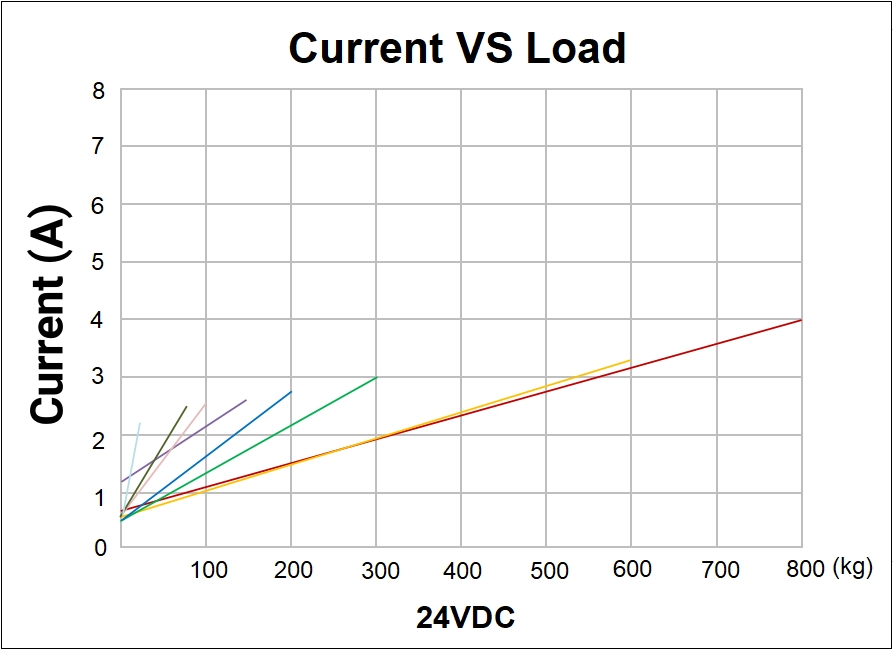

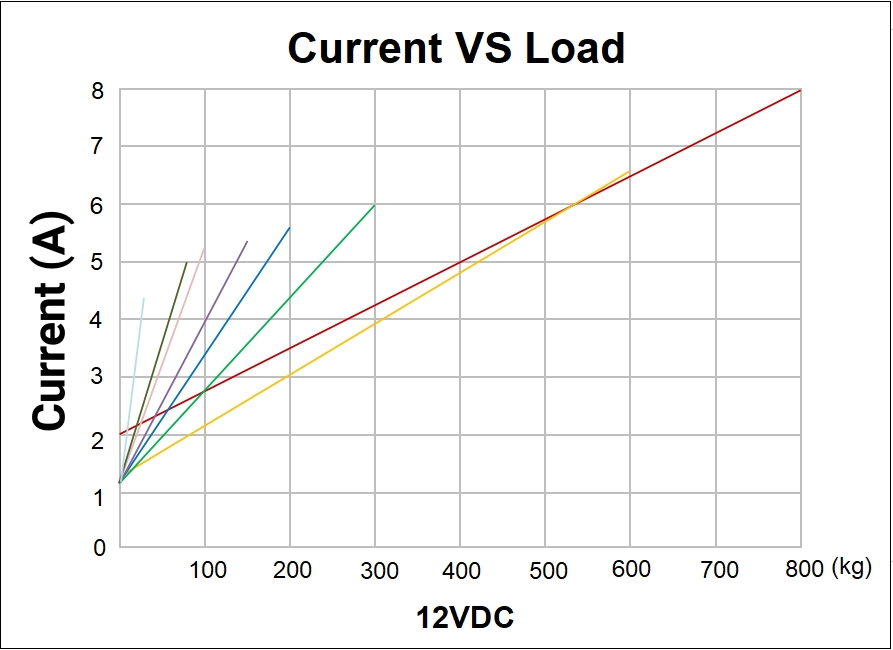

2.Current vs. Load: Current draw rises linearly with load, with predictable behavior under both 12VDC and 24VDC operation.
Control Options
Hand Joystick: Manual control via an optional hand joystick for direct, on-demand actuation.
Hall Sensor (Option): Enables precise position feedback for closed-loop control systems.
Synchronization (Option): Allows multiple FD1-Y actuators to operate in perfect sync for coordinated motion in multi-axis applications.
Frequently Asked Questions About FD1-Y 8000N medical linear actuator
Q1: What is the difference between FD1 and FD1-Y 8000N medical linear actuator?
A1: FD1-Y has exposed lead screw and supports manual hand crank operation for power-off emergency adjustment. Standard FD1 linear actuator has covered lead screw and cannot be operated manually after power cut. Both models can reach max 8000N thrust for medical equipment.
Q2: Is the hand crank included in FD1-Y package?
A2: The manual hand crank is optional. Please tell our sales team if you need hand crank together with the actuator.
Q3: Can FD1-Y work for hospital bed?
A3: Yes, FD1-Y is specially developed for medical bed applications. The emergency manual function is a big advantage for hospital bed safety.
