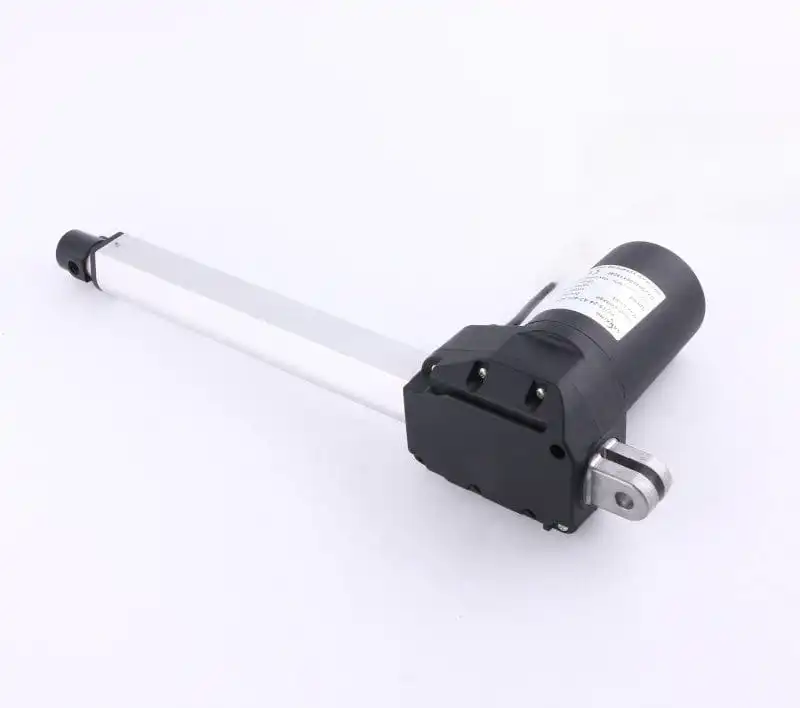

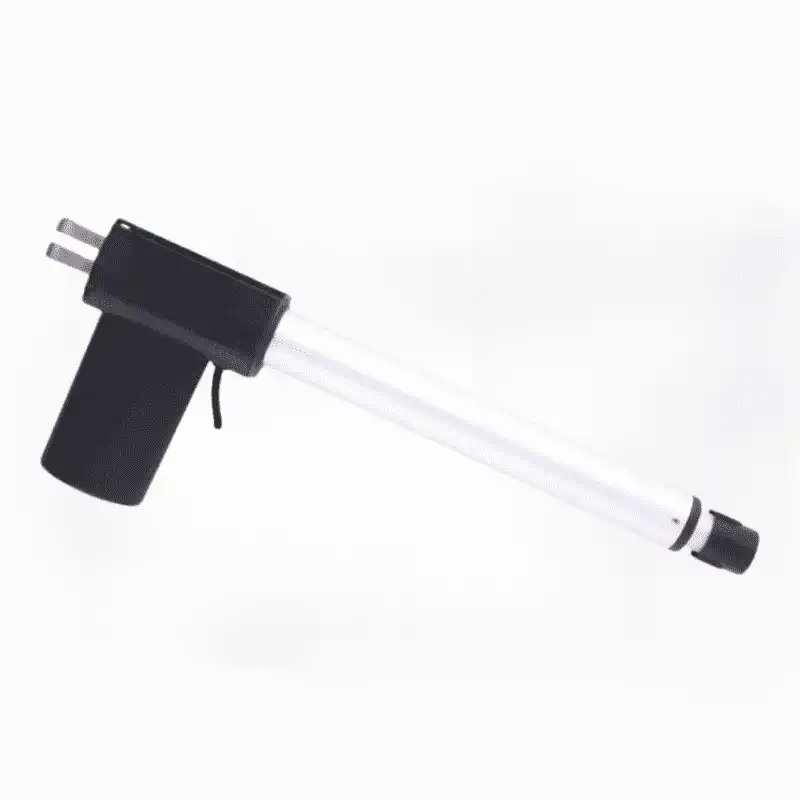

FD15 Linear Actuator
Basic Parameter
Basic Parameter
- Input Voltage (V): 12 / 24
- Max. Load Capacity (N): 6000
- Max. Load in pull (N): 4000
- No Load Speed (mm/s): 4 ~16
- Stroke Length-S (mm): 30mm ~ 1000mm (stroke could be customized )
- Installation Distance-A (mm): Stroke + 160mm
- Operating Temperature: -20℃ ~ +40℃
- Limit Switch: Built-in, factory present
- Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes
- Noise Level (dB): ≤48dB
- Material: Aluminum Alloy, Plastic, Iron
- Color: Black/Grey
- IP Degree: IP65
- Certificate: CE
- Function: Synchronization (option)
Product overview
The FD15 Linear Actuator from SANXING is a robust and versatile motion control solution designed for a wide range of industrial, medial and furniture applications. It combines high performance, durability, and precision, making it ideal for tasks requiring reliable linear movement.
Features and Benefits
High Load Capacity: Delivers up to 6000N push force and 4000N pull force for heavy-duty applications.
Durable & Reliable: Features IP65 ingress protection, robust aluminum alloy construction, and quiet operation (≤48dB).
Versatile Performance: Offers customizable stroke lengths (30mm–1000mm) and optional synchronization for coordinated multi-actuator systems.
Compliant & Safe: CE-certified with a 10% duty cycle, ensuring compliance with European standards and safe continuous operation.
Control options
The FD15 linear actuator can be controlled via manual switches, Sanxing controller and remote controls, or integration with PLC systems for automated operation. It is equipped with built-in factory preset limit switches to ensure precise position control and operational safety.
Applications
The FD15 Linear Actuator is suitable for various applications, including:
Medical equipment
Industrial automation
Furniture adjustment
Agricultural machinery
Marine and automotive systems
Product specifications
| Parameter | Details |
| Input Voltage | 12VDC / 24VDC |
| Max. Load in Push (N) | 6000, 3000, 2000, 1500 |
| Max. Load in Pull (N) | 4000, 2000, 1500, 1000 |
| No Load Speed (mm/s) | 4, 8, 12, 16 |
| Full Load Speed (mm/s) | 3, 6, 10.5, 12 |
| Stroke Length | 30mm ~ 1000mm (customizable) |
| Min. Installation Distance | Stroke + 160mm |
| Operating Temperature | -20°C ~ +40°C |
| Limit Switch | Built-in, factory present |
| Duty Cycle | 10% (stop for 18 minutes after 2 minutes of continuous operation) |
| Noise Level | ≤48dB |
| Material | Aluminum Alloy, Plastic, Iron |
| Color | Black / Grey |
| IP Degree | IP65 |
| Certificate | CE |
| Function | Synchronization (optional) |
Product dimension

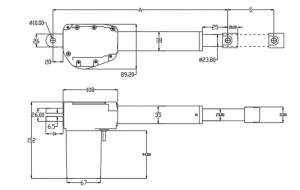

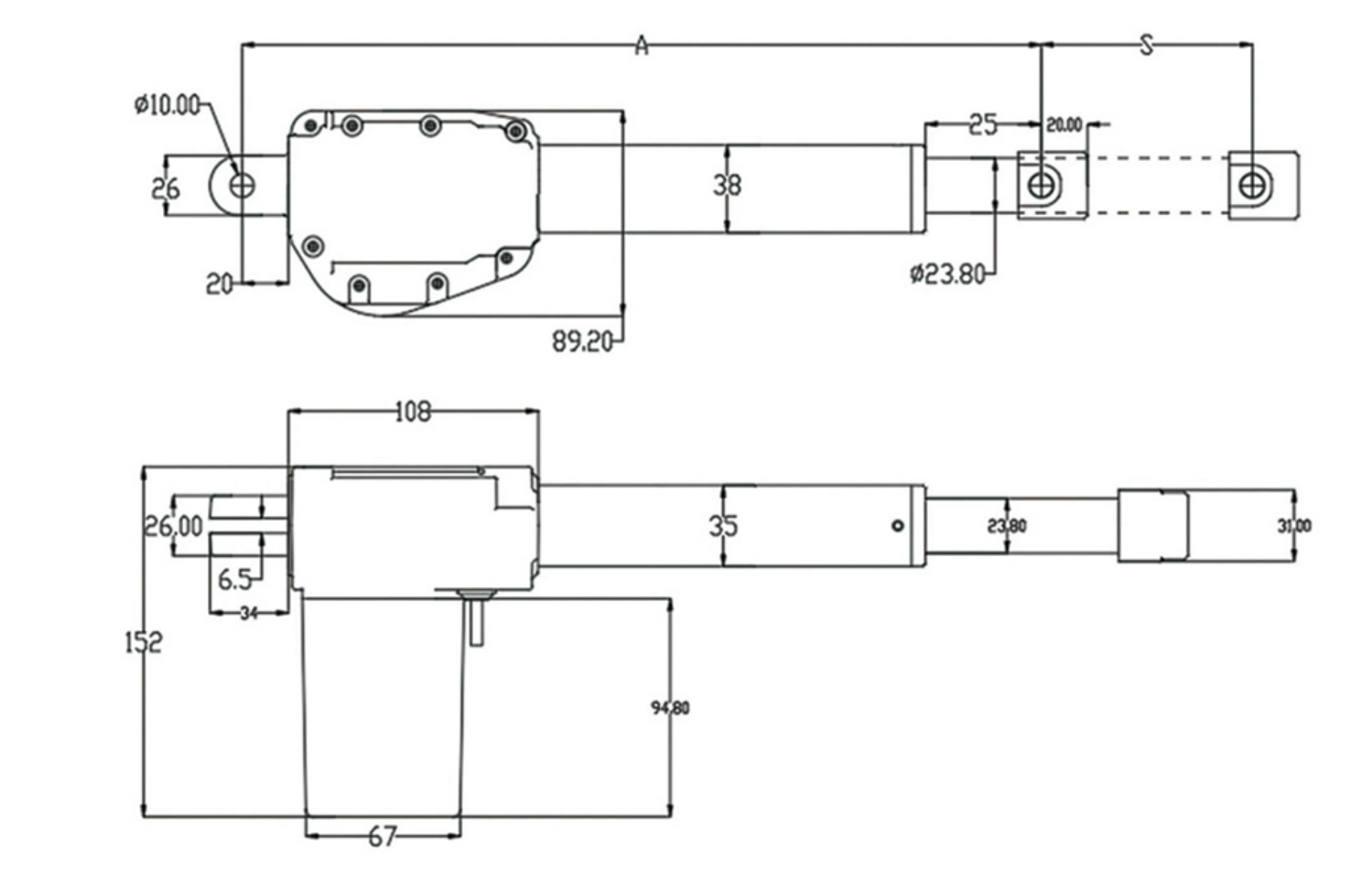

The product is accompanied by detailed dimension drawings, which provide precise measurements for the overall length, mounting points, and critical clearances. This ensures seamless integration into your existing systems or new designs. The minimum installation distance is defined as the stroke length plus an additional 160mm, which is a key consideration for system layout.

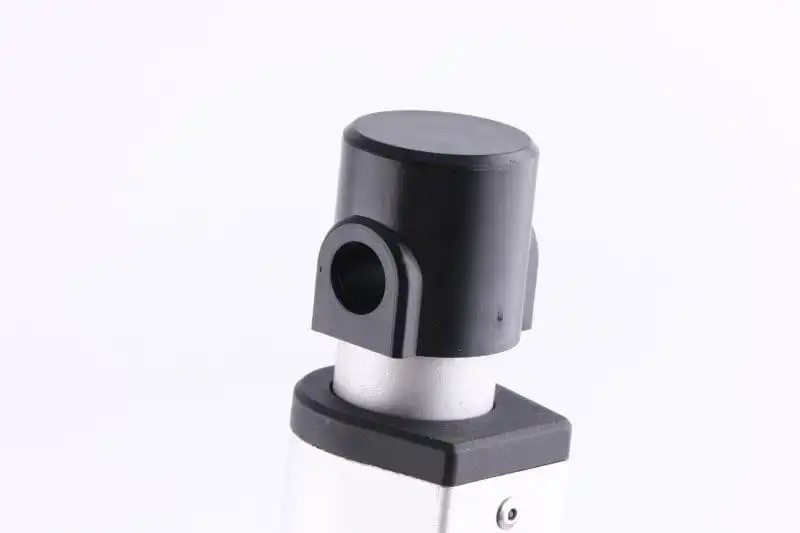

Mounting points

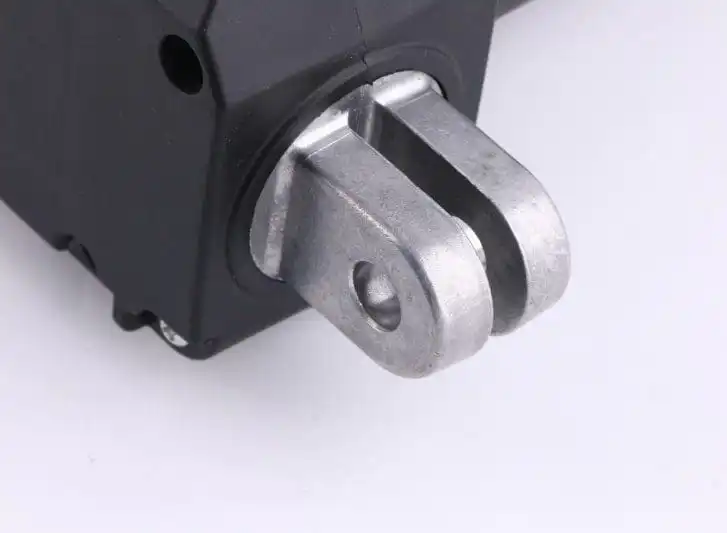

Designed for flexible integration, the FD15 supports multiple mounting configurations, including clevis mounts, pivot brackets, and custom hardware. Its compact form factor allows for easy installation, with a minimum installation distance defined as stroke length + 160mm to accommodate mechanical clearances.
Performance characteristic curves
The FD15 actuator’s performance is illustrated through three key characteristic curves:

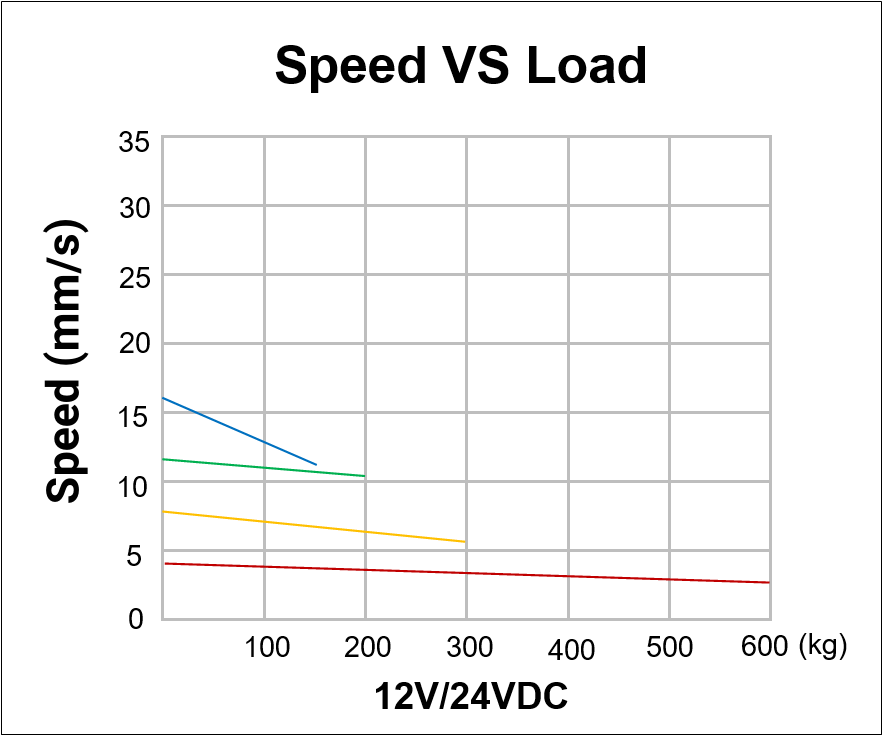

1.Speed vs. Load (12V/24VDC): This graph demonstrates the inverse relationship between the actuator’s speed and the applied load. As the load increases, the speed decreases, which is typical for electric linear actuators.

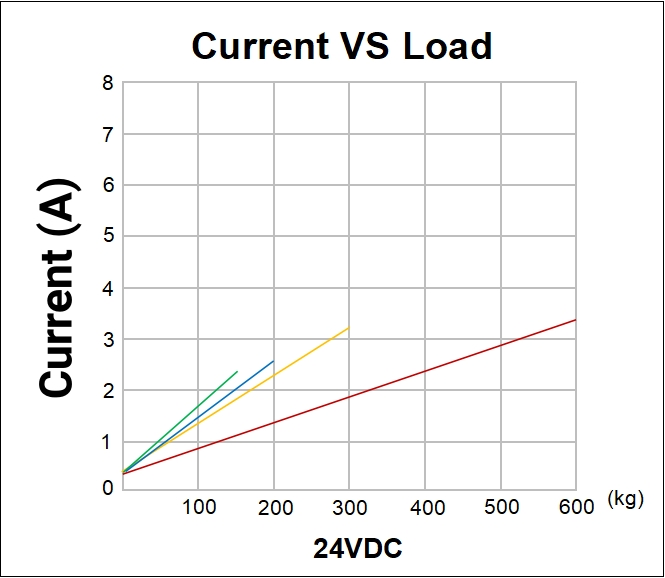

2.Current vs. Load (24VDC & 12VDC): These graphs show how the electrical current draw increases proportionally with the load, providing valuable data for power supply and system design considerations.
