Compact Linear Actuator 12v | Metal Gear Long Life For Desk Window Industry

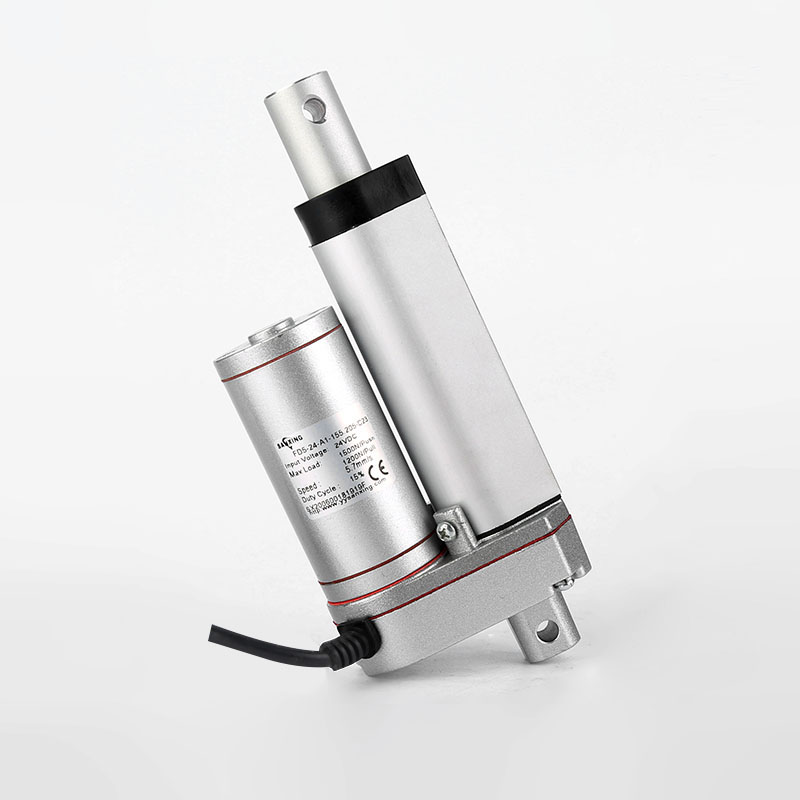

Compact Linear Actuator 12v internal metal gear compact structure — Compact Linear Actuator 12v | Metal Gear Long Life For Desk Window Industry 3

Compact Linear Actuator 12v is a high-performance mini telescopic drive component upgraded based on the classic FD5 model, specially developed for modern smart home automation and light industrial miniature equipment. Different from traditional bulky linear actuators and low-cost plastic gear push rods on the market, Compact Linear Actuator 12v adopts an all-metal internal gear transmission structure and ultra-compact body design, perfectly solving the two major industry pain points of short service life and difficult narrow-space installation. With stable 1500N thrust output, ultra-quiet operation, IP54 dustproof performance, and dual 12V/24V voltage compatibility, Compact Linear Actuator 12v has become a universal core power accessory for household height-adjustable desks, automatic electric windows, and various small industrial machinery. More and more furniture manufacturers, automation engineers and equipment purchasers choose Compact Linear Actuator 12v for customized supporting projects, relying on its stable quality and ultra-low failure rate.

In the current smart automation market, most low-priced mini linear actuators generally have obvious defects. Plastic gears are prone to wear, slippage and breakage after frequent use, and the oversized body cannot adapt to hidden and narrow installation scenarios, which greatly limits the design flexibility of smart furniture and miniature machinery. In contrast, Compact Linear Actuator 12v completely optimizes the internal structure and external size. The hardened metal gear set greatly improves wear resistance and pressure resistance, and the streamlined mini body realizes zero-space embedded installation. Whether it is long-term daily frequent use in household scenes or intermittent cyclic operation in industrial workshops, Compact Linear Actuator 12v can maintain consistent and stable linear driving performance without jitter, stuttering or abnormal noise, and is a cost-effective upgraded alternative to ordinary mini actuators.

As a multi-scene universal linear drive device, Compact Linear Actuator 12v balances practicability, durability and compatibility. It not only meets the silent and aesthetic requirements of home living and office environments, but also adapts to the dust-proof and anti-fatigue working standards of light industrial equipment. Its flexible customizable stroke and stable power output make Compact Linear Actuator 12v applicable to almost all small linear lifting and push-pull scenarios, becoming one of the most widely used compact actuators in the global automation industry in recent years.

Basic Technical Parameters of Compact Linear Actuator 12v

Compact Linear Actuator 12v adopts standardized industrial production specifications, with reasonable and practical parameter configuration, no redundant performance waste, fully matching the actual use needs of home and light industrial scenes. All parameters are optimized for narrow installation and long-cycle use, ensuring stable and reliable operation of the equipment in various environments. The detailed parameters are as follows:

Rated Working Voltage: DC 12V standard voltage, compatible with DC 24V universal power supply
Maximum Push Thrust: 1500N stable heavy-duty thrust, meeting various light and medium load lifting needs
Maximum Pull Force: 1000N balanced traction force, suitable for equipment reset and tension adjustment
No-load Operating Speed: 5mm/s to 35mm/s adjustable speed, flexible to match different equipment response needs
Full-load Operating Speed: 3.5mm/s to 30mm/s stable speed, no speed drop under rated load
Custom Stroke Range: 25mm to 1000mm arbitrary customization, covering all small and medium displacement scenarios
Minimum Installation Distance: Stroke + 105mm, ultra-short installation size for narrow spaces
Protection Grade: IP54 dustproof and splash-proof, adapting to indoor and light outdoor environments
Working Temperature Range: -25℃ to 65℃, stable operation in extreme cold and high temperature environments
Duty Cycle: 15% (3 minutes continuous work, 17 minutes rest), meeting frequent daily use
Internal Structure: All metal gear transmission, wear-resistant and long service life
Shell Material: High-strength lightweight aluminum alloy, anti-corrosion and anti-collision

The parameter design of Compact Linear Actuator 12v is highly targeted. The 12V low-voltage design is safe for household use, avoiding electric leakage risks, while the compatible 24V voltage meets industrial power supply standards. The moderate 1500N thrust neither causes power waste for small household equipment nor is insufficient for light industrial load requirements. The ultra-compact installation size is the core advantage that distinguishes Compact Linear Actuator 12v from other medium-thrust actuators on the market, perfectly solving the installation bottleneck of narrow-space equipment.

Core Competitive Advantages of Compact Linear Actuator 12v

2.1 All-Metal Gear Transmission, Ultra-Long Service Life

The biggest core advantage of Compact Linear Actuator 12v is the built-in full metal gear transmission system. Most ordinary mini actuators on the market use plastic gears to reduce costs, which are easy to wear, age and slip after hundreds of cycles, resulting in equipment jamming, shaking and even scrapping. In contrast, Compact Linear Actuator 12v uses high-precision hardened metal gears after high-temperature quenching and anti-rust treatment. The gears mesh tightly with zero gap, and the power transmission is efficient and stable. Even after tens of thousands of telescopic cycles, there will be no gear wear or transmission failure. According to professional mechanical performance research released by Design World, metal gear transmission can increase the service life of small linear actuators by 3 to 5 times compared with traditional plastic gear structures, which greatly reduces the later maintenance and replacement cost of equipment for users. This durable performance makes Compact Linear Actuator 12v a long-life and low-maintenance preferred product in the mini actuator market.

2.2 Ultra-Compact Body, Suitable For Narrow Hidden Installation

In modern smart home customization and miniature industrial equipment design, the aesthetic and structural integration of equipment is extremely important, and oversized driving components will seriously affect the overall design effect. Compact Linear Actuator 12v is a typical small mounting linear actuator with a slim streamlined body and highly integrated internal structure. It abandons the bulky redundant structure of traditional actuators, and the minimum installation space only needs stroke plus 105mm. It can be perfectly embedded in narrow gaps such as desk leg supports, window frame interiors, small mechanical boxes and furniture hidden structures, without occupying extra space or destroying the overall aesthetics of the equipment. For equipment designers and furniture manufacturers, Compact Linear Actuator 12v provides unlimited creative space for miniaturized and integrated equipment design, which is irreplaceable for ordinary large-size actuators.

2.3 Ultra-Quiet Operation, Fit For Household And Office Scenarios

Home living rooms, bedrooms and office spaces have extremely high requirements for equipment noise. Loud mechanical operation noise will seriously affect the user’s living and office experience. Compact Linear Actuator 12v is optimized for mute performance. The precisely polished metal gears are matched with high-grade silent lubricating grease, which effectively reduces friction and resonance during operation. The overall operating noise is extremely low, realizing truly silent telescopic movement. Whether it is adjusting the standing desk during office hours or automatically opening and closing electric windows during rest, Compact Linear Actuator 12v will not produce harsh mechanical noise, creating a quiet and comfortable intelligent environment for users.

2.4 IP54 High Protection & Wide Environmental Adaptability

Compact Linear Actuator 12v is equipped with a fully sealed aluminum alloy shell, reaching IP54 dustproof and splash-proof protection level. It can effectively block indoor dust, water mist and debris erosion, and can also adapt to light outdoor humid environments. The wide temperature resistance range of -25℃ to 65℃ enables Compact Linear Actuator 12v to work stably in cold winter low-temperature environments and high-temperature workshop environments, without failure or performance attenuation due to temperature changes. This excellent environmental adaptability greatly expands the application scope of Compact Linear Actuator 12v, realizing dual-purpose use for home and industry.

Diversified Application Scenarios of Compact Linear Actuator 12v

3.1 Smart Home Application: Height Adjustable Standing Desk

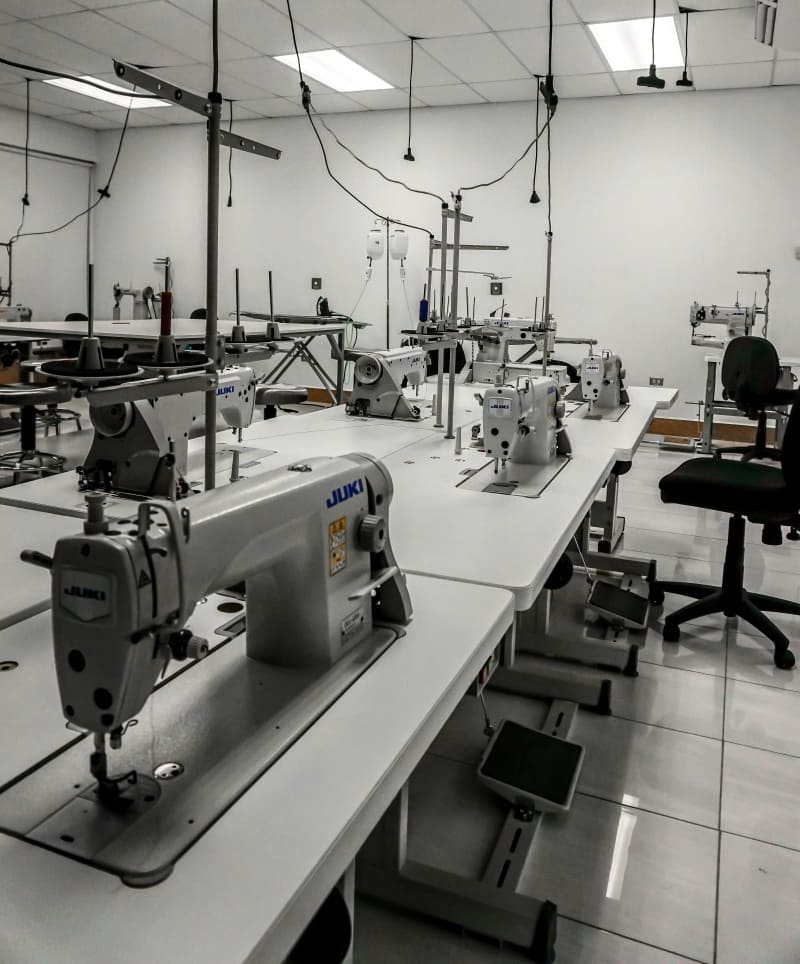

Compact Linear Actuator 12v applied on sewing workstation lift and industrial machine — Compact Linear Actuator 12v | Metal Gear Long Life For Desk Window Industry 4

With the popularization of healthy office concepts, height-adjustable standing desks have become standard intelligent office furniture for families and enterprises, and Compact Linear Actuator 12v is the core power source for most mini lifting desks. As a professional smart furniture drive actuator, Compact Linear Actuator 12v has moderate thrust and stable lifting speed, which can easily support the weight of wooden, metal and glass desktops. Its ultra-compact body can be completely hidden inside the desk legs, ensuring the simple and high-end appearance of the desk. Users can freely switch between sitting and standing postures through the control button to relieve cervical and lumbar fatigue caused by long-term sitting. During the whole lifting process, Compact Linear Actuator 12v runs smoothly without jitter and noise, with high positioning accuracy, and can maintain stable height fixation after stopping operation. At the same time, the 12V low-voltage safe design avoids electric leakage risks in daily use, which is safe and reliable for long-term family use.

3.2 Smart Home Application: Automatic Electric Window

Smart electric windows are an important part of modern smart home ventilation and rainproof systems, and Compact Linear Actuator 12v is the most matched driving component for small and medium-sized automatic windows. Installed hidden in the window frame, Compact Linear Actuator 12v will not affect the overall decoration style of the window. It can drive casement windows, skylights, ventilation windows and sunroom windows to realize automatic opening and closing, and can be matched with rain sensors and temperature sensors to realize intelligent linkage control. The IP54 waterproof and dustproof performance enables Compact Linear Actuator 12v to cope with rainy and humid environments, avoiding internal component damage. As a high-performance automatic window linear actuator, it greatly improves the intelligence and convenience of home life, and is widely recognized by smart home decoration designers. According to industry analysis from Smart Home Automation, compact, silent and durable low-voltage linear actuators have become the mainstream choice for high-end smart home window automation systems.

3.3 Light Industrial Machinery Professional Application

In addition to household smart furniture, Compact Linear Actuator 12v also has excellent performance in the field of light industrial automation, suitable for various miniature mechanical linear displacement adjustment scenarios. It can be applied to small workshop lifting platforms, packaging equipment push-pull mechanisms, laboratory precision testing instruments, assembly line auxiliary adjusting equipment, greenhouse ventilation machinery and miniature automation testing equipment. Industrial equipment needs to withstand frequent cyclic work and dusty workshop environments, and the metal gear structure of Compact Linear Actuator 12v has super wear resistance and fatigue resistance, which can maintain stable operation for a long time. The sealed shell can isolate workshop dust and debris, effectively protecting internal transmission components. As a high-quality long service gear actuator, it helps industrial enterprises reduce equipment failure rates and later maintenance costs, and is deeply favored by small and medium-sized machinery manufacturers.

Professional Installation And Standardized Maintenance Guide

To give full play to the performance advantages of Compact Linear Actuator 12v and maximize its service life, standardized installation and daily maintenance are essential. Before installation, users need to ensure that the equipment mounting plane is flat, firm and free of tilt, to avoid lateral eccentric force during the operation of Compact Linear Actuator 12v, which will cause abnormal wear of internal metal gears and affect the transmission accuracy and service life. According to the equipment power configuration, select a matched 12V or 24V DC stable power supply, and it is strictly forbidden to overload the actuator for a long time to prevent motor overheating and burnout. When multiple Compact Linear Actuator 12v need to work synchronously for large-area lifting equipment, it is necessary to equip a dedicated synchronous controller to ensure consistent lifting speed and height of each actuator, avoiding equipment tilt and jitter.

In daily maintenance, Compact Linear Actuator 12v is almost maintenance-free. The internal high-grade lubricating grease can maintain long-term smooth gear meshing and transmission without frequent refueling. Users only need to regularly wipe the dust and stains on the surface of the aluminum alloy shell to keep the equipment clean. It is forbidden to soak Compact Linear Actuator 12v in water or expose it to strong corrosive environments for a long time, and avoid violent collision and manual forced stretching and retraction during power-on operation, so as to prevent gear dislocation and mechanical failure. Industry practical experience summarized by Automation World shows that standardized installation and scientific use can extend the service life of mini linear actuators by more than 40% and maintain long-term stable working performance.

Product Advantages And Market Value Analysis

In the fiercely competitive global mini linear actuator market, product comprehensiveness and scene adaptability have become the core factors that determine market competitiveness, and Compact Linear Actuator 12v stands out from numerous homogeneous products with its balanced and comprehensive performance. Most low-cost competing products on the market often have obvious performance loopholes: some pursue ultra-small size but sacrifice thrust and durability, resulting in insufficient load-bearing capacity and easy damage; some retain high thrust but have a bulky body that cannot adapt to narrow installation environments; most plastic gear actuators cannot withstand long-term frequent use, making them only suitable for low-frequency and temporary simple equipment. In contrast, Compact Linear Actuator 12v perfectly balances size, power, durability and silence, realizing zero defect adaptation in home and light industrial dual scenarios, which is also the core reason why it is widely favored by global buyers.

For commercial bulk purchasers such as smart home manufacturers and automation equipment factories, the comprehensive cost performance of products is the primary consideration for long-term cooperation. Compact Linear Actuator 12v adopts integrated industrial design and standardized production process, which not only ensures stable product consistency and zero difference in batch quality, but also avoids additional maintenance costs caused by product failure. The all-metal gear structure eliminates the frequent replacement problem of plastic gear accessories, greatly reducing the after-sales service pressure of enterprises and improving customer reputation and market competitiveness for downstream manufacturers. Different from high-priced heavy-duty industrial actuators with redundant performance, Compact Linear Actuator 12v focuses on small and medium load scenarios, avoiding performance waste while meeting all actual use needs, and providing the most cost-effective linear motion solution for medium and small automation projects.

In addition, the compatibility and expandability of Compact Linear Actuator 12v further enhance its market application value. It supports customized stroke length, synchronous linkage control and multi-voltage adaptation, which can meet the personalized customization needs of different equipment designers. Whether it is standard mass-produced smart furniture or customized miniature industrial equipment, Compact Linear Actuator 12v can complete perfect matching. Its universal installation interface and simple wiring mode greatly reduce the difficulty of equipment assembly, shorten the production cycle of manufacturers, and effectively improve production efficiency. With the continuous development of smart home and miniature industrial automation industry, the market demand for small-size, long-life and low-noise linear actuators is increasing year by year, and Compact Linear Actuator 12v, with its excellent comprehensive performance, will continue to occupy a dominant position in the medium and high-end mini actuator market, providing stable and reliable power support for the iterative upgrading of various intelligent equipment.

Compared with other similar mini linear actuators on the market, Compact Linear Actuator 12v has obvious comprehensive competitive advantages. It solves the three major pain points of short service life, large installation size and loud noise of traditional plastic gear actuators. The all-metal gear structure achieves ultra-long service life, the ultra-compact body realizes narrow-space hidden installation, and the silent optimization design adapts to high-standard home and office environments. At the same time, the dual voltage compatibility, IP54 high protection and wide temperature adaptability make Compact Linear Actuator 12v have far higher scene adaptability than ordinary products.

In terms of market application value, Compact Linear Actuator 12v has high cost performance and universality. It can be used in both civil smart home equipment and light industrial automation machinery, realizing one machine with multiple uses, which greatly reduces the equipment procurement cost for manufacturers and purchasers. The stable quality and ultra-low failure rate also reduce the after-sales maintenance pressure for merchants, making Compact Linear Actuator 12v a cost-effective and high-reliability star product in the mini linear actuator market.

Conclusion

With its ultra-compact body design, durable all-metal gear transmission, ultra-quiet operation and multi-scene universal performance, Compact Linear Actuator 12v has become a mainstream high-quality linear drive component in the fields of smart home and light industrial automation. It perfectly meets the installation and use requirements of height-adjustable desks, automatic electric windows and various miniature industrial equipment, and solves many practical problems existing in traditional actuators. Whether it is bulk procurement by furniture factories and machinery manufacturers, or customized matching of small automation projects, Compact Linear Actuator 12v can provide stable, efficient and long-lasting linear motion solutions. For global automation practitioners and smart home developers, Compact Linear Actuator 12v is a trustworthy high-quality choice to create high-precision and long-life intelligent equipment.
