When procurement engineers, system designers, and technical buyers embark on a component sourcing journey for restricted-space applications, they frequently search for an ip66 low-noise micro linear actuator to fulfill tight mechanical constraints. However, navigating the intricate landscape of miniature motion control requires a deep understanding of available product variations. Specifically, when evaluating how an IP68 micro compact linear actuator fits into modern engineering blueprints, buyers must assess the distinctions among our versatile micro linear actuator series: the FD16, the FD25, and the FD17.
When designing high-reliability hardware, selecting the correct IP68 micro compact linear actuator ensures long-term operational stability. For example, while the FD25 serves as our primary dedicated IP66 micro model with a maximum load capacity of 188N, our flagship IP68 micro compact linear actuator, the FD16, delivers significantly higher force up to 300N, offers optional IP68 ingress protection, and features integrated overcurrent and overload protection circuitry.
This comprehensive selection guide clarifies the technical specification differences among these compact models. Every modern IP68 micro compact linear actuator deployment is specifically structured to help you select the right micro linear actuator for tight-space, light-duty projects without falling into common specification traps or misjudging performance boundaries. While the FD16 acts as the core featured IP68 micro compact linear actuator for demanding environments, the FD25 and FD17 serve as reliable comparison reference models for standard and indoor automation tasks.
What Confusion Exists Around Micro-Size Waterproof Linear Actuator Search Terms
Why do users search for ip66 low-noise micro linear actuator?
In the global industrial automation, medical device, and smart furniture market, a common misconception arises during initial component selection. Many engineers and procurement specialists look for a ip66 low-noise micro linear actuator expecting a tiny physical footprint, a high water-ingress protection rating, and whisper-quiet acoustic operation all packaged into a single miniature housing.
When engineers evaluate an IP68 micro compact linear actuator for harsh washdown conditions, they often compare it against other options. Within our extensive product lineup, the FD25 functions as the designated IP66 micro waterproof linear actuator, making it an exceptional choice for outdoor or semi-exposed equipment that experiences water splashes, humidity, or light jet exposure. However, due to its ultra-compact physical dimensions and internal gear geometry, its maximum load capacity is strictly capped at 188N.
The objective facts of micro-size mechanical limits
From a mechanical design and physics perspective, miniature housing structures impose strict limitations on internal DC motors, planetary or spur gear trains, and lead screw assemblies. It is exceptionally difficult to engineer a device utilizing an IP68 micro compact linear actuator footprint that achieves an extremely small micro layout while simultaneously delivering ultra-low-noise acoustic performance.
- All three micro series (FD16, FD25, and FD17) maintain a standard noise level of ≤55dB.
- These compact models are intentionally optimized for space-saving integration and reliable push-pull force rather than ultra-silent operation.
Core competitive advantages of the FD16
In contrast to standard light-duty alternatives, our flagship IP68 micro compact linear actuator (the FD16) breaks through traditional limitations by delivering a maximum push force of up to 300N, an optional IP68 high-grade waterproof and dust-tight rating, built-in overcurrent and overload protection, and an extended operating temperature range.
Understanding IP Ingress Protection for Micro-Size Linear Actuators
Breakdown of IP44 / IP54 / IP66 / IP67 / IP68 standards
When designing equipment for harsh, wet, or regulated environments, understanding the exact international protection rating is paramount. To evaluate sealing standards against dust and moisture ingress properly, engineers specifying an IP68 micro compact linear actuator can reference the official guidelines on Ingress Protection (IP) ratings (opens in a new tab). These standards define how well an enclosure defends internal electrical components against foreign bodies like dust and moisture.

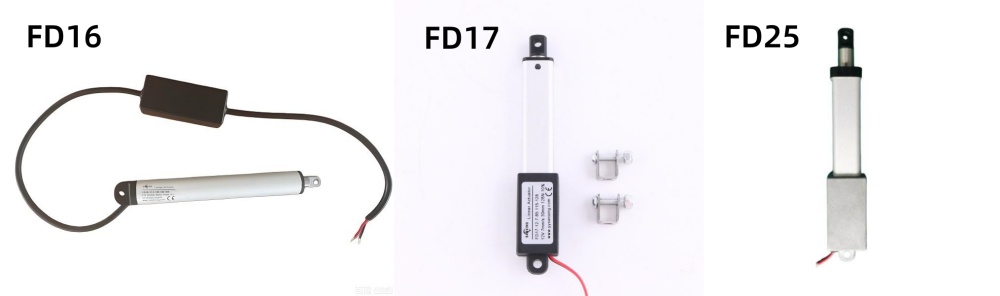

Comparative Specification Matrix: 3 Micro Linear Actuator Series
| Model | Max Load | IP Degree | Noise Level | Temperature Range | Key Feature Highlights | Typical Application |
|---|---|---|---|---|---|---|
| FD17 | 188N | IP54 | ≤55dB | -10℃ ~ +50℃ | Ultra-compact size, no waterproof protection | Indoor small automation, dry environments |
| FD25 | 188N | IP66 | ≤55dB | -10℃ ~ +50℃ | IP66 waterproof sealing for splash and jet water | Outdoor compact equipment, light rain exposure |
| FD16 | 300N | IP54 / IP68 Optional | ≤55dB | -25℃ ~ +80℃ | Built-in overcurrent & overload protection, higher force | Medical devices, industrial automation, submerged or wide-temp use |
Model-Specific Quick Navigation Links
- FD17: IP54 indoor compact micro actuator
- FD25: IP66 micro waterproof linear actuator
- FD16: IP68 micro compact for confined space
Main Real-World Applications of Micro Compact Linear Actuator
Medical & Beauty Compact Equipment
In modern medical care beds, dental chairs, rehabilitation therapy devices, and high-end aesthetic beauty equipment, internal mechanics must fit inside severely restricted chassis enclosures. Equipment designers frequently utilize a reliable IP68 micro compact linear actuator to handle height adjustments, tray tilting, or backrest articulation safely without risking fluid contamination from cleaning agents, hospital disinfectants, or accidental liquid spills. Incorporating an IP68 micro compact linear actuator into sanitary medical systems guarantees compliance with rigorous hospital hygiene standards.
Small-Size Industrial Automation Devices
Automated benchtop testing fixtures, optical sorting jigs, semiconductor micro-assembly stations, laboratory pipette changers, and electronic testing equipment require repeatable linear motion in narrow layouts. The compact footprint of these small actuators ensures seamless integration into multi-axis modular setups where every millimeter of internal clearance matters. When high reliability is mandatory, an IP68 micro compact linear actuator provides the necessary mechanical endurance.
Smart Home & Automotive Auxiliary Mechanism

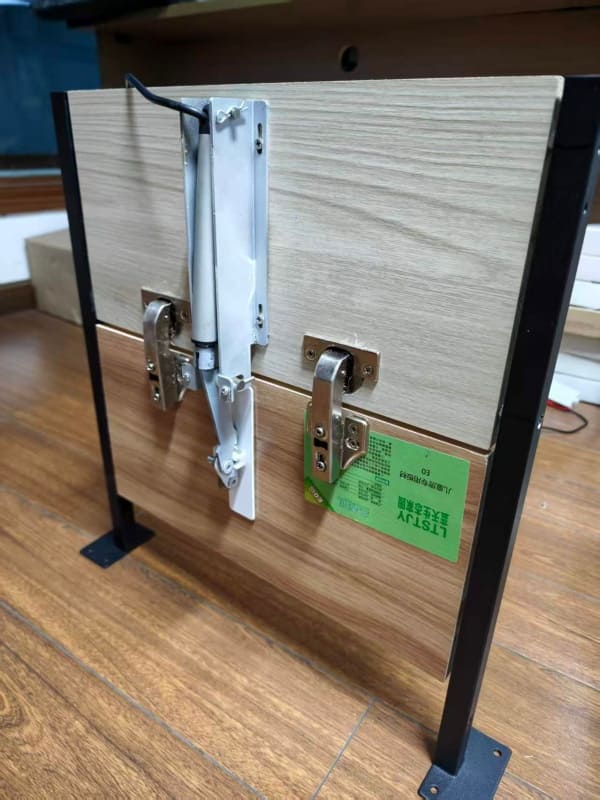

Consumer electronics, smart furniture, robotic vacuum flip doors, automated ventilation louvers, and automotive sunroof or storage auxiliary mechanisms demand dependable actuation. These units fit neatly into hollow profiles where standard heavy-duty actuators cannot physically mount due to dimensional restrictions. Selecting a certified IP68 micro compact linear actuator prevents premature mechanical failure caused by environmental exposure.
Crucial Engineering Note: The FD16, FD25, and FD17 series are strictly engineered for light-load working conditions. Their maximum push or pull force does not exceed 300N, meaning they are completely unsuited for heavy-duty industrial pressing, heavy vehicle chassis adjustment, or high-load lifting applications.
Key Technical Specs When Specifying Micro Compact Linear Actuator
Device engineers and system integrators must evaluate several critical parameters beyond simple ingress protection ratings when finalizing a bill of materials for an IP68 micro compact linear actuator project.
Force & Load Capacity Comparison
The primary differentiator among our compact range is force output. The FD16 delivers a maximum load of 300N, whereas both the FD25 and FD17 max out at 188N. If your project demands higher push force inside a tight housing envelope, the FD16 IP68 micro compact linear actuator serves as the optimal selection. For lighter loads below 188N requiring robust water-jet resistance, the FD25 provides an excellent balance.
Stroke Length & Installation Dimension (Pin-to-Pin)

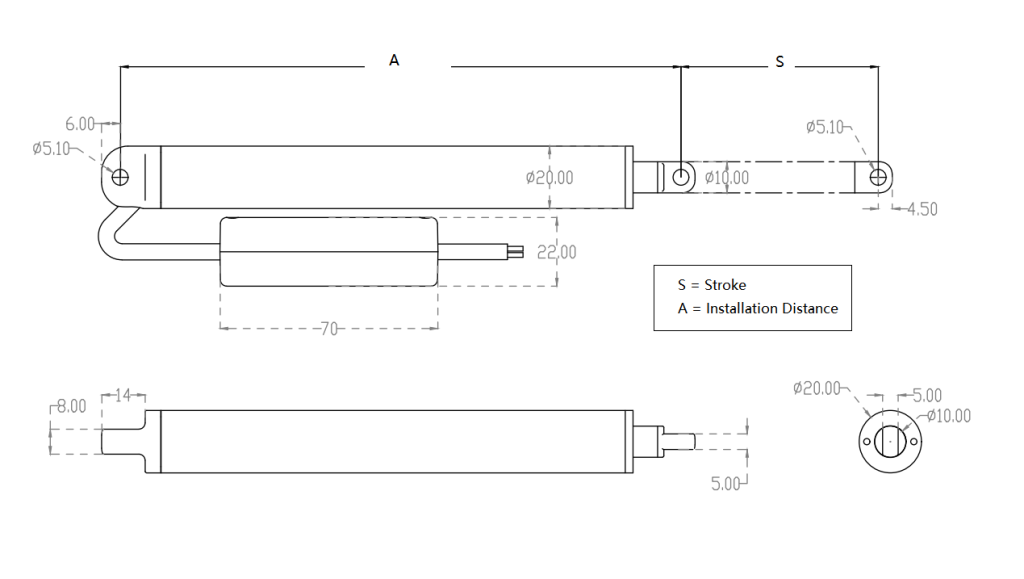

In miniature equipment design, retracted mounting length is often the most restrictive constraint. Engineers must carefully check pin-to-pin installation dimensions before mounting any IP68 micro compact linear actuator. The FD16 accommodates longer stroke requirements ranging from 10mm up to 800mm, while the FD25 and FD17 are restricted to shorter strokes between 10mm and 150mm.
Voltage Options: 12V DC vs. 24V DC
All three micro actuator models support standard DC control architectures, operating seamlessly on either 12V DC or 24V DC power inputs, making them compatible with standard embedded controllers, Arduino/PLC setups, and battery-powered mobile apparatus driven by an IP68 micro compact linear actuator.
Acoustic Expectations for Micro-Size Actuators
As noted previously, FD16, FD25, and FD17 models all operate at ≤55dB. Because micro gear trains leave minimal room for acoustic dampening insulation, these units are optimized for compact dimensions rather than acoustic silence. If your application mandates near-silent operation, consider heavy-duty series like the FD1 or FD10 instead of a standard IP68 micro compact linear actuator.
Duty-Cycle Rating
These actuators operate on a standard 10% duty-cycle (calculated as 2 minutes of continuous operation followed by 18 minutes of rest/cooling). Continuous running will cause thermal overload. All three micro models share this exact duty-cycle specification regardless of whether you choose an IP68 micro compact linear actuator or an IP54 variant.
Circuit Protection Features
The FD16 stands out with built-in overcurrent and overload protection, ensuring enhanced operational safety and preventing motor burn-out under unexpected mechanical jams. When designing mission-critical hardware, choosing an IP68 micro compact linear actuator with internal circuit protection safeguards your entire electrical architecture.
OEM Customization Capabilities
For specialized projects, parameters such as custom stroke lengths, mounting clevis geometries, specific operating speeds, specialized wiring connectors, and custom feedback sensors for your IP68 micro compact linear actuator can be tailored upon request.
FD16 Series: IP68 Micro Compact Linear Actuator Overview
Note: This section provides a high-level overview. To prevent specification overlap and keyword cannibalization, complete tabular technical matrices are excluded here. Detailed CAD drawings and performance curves are available directly on our product page.
Core Strengths of the FD16 Flagship Model
- Flexible Sealing Options: Available in standard IP54 or high-grade IP68 waterproof and dust-tight housing configurations, making every IP68 micro compact linear actuator variant suitable for harsh environments.
- Superior Force Output: Generates a maximum push force of up to 300N, outperforming the lighter FD17 and FD25 models.
- Integrated Electronic Safety: Features built-in over-current and overload protection for secure, long-term operation.
- Extreme Temperature Resilience: Operates reliably across a wide ambient temperature range from -25℃ to +80℃.
- Electrical & Feedback Versatility: Supports 12V / 24V DC inputs with optional Hall-sensor position feedback.
- Extended Stroke Flexibility: Accommodates stroke lengths up to 800mm.
- Trusted Manufacturing: Backed by 18 years of specialized industry manufacturing expertise in every IP68 micro compact linear actuator unit produced.
For complete technical datasheets, electrical wiring diagrams, and mounting dimension drawings for your next IP68 micro compact linear actuator deployment, please visit the FD16 product page.
When to Choose FD25 or FD17 Instead of FD16
- If your operational load is strictly ≤188N and you require dependable protection against splashing water, choose the FD25.
- If your application operates exclusively in an indoor, dry environment and prioritizes a cost-effective compact actuator, choose the FD17 IP54.
Common Pitfalls When Selecting Micro Waterproof Linear Actuators
- Unrealistic Acoustic Expectations: Anticipating an ultra-quiet performance from a ip66 low-noise micro linear actuator search premise. While the FD25 fulfills the IP66 micro criteria, its max force is 188N, and all micro models operate around ≤55dB.
- Underestimating Load Requirements: Specifying the FD25 or FD17 when mechanical resistance exceeds 188N. Only the FD16 IP68 micro compact linear actuator can safely reach the 300N threshold.
- Misinterpreting Ingress Protection Levels: Assuming the FD17 is waterproof (it is rated IP54 for dust and light splash resistance only), or confusing the FD25 (IP66 jet-spray proof) with fully submersible units like an IP68 micro compact linear actuator suited for continuous underwater deployment.
- Neglecting Duty-Cycle Limits: Operating micro actuators continuously past the 10% threshold, leading to premature thermal degradation.
- Ignoring Environmental Temperatures: Deploying standard commercial units in sub-zero or high-heat environments where only the robust FD16 IP68 micro compact linear actuator (-25℃ to +80℃ rating) can survive.
You can refer to our FD16 micro compact linear actuator underwater operation video for practical reference.
FAQs — Frequently Asked Questions about Micro Compact Linear Actuator
Q1: What is the difference between FD16, FD25 and FD17 micro linear actuators?
The FD17 is an indoor IP54 compact actuator (max 188N). The FD25 is an outdoor IP66 waterproof micro actuator (max 188N). The flagship IP68 micro compact linear actuator (FD16) offers higher force (up to 300N), optional IP68 sealing, built-in overload protection, and an extended temperature range.
Q2: Is FD25 IP66 micro linear actuator suitable for underwater use?
No. An IP66 rating certifies protection against powerful water jets and heavy splashing, but it is not designed for continuous immersion or underwater submersion. For submerged or extreme washdown applications, an IP68 micro compact linear actuator like the FD16 must be specified.
Q3: Is FD16 a low-noise micro linear actuator?
The FD16 IP68 micro compact linear actuator version achieves a noise level of ≤55dB. It is engineered primarily for compact spatial integration rather than ultra-silent acoustic performance. If low noise is a mandatory engineering requirement, heavier industrial series should be evaluated instead.
Q4: Does FD16 linear actuator have overload protection?
Yes. The FD16 IP68 micro compact linear actuator is equipped with built-in overcurrent and overload protection circuitry. This protective feature is not present in the standard FD25 or FD17 models.
Q5: Can I customize stroke length for FD16 / FD25 / FD17 micro actuator?
Yes. Custom stroke lengths, mounting brackets, operating speeds, and wiring harnesses for any custom IP68 micro compact linear actuator configuration can be tailored to meet specific OEM project requirements.
Q6: What power supply works with these micro compact linear actuators?
All three micro actuator series, including every custom IP68 micro compact linear actuator unit, operate using standard direct current voltages of either 12V DC or 24V DC.
Request Custom Quotation for Micro-Size Actuator Project
If you source an IP68 micro compact linear actuator for medical instruments, optical equipment, or specialized industrial automation devices, contact our engineering team today. Submit your exact load capacity, stroke length, operating voltage, IP protection class, and temperature requirements to receive a customized technical quotation and comprehensive datasheet for your chosen IP68 micro compact linear actuator.
