high speed linear motor actuator

High speed linear motor actuator represented by FD9 model is a newly optimized compact telescopic driving component designed for all scenarios requiring ultra-fast linear displacement, with its peak no-load running speed hitting 230mm/s to fill the market gap of high-response miniature motion equipment. Different from traditional low-speed lead-screw push rods with slow stretching rhythm, high speed linear motor actuator optimizes internal coil layout and gear matching to realize rapid retraction and extension under medium and small load, becoming a preferred standard accessory for intelligent furniture, agricultural automatic equipment and light industrial automation manufacturers. Built with lightweight aluminum alloy shell and built-in bilateral limit switches, high speed linear motor actuator gains IP54 dustproof and splash-proof grade to adapt to indoor and mild outdoor working environments, effectively expanding applicable environmental boundaries of fast linear driving parts.

As intelligent manufacturing and smart home industries develop rapidly around the globe, traditional slow-speed actuators cannot satisfy equipment’s demand for instant opening and closing or quick position adjustment, and high speed linear motor actuator solves this pain point through targeted structural upgrading. The FD9 series of high speed linear motor actuator supports customizable stroke from 50mm to 320mm to match diversified installation space of customized mechanical structures, while dual optional 12V and 24V working voltage perfectly fits civil equipment and small automation machine power supply specifications. Whether applied for hidden cabinet pop-up mechanism, greenhouse skylight quick ventilation or laboratory small test bench displacement correction, high speed linear motor actuator delivers stable ultra-fast linear movement to raise overall equipment operating efficiency and automation level.

Core Technical Parameters of FD9 high speed linear motor actuator

All configuration indicators of FD9 are customized surrounding the core positioning of high speed linear motor actuator, focusing on realizing maximum 230mm/s ultra-high no-load speed under compact volume, detailed specifications as below:

表格

Parameter Item	Specific Parameter Data
Rated Working Voltage	12VDC / 24VDC dual optional
Max No-Load Speed	45~230mm/s adjustable (top speed reach 230mm/s as core advantage)
Full-Load Working Speed	28~136mm/s stable output
Rated Push Thrust	50N/100N/150N/200N four optional load grades
Rated Pull Thrust	35N/75N/110N/140N matched with corresponding push force
Customizable Stroke	50mm~320mm arbitrary customized per client demand

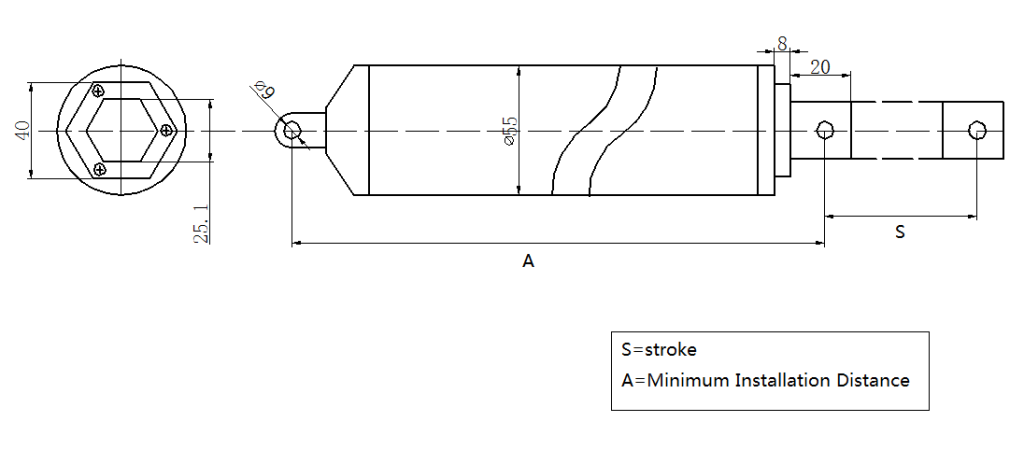

Minimum Installation Length	Stroke +228mm fixed mounting size
Built-in Protection	Double-end mechanical limit switch (over-travel auto stop)
IP Protection Class	IP54 dust-proof and anti-splash
Housing Material	High-strength extruded aluminum alloy
Working Temperature Range	-30℃ ~ +68℃ wide temperature adaptability
Standard Duty Cycle	20% (2min continuous work +8min intermittent rest)
Product Certification	CE, RoHS international safety certification

Graded speed and load design is the core competitive advantage of this high speed linear motor actuator, enabling buyers to select matched specification per actual equipment load and speed requirement without redundant performance cost waste.

how does a linear actuator work

Before digging into application advantages of high speed linear motor actuator, system designers and procurement engineers need to master basic mechanical principle: how does a linear actuator work. Fundamentally, how does a linear actuator work centers on energy conversion logic, which turns electric energy input into controllable straight-line push-pull displacement via internal motor and transmission structure. Ordinary rotary motors only produce circular rotating power, while all types of linear actuators including high speed linear motor actuator convert rotary torque into linear telescopic movement through gear set, lead screw or direct magnetic field drive.

For electric linear motor typed products like FD9, how does a linear actuator work follows electromagnetic drive rules: after connecting matched power supply, internal coil receives current to generate alternating magnetic field, which pushes built-in movable magnet component to produce axial straight motion without redundant intermediate transmission loss, this is also the core reason why high speed linear motor actuator can hit ultra-high 230mm/s running speed compared with conventional lead screw push rods. As analyzed by Machine Design, understanding how does a linear actuator work is essential for proper model selection, helping clients avoid mismatched speed or load parameters leading to whole equipment operation failure. Hydraulic and pneumatic linear actuators rely on fluid or compressed air pressure to drive piston movement, yet electric options such as high speed linear motor actuator dominate civilian and light automation field thanks to clean operation, easy wiring and compact layout.

linear actuator driver

After mastering operating principle, the supporting accessory linear actuator driver becomes another core component deciding actual running performance of high speed linear motor actuator, and linear actuator driver serves as the intelligent control brain connecting power source and actuator main body. In short, linear actuator driver receives external control signals including manual switch command, PWM speed regulation signal or PLC digital pulse, then converts input power into stable output voltage and current matching actuator rated parameters to control startup, stop, stretching speed and movement direction of high speed linear motor actuator.

Different driver types correspond to diversified application scenes of FD9 high speed linear motor actuator: simple relay-type linear actuator driver is widely equipped for household smart cabinet equipment with low control precision demand; PWM adjustable-speed linear actuator driver is preferred for industrial automation production lines requiring real-time speed modification; bus communication linear actuator driver can realize synchronous linkage of multiple sets of high speed linear motor actuator on large automatic equipment. Automation World’s technical report points out that matched linear actuator driver can maximize the 230mm/s high-speed performance of high speed linear motor actuator, while mismatched driver parameter will cause speed attenuation or unstable jitter during operation. Built-in overcurrent and stall protection inside mainstream linear actuator driver can effectively prevent FD9 motor burnout caused by overload blocking, greatly improving overall system service life and operation safety.

Core Application Fields of high speed linear motor actuator

1. High-End Custom Smart Cabinet & Hidden Intelligent Furniture

In modern customized furniture industry, high speed linear motor actuator is the core driving part of automatic pop-up wine cabinet, hidden lifting TV stand and embedded storage cabinet quick opening structure. As compact fast telescopic motor drive, its peak 230mm/s ultra-fast stretching realizes instant cabinet door opening and closing within short time, significantly upgrading user intelligent use experience. Slim silver aluminum shell can be embedded inside narrow cabinet interlayer without occupying extra indoor space, and IP54 anti-splash property resists kitchen oil mist and daily dust erosion, numerous global furniture brands adopt FD9 high speed linear motor actuator for mass production of mid-to-high end intelligent furniture series.

2. Agricultural Greenhouse Automatic Ventilation & Sunshade System

Greenhouse skylight and side ventilation window need rapid opening and closing following real-time indoor temperature and humidity fluctuation, which forms mature large-scale application of high speed linear motor actuator. FD9’s 230mm/s high-speed response quickly adjusts ventilation area to stabilize crop planting environment inside greenhouse, and wide -30℃~+68℃ temperature range adapts severe cold winter and hot summer outdoor greenhouse working condition. 20% standard duty cycle perfectly matches intermittent daily opening-closing working mode of agricultural ventilation equipment, reducing later manual maintenance cost for planting bases.

3. Mini Light Industrial Automation & Laboratory Test Equipment

Small packaging machine baffle rapid adjustment, sorting conveyor limiting block quick reset and laboratory miniature testing bench fine displacement correction all select high speed linear motor actuator as power source. Compact body saves internal equipment layout space, four grades of load and speed options fit different production beat requirements of small assembly line. As mini high velocity linear push actuator, FD9 can be installed inside dense mechanical space where traditional large-size fast actuators cannot be placed, promoting miniaturized design of whole automation equipment.

4. RV & Mobile Equipment Auxiliary Automatic Structure

Recreational vehicle hidden storage door, automatic external awning expansion and vehicle-mounted miniature lifting table widely adopt high speed linear motor actuator. 12V/24V dual voltage is fully compatible with RV on-board battery power system, ultra-fast stretching realizes one-click automatic switch of vehicle auxiliary functional structures, corrosion-resistant aluminum housing withstands outdoor bump and humid environmental erosion during vehicle driving.

5. Portable Rehabilitation Auxiliary Medical Small Equipment

Low-load quick-adjustment rehabilitation bracket and portable home nursing auxiliary support also equip high speed linear motor actuator for short-stroke rapid position switching, low-vibration smooth operation avoids disturbing rest of recovering patients, compact volume helps lightweight design of portable medical auxiliary devices.

Core Product Advantages of FD9 high speed linear motor actuator

1. Industry-leading top speed performance: maximum 230mm/s no-load speed is the core highlight of this high speed linear motor actuator, meeting all high-response fast displacement design demands;
2. Multi-spec flexible matching: four sets of thrust-speed combinations plus customizable stroke cover diversified small-medium load application scenes, cut client unnecessary procurement cost;
3. Compact sealed aluminum structure: streamlined cylindrical shell supports embedded hidden installation, IP54 protection realizes stable operation in complicated dust and splash environment;
4. Built-in dual limit safety design: factory pre-installed bilateral mechanical limit switches avoid over-travel damage of internal motor and transmission components;
5. Complete customization service: stroke, installation ear accessories and output speed can be modified according to clients’ non-standard equipment design drawings.

Standard Installation & Daily Maintenance Guide for high speed linear motor actuator

1. Installation specification: fix high speed linear motor actuator on rigid flat mounting bracket to prevent eccentric lateral force during operation, side load will increase internal friction and reduce actual running speed from nominal 230mm/s;
2. Power matching rule: select matched 12V or 24V regulated DC power supply strictly per product rated voltage, unstable voltage fluctuation leads to inconsistent stretching speed of high speed linear motor actuator;
3. Duty cycle compliance: abide by 20% working cycle standard, forbid long-time continuous overload operation to prevent internal motor overheating burnout;
4. Daily maintenance: regularly wipe aluminum shell surface dust with dry cloth, IP54 grade allows short-time splash cleaning but prohibit full soaking in liquid;
5. Pre-operation inspection: check wiring connection of matched linear actuator driver and actuator terminals before startup to avoid poor contact causing abnormal speed or stalling.

Conclusion

high speed linear motor actuator represented by FD9 integrates 230mm/s ultra-fast running capability, compact aluminum structure and multi-scene environmental adaptability, breaking the bottleneck that traditional linear driving parts cannot balance high speed and small installation volume. Combined with systematic popular science of how does a linear actuator work and core configuration introduction of linear actuator driver, global equipment designers can fully grasp the unique technical strengths of this high speed linear motor actuator optimized for rapid linear motion. From high-end smart furniture, agricultural greenhouse automatic equipment to miniature industrial automation and portable medical auxiliary devices, high speed linear motor actuator supplies cost-effective high-speed linear motion solutions for various small-load automation projects. With continuous upgrading of global intelligent equipment manufacturing industry, high speed linear motor actuator will keep enriching specification series and expand downstream application fields to satisfy growing market demand for fast-response miniature linear driving components.
