high force IP66 linear motor actuator

High force IP66 linear motor actuator with FD13 as core representative is a heavy-duty sealed telescopic drive built for harsh damp, dusty working environments, featuring industry-leading IP66 full waterproof and dustproof rating plus maximum 6000N pushing output. Different from ordinary IP54 low-protection actuators unable to resist splashing water and heavy dust intrusion, high force IP66 linear motor actuator adopts multi-layer sealed structural design and mixed metal housing of aluminum alloy, zinc alloy and iron to realize stable heavy-load operation indoors and outdoors. With multi-grade optional thrust ranging from 500N up to 6000N and adjustable no-load speed between 5~35mm/s, high force IP66 linear motor actuator becomes core power part for medical furniture, outdoor agricultural machinery and industrial heavy-duty adjustment equipment. The optional synchronous control function further expands application flexibility of high force IP66 linear motor actuator for multi-unit linkage automation projects, while built-in factory pre-set limit switches effectively prevent over-travel mechanical damage during long-term cyclic work.

Against the backdrop of expanding outdoor automation and high hygiene standard medical industry, conventional linear actuators frequently break down under humid, dusty or splashing water surroundings due to insufficient sealing grade, while high force IP66 linear motor actuator perfectly solves such environmental adaptability pain points. The FD13 series of high force IP66 linear motor actuator supports customizable stroke length from 30mm to 1000mm to satisfy diversified equipment layout demands, with fixed minimum installation dimension of Stroke+160mm to simplify mechanical design for product developers. Either for heavy nursing bed lifting, farm outdoor ventilation shutter adjustment or workshop heavy jig positioning, high force IP66 linear motor actuator delivers consistent high-thrust output and long service life even under poor ambient conditions.

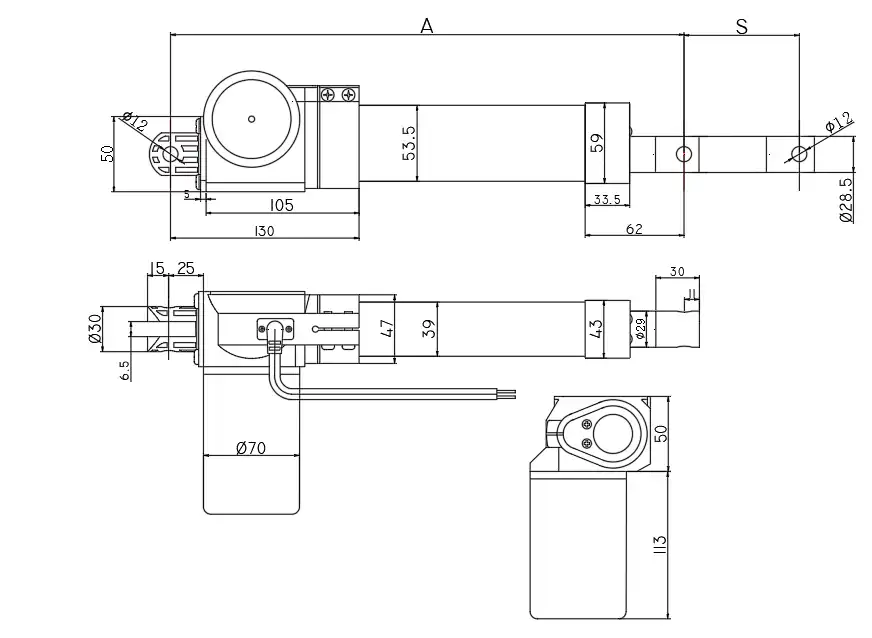

Full Technical Specifications of FD13 high force IP66 linear motor actuator

All parameters of FD13 are optimized around high load bearing and IP66 high-grade waterproof core positioning of high force IP66 linear motor actuator:

表格

Parameter	Specification Data
Input Voltage	12VDC / 24VDC dual universal voltage
Max Push Load	6000N / 4000N / 3000N /1500N /500N five optional grades
Max Pull Load	4000N /3000N /2000N /1000N /300N matched pull force
No-Load Speed	5 /6.5 /10 /20 /35 mm/s graded speed selection
Full-Load Speed	3.5 /4.5 /7 /12.5 /26 mm/s stable loaded velocity
Custom Stroke	30mm ~1000mm customizable as client drawing
Min Installation Distance	Stroke + 160mm
Operating Temperature	-20℃ ~ +40℃ wide temperature scope
Limit Switch	Built-in factory pre-installed two-way limit protection
Duty Cycle	10% (2min continuous run +18min rest interval)
Noise Level	≤48dB ultra-quiet running
Shell Material	Aluminum Alloy, Plastic, Zinc Alloy, Iron composite structure

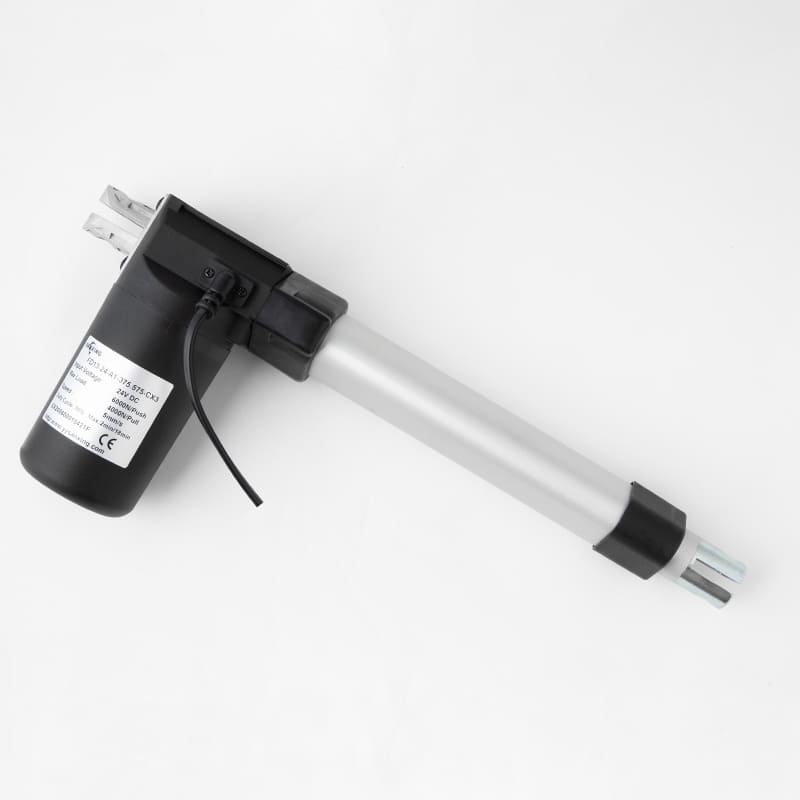

Color	Black / Grey two mainstream color options
IP Rating	IP66 full dustproof & splash/water resistant
Optional Function	Synchronization control for multi-actuator synchronous linkage
Certification	CE international safety certification

Five sets of graded thrust and speed configuration make this high force IP66 linear motor actuator highly customizable, allowing purchasers to pick matched specification to avoid redundant load waste or insufficient driving power.

how does a linear actuator work

To fully recognize the core advantages of high force IP66 linear motor actuator, equipment designers need to learn the basic working principle via how does a linear actuator work. In short, how does a linear actuator work is the energy conversion process transforming electric rotational power from DC motor into straight-line push-pull mechanical displacement. Standard rotary motor only outputs circular spinning movement, which cannot directly complete lifting, opening and positioning actions needed by automated equipment, and linear actuator’s internal gear and lead screw transmission system completes this motion conversion.

For heavy-duty sealed products like high force IP66 linear motor actuator, how does a linear actuator work adds specialized sealed protection structure on the basis of basic transmission principle: all internal transmission parts are wrapped inside multi-layer IP66 sealing shell to isolate dust, rainwater and mist outside. After power on, internal motor drives hardened zinc-alloy gear set to rotate, pushing precision lead screw to drive spindle stretch and retract linearly, while built-in limit switches cut off power automatically once reaching maximum/minimum stroke. As explained by Automation World, mastering how does a linear actuator work helps engineers properly select IP grade and load rating, especially when choosing high force IP66 linear motor actuator for outdoor wet environments to avoid premature equipment corrosion and failure.

what is a linear actuator used for

After mastering working principle, procurement and R&D teams further clarify practical application scope via what is a linear actuator used for. In general, what is a linear actuator used for covers nearly all industries needing controlled linear push or pull movement, ranging from civil smart furniture, medical equipment to outdoor agriculture and heavy industrial automation. Different load capacity and IP protection split actuator into multiple categories, among which high force IP66 linear motor actuator focuses on harsh environment and heavy-load scenarios that ordinary low IP actuators cannot survive.

When talking about what is a linear actuator used for in segmented industries, medical field uses high-thrust variants for patient bed backrest and whole-bed height adjustment; agricultural industry installs waterproof models on outdoor greenhouse shutters and field irrigation baffle; industrial workshop adopts heavy-duty sealed actuators for fixture clamping and heavy platform lifting. Specifically, high force IP66 linear motor actuator stands out in all above harsh usage scenes thanks to IP66 waterproof and 6000N peak thrust. Machine Design’s industry report mentions that IP66 sealed heavy-duty linear actuators including FD13 have become mainstream configuration for outdoor intelligent equipment upgrading, greatly reducing field equipment maintenance frequency caused by water and dust damage.

Core Application Scenarios of high force IP66 linear motor actuator

1. Heavy-Duty Hospital & Nursing Home Medical Beds

Medical beds for bariatric patients and long-term care nursing equipment are the core civilian application of high force IP66 linear motor actuator. As heavy load waterproof linear drive, its maximum 6000N push force easily bears overweight patient and bed frame total weight, while IP66 high waterproof level supports regular bed surface disinfection and water cleaning without internal component short-circuit. Ultra-low ≤48dB running noise guarantees quiet ward environment without disturbing patient rest, and optional synchronous function enables multiple actuators to lift bed frame evenly without tilt. Many global medical equipment manufacturers configure FD13 high force IP66 linear motor actuator for mid-to-high grade heavy nursing bed mass production.

2. Outdoor Agricultural Greenhouse & Farm Automation

Outdoor greenhouse skylight, rainproof ventilation shutter and field irrigation flow baffle work under long-term wind, rain and floating dust conditions, making high force IP66 linear motor actuator the preferred driving component. IP66 full sealing prevents rain infiltration and crop dust accumulation inside actuator, wide -20℃~+40℃ temperature range adapts cold winter and high-temperature summer outdoor climate. High thrust reliably drives large-size heavy shutter rapid opening/closing to adjust greenhouse internal temperature and humidity automatically.

3. Light Industrial Heavy Jig & Workshop Lifting Equipment

Workshop heavy fixture clamping, small heavy-duty lifting platform and mechanical positioning baffle widely adopt high force IP66 linear motor actuator. The composite metal structure of aluminum, zinc alloy and iron improves overall structural rigidity to bear frequent heavy-load cyclic operation, IP66 rating resists workshop cutting fluid splash and grinding dust erosion, greatly extending service life of workshop automation equipment. As synchronized high force push actuator, FD13 optional synchronous control realizes multi-point synchronous lifting of large-size platform to keep horizontal balance.

4. RV Outdoor Equipment & Outdoor Smart Gate Automation

Outdoor electric courtyard gate, RV heavy storage compartment door and vehicle-mounted outdoor awning need stable heavy thrust and waterproof performance, which perfectly matches the performance of high force IP66 linear motor actuator. 12V/24V dual voltage matches vehicle and civil alternating-current transfer power supply system, sealed body withstands outdoor rain and sun exposure without early aging failure.

5. Sanitary & Wet Environment Special Automation Equipment

Food processing workshop, car washing equipment auxiliary adjustment structure and bathroom intelligent lifting furniture operate in long-term humid splash environment, high force IP66 linear motor actuator’s top IP66 waterproof grade avoids water leakage damage caused by daily liquid splashing, graded load options satisfy different equipment weight demands.

Key Competitive Advantages of FD13 high force IP66 linear motor actuator

1. Top IP66 waterproof & dustproof feature: core highlight of high force IP66 linear motor actuator, far superior to conventional IP54 products to adapt all damp, dusty and splash-prone harsh environments;
2. Five-grade flexible thrust & speed selection: from 500N light load up to 6000N super heavy load, covering full small-to-heavy load application spectrum;
3. Composite wear-resistant metal construction: aluminum+zinc alloy+iron mixed housing enhances compression and corrosion resistance for long-term heavy-duty operation;
4. Optional synchronous linkage function: convenient for multi-actuator synchronous lifting projects to keep equipment balance during movement;
5. Ultra-quiet low-noise performance ≤48dB: suitable for quiet ward, indoor office and residential intelligent equipment installation.

Installation & Daily Maintenance Specifications for high force IP66 linear motor actuator

1. Mounting requirement: fix high force IP66 linear motor actuator on flat rigid mounting base to avoid lateral eccentric load, side force will wear internal gear and reduce waterproof sealing tightness;
2. Power configuration: choose matched 12V or 24V stabilized DC power supply strictly per rated parameter, unstable voltage leads to unstable output thrust and speed of high force IP66 linear motor actuator;
3. Duty cycle management: comply with standard 10% duty cycle, prohibit continuous long-hour overload operation to prevent internal motor overheating burnout;
4. Daily maintenance: wipe outer shell dirt regularly, IP66 grade allows direct water flushing of surface without worrying about liquid penetration into internal parts;
5. Synchronous debugging: for projects using optional synchronous function, calibrate signal consistency of multiple high force IP66 linear motor actuator before formal operation to eliminate height difference during linkage movement.

Conclusion

high force IP66 linear motor actuator represented by FD13 integrates 6000N maximum heavy thrust, industry-leading IP66 full waterproof protection and optional synchronous control function, breaking the limitation that traditional heavy-duty actuators cannot adapt to damp and dusty harsh environments. With systematic popular science of how does a linear actuator work and detailed introduction of what is a linear actuator used for, industry buyers can fully grasp the unique environmental adaptability of high force IP66 linear motor actuator. From medical heavy nursing beds, outdoor agricultural automation to industrial workshop equipment and outdoor intelligent gates, high force IP66 linear motor actuator provides reliable long-life heavy-load linear motion solution for all harsh-scene automation projects. As global outdoor and medical intelligent equipment keeps upgrading, high force IP66 linear motor actuator will continuously expand downstream application fields and become a benchmark waterproof heavy-duty linear drive component in the actuator industry.
