high speed electric linear actuator | FD9 Fast Telescopic 12V/24V
High speed electric linear actuator represented by FD9 model is a compact aluminum-cased telescopic drive designed for scenarios requiring rapid linear movement across smart home, small industrial automation, agricultural ventilation and customized mechanical adjustment. Different from conventional slow-speed standard actuators on the market, high speed electric linear actuator breaks the limitation of low operating velocity while keeping small installation footprint and stable load performance. With adjustable no-load speed ranging from 40mm/s up to 230mm/s under 12V/24V DC input, high speed electric linear actuator perfectly matches projects that prioritize fast response and compact layout. Adopting premium aluminum alloy outer shell and built-in factory preset limit switches, high speed electric linear actuator gains IP54 dust and splash protection to adapt to variable indoor and mild outdoor working environments, becoming the preferred standard part for equipment manufacturers pursuing quick linear displacement.
As the demand for high-efficiency automated equipment rises globally, ordinary low-speed linear actuators cannot satisfy the working rhythm of modern smart machinery and intelligent furniture. high speed electric linear actuator fills this market gap by optimizing internal gear and screw transmission layout, balancing rapid running speed and stable bearing capacity. The FD9 series of high speed electric linear actuator supports customizable stroke from 50mm to 300mm to fit diversified installation space, and the fixed minimum installation dimension of Stroke+235mm simplifies structural design for product developers. Whether for automatic cabinet pop-up structure, greenhouse exhaust window opening or small packaging machine short-stroke adjustment, high speed electric linear actuator delivers instant and consistent telescopic output to improve overall equipment operating efficiency.
Brief Technical Specifications of FD9 high speed electric linear actuator
All parameters of FD9 are customized around the core positioning of high speed electric linear actuator, focusing on fast operating speed and lightweight compact structure:
表格
| Parameter | Detailed Specification |
|---|---|
| Working Voltage | 12VDC / 24VDC dual optional |
| Max Push Load | 200N / 150N /100N /50N four load grades |
| Max Pull Load | 150N /100N /50N /20N matched with push force |
| No-Load Speed | 40 /90 /140 /230 mm/s graded high-speed option |
| Full-Load Speed | 24 /54 /84 /138 mm/s stable loaded velocity |
| Custom Stroke | 50mm ~300mm customizable |

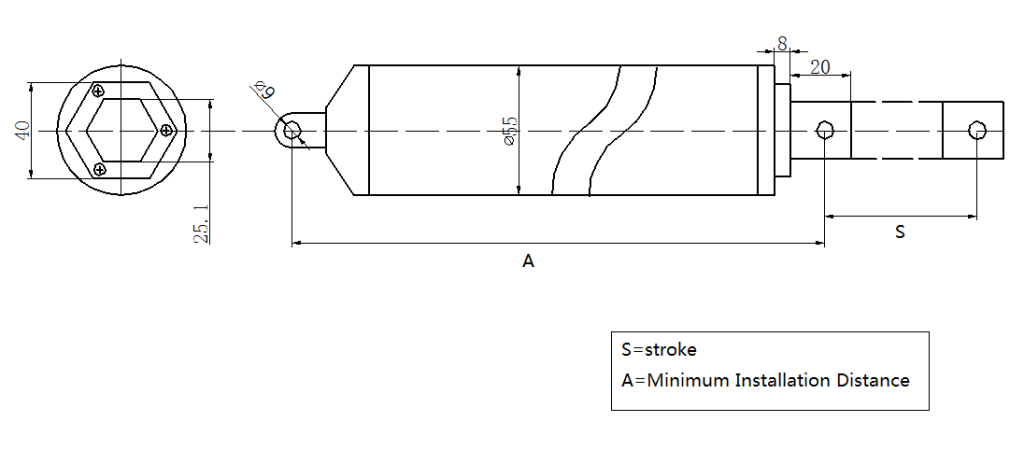

| Min Installation Length | Stroke +235mm |
| Operating Temperature | -26℃ ~ +65℃ wide temperature adaptability |
| Limit Switch | Built-in factory pre-installed overtravel protection |
| Duty Cycle | 20% (2min continuous work +8min rest) |
| Housing Material | Aluminum Alloy + Engineering Plastic |
| Surface Color | Silver |
| IP Grade | IP54 dustproof & splash resistant |
| Certification | CE international safety certification |
Graded load and speed configuration is the core highlight of this high speed electric linear actuator, allowing buyers to select corresponding speed and thrust according to actual equipment load requirements without unnecessary performance waste.
what is a linear actuator
Before analyzing the application advantages of high speed electric linear actuator, users need to master basic definition: what is a linear actuator. Fundamentally, what is a linear actuator refers to a mechanical conversion component that converts motor’s circular rotary motion into straight-line push-and-pull linear motion. It is the core power source for all automated lifting, opening, closing and position adjustment structures across countless industries.
Different driving principles split linear actuators into electric, hydraulic and pneumatic categories, among which electric types including high speed electric linear actuator dominate civil and light industrial automation thanks to easy wiring, clean operation and compact volume. The internal motor, gear set and lead screw of each unit work cooperatively to realize controllable stretching movement. As explained by Automation World, clarifying what is a linear actuator helps engineers select proper speed and load specification, avoiding mismatched parts that reduce whole machine stability. Traditional actuators sacrifice speed for large thrust, while customized designs such as FD9 high speed electric linear actuator realize fast movement under small-medium load to target high-response automation needs.
how to make a linear actuator faster
After understanding basic definition, equipment designers often focus on how to make a linear actuator faster, which is exactly the core optimized direction of high speed electric linear actuator FD9. how to make a linear actuator faster mainly includes four mature optimized directions: internal transmission structure upgrading, high-speed low-inertia motor matching, precision low-friction lead screw selection and reasonable load matching.
First, shortening transmission gear reduction ratio can directly boost output telescopic speed, which FD9 high speed electric linear actuator adopts to realize up to 230mm/s top no-load velocity; second, using high-speed core DC motor cuts down motor idle loss and improves dynamic response; third, polishing lead screw surface to lower friction coefficient reduces motion resistance during operation; last, matching reasonable rated load to avoid overloading dragging down actual running speed. Machine Design’s industry technical report confirms that these four optimization paths are the most reliable ways on how to make a linear actuator faster without shortening component service life, which is fully applied in the R&D of FD9 high speed electric linear actuator to reach market-leading fast running performance.
Core Application Fields of high speed electric linear actuator
1. Intelligent Home & Custom Cabinet Automation
In modern customized smart cabinet and hidden furniture industry, high speed electric linear actuator is widely used for automatic pop-up wine cabinet, hidden TV lifting frame and storage cabinet door quick opening. As a fast telescopic linear drive, its ultra-fast telescopic speed realizes instant cabinet opening and closing within a short time, greatly upgrading user experience of smart furniture. The silver aluminum slim shell fits into narrow cabinet interlayer without damaging indoor decoration layout, and IP54 protection resists daily kitchen oil mist and dust erosion. Many domestic and overseas furniture manufacturers choose FD9 high speed electric linear actuator for mass production of mid-to-high end intelligent cabinet products.
2. Agricultural Greenhouse Automatic Ventilation System
Greenhouse skylight and side ventilation window need quick opening/closing according to real-time indoor temperature and humidity changes, which becomes a mature application of high speed electric linear actuator. Fast telescopic action of FD9 quickly adjusts ventilation area to control internal crop growing environment in real time. Wide temperature range from -26℃ to +65℃ adapts severe cold winter and hot summer greenhouse environment, and 20% duty cycle design matches intermittent daily opening and closing working mode of agricultural ventilation equipment.
3. Small Light Industrial Automation Equipment
On miniature packaging machines, sorting conveyor baffle adjustment and laboratory small test bench displacement correction equipment, high speed electric linear actuator provides fast short-stroke linear adjustment. Compact body structure saves internal equipment layout space, graded speed option matches different production beat requirements of assembly line. As a compact high speed push rod, FD9 can be installed in dense mechanical structures where traditional large-size fast actuators cannot be arranged, effectively optimizing whole machine miniaturized design.
4. RV & Mobile Equipment Auxiliary Mechanism
Recreational vehicle hidden storage door, automatic awning expansion and miniature lifting table all adopt high speed electric linear actuator as driving core. 12V/24V dual voltage is perfectly compatible with RV on-board power supply system, fast telescopic realizes one-click automatic switch of vehicle auxiliary structures, silver aluminum shell resists outdoor bump and humid environment erosion.
5. Small Medical Auxiliary Adjustment Equipment
Low-load quick-adjustment rehabilitation auxiliary frames and portable medical auxiliary support also select high speed electric linear actuator for short-stroke rapid position adjustment, low noise smooth operation avoids disturbing patients, compact volume facilitates portable equipment lightweight design.
Core Advantages of FD9 high speed electric linear actuator
- Multi-gear speed & load flexible selection: four sets of speed-thrust combinations cover diversified small-load fast-motion needs, customers pick matching model to reduce unnecessary cost waste.
- Ultra-compact cylindrical aluminum body: streamline cylindrical structure saves installation space compared with square shell actuators, convenient for hidden embedded assembly.
- Wide temperature and IP54 protection: stable operation under extreme cold and high temperature, suitable for indoor and mild outdoor multi-scene deployment.
- Built-in limit switch: factory pre-installed overtravel protection avoids motor burnout caused by over-stretching, reducing later equipment failure rate.
- Customizable stroke: 50~300mm arbitrary stroke customization meets personalized non-standard equipment development demand.
Standard Installation & Daily Maintenance Guide for high speed electric linear actuator
- Mounting requirement: fix actuator on flat rigid support surface to prevent lateral eccentric load, side force will increase internal friction and drag down actual running speed of high speed electric linear actuator.
- Power matching: select matched 12V or 24V stabilized DC power supply strictly according to product rated voltage, avoid voltage fluctuation affecting speed stability.
- Duty cycle compliance: abide by 20% working cycle rule, do not long-time continuous overload operation to prevent motor overheating damage.
- Daily maintenance: regularly wipe aluminum shell surface dust, avoid long-term soaking in liquid, IP54 grade allows short-time splash cleaning but not full immersion.
- Pre-operation inspection: check limit switch wiring integrity before first startup to prevent overtravel mechanical collision.
Conclusion
high speed electric linear actuator with FD9 as representative product perfectly integrates ultra-fast telescopic performance, compact aluminum structure and multi-scene environmental adaptability, breaking the inherent contradiction between fast speed and small volume of traditional linear drive parts. Combined with the popular science of what is a linear actuator and technical principle of how to make a linear actuator faster, users can fully recognize the core technical advantages of this high speed electric linear actuator optimized for rapid linear motion. From intelligent cabinet, agricultural greenhouse to miniature industrial automation and RV customized equipment, high speed electric linear actuator provides efficient, stable and cost-effective fast linear motion solution for all kinds of small-load automation projects. With continuous upgrading of global intelligent equipment, high speed electric linear actuator will keep expanding application boundaries and become a mainstream fast drive accessory in compact automation field.
