FD17 vs FD25 Mini Linear Actuator: IP Rating & Application Difference Guide
Introduction
Mini DC linear actuators are vital drive parts for compact automation equipment, and countless engineers search FD17 vs FD25 mini linear actuator when sourcing indoor and outdoor drive solutions. As two flagship compact models of SANXING, SANXING FD17 mini linear actuator and SANXING FD25 mini linear actuator share similar voltage and stroke options, yet FD17 vs FD25 mini linear actuator reveals huge gaps in protection performance and usable environments.
Improper model matching will shorten equipment service life and raise maintenance costs, which makes FD17 vs FD25 mini linear actuator one of our most searched comparison topics every month. Most buyers cannot tell the boundary of IP54 and IP66, so this FD17 vs FD25 mini linear actuator guide covers all core specs, usage limits and real-world cases.
This full FD17 vs FD25 mini linear actuator analysis sorts technical indicators, environmental adaptability and industry use cases for both mini linear actuator models. We attach a fast selection checklist, fault troubleshooting and complete FAQ to help buyers pick suitable mini linear actuator without trial and error. All our mini linear actuator design complies with international industrial safety standards, you can check unified automation safety rules at ISO industrial robot and automation safety standard.

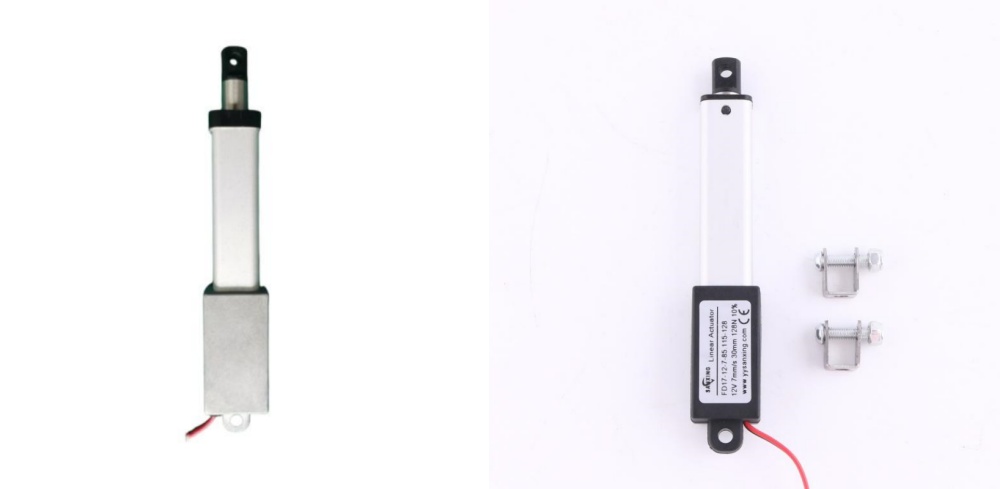

Core Parameter Comparison: FD17 VS FD25 Mini Linear Actuator
The table below lists all core technical indicators of the two mini linear actuator models, and every client researching FD17 vs FD25 mini linear actuator will rely on this table for initial screening. All data comes from official factory test reports to guarantee accurate reference for anyone choosing mini linear actuator for automation projects.
| Specifications | SANXING FD17 Mini Linear Actuator | SANXING FD25 Mini Linear Actuator |
|---|---|---|
| Protection Grade | IP54 | IP66 |
| Main Housing Material | Aluminum Alloy, Plastic, Stainless Steel | Aluminum Alloy, Zinc Alloy, Plastic, Stainless Steel |
| Appearance Color | Black | Silver |
| Input Voltage | 12VDC / 24VDC | 12VDC / 24VDC |
| Max Load Capacity | 30N ~ 188N | 30N ~ 188N |
| Stroke Range | 10mm ~ 150mm, customizable | 10mm ~ 150mm, customizable |
| Noise Level | ≤55dB | ≤55dB |
| Duty Cycle | 10% (18 mins continuous work, stop 2 mins) | 10% (18 mins continuous work, stop 2 mins) |
| Operating Temperature | -10℃ ~ +50℃ | -10℃ ~ +50℃ |
| Built-in Limit Switch | Yes | Yes |
| Optional Accessories | Mounting brackets | No |
| Core Feature | Cost-effective indoor compact drive | Waterproof structure for outdoor humid & splash environment |
| Reference Price Position | Economical model | Mid-range waterproof upgraded model |
IP Rating Deep Dive: IP54 (FD17) VS IP66 (FD25)
IP protection level is the decisive difference in FD17 vs FD25 mini linear actuator comparison, and it directly decides which mini linear actuator fits your workshop or outdoor facility. Many buyers only learn the importance of IP grade after mini linear actuator damage caused by water and dust, so studying FD17 vs FD25 mini linear actuator before purchase saves post-sales loss.
The global automation industry takes IP standard as the core evaluation index for all mini linear actuator products, you can learn standardized environment testing standards from International Society of Automation official resources.
H3: What does IP54 mean for FD17 mini linear actuator?
FD17 mini linear actuator reaches IP54 protection standard:
- Dust resistance: Blocks harmful dust accumulation inside the mini linear actuator motor and gearbox.
- Water resistance: Only resists casual splashing water from all directions. Hard limit: FD17 mini linear actuator cannot bear continuous rain washing or long-term humid outdoor placement. Outdoor installation will corrode internal circuits and disable the mini linear actuator quickly. Applicable space: Fully closed, dry indoor equipment without regular water splashes.
What does IP66 mean for FD25 mini linear actuator?
FD25 mini linear actuator upgrades to full dust-tight IP66 grade:
- Dust protection: Zero dust enters the mini linear actuator internal structure.
- Water protection: Resist high-pressure water jet from any angle. Core advantage: This waterproof mini linear actuator works stably in rainy outdoor environments, humid farm workshops and frequently cleaned equipment stations. Hard limit: This waterproof mini linear actuator cannot be fully submerged in static water for long-term running.
Quick Selection Rule Derived From FD17 vs FD25 Mini Linear Actuator
If your equipment sits outdoors or meets frequent water splashes, choose FD25 waterproof mini linear actuator.
If you install the drive inside dry enclosed cabinets, FD17 indoor mini linear actuator cuts your procurement cost.
This simple rule solves over 90% confusion raised by clients searching FD17 vs FD25 mini linear actuator every week.

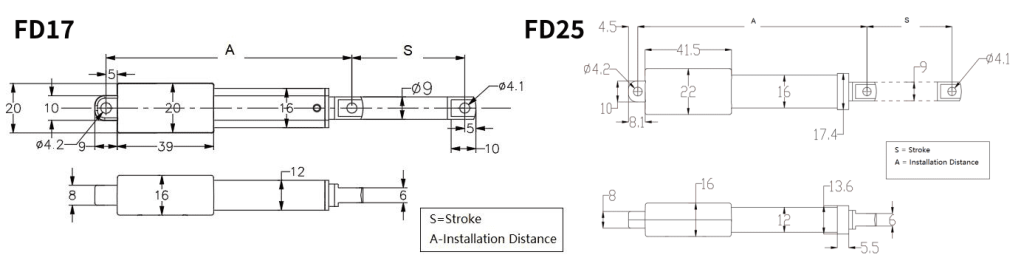

Difference of Appearance
In terms of physical dimension, the motor housing of FD25 mini linear actuator is larger than FD17. If your installation space is compact and limited, FD17 is the preferred option; when you have sufficient mounting space and demand higher load capacity and better waterproof performance, FD25 will be the suitable choice.
Typical Application Scenarios for FD17 and FD25 Mini Linear Actuator
Matching mini linear actuator model to working environment extends the service life of every DC mini linear actuator, which is the core value of reading this FD17 vs FD25 mini linear actuator article. Different indoor and outdoor working conditions bring completely different erosion to mini linear actuator shells and internal motors.
Suitable Working Scenarios for SANXING FD17 Indoor Mini Linear Actuator (IP54)
FD17 indoor mini linear actuator is designed exclusively for dry enclosed automation equipment:
- Lifting drive inside automatic electric cabinets
- Pop-up structure of small indoor intelligent storage devices
- Fine adjustment parts of office automation equipment
- Linear pushing system for indoor laboratory testing machines
- Closed intelligent furniture without any water contact
⚠️ Strictly avoid deploying FD17 mini linear actuator on farm machinery, outdoor monitoring equipment and facilities near water sources. All semi-outdoor and open-air automation equipment should adopt SANXING FD25 IP66 mini linear actuator to prevent early mini linear actuator failure.
Suitable Working Scenarios for SANXING FD25 Waterproof Mini Linear Actuator (IP66)
With reliable IP66 sealing performance, this waterproof mini linear actuator adapts to semi-outdoor and high-humidity working conditions:
- Small automation parts for agricultural ventilation and turnover equipment
- Auxiliary adjustment structure inside RV outdoor equipment
- Lifting support for outdoor small monitoring brackets
- Workshop equipment needing regular water cleaning
- Eaves-mounted semi-outdoor electric cabinet driving system
Scenarios Not Suitable For Either Mini Linear Actuator
Neither FD17 nor FD25 mini linear actuator fits the below harsh working conditions:
- Long-term fully submerged underwater operation
- Working temperature higher than +50℃
- Heavy vibration industrial equipment without shock absorption frames
- Medical beds and medical treatment devices (FD series mini linear actuator are not developed for medical industry)
Practical Selection Checklist: How To Choose Between FD17 and FD25 Mini Linear Actuator
Go through these questions one by one, and you can lock the correct mini linear actuator without complicated technical research. This checklist is the most practical takeaway content of all FD17 vs FD25 mini linear actuator articles online.
- Will your mini linear actuator be placed outdoors or exposed to rain and splashing water? ✅ Yes → FD25 waterproof mini linear actuator ❌ No, fully dry indoor space → FD17 cost-effective mini linear actuator
- Do you require silver metal shell appearance for your mini linear actuator? Silver appearance needed → FD25 mini linear actuator No special color demand → FD17 mini linear actuator to save budget
- Does the working space have heavy dust and constant humidity around the mini linear actuator? Heavy dust & humidity → FD25 mini linear actuator Clean dry indoor workshop → FD17 mini linear actuator
- Do you place bulk orders and hope to control overall project cost of mini linear actuator? Cost priority + indoor usage → FD17 mini linear actuator Long-term waterproof reliability priority → FD25 mini linear actuator
For buyers requiring customized stroke, thrust or voltage for mini linear actuator, our factory provides custom mini linear actuator OEM service, with sample testing available before mass order delivery. Global market demand for customized DC mini linear actuator keeps growing year after year, you can view complete industry data at global electric linear actuator industry analysis report.
Common Mini Linear Actuator Troubleshooting Guide
Most operation faults of mini linear actuator come from improper model selection, and reviewing FD17 vs FD25 mini linear actuator before installation can avoid most breakdowns of DC mini linear actuator. Below are frequent faults and targeted solutions for FD17 and FD25 mini linear actuator.
Mini linear actuator fails to extend or retract after power supply
- Double check wiring between DC power source and mini linear actuator, confirm positive and negative poles are correctly connected.
- Match power supply voltage to the rated 12V or 24V of your mini linear actuator.
- Remove foreign objects stuck in built-in limit switches of the mini linear actuator.
- Ensure external load never exceeds the maximum thrust parameter marked on your mini linear actuator.
Abnormal running noise from mini linear actuator
- Fasten all mounting brackets of the mini linear actuator to eliminate vibration noise.
- Avoid lateral eccentric load during push-pull movement; side force wears mini linear actuator gear set and creates extra noise.
- Clear dust and debris stuck in the telescopic rod gap of the mini linear actuator.
- Noise below 55dB belongs to factory standard normal range for all FD series mini linear actuator.
Waterproof failure of FD25 mini linear actuator
- Never disassemble the shell of FD25 mini linear actuator privately; disassembly will destroy internal sealing rings and lose waterproof capability of the mini linear actuator.
- Arrange cable outlet position away from long-term water accumulation to protect the mini linear actuator internal circuit.
- FD25 mini linear actuator resists water jet cleaning, continuous static water soaking is forbidden.
Mini linear actuator stops running after short working time
All FD series mini linear actuator adopt 10% duty cycle standard. The mini linear actuator must rest for 2 minutes after continuous 18 minutes operation, otherwise the motor will trigger overheating protection and shut down automatically. Adjust your equipment operation logic according to this mini linear actuator parameter.
Frequently Asked Questions (FAQ)
All Q&A below are collected from mass customer inquiries about FD17 vs FD25 mini linear actuator, covering mini linear actuator parameters, matching, customization and factory service concerns.
Q1: Can I refit FD17 mini linear actuator to reach the same waterproof performance as FD25 mini linear actuator?
A: It is impossible. FD17 mini linear actuator shell and internal sealing structure are manufactured only for IP54 standard. Simple manual glue sealing cannot achieve stable IP66 waterproof level for the mini linear actuator. For outdoor projects, directly select FD25 mini linear actuator rather than modifying FD17 mini linear actuator.
Q2: Can FD17 mini linear actuator and FD25 mini linear actuator share one set of driving controller?
A: FD17 mini linear actuator and FD25 mini linear actuator adopt unified 12V/24V DC voltage standard, generally we sell with bare wire only.
Q3: Can stroke and thrust parameters of FD17 and FD25 mini linear actuator be customized?
A: Both FD17 mini linear actuator and FD25 mini linear actuator accept OEM parameter customization. Standard stroke range covers 10mm to 150mm, and multiple thrust options (30N /60N /120N /188N) are optional for your mini linear actuator.
Q4: Is there obvious service life gap between FD17 mini linear actuator and FD25 mini linear actuator?
A: Under matching applicable environments, service life of FD17 mini linear actuator and FD25 mini linear actuator stays consistent. The big service life difference only occurs when you use FD17 mini linear actuator in outdoor humid conditions, which is the core reminder summarized from FD17 vs FD25 mini linear actuator research.
Q5: Can I install FD17 mini linear actuator and FD25 mini linear actuator inside one automation device simultaneously?
A: They are mechanically and electrically compatible, but you must strictly separate installation positions of the two mini linear actuator. Never place FD17 mini linear actuator in splash-prone humid positions, and mark model type clearly during equipment assembly.
Q6: Do FD17 mini linear actuator and FD25 mini linear actuator come with matched mounting brackets?
A: Mounting brackets available for the FD17 type only, it’s a optional choice, if you require please tell us after you ordered.
Q7: What certifications do FD17 mini linear actuator and FD25 mini linear actuator obtain?
A: Both FD17 mini linear actuator and FD25 mini linear actuator pass CE, ROHS & REACH certification, satisfying export requirements for global automation equipment manufacturers purchasing mini linear actuator.
Q8: Can FD25 IP66 mini linear actuator run outdoors under all-day heavy rain?
A: FD25 mini linear actuator withstands rain splash and high-pressure water jet, but long-term full submersion in static rainwater pool is still prohibited. For fully underwater equipment, choose special submersible actuator models outside FD series mini linear actuator.
Q9: What is mass production lead time for customized FD series mini linear actuator?
A: We support mini linear actuator sample testing first before mass OEM production. Send your customized mini linear actuator parameters and order quantity to our engineering team to confirm exact delivery schedule.
Final Summary
SANXING FD17 mini linear actuator and FD25 mini linear actuator target completely different automation market demands, and thorough FD17 vs FD25 mini linear actuator research delivers clear selection logic for every buyer sourcing mini linear actuator.
FD17 indoor mini linear actuator with IP54 black shell is cost-effective for dry closed cabinet and indoor automation projects, helping factories control overall procurement cost of mini linear actuator.
FD25 waterproof mini linear actuator with IP66 silver shell is an upgraded drive solution for outdoor, humid and splash-prone equipment, possessing stronger environmental adaptability than indoor mini linear actuator.
Core selection principle: Never cut budget by lowering protection grade of your mini linear actuator. Wrong mini linear actuator model choice creates far higher after-sales maintenance cost in long-term operation. Before confirming your mini linear actuator order, sort out working environment, thrust demand and installation space to finish model verification via FD17 vs FD25 mini linear actuator comparison.
