Mini electric linear actuator with potentiometer | FD5-DW Compact Metal Gear Push Rod

Mini electric linear actuator with potentiometer is a high-precision miniature linear drive device represented by FD5-DW model, specially developed for smart home automation and light industrial equipment that requires accurate position monitoring and stable linear movement. Different from ordinary simple push rods that only support basic lifting and stretching, mini electric linear actuator with potentiometer integrates professional position feedback components inside, paired with durable all-metal gear transmission and ultra-compact body design. It not only retains the advantages of small size, easy hidden installation and low running noise, but also realizes real-time position signal output, which greatly improves the control precision of the whole equipment. mini electric linear actuator with potentiometer has been widely used in height adjustable desks, automatic electric windows, small industrial adjustment machinery and intelligent ventilation systems, and has become a preferred supporting part for designers who pursue both compact structure and precise control.

In the current mini actuator market, products are mainly divided into two categories: basic models with simple switch control and high-precision models with position feedback. Ordinary mini electric push rods can only complete fixed stroke expansion and contraction, and cannot feed back the real-time running position, which limits their application in intelligent linkage and closed-loop control equipment. On the contrary, mini electric linear actuator with potentiometer makes up for this functional defect perfectly. The built-in potentiometer can convert the mechanical displacement into electrical signals, so that the external controller can grasp the running state of the actuator in real time. Meanwhile, mini electric linear actuator with potentiometer adopts high-strength metal gear set as the core transmission structure, completely getting rid of the problem of easy wear and aging of plastic gears. Whether it is long-term frequent use in household scenes or cyclic operation in industrial workshops, mini electric linear actuator with potentiometer can maintain stable transmission efficiency and accurate position feedback, and the overall failure rate is far lower than similar low-cost products.

As a mature upgraded product in the FD5 series, mini electric linear actuator with potentiometer takes into account practicality, precision and durability in design. Its streamlined miniaturized shell is suitable for various narrow installation spaces, and the standardized industrial parameters can be perfectly matched with most small automation equipment on the market. For furniture manufacturers, automation engineers and equipment purchasers around the world, mini electric linear actuator with potentiometer is a cost-effective high-precision linear motion solution, which can meet the dual demands of hidden installation and intelligent precise control.

Basic Technical Parameters

mini electric linear actuator with potentiometer adopts standardized production specifications, all parameters are optimized for miniaturized equipment and long-cycle use, balancing thrust, speed, protection performance and feedback function. The detailed parameters are listed below for reference:

• Rated Working Voltage: DC 12V / DC 24V dual voltage compatible
• Maximum Push Thrust: 100N ~ 900N (multiple specifications optional)
• Maximum Pull Force: 50N ~ 500N
• No-load Operating Speed: 5mm/s ~ 39mm/s
• Full-load Operating Speed: 3.5mm/s ~ 30mm/s
• Custom Stroke Range: 25mm ~ 800mm
• Minimum Installation Distance: Stroke + 105mm (ultra-small installation size)
• Protection Grade: IP54 dustproof and splash-proof
• Working Temperature Range: -25℃ ~ +65℃
• Duty Cycle: 15% (3 minutes continuous work, 17 minutes rest)
• Internal Transmission: All metal gear structure, wear-resistant and long service life
• Shell Material: High-quality aluminum alloy, anti-corrosion and anti-collision
• Feedback Function: Built-in potentiometer for real-time position feedback
• Running Noise: ≤54dB, low noise operation

The overall parameter configuration of mini electric linear actuator with potentiometer is highly targeted. The 12V low-voltage design ensures safe use in home and office environments, and the compatible 24V voltage can adapt to the power supply system of industrial equipment. Multiple thrust and stroke options cover light-load and medium-load use scenarios, and the ultra-short installation distance solves the installation difficulty of narrow gaps. The most core highlight is the supporting potentiometer feedback function, which makes this product different from ordinary basic actuators and becomes a professional position feedback linear actuator in the mini actuator field.

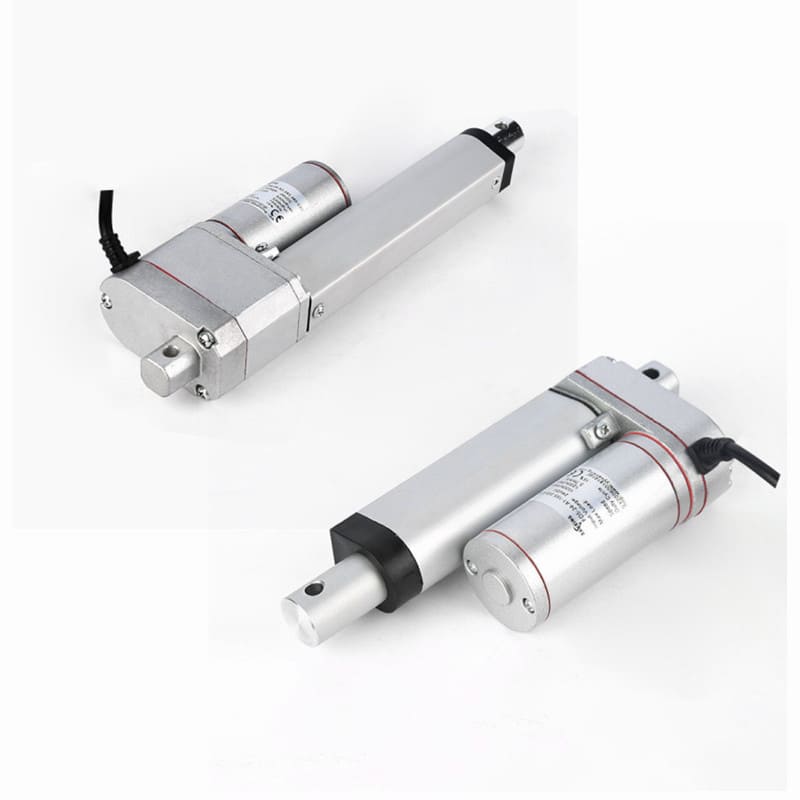

Difference Between FD5-DW and Standard FD5 Linear Actuator

Many customers will confuse mini electric linear actuator with potentiometer and the classic FD5 model. In fact, FD5-DW as the representative model of mini electric linear actuator with potentiometer has an obvious inheritance and difference relationship with the standard FD5 product. The two products share the same production platform, shell size, metal gear structure, protection level and basic performance parameters, and the biggest difference lies in the internal feedback components.

The standard FD5 linear actuator is designed without a potentiometer, it is only equipped with basic limit switches, and can only complete simple start and stop control at the maximum stroke and minimum stroke. It is suitable for equipment that does not need to monitor the running position, and has the advantages of simple wiring and low cost. While mini electric linear actuator with potentiometer represented by FD5-DW adds a high-precision potentiometer on the basis of retaining all the excellent performances of FD5. This component can output real-time position signals during the expansion and contraction process, so that the external control system can accurately identify the current stroke position of the actuator, and realize stepless speed regulation, fixed-point stop, multi-unit synchronous linkage and other advanced control functions.

In terms of selection suggestions, if your project only needs simple lifting, opening and closing actions and does not require precise position control, the standard FD5 model is more cost-effective. If the equipment needs to realize intelligent linkage, position monitoring and accurate stroke adjustment, mini electric linear actuator with potentiometer is the more professional choice. Except for the potentiometer function, the service life, installation size, noise and load-bearing capacity of the two products are completely consistent, and users can flexibly select according to the functional requirements of the equipment.

Core Product Advantages

1. Potentiometer Position Feedback, Realize High-Precision Control

The biggest core advantage of mini electric linear actuator with potentiometer is the built-in potentiometer feedback system. In the field of intelligent automation, precise position control is the key to improving the intelligence level of equipment. The potentiometer inside mini electric linear actuator with potentiometer can synchronously collect displacement data during operation and transmit it to the controller in the form of electrical signals. Designers can set arbitrary stop positions, realize stepless adjustment of stroke, and also support synchronous operation of multiple actuators to keep the displacement consistent. According to the technical summary of Design World, mini actuators with potentiometer feedback have obvious technical advantages in high-end smart home and small industrial automation projects, and are the mainstream choice for intelligent upgrading of equipment.

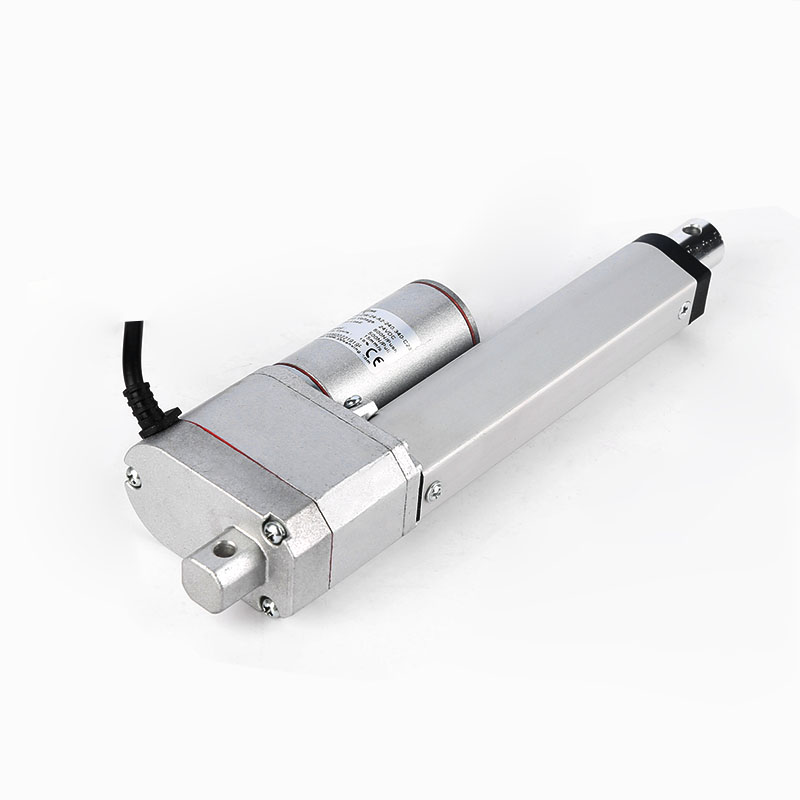

2. All-Metal Gear Transmission, Extend Overall Service Life

mini electric linear actuator with potentiometer uses fully hardened metal gears for internal transmission, abandoning fragile plastic gear accessories used by most low-cost mini actuators. After high-temperature quenching and anti-rust treatment, the metal gears mesh tightly, with low friction and strong pressure resistance. Even after tens of thousands of repeated expansion and contraction cycles, there will be no gear slipping, wear or jamming. Compared with plastic gear products, the service life of mini electric linear actuator with potentiometer is increased by more than three times, and the later maintenance cost is greatly reduced. As a reliable compact metal gear actuator, it can operate stably for a long time in home and industrial environments.

3. Ultra-Compact Body, Adapt to Narrow Hidden Installation

mini electric linear actuator with potentiometer has a highly integrated internal structure and slim aluminum alloy shell. The minimum installation distance is only stroke plus 105mm, which can be easily embedded in desk leg gaps, window frame interiors, furniture interlayers and small mechanical boxes. It will not occupy extra space, nor destroy the overall appearance and structural design of the equipment. For customized smart furniture and miniature industrial equipment with strict space requirements, the miniaturized design of mini electric linear actuator with potentiometer provides more creative space for product development, and is an irreplaceable core accessory in the field of small installation actuators.

4. Low Noise & IP54 Protection, Strong Environmental Adaptability

mini electric linear actuator with potentiometer is optimized for mute performance. The precisely matched metal gears are matched with high-grade silent lubricating grease, which effectively reduces running friction and resonance noise. The overall operating noise is controlled below 54dB, which will not interfere with daily rest and office work, and is very suitable for indoor living and office scenes. At the same time, the fully sealed aluminum alloy shell reaches IP54 dustproof and splash-proof level, which can resist daily dust and water mist erosion. The wide temperature range of -25℃ to +65℃ enables mini electric linear actuator with potentiometer to work normally in cold low temperature and high temperature workshop environments, with strong environmental adaptability.

Main Application Scenarios

1. Smart Home: Height Adjustable Desk

Height adjustable standing desks have become popular intelligent office furniture in modern families and offices, and mini electric linear actuator with potentiometer is the ideal driving component for high-end lifting desks. As an excellent smart home linear drive, it has stable thrust and low noise operation. The compact body can be completely hidden inside the desk frame, keeping the desk simple and beautiful. Relying on the potentiometer feedback function, users can set multiple fixed height gears to realize one-key switching of sitting and standing postures. The 12V low-voltage design is safe and leakage-proof, and the durable metal gear structure ensures long-term stable use of the lifting desk, which is deeply recognized by furniture manufacturers.

2. Smart Home: Automatic Electric Window

Automatic electric windows, skylights and ventilation windows are important parts of smart home systems, and mini electric linear actuator with potentiometer is widely used in window automation equipment. Installed hidden in the window frame, it will not affect the indoor decoration style. As a professional window automation push rod, it can drive the window to open and close freely. With the cooperation of potentiometer feedback and external sensors, it can realize intelligent linkage such as rain induction and temperature induction, and automatically adjust the window opening range according to the environmental changes. The IP54 protection performance copes with humid and rainy environments, and the low noise operation ensures quiet use day and night. Smart Home Automation points out that mini actuators with position feedback have gradually become the standard configuration of high-end intelligent window systems.

3. Light Industrial Mini Automation Equipment

In the field of light industry, mini electric linear actuator with potentiometer is applied to small lifting platforms, packaging equipment, laboratory testing instruments, assembly line adjusting mechanisms and agricultural greenhouse ventilation equipment. Industrial equipment often needs accurate displacement adjustment and cyclic operation, and the potentiometer feedback function of mini electric linear actuator with potentiometer meets the demand of precise control. The metal gear structure resists frequent cyclic work and workshop dust interference, and the compact size is convenient for equipment layout optimization. It helps industrial enterprises improve equipment control accuracy and operation stability, and reduce equipment failure rate.

4. Other Extended Applications

In addition to the above mainstream scenarios, mini electric linear actuator with potentiometer is also used in RV mobile equipment, small medical auxiliary equipment, intelligent cabinet lifting mechanisms and DIY intelligent transformation projects. Its diversified functions and stable performance make it a versatile mini linear drive product.

Installation and Daily Maintenance Guidelines

To fully exert the performance of mini electric linear actuator with potentiometer and prolong its service life, users need to follow standardized installation and use specifications. During installation, ensure that the mounting plane is flat and firm, avoid lateral inclined force, so as to prevent abnormal wear of internal metal gears and affect the accuracy of potentiometer feedback. Select 12V or 24V stable DC power supply according to the equipment configuration, and strictly follow the 15% duty cycle to avoid long-term overload operation causing motor overheating. When multiple mini electric linear actuator with potentiometer work synchronously, use a special synchronous controller to match the potentiometer signals to ensure consistent running stroke.

In daily maintenance, mini electric linear actuator with potentiometer belongs to low-maintenance equipment. The internal lubricating grease can maintain long-term smooth transmission. Users only need to regularly wipe the dust and stains on the shell surface. Do not immerse the product in water or expose it to strong corrosive gas for a long time, and avoid forced stretching and retraction when powered on to prevent gear dislocation and potentiometer damage. The professional maintenance experience summarized by Automation World shows that standardized use can effectively keep the position feedback accuracy and mechanical performance of mini actuators for a long time.

Product Comprehensive Summary

mini electric linear actuator with potentiometer represented by FD5-DW perfectly combines miniaturized appearance, metal gear durability, low noise operation and potentiometer precise feedback function. It not only retains all the advantages of the classic FD5 series such as small size, long life and strong environmental adaptability, but also adds professional position feedback function, breaking through the control limitation of ordinary basic actuators.

Whether it is high-end smart home furniture such as lifting desks and electric windows, or small industrial automation equipment that requires precise displacement adjustment, mini electric linear actuator with potentiometer can provide stable, efficient and accurate linear motion solutions. For equipment manufacturers, design engineers and global purchasers, mini electric linear actuator with potentiometer is a high-quality, multi-functional and cost-effective mini linear actuator product, which can continuously create value for various intelligent equipment upgrading projects.
