12V Mini Electric Actuator with Potentiometer | FD5-DW Compact Type
12V Mini Electric Actuator with Potentiometer, represented by the premium FD5-DW model, is a compact high-precision electric drive component tailored for modern smart home automation and light industrial precision adjustment scenarios. Unlike conventional basic mini actuators that only support fixed-stroke telescopic movement, 12V Mini Electric Actuator with Potentiometer comes equipped with a built-in high-sensitivity potentiometer position feedback module. This core feature enables real-time stroke monitoring, arbitrary fixed-point stop, and intelligent closed-loop control that ordinary open-loop actuators cannot achieve. Adopting durable all-metal gear transmission and an ultra-slim aluminum alloy body design, 12V Mini Electric Actuator with Potentiometer effectively solves common industry pain points, including bulky installation size, short service life, uncontrollable stroke, and easy gear wear of traditional plastic gear actuators. Featuring safe 12V low-voltage operation, IP54 dustproof and splash-proof performance, and ultra-quiet running performance, 12V Mini Electric Actuator with Potentiometer has become a top-choice core drive part for high-end height-adjustable desks, intelligent electric windows, medical rehabilitation equipment, and miniature industrial automation devices worldwide.
The global market for miniature electric actuators is increasingly demanding intelligence and stability, and basic non-feedback actuators can no longer meet the upgrading needs of precision automation equipment. Most traditional mini electric actuators only support simple on/off telescopic actions, lacking accurate position adjustment and synchronous control functions, which limits their application in high-end intelligent projects. In contrast, 12V Mini Electric Actuator with Potentiometer retains all the advantages of compact size, easy hidden installation, and long service life, while adding professional analog signal feedback functionality. It can cooperate with intelligent controllers to realize customizable height memory, stepless speed regulation, and multi-unit synchronous linkage, greatly improving the intelligence level and operating accuracy of terminal equipment. For automation designers, furniture manufacturers, and bulk equipment purchasers, 12V Mini Electric Actuator with Potentiometer is a cost-effective upgraded solution that balances durability, precision, and versatility.
How Does a Linear Actuator Work
To fully grasp the unique advantages and application value of 12V Mini Electric Actuator with Potentiometer, it is essential to understand how does a linear actuator work in standard electromechanical automation systems. In principle, all electric linear actuators convert the rotational force generated by a DC motor into straight-line push-and-pull mechanical motion through internal transmission structures. Independent motors only produce circular rotation, which cannot directly support lifting, opening, closing, and linear adjustment actions required by furniture, medical devices, and light industrial machinery. Linear actuators adopt precision gear sets and screw rod transmission structures to convert rotational energy into linear displacement energy, realizing stable telescopic movement. According to professional technical analysis from Automation World, precision mini actuators with optimized gear meshing structures effectively reduce operating jitter, friction loss, and mechanical failure rates, greatly improving overall operation stability and service life.
12V Mini Electric Actuator with Potentiometer optimizes and upgrades the basic working principle of ordinary linear actuators, adding a closed-loop feedback system on the basis of traditional mechanical transmission. While the built-in motor drives the internal screw rod to complete linear extension and retraction, the matched high-precision potentiometer synchronously captures real-time mechanical displacement data. It converts physical stroke changes into standard analog electrical signals and feeds the data back to the external intelligent controller in real time. This intelligent working mode completely breaks the fixed-stroke limitation of traditional open-loop actuators, enabling 12V Mini Electric Actuator with Potentiometer to achieve precise positioning, arbitrary stroke adjustment, and intelligent linkage control, making it far more adaptable for high-end precision automation scenarios.
Practical Guide to Using Linear Actuators
Mastering standardized methods for using linear actuators is critical to maximizing equipment service life and maintaining long-term operating accuracy, especially for high-precision intelligent models like 12V Mini Electric Actuator with Potentiometer that rely on potentiometer signal feedback for core functions. When using linear actuators in smart home renovation, office equipment production, and light industrial automation projects, users must follow strict installation and operation specifications to avoid unnecessary wear and functional failure. First, always install the actuator on a flat, rigid, and stable mounting surface to prevent lateral eccentric load and oblique force. Long-term side pressure will cause abnormal wear of internal metal gears and deviation of potentiometer detection data, directly affecting the positioning accuracy and stability of 12V Mini Electric Actuator with Potentiometer.
Second, users must match a stable 12V DC power supply in strict accordance with product parameters and comply with the standard 15% duty cycle, avoiding long-term continuous overload operation that may cause motor overheating and performance attenuation. In addition, professional signal calibration and debugging are essential when using linear actuators with feedback functions. After completing the installation of 12V Mini Electric Actuator with Potentiometer, calibrate the full-stroke and minimum-stroke feedback signals to ensure the controller can accurately identify the real-time operating position. For scenarios requiring multiple actuators to work synchronously, unified signal debugging eliminates height deviation and running jitter. Daily use prohibits forced manual stretching and retraction under powered status, which may lead to gear dislocation and permanent potentiometer damage. Standardized operation can maximize the stability and service life of mini linear actuator with feedback, delivering long-term reliable operation for various automation projects.
Quick Specifications
12V Mini Electric Actuator with Potentiometer adopts standardized industrial production specifications, with all parameters optimized for miniaturized hidden installation and high-precision intelligent control, perfectly adapting to mainstream smart home and light industrial application scenarios. The core standardized parameters are concise and practical, meeting diverse equipment matching needs:
- Rated Voltage: DC 12V (24V optional for industrial upgrade)
- Max Thrust: 100N–900N (multiple load specifications optional)
- Custom Stroke Range: 25mm–800mm, supporting personalized customization
- No-load Operating Speed: 5–39mm/s, stable and adjustable
- Protection Grade: IP54 dustproof and splash-proof
- Operating Noise: ≤54dB, ultra-quiet operation
- Feedback Configuration: Built-in 5kΩ/10kΩ high-precision potentiometer
- Duty Cycle: 15% (3min continuous work / 17min rest)
- Structural Material: Corrosion-resistant aluminum alloy housing, wear-resistant steel metal gears
The parameter configuration of 12V Mini Electric Actuator with Potentiometer balances safety, durability, and intelligence. The 12V low-voltage design eliminates electric leakage risks for household and office use, while multi-thrust and multi-stroke options fully cover small and medium-load precision control scenarios. The unique built-in potentiometer feedback module distinguishes 12V Mini Electric Actuator with Potentiometer from ordinary open-loop mini actuators, endowing it with intelligent control capabilities unavailable in conventional models.

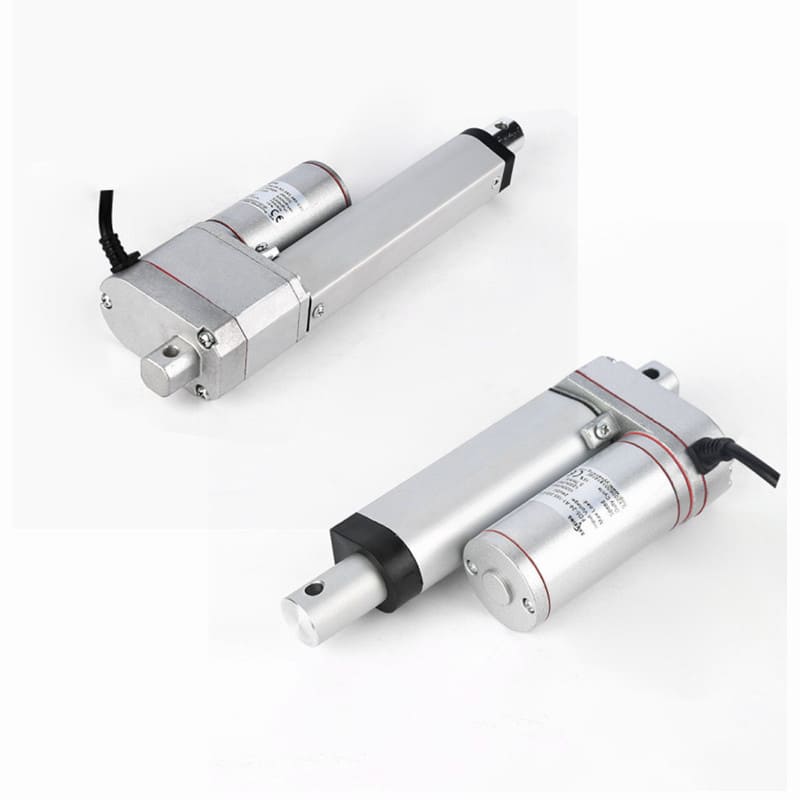

FD5-DW vs FD5 – Core Difference
The most essential and unique difference between the two FD5 series models lies in the internal feedback configuration: 12V Mini Electric Actuator with Potentiometer (FD5-DW) is equipped with a built-in potentiometer for real-time position feedback, while the standard FD5 model has no potentiometer and only supports basic open-loop control. All other hardware configurations of the two products are completely consistent, including external appearance size, internal all-metal gear transmission structure, IP54 protection level, operating noise, and power parameters. This means 12V Mini Electric Actuator with Potentiometer inherits all the core advantages of the classic FD5 series, such as ultra-long service life and compact narrow-space installation, while upgrading intelligent control functions.
The standard FD5 linear actuator is only equipped with basic limit switches, which can only realize automatic stop at the maximum and minimum preset strokes. It features simple wiring and low production cost, making it suitable for basic lifting, opening, and closing scenarios that do not require precise positioning or intelligent linkage. It is the cost-effective choice for low-budget, simple-function automation projects.
As the upgraded high-end model, 12V Mini Electric Actuator with Potentiometer adds a high-precision potentiometer closed-loop feedback system. It can feed back real-time stroke position signals to the controller, supporting arbitrary fixed-point stop, custom height memory, stepless speed regulation, and multi-device synchronous linkage control. This intelligent feedback function makes 12V Mini Electric Actuator with Potentiometer the exclusive preferred option for high-end smart home, medical, and light industrial equipment that requires accurate motion control and intelligent collaborative operation.
Core Application Scenarios of 12V Mini Electric Actuator with Potentiometer
1. Smart Office Height-Adjustable Desks
12V Mini Electric Actuator with Potentiometer is widely applied in high-end electric standing desks for modern offices and home offices. As a high-performance compact electric push rod with precise feedback capability, its ultra-slim mini body can be completely hidden inside desk legs, maintaining the minimalist and high-end aesthetic of office furniture without occupying extra space. Relying on the accurate potentiometer position feedback, users can customize and store multiple comfortable sitting and standing heights, realizing one-key height switching and automatic height adjustment. The safe 12V low-voltage design supports long-term uninterrupted office use, and the all-metal gear structure ensures stable, jitter-free, and silent lifting for years. As reported by Smart Home Automation, feedback-type compact actuators have become standard core accessories for high-end intelligent office furniture.
2. Smart Home Electric Windows & Skylights
In smart home ventilation systems including automatic casement windows, roof skylights, and greenhouse ventilation shutters, 12V Mini Electric Actuator with Potentiometer delivers outstanding adaptive performance. Its miniaturized body is perfectly suitable for hidden installation in narrow window frames without damaging indoor decoration style. The precise potentiometer feedback allows free and accurate adjustment of window opening angles, enabling intelligent linkage with external temperature sensors, humidity sensors, and rain sensors to realize automatic ventilation, temperature adjustment, and rainproof closing functions. The IP54 dustproof and splash-proof grade adapts to complex indoor and outdoor humid environments, and ultra-low noise operation ensures no disturbance to daily family rest and life.
3. Medical & Rehabilitation Automation Equipment
Medical beds, patient lifting devices, and rehabilitation training equipment have extremely strict requirements for operating accuracy, safety, and quietness, and 12V Mini Electric Actuator with Potentiometer fully meets professional medical industry standards. The real-time potentiometer positioning function can accurately adjust the lifting height and tilt angle of medical equipment, ensuring safe, stable, and comfortable use for patients. The ultra-quiet operating environment is suitable for quiet ward scenarios, and the fully sealed aluminum alloy shell is convenient for daily cleaning, disinfection, and maintenance, with excellent corrosion resistance and operational safety.
4. Light Industrial Precision Adjustment Machinery
Light industrial equipment such as small lifting platforms, packaging machinery, laboratory precision testing instruments, and assembly line adjusting mechanisms requires high-precision linear displacement control to ensure product qualification rate and production stability. 12V Mini Electric Actuator with Potentiometer effectively solves the positioning error and low-precision pain points of ordinary open-loop actuators through closed-loop potentiometer feedback. The wear-resistant all-metal gear structure adapts to long-term frequent cyclic operation in dusty workshop environments, maintaining stable transmission efficiency and positioning accuracy for a long time. It helps industrial enterprises optimize production accuracy, reduce equipment failure rates, and improve overall production efficiency.
5. RV & Custom Intelligent Furniture
For RV mobile equipment, hidden TV lifting mechanisms, and customized intelligent cabinet lifting devices with extremely limited installation space, 12V Mini Electric Actuator with Potentiometer shows unique advantages. Its ultra-compact body adapts to narrow and compact installation spaces, and the 12V low-voltage power supply perfectly matches the universal vehicle power system of RVs. The precise potentiometer positioning function supports arbitrary height adjustment of lifting equipment, meeting the personalized intelligent transformation needs of customized furniture and mobile vehicle scenarios.
Why Choose 12V Mini Electric Actuator with Potentiometer
12V Mini Electric Actuator with Potentiometer has comprehensive competitive advantages over ordinary mini electric actuators on the market. First, the built-in potentiometer closed-loop feedback system realizes intelligent precise control, breaking through the fixed-stroke limitation of traditional open-loop actuators and meeting the upgrading needs of high-end intelligent equipment. Second, the full all-metal gear transmission structure completely avoids the wear, aging, and slippage problems of plastic gear actuators, greatly extending the overall service life and reducing later maintenance costs. Third, the ultra-slim miniaturized design supports hidden installation in various narrow-space equipment, greatly improving the flexibility of product structural design. In addition, ultra-quiet operation, IP54 high environmental adaptability, and wide temperature resistance enable 12V Mini Electric Actuator with Potentiometer to work stably in home, office, medical, and light industrial multi-scenarios, with comprehensive performance far exceeding similar ordinary products.
Installation & Daily Maintenance Tips
To maintain the long-term precision, stability, and service life of 12V Mini Electric Actuator with Potentiometer, standardized installation and daily maintenance are essential. During installation, ensure the mounting surface is flat and firm to prevent lateral force and oblique load from damaging internal metal gears and precision potentiometer components. Users must equip a matched stable 12V DC power supply and strictly avoid long-term overload operation beyond the 15% duty cycle to prevent motor burnout and performance attenuation. When multiple 12V Mini Electric Actuator with Potentiometer operate synchronously, a dedicated synchronous controller is required to calibrate feedback signals uniformly to ensure consistent operating stroke and lifting speed. In daily maintenance, the actuator is nearly maintenance-free; users only need to regularly wipe surface dust and stains, without complex disassembly or refueling operations, effectively reducing long-term use costs.
Conclusion
12V Mini Electric Actuator with Potentiometer (FD5-DW) is a high-performance, cost-effective precision miniature linear motion component optimized for intelligent automation scenarios. It perfectly integrates miniaturized hidden installation, all-metal long-life transmission, ultra-quiet operation, and intelligent potentiometer position feedback functions. Different from the standard FD5 model without position feedback capability, 12V Mini Electric Actuator with Potentiometer perfectly meets the high-precision intelligent control demands of high-end smart home, medical rehabilitation, and light industrial automation projects. With stable quality, wide scenario adaptability, and excellent intelligent control performance, 12V Mini Electric Actuator with Potentiometer has become a reliable preferred product for global automation designers, equipment manufacturers, and bulk purchasers.
