electric heavy duty linear actuator | FD6 High Thrust 8000N

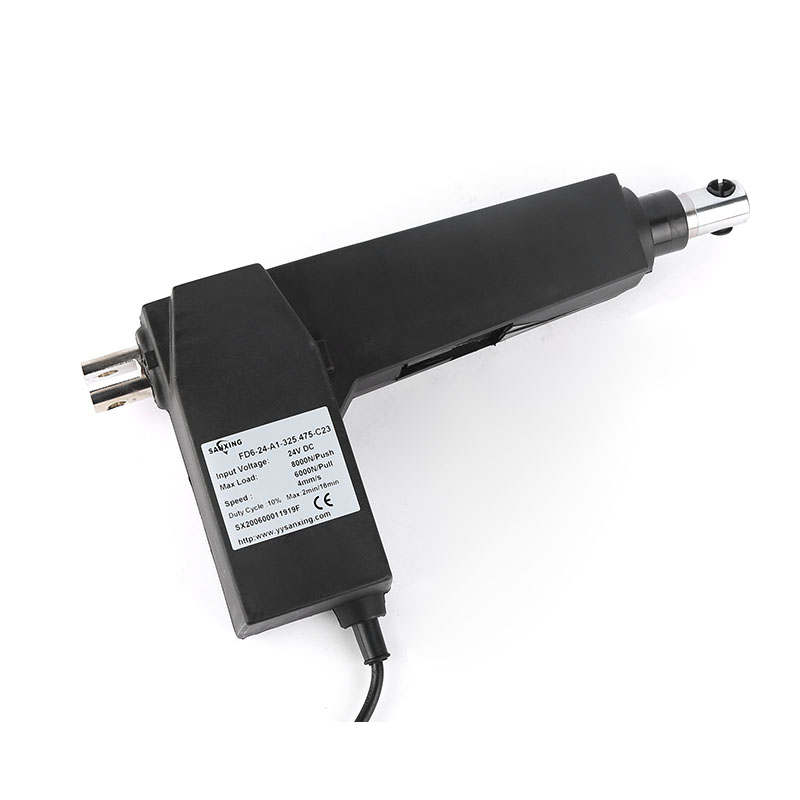

Electric heavy duty linear actuator, represented by the FD6 model, is a high-thrust telescopic drive component designed for heavy-load industrial and medical applications that require stable, powerful linear motion. Unlike standard light-duty actuators, electric heavy duty linear actuator delivers exceptional pushing force of up to 8000N, making it ideal for applications such as medical bed lifting, industrial machinery adjustment, and heavy equipment automation. Built with durable plastic and iron construction, IP54 protection, and ultra-quiet operation, electric heavy duty linear actuator combines robust performance with reliable long-term use. With customizable stroke lengths and built-in limit switches, electric heavy duty linear actuator provides precise, controlled linear movement for demanding environments.
In the field of heavy-duty automation, choosing the right actuator is critical for both safety and performance. Many low-cost actuators on the market fail under high loads or frequent use, leading to downtime and safety risks. electric heavy duty linear actuator addresses these challenges with its heavy-duty design and high-quality components. The FD6 model features a reinforced internal structure that withstands heavy loads and repeated cycles, while the IP54 rating ensures resistance to dust and moisture. Whether you’re designing a medical bed that requires reliable patient lifting or industrial equipment that needs consistent heavy thrust, electric heavy duty linear actuator delivers the power and durability you need.
Core Technical Specifications of electric heavy duty linear actuator
The FD6 model of electric heavy duty linear actuator is built with industrial-grade specifications to meet the demands of heavy-load applications. The detailed parameters are as follows:
表格
| Parameter | Specification |
|---|---|
| Input Voltage | 12VDC / 24VDC (dual voltage compatible) |
| Max. Push Load | 8000N (heavy-duty thrust for industrial and medical use) |
| Max. Pull Load | 6000N (balanced pulling capacity for heavy equipment) |
| No-Load Speed | 4mm/s to 10mm/s (adjustable based on load rating) |
| Full-Load Speed | 1.5mm/s to 3.5mm/s (stable operation under maximum load) |
| Stroke Length | 50mm to 450mm (customizable to fit specific needs) |

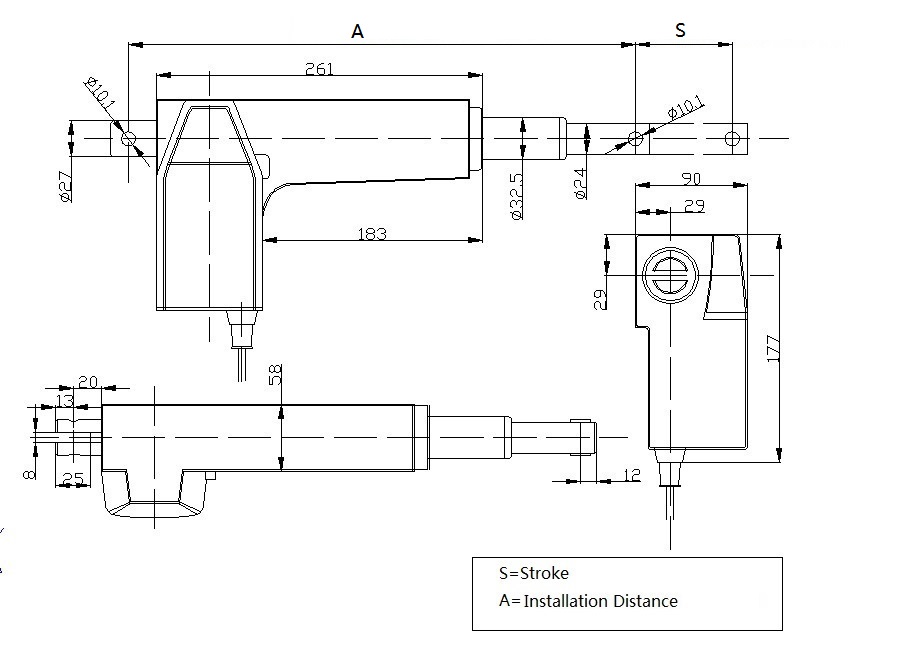

| Min. Installation Distance | Stroke + 175mm (≥325mm) |
| Operating Temperature | -20°C to +40°C (adaptable to diverse environments) |
| Limit Switches | Built-in, factory-calibrated (prevents overextension damage) |
| Duty Cycle | 10% (2 minutes continuous work / 18 minutes rest) |
| Noise Level | ≤48dB (ultra-quiet for medical and indoor use) |
| Material | Plastic housing, iron internal components |
| Color | Black/Grey (scratch-resistant finish) |
| IP Rating | IP54 (dust and splash-resistant) |
| Certifications | CE-approved (meets international safety standards) |
The performance curve of electric heavy duty linear actuator shows a clear relationship between speed and load, with consistent operation across the 12V and 24V voltage options. The high thrust capacity of electric heavy duty linear actuator makes it suitable for applications where light-duty actuators would fail, such as lifting heavy medical beds or adjusting large industrial machinery.
linear actuator driver: Powering electric heavy duty linear actuator for optimal performance
A critical component of any electric heavy duty linear actuator system is the linear actuator driver, which controls power supply, speed, and direction. For electric heavy duty linear actuator, a high-quality driver is essential to handle the high current draw of the heavy-duty motor and ensure smooth, controlled movement. The FD6 model of electric heavy duty linear actuator is designed to work with standard 12V/24V DC drivers, making it easy to integrate into existing automation systems.
When selecting a driver for electric heavy duty linear actuator, it’s important to choose one that can handle the maximum current of the actuator under full load. For the FD6 model, a driver with current limiting and overheat protection is recommended to prevent damage to the motor during heavy use. As noted by Automation World, proper driver selection is key to maximizing the performance and lifespan of heavy-duty linear actuators. A well-matched driver ensures that electric heavy duty linear actuator operates at the correct speed and torque, even under maximum load conditions.
linear actuators ease of use: Simplifying integration and operation
One of the key advantages of electric heavy duty linear actuator is linear actuators ease of use, even in demanding applications. The FD6 model is designed for straightforward installation and operation, with standard mounting brackets and simple wiring. The built-in limit switches eliminate the need for external control, making it easy to set up and use in a variety of systems.
The user-friendly design of electric heavy duty linear actuator extends beyond installation. The actuator’s smooth, quiet operation ensures minimal disruption in medical or office environments, while the IP54 rating makes it suitable for use in dusty industrial workshops. As highlighted by Machine Design, ease of use is a critical factor in the adoption of heavy-duty actuators, as it reduces installation time and maintenance costs. electric heavy duty linear actuator delivers on this front, with a design that prioritizes both performance and simplicity.
Key Applications of electric heavy duty linear actuator
1. Medical Beds and Patient Lifting Equipment
electric heavy duty linear actuator is widely used in medical beds and patient lifting systems, where reliable, heavy-duty thrust is essential. The 8000N push capacity easily handles the weight of patients and bed frames, while the low noise operation ensures a quiet environment for patients. The IP54 rating makes it easy to clean and maintain, meeting hygiene standards for medical equipment.
2. Industrial Machinery and Equipment Adjustment
In industrial settings, electric heavy duty linear actuator is used for adjusting heavy machinery, lifting platforms, and conveyor systems. The high thrust capacity of the FD6 model makes it suitable for moving large equipment components, while the durable construction withstands frequent use in dusty workshop environments. As a high thrust linear actuator, it provides the power needed for demanding industrial applications.
3. Agricultural and Commercial Automation
electric heavy duty linear actuator is also used in agricultural equipment, such as greenhouse ventilation systems and heavy-duty lifting gates. The IP54 rating protects against moisture and dust, while the high thrust capacity handles the weight of large gates and ventilation panels.
Why Choose electric heavy duty linear actuator Over Other Models?
electric heavy duty linear actuator stands out from competing heavy-duty actuators with its combination of high thrust, durable construction, and ease of use. Unlike many heavy-duty actuators that are bulky and difficult to install, the FD6 model features a compact design that fits into standard mounting spaces. The built-in limit switches and simple wiring make it easy to integrate into any system, while the IP54 rating ensures reliable operation in diverse environments.
The low noise operation of electric heavy duty linear actuator is another key advantage, making it suitable for use in medical and office environments where quiet operation is essential. The CE certification ensures that the actuator meets international safety standards, giving users peace of mind that the product is both safe and reliable.
Installation and Maintenance Tips for electric heavy duty linear actuator
To ensure optimal performance and longevity of electric heavy duty linear actuator, follow these installation and maintenance tips:
- Mounting: Secure the actuator to a sturdy frame that can handle the maximum 8000N thrust. Use high-quality fasteners to prevent movement during operation.
- Driver Selection: Choose a 12V or 24V driver with sufficient current capacity and overheat protection to handle the heavy-duty motor.
- Limit Switches: Calibrate the built-in limit switches to ensure the actuator stops at the correct positions, preventing damage to the equipment.
- Maintenance: The actuator requires minimal maintenance, but it’s important to keep the housing clean and free of debris. Periodically check the mounting brackets and fasteners to ensure they remain tight.
- Duty Cycle: Respect the 10% duty cycle to prevent overheating, especially during heavy use.
As a industrial heavy duty actuator, electric heavy duty linear actuator is designed for long-term use with minimal maintenance, making it a cost-effective choice for demanding applications.
Conclusion
electric heavy duty linear actuator (FD6) is a high-performance, heavy-duty telescopic drive component designed for demanding industrial and medical applications. With a maximum thrust of 8000N, durable construction, and user-friendly design, electric heavy duty linear actuator delivers the power and reliability needed for heavy-load automation. The built-in limit switches, IP54 rating, and low noise operation make it suitable for a wide range of environments, from medical facilities to industrial workshops.
Whether you’re designing a medical bed, industrial machinery, or agricultural equipment, electric heavy duty linear actuator provides the performance, durability, and ease of use you need. With proper installation and maintenance, electric heavy duty linear actuator will deliver years of reliable linear motion, making it a top choice for heavy-duty automation projects.
