Sanxing FD16 Compact Linear Actuator: Specs, Features & Applications

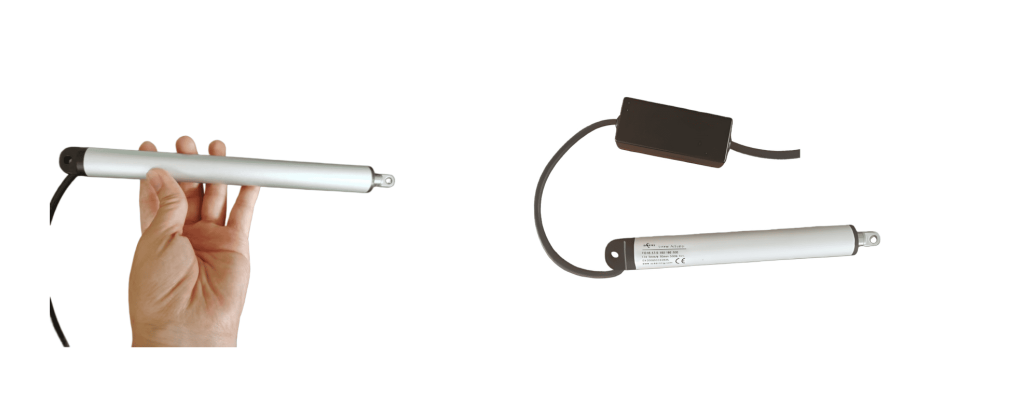

The Sanxing FD16 linear actuator is a compact, high-performance electric linear motion solution designed for light-duty applications in furniture, medical devices, home automation, and industrial equipment. With its durable structure, customizable stroke, and multiple protection features, it delivers reliable linear push-pull movement for various automation projects.
Key Technical Specifications
- Input Voltage: 12VDC / 24VDC, compatible with standard industrial and household power supplies
- Max. Load Capacity: 30N to 300N, with no-load speed ranging from 5mm/s to 35mm/s, and full-load speed up to 25mm/s

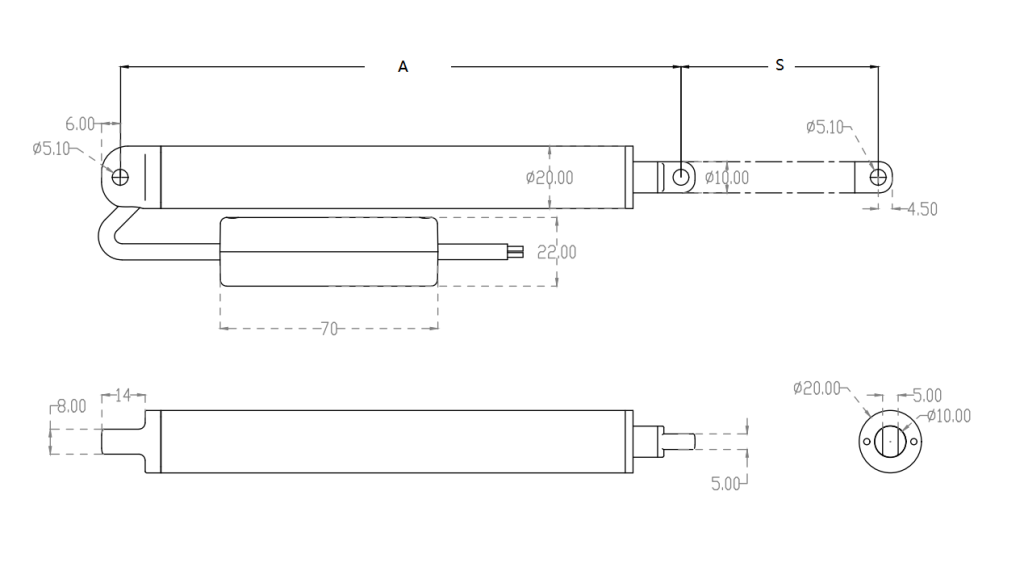

- Stroke Length: Customizable from 10mm to 800mm, with installation distance calculated as Stroke + 130mm (≤200mm), Stroke + 150mm (201~400mm), or Stroke + 180mm (401~800mm)
- Operating Temperature: -25℃ ~ +80℃, suitable for both indoor and harsh outdoor environments
- Protection Level: IP54 / IP68 optional, with overcurrent protection and built-in factory preset limit switches
- Noise Level: ≤55dB, ensuring quiet operation for home and medical use
- Material: Aluminum Alloy, Plastic, Stainless Steel, with CE certification for global market compliance
- Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes for long service life
Core Advantages
The FD16 linear actuator features a compact design, making it ideal for space-limited applications. Its IP68 version offers excellent waterproof and dustproof performance, while the overcurrent protection function ensures safe operation and extends product lifespan. With customizable stroke and load options, it can be tailored to meet specific project requirements.

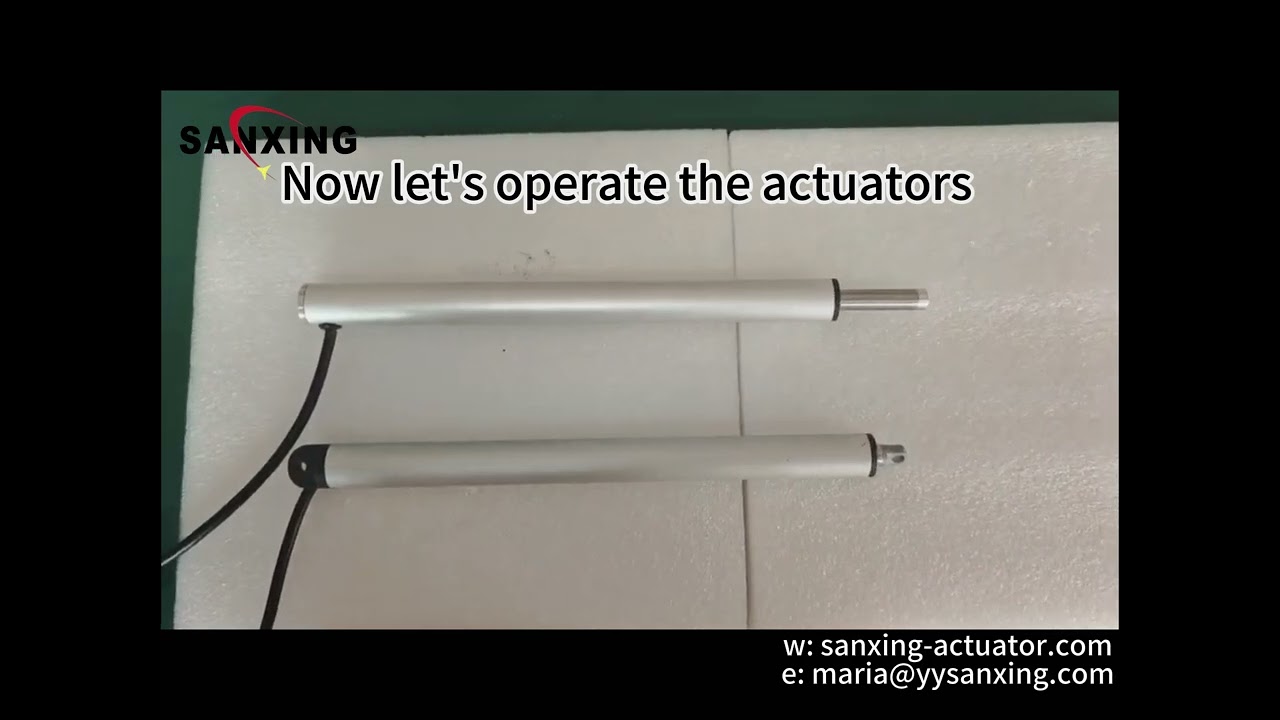

Watch our product demo video below to see its performance in real-world applications.
As a professional linear actuator manufacturer, we provide OEM/ODM customization, fast lead time, and reliable after-sales support. If you need a quote, sample, or custom solution for your project, contact us today!
