SXTL Television Lift
Basic Parameter
Basic Parameter
- Input Voltage (V): 100-240V AC 50-60HZ
- Max. Load Capacity (N): 1000N/100KG/220LBS
- No Load Speed (mm/s): 30mm/sec (1.18inch/sec)
- Stroke Length-S (mm): 300mm/11.8’’ ~ 1000mm/39.4’’
- Screen Size : 26’’- 60’’
- Limit Switches: Built-in, factory present
- Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes
- Noise Level (dB): ≤48dB
- Material: Aluminum Alloy, Plastic, Iron
- Color: Black
- Operation Temperature: -20°C~ + 40°C
- Use with: Power supply/Control box, wireless/wired remote control
Product overview

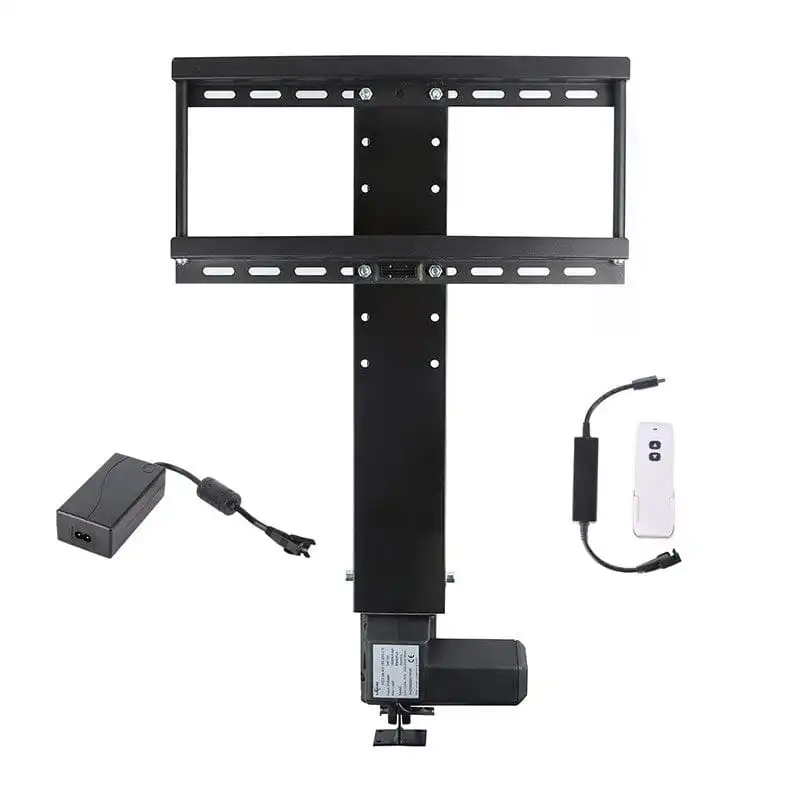

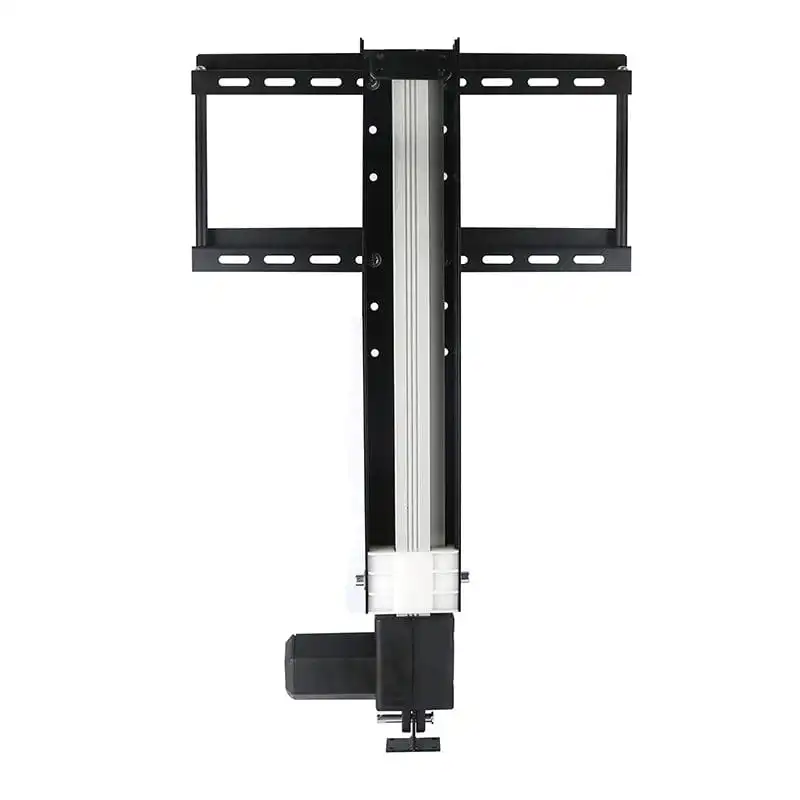

The SXTL Television Lift from SANXING is a robust, motorized solution designed to seamlessly integrate flat-screen televisions into modern interiors. It enables smooth vertical movement, allowing screens to be hidden or revealed at the touch of a button, ideal for conference rooms, home theaters, and custom furniture applications.
Features and Benefits
Heavy-duty performance: Capable of lifting up to 100kg, supporting large-format displays up to 60″.
Smooth and quiet operation: Precision-engineered components ensure movement at 30mm/sec with noise levels below 48dB.
Versatile integration: Adjustable stroke from 300mm to 1000mm accommodates a wide range of design requirements.
Reliable safety features: Built-in limit switches prevent over-travel and ensure safe operation.
Durable construction: Black finish and robust materials ensure long-term performance in temperatures ranging from -20°C to +40°C.
Flexible control: Both wireless and wired control options provide convenience and reliability.
Control options

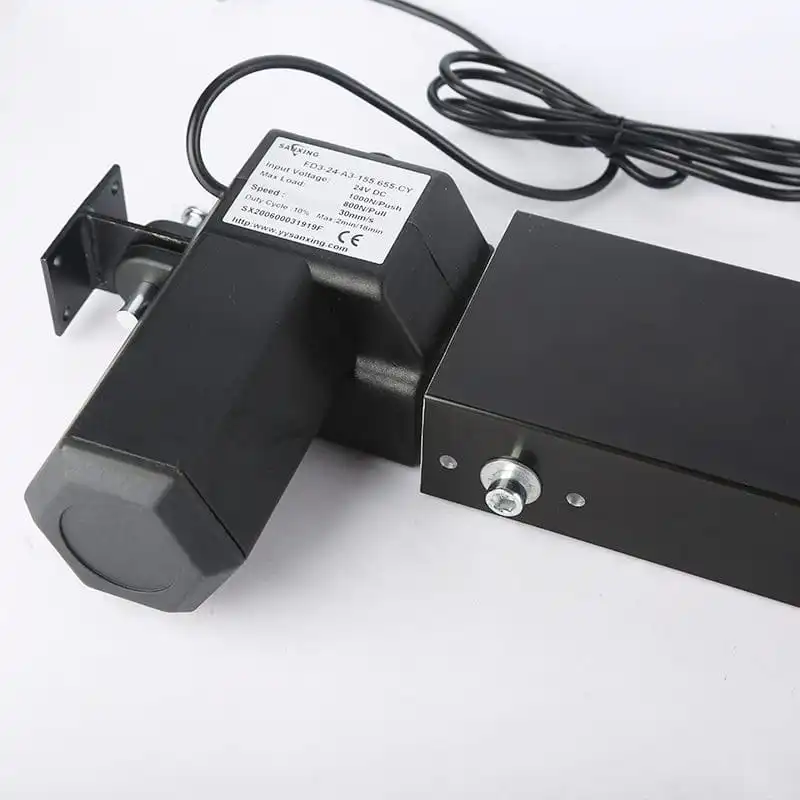

The SXTL Television Lift with Linear Actuator inside offers flexible control options to suit various installation requirements:
Wireless remote control: For convenient, on-demand operation from a distance.
Wired control: A reliable hardwired option for fixed installations or integration with building management systems.

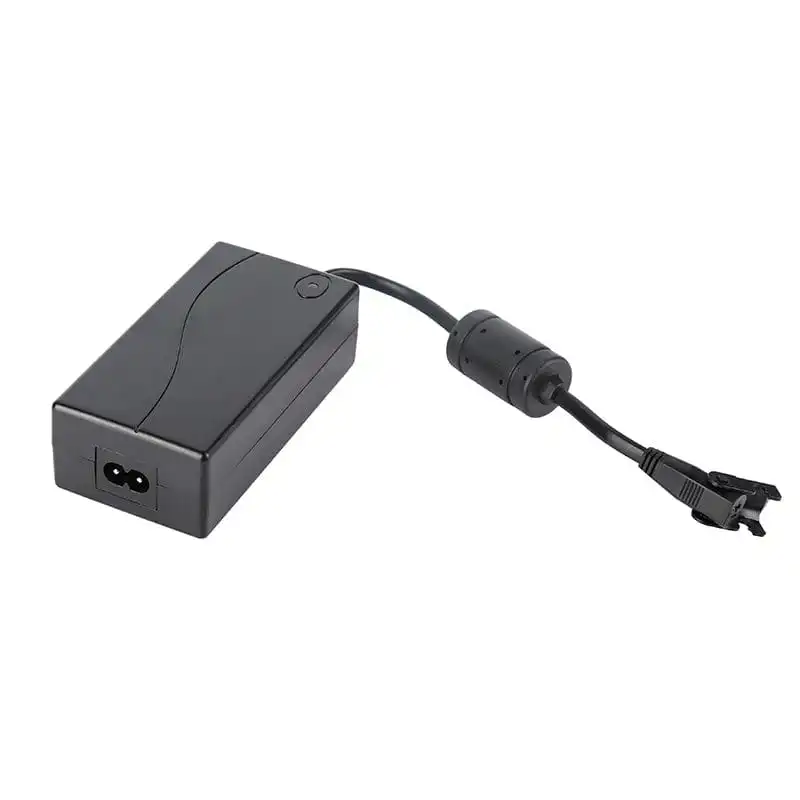

Power supply unit: Included to provide stable and consistent power to the lift mechanism.
Product specifications
| Parameter | Details |
| Model | SXTL |
| Input Voltage | 100-240V AC, 50-60Hz |
| Load Capacity | 1000N / 100kg / 220lbs |
| Speed | 30mm/sec (1.18inch/sec) |
| Stroke (S) | 300mm (11.8″) ~ 1000mm (39.4″) |
| Screen Size Compatibility | 26″ – 60″ |
| Limit Switches | Built-in, factory preset |
| Duty Cycle | 10% |
| Noise Level | ≤ 48 dB |
| Color | Black |
| Operation Temperature | -20°C ~ +40°C |
| Operation | Power supply, wireless/wired remote control |
Product dimension
The SXTL Television Lift features a compact and sturdy design with the following key dimensions:
Overall width: 485mm
Mounting frame width: 400mm
Minimum retracted height: 122mm
Maximum extended height: 1100mm (stroke-dependent)
Mounting depth: 34mm
Mounting points
The SXTL is engineered for straightforward installation into custom cabinetry, furniture, or fixed structures:
1.Secure the main lift column to a sturdy base or cabinet floor.
2.Attach the television to the universal mounting bracket using standard VESA mounts.
3.Connect the power supply and Sanxing control unit.
4.Adjust the built-in limit switches to set the desired upper and lower travel positions.
Need Help Selecting?
Our experts can help you choose the right actuator for your application.
Customers say
We need a very special Actuator unlike ones sold anywhere. Sophie at Sanxing was incredibly helpful and able to understand what we were looking for and able to effectively get us on the right path to a solution. We got samples quickly for us to test quality and fit, Cads/drawings for our custom order, and excellent pricing! We could not be more pleased at this time.
OMG, this has been the best online customer service I have ever received. Maria Z. has been in contact with me every step of the way from start to delivery. The product was made to my exact specifications. It arrived on time in a properly pack box. No shipping damaged whatsoever. All items work perfectly. I am a raving fan and will use Yuyao Sanxing again. It was such an awesome sales experience.
I am highly satisfied with the quick and professional fulfilment of my order. After our initial dispair over the loss of functionality of the remote control for our mother’s favourite TV-chair, we are now extremely happy that the manufacturer of the original item has acted helpful and fast with the replacement. Shipment was – naturally – more expensive than the item itself, but it was well worth it.
FAQs
All actuators come with a 12 month warranty. User error and misuse will not be covered under warranty. Please contact with us to supply you the best solution.
Of course, sample orders are accept.
Please send us your inquiry, including the input voltage, load capacity, speed and stroke ( extending distance ) of the actuator, as well as the order quantity, it would be helpful to us to recommend you with a right actuator and offer a more accurate quotation.
Usually shipping by express, by air and by sea. Express is normally the most quickest but also most expensive way. It’s the usual way for samples. By sea is the best solution for big amounts. We could arrange the shipping for you, or you can use your own forwarder to arrange the shipping. Please contact us for further information.
Yes, of course we can. We are OEM supplier for years and professional to make. But you need to give us the authorization if it is necessary.
