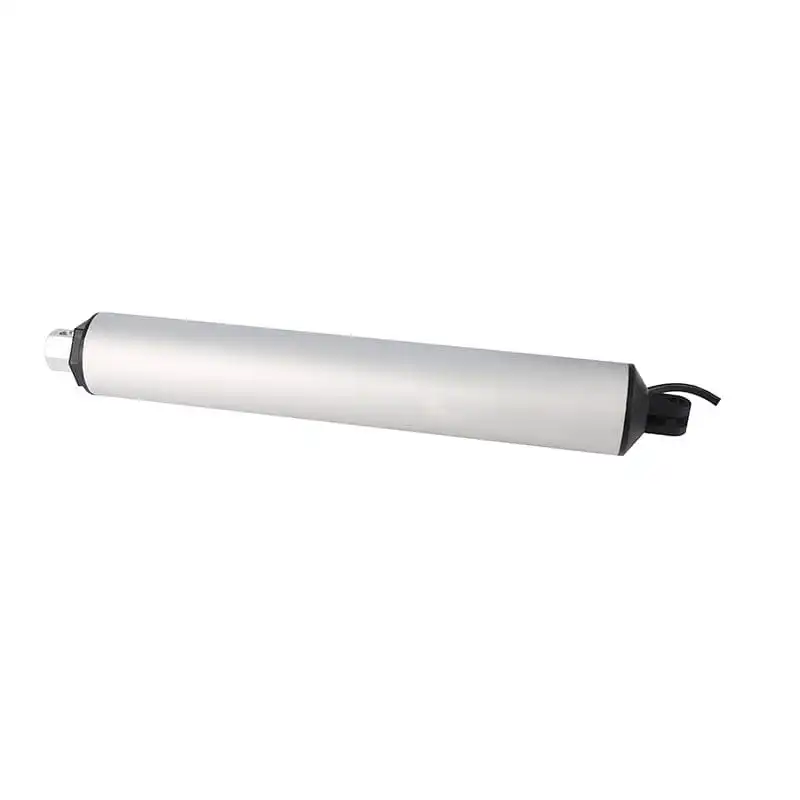

FD9 Linear Actuator
Basic Parameter
Basic Parameter
- Input Voltage (V): 12 / 24
- Max. Load Capacity (N): 200
- Max. Load in pull (N): 150
- No Load Speed (mm/s): 40~230
- Stroke Length-S (mm): 50mm ~ 300mm (stroke could be customized )
- Installation Distance-A (mm): Stroke + 235mm
- Operating Temperature: -26℃ ~ +65℃
- Limit Switch: Built-in, factory present
- Duty Cycle: 20%, stop for 8 minutes after continuously working 2 minutes
- Material: Aluminum Alloy, Plastic
- Color: Sliver
- IP Degree: IP54
- Certificate: CE

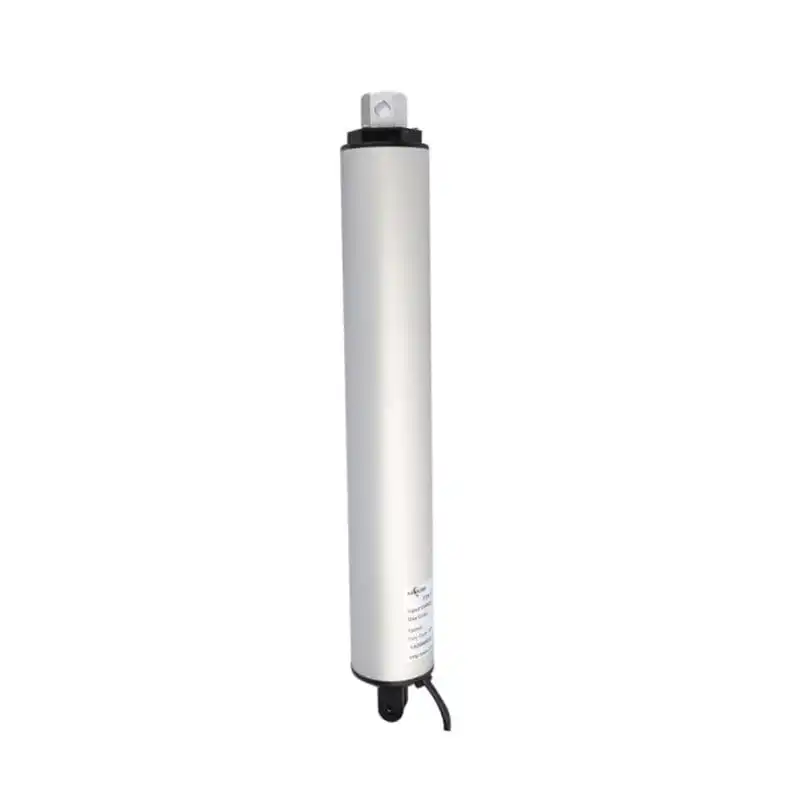

Product overview
The FD9 is a high-performance, compact linear tubular actuator from SANXING, designed for reliable linear motion control in a wide range of industrial and commercial applications. Featuring a sleek, silver aluminum alloy housing, this actuator combines durability with efficient performance, making it ideal for applications requiring precise push/pull force and controlled speed.
Features and Benefits
Durable Construction: Aluminum alloy housing offers corrosion resistance and mechanical strength.
Versatile Performance: Multiple load/speed configurations (50N–200N push, 20N–150N pull) to meet diverse application needs.
Reliable Operation: IP54 ingress protection and a wide operating temperature range (-26°C to +65°C) ensure stable performance in harsh environments.
Easy Integration: Compact form factor, built-in limit switches, and customizable stroke lengths simplify system setup.
Certified Quality: CE certification guarantees compliance with European safety and performance standards.
Control options
The FD9 linear actuator is powered by 12VDC or 24VDC and features built-in, factory preset limit switches for precise end-position control. It can be operated via basic on/off switches or seamlessly integrated with automated control systems for programmable motion.
Applications
The FD9 linear actuator is suitable for a variety of applications, including:
Industrial automation
Medical equipment
Furniture adjustment
Automotive systems
Agricultural machinery
Robotics and mechatronics
Product specifications
| Parameter | Specification |
| Input Voltage (V) | 12VDC / 24VDC |
| Max. Load in push (N) | 200N, 150N, 100N, 50N |
| Max. Load in pull (N) | 150N, 100N, 50N, 20N |
| No Load speed (mm/s) | 40 mm/s, 90 mm/s, 140 mm/s, 230 mm/s |
| Full Load speed (mm/s) | 24 mm/s, 54 mm/s, 84 mm/s, 138 mm/s |
| Stroke Length (mm) | 50mm ~ 300mm (stroke can be customized) |
| Min. Installation Distance (mm) | Stroke length + 235mm |
| Operating Temperature | -26°C ~ +65°C |
| Limit Switch | Built-in, factory preset |
| Duty Cycle | 20% (2 minutes continuous operation followed by an 8-minute stop) |
| Material | Aluminum Alloy, Plastic |
| Color | Silver |
| IP Degree | IP54 |
| Certificate | CE |
Product dimension

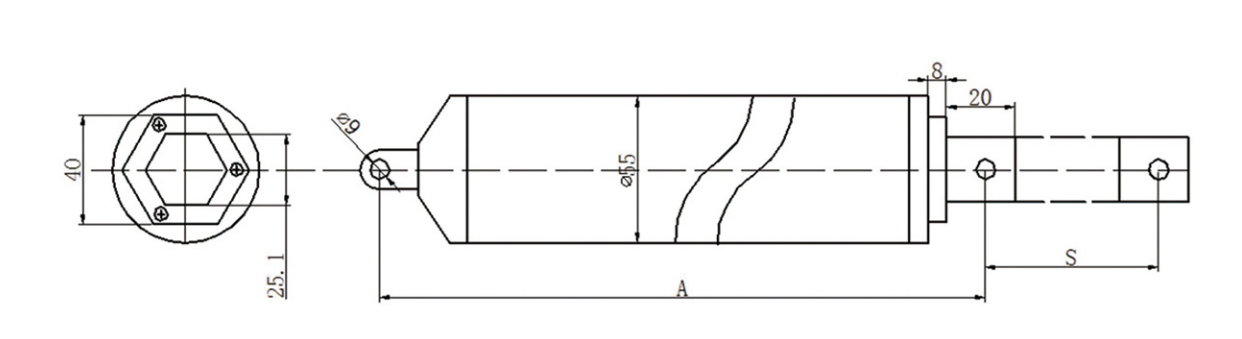

The FD9 features a compact, cylindrical design with a diameter of 40mm. The overall length (A) is determined by the selected stroke length, with additional mounting points and connection interfaces clearly defined in the technical drawing for seamless integration into your system.

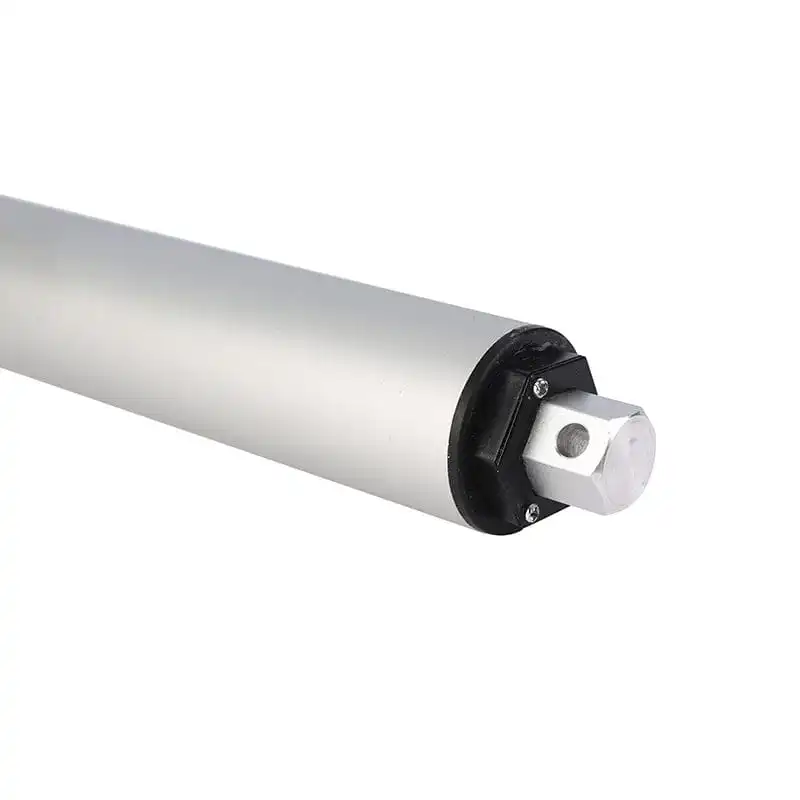

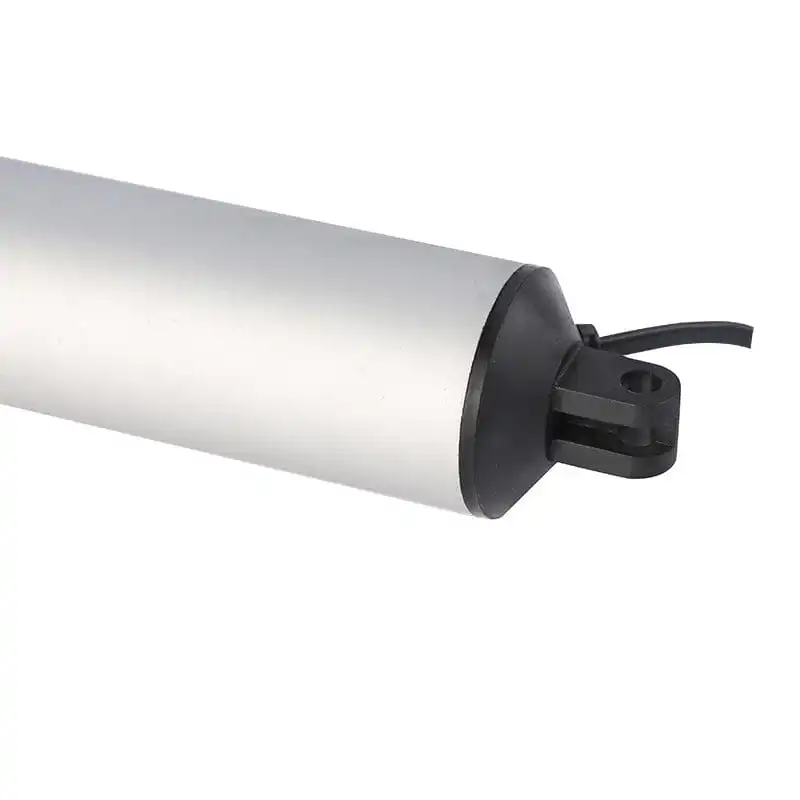

Mounting points
With a compact cylindrical design and standard mounting points at both ends, the FD9 can be installed in various orientations using brackets or pivots. The minimum installation distance is calculated as stroke length + 235mm, enabling flexible integration into diverse mechanical systems.
Performance characteristic curves
The FD9 actuator demonstrates consistent performance across varying load conditions, as illustrated in the characteristic curves:

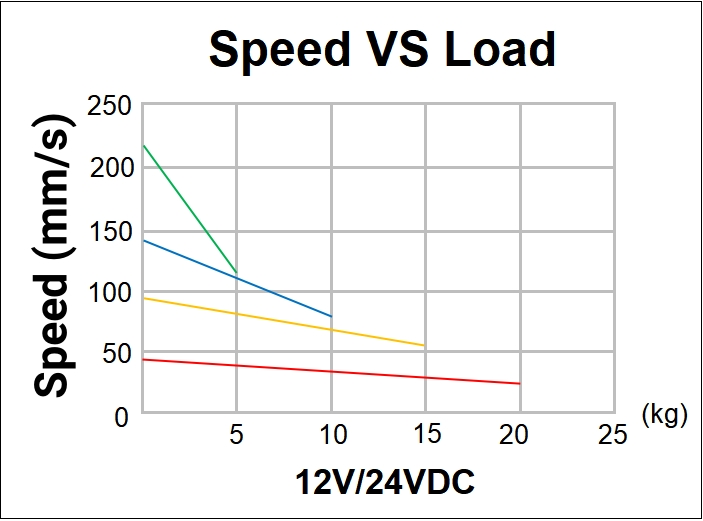

Speed vs. Load (12V/24VDC): Speed decreases linearly with increasing load, maintaining predictable operation under different force requirements.

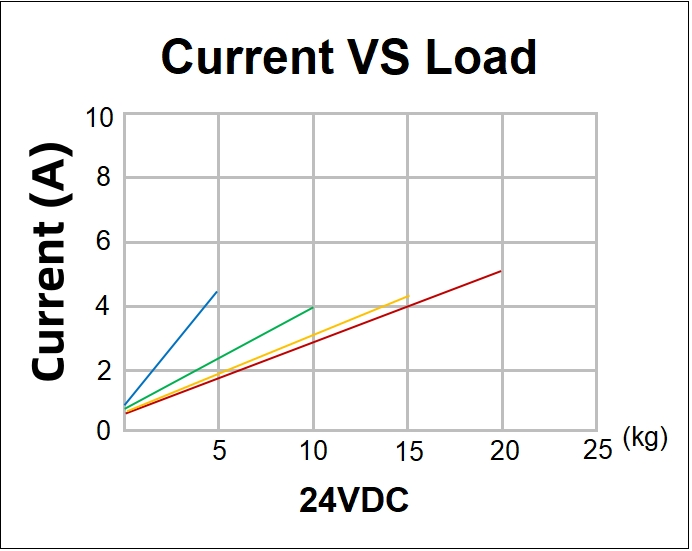

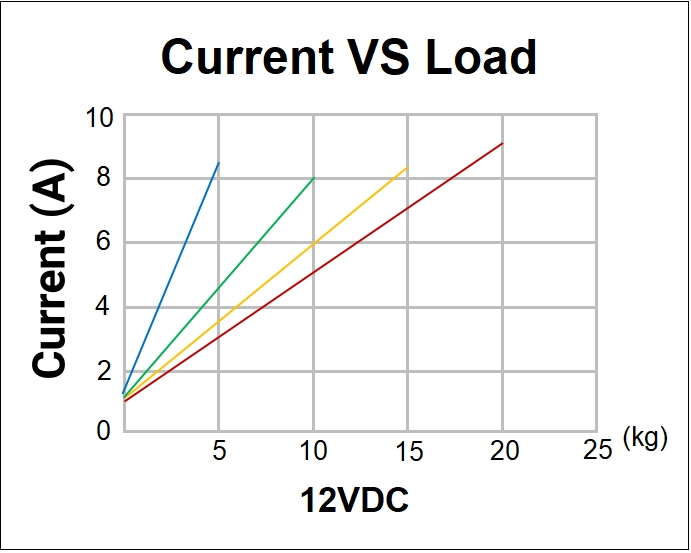

Current vs. Load (12V/24VDC): Current draw increases proportionally with load, providing clear operational feedback for system monitoring and control.
