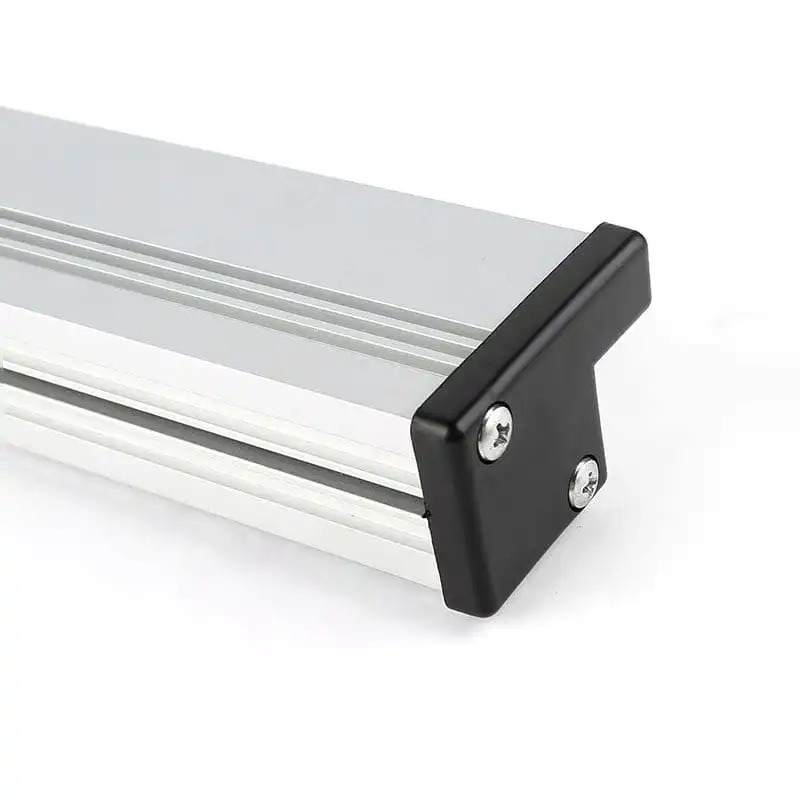

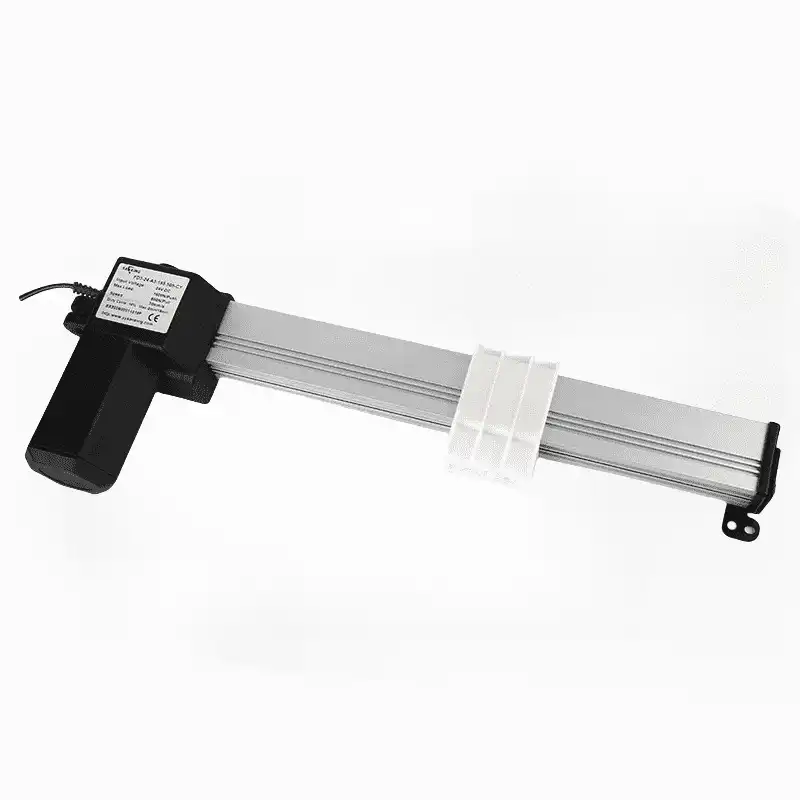

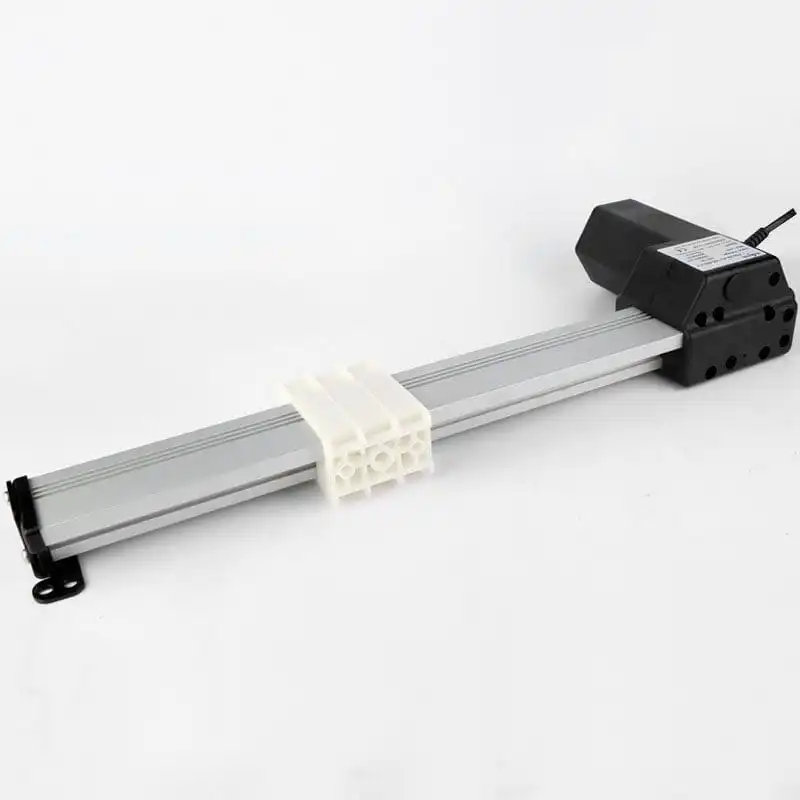

FD3 Linear Actuator
Basic Parameter
Basic Parameter
- Input Voltage (V): 12 / 24
- Max. Load Capacity (N): 5000
- Max. Load in pull (N): 4000
- No Load Speed (mm/s): 4 ~28
- Stroke Length-S (mm): 30mm ~ 1000mm (stroke could be customized )
- Installation Distance-A (mm): Stroke + 155mm
- Operating Temperature: -20℃ ~ +40℃
- Limit Switch: Built-in, factory present
- Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes
- Noise Level (dB): ≤48dB
- Material: Aluminum Alloy, Plastic, Iron
- Color: Black
- IP Degree: IP40
- Certificate: CE
- Function: Synchronization (option)
Product overview
The FD3 Linear Actuator from SANXING is a high-performance linear motion solution designed for reliable push/pull operation with track movement in industrial and furniture applications. Te FD3 ensures smooth, quiet operation and long-term durability, backed by CE certification and a 10% duty cycle for safe, continuous performance.
Features and Benefits
1.High Load Capacity: Delivers up to 5000N push and 4000N pull force, suitable for heavy-duty industrial applications.
2.Customizable Performance: Offers 12V/24V DC options, adjustable stroke lengths (30mm–1000mm), and optional synchronization for flexible system integration.
3.Reliable & Durable: Built with aluminum alloy, plastic, and iron components, with a 10% duty cycle and CE certification for long-term, stable operation.
4.Precise Control: Equipped with built-in limit switches for accurate positioning and safe end-of-stroke stops.
5.Quiet & Efficient: Operates at ≤48dB noise level, with low power consumption and smooth linear motion.
Applications
The FD3 Linear Actuator is suitable for a wide range of applications, including:
Industrial automation (conveyors, material handling)
Medical equipment (patient lifts, adjustable beds)
Furniture (recliners, height-adjustable desks)
Automotive (seat adjustments, convertible tops)
Product specifications
| Parameter | Details |
| Input Voltage | 12V DC / 24V DC |
| Max. Load-in-push (N) | 5000 (12V), 3000 / 1500 / 1000 (24V) |
| Max. Load-in-pull (N) | 4000 (12V), 2000 / 1000 / 800 (24V) |
| No Load Speed (mm/s) | 4 (12V), 9 / 18 / 28 (24V) |
| Full Load Speed (mm/s) | 3 (12V), 6 / 11 / 18 (24V) |
| Stroke Length | 30mm – 1000mm (customizable) |
| Min. Installation Distance | Stroke + 155mm |
| Operating Temperature | -20°C to +40°C |
| Limit Switch | Built-in, factory preset |
| Duty Cycle | 10% (stop for 18 minutes after 2 minutes of continuous operation) |
| Noise Level | ≤48 dB |
| Material | Aluminum Alloy, Plastic, Iron |
| Color | Black |
| IP Rating | IP40 |
| Certification | CE |
| Function | Synchronization (optional) |
Product dimension
The FD3 actuator features a compact, engineered design with clearly defined mounting points and stroke-to-installation distance requirements.

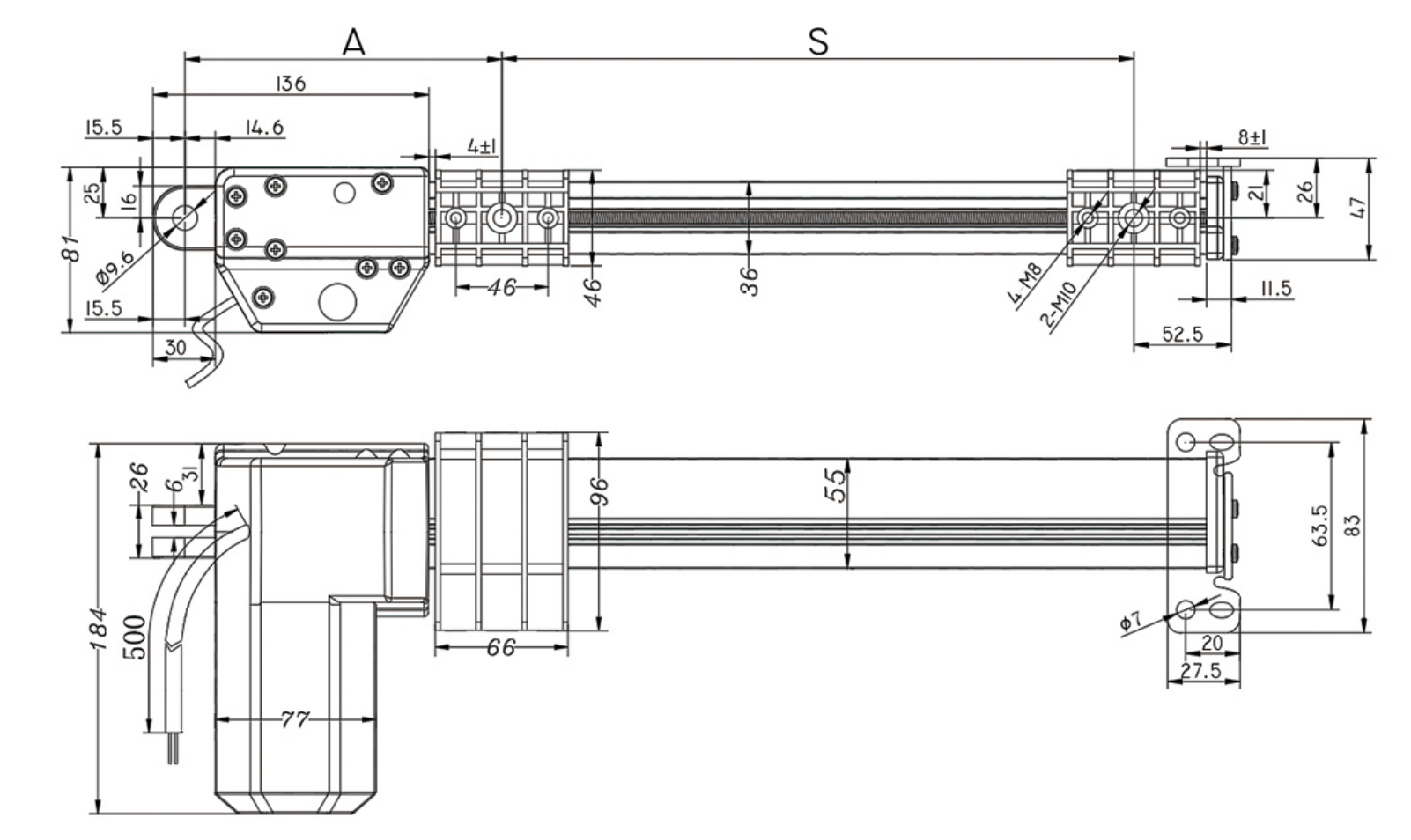

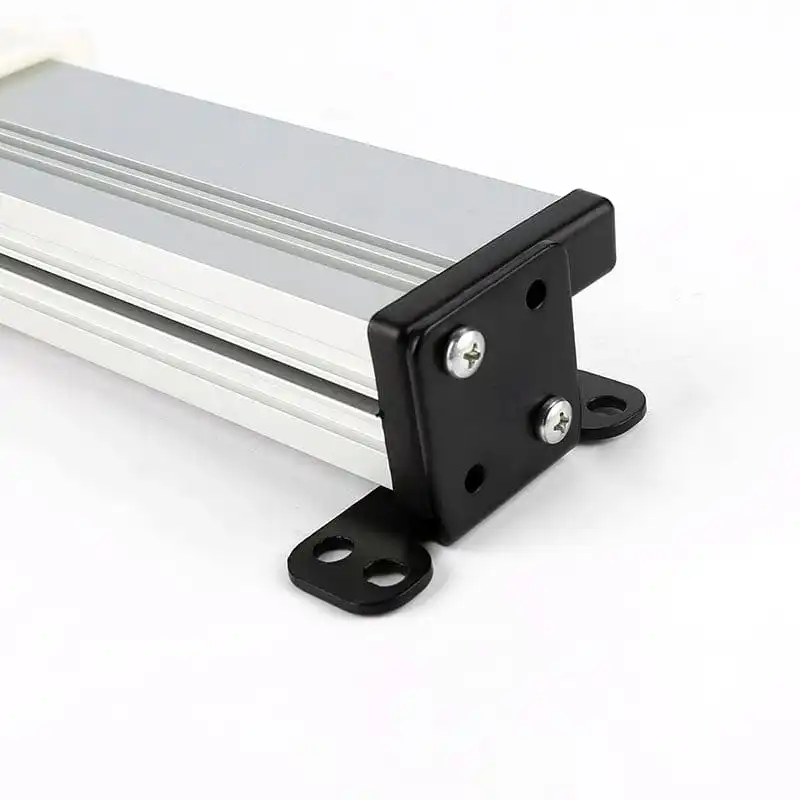

Installation Type: Standard mechanical mounting with front/rear brackets, as shown in the dimension drawings.
Key Dimensions: Refer to the technical drawing for precise length (A), stroke (S), and mounting hole positions.
Minimum Installation Distance: Calculated as stroke length + 155mm to ensure full extension and retraction.
Performance characteristic curves
The actuator’s performance is characterized by three key curves:

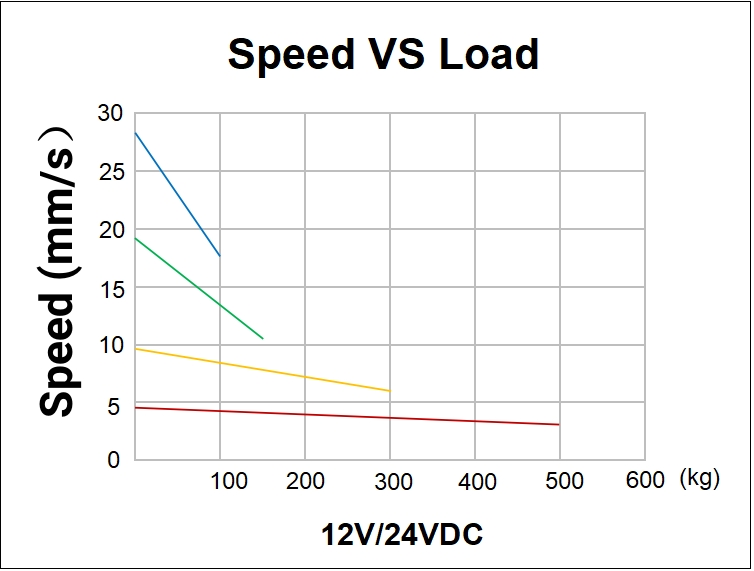

1.Speed vs. Load (12V/24VDC): Shows the inverse relationship between load and speed, with higher voltage models delivering faster operation at equivalent loads.

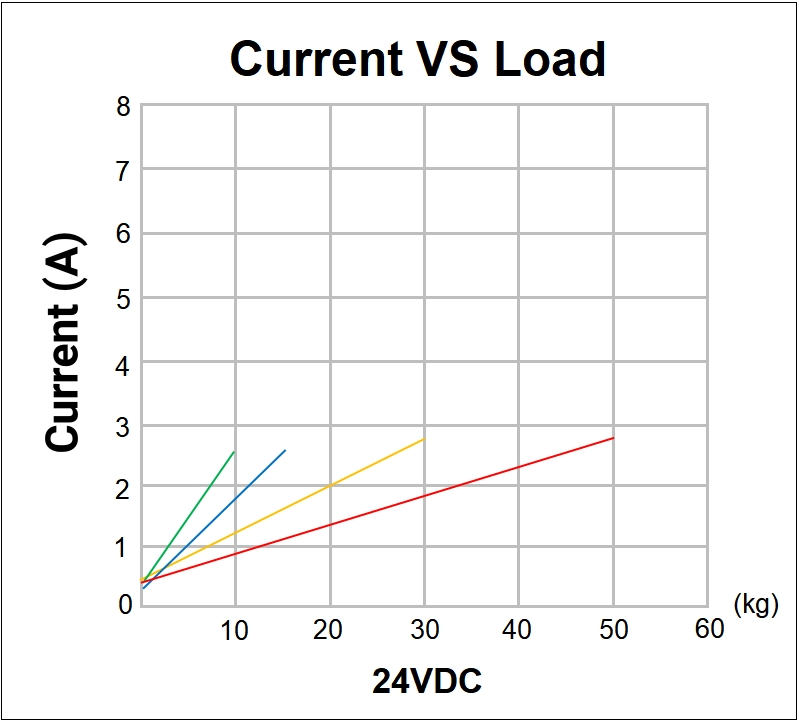

2.Current vs. Load (24VDC): Illustrates how current draw increases with load, providing insights for power supply sizing.

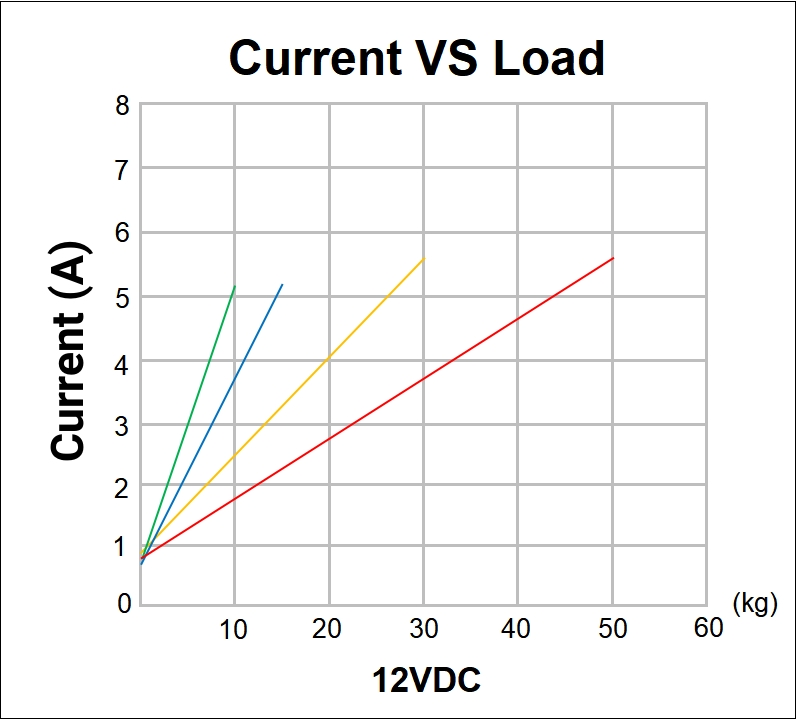

3.Current vs. Load (12VDC): Similar performance trend for 12V systems, with slightly higher current demands at maximum load.
Control & Operation
Control Interface: Compatible with standard DC motor control systems (e.g., relays, PLCs, or Sanxing control systems for more easy direct control ).
Limit Switches: Factory-set internal switches stop the actuator at the end of the stroke, preventing over-travel.
Synchronization (Optional): Multiple FD3 actuators can be synchronized for coordinated linear motion in multi-axis applications.
Duty Cycle: Designed for intermittent use (10% duty cycle) to ensure long-term reliability.
