FD22 Linear Actuator
Basic Parameter
Basic Parameter
- Input Voltage (V): 12 / 24
- Max. Load Capacity (N): 6000
- Max. Load in pull (N): 4000
- No Load Speed (mm/s): 4 ~16
- Stroke Length-S (mm): 30mm ~ 500mm (stroke could be customized )
- Installation Distance-A (mm): Stroke + 160mm
- Operating Temperature: -20℃ ~ +40℃
- Limit Switch: Built-in, factory present
- Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes
- Noise Level (dB): ≤48dB
- Material: Aluminum Alloy, Plastic, Iron
- Color: Black/Grey
- IP Degree: IP44
- Certificate: CE
- Function: Synchronization (option)
Product overview

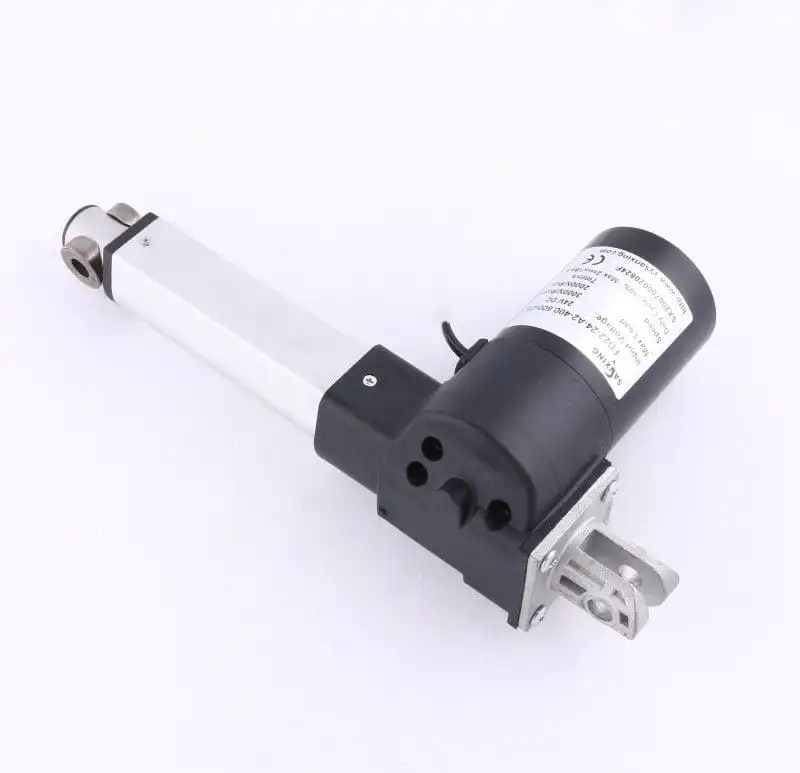

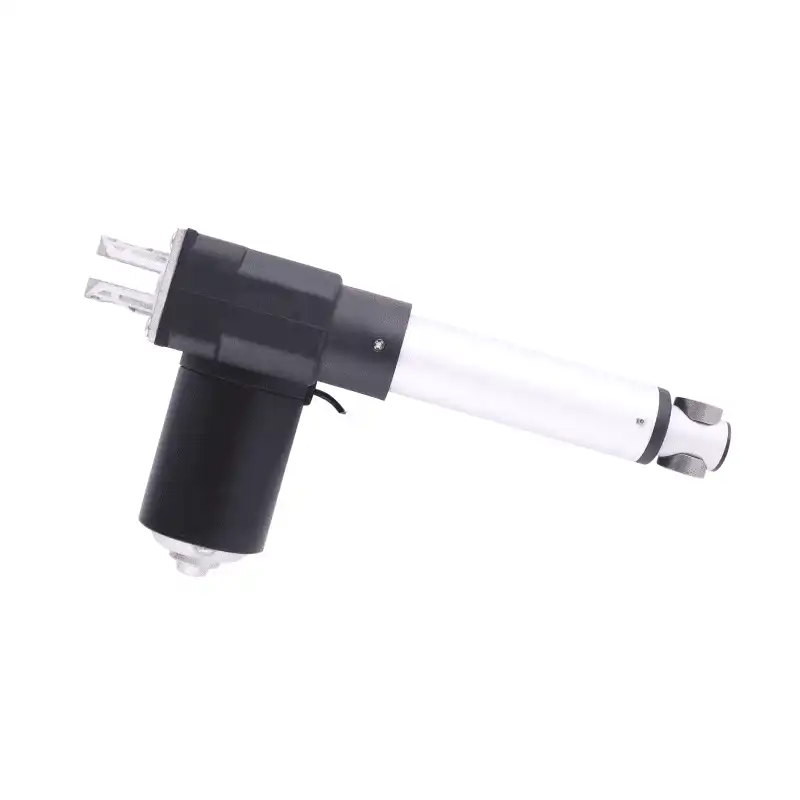

The FD22 is a high-performance linear actuator from SANXING, engineered to deliver reliable linear motion for a wide range of furniture and medical applications. Its robust construction, customizable stroke lengths, and optional synchronization function make it an ideal solution for applications requiring precise and powerful linear movement.
Features and Benefits
High load capacity: Delivers up to 6000N push force and 4000N pull force for heavy-duty applications.
Customizable stroke: Stroke lengths from 30mm to 500mm can be tailored to specific needs.
Quiet operation: Noise level ≤48dB, ideal for noise-sensitive environments.
Reliable protection: IP44 rating safeguards against dust and splashing water.
Compliance: CE-certified to meet European safety and quality standards.
Durable construction: Built with aluminum alloy, plastic, and iron for long service life.
Control options
Built-in limit switches: Factory preset for precise position control and enhanced operational safety.
Optional synchronization function: Enables coordinated movement of multiple actuators for synchronized systems.
Basic control: Supports forward/reverse actuation and stop operations, compatible with Sanxing control setups.
Applications
The FD22 linear actuator is suitable for a variety of applications, including:
Medical equipment
Industrial automation
Furniture adjustment
Automotive systems
Product specifications
| Parameter | Specification |
| Input Voltage | 12VDC / 24VDC |
| Max. Load in Push (N) | 6000, 3000, 2000, 1500 |
| Max. Load in Pull (N) | 4000, 2000, 1500, 1000 |
| No Load Speed (mm/s) | 4, 8, 12, 16 |
| Full Load Speed (mm/s) | 5.5, 10, 11 (corresponding to 8, 12, 16 mm/s no-load speed) |
| Stroke Length (mm) | 30mm ~ 500mm (customizable) |
| Min. Installation Distance (mm) | Stroke + 160mm |
| Operating Temperature | -20°C ~ +40°C |
| Limit Switch | Built-in, factory present |
| Duty Cycle | 10%, stop for 18 minutes after continuously working 2 minutes |
| Noise Level (dB) | ≤48dB |
| Material | Aluminum Alloy, Plastic, Iron |
| Color | Black/Grey |
| IP Degree | IP44 |
| Certificate | CE |
| Function | Synchronization (option) |
Product dimension

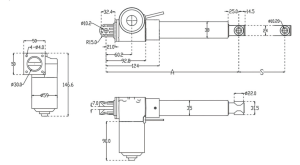

The FD22 features a compact and versatile design with detailed dimensional specifications. The dimension drawings provide precise measurements for the actuator’s body, mounting points, and overall length, which is determined by the selected stroke length. The minimum installation distance is defined as the stroke length plus 160mm, ensuring sufficient space for the actuator’s full range of motion.
Mounting points

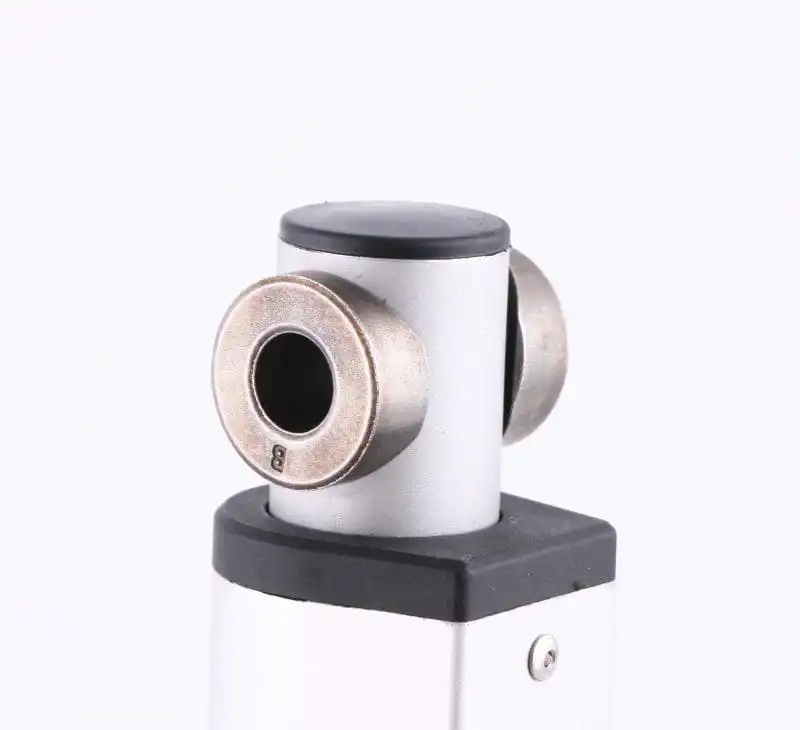

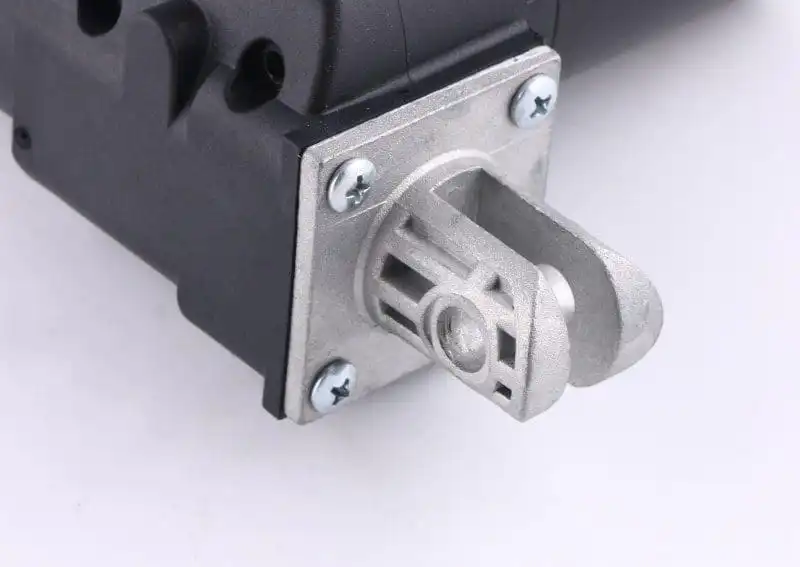

Versatile mounting: Features pivot points at both ends, suitable for hinged or fixed installations.
Space-efficient design: Compact form factor allows installation in constrained environments.
Defined installation distance: Minimum installation distance = stroke length + 160mm, ensuring full range of motion without interference.
Performance characteristic curves
Speed vs. Load

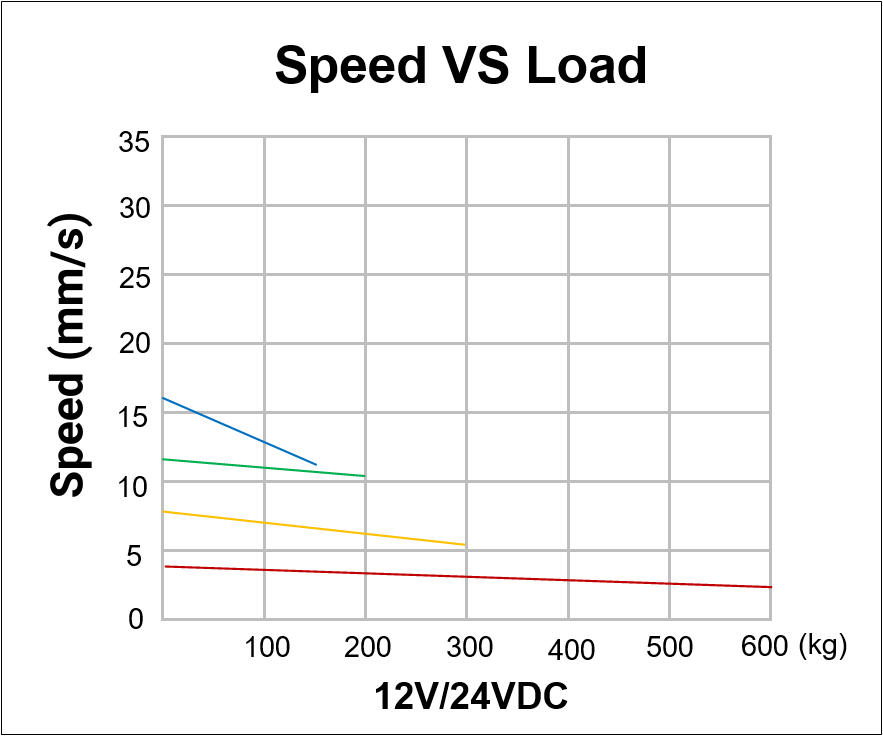

The actuator’s speed decreases as the applied load increases, a common behavior in electromechanical systems. The graph illustrates the speed performance under both 12VDC and 24VDC input voltages, showing a predictable reduction in speed with increasing load up to 600kg.
Current vs. Load

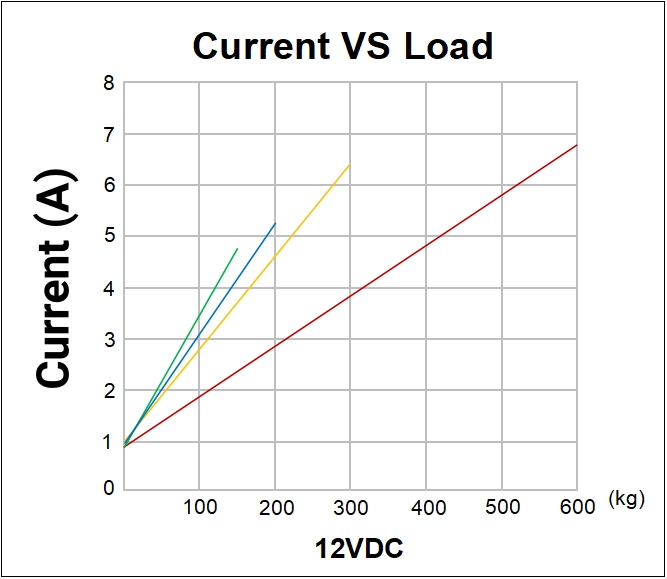

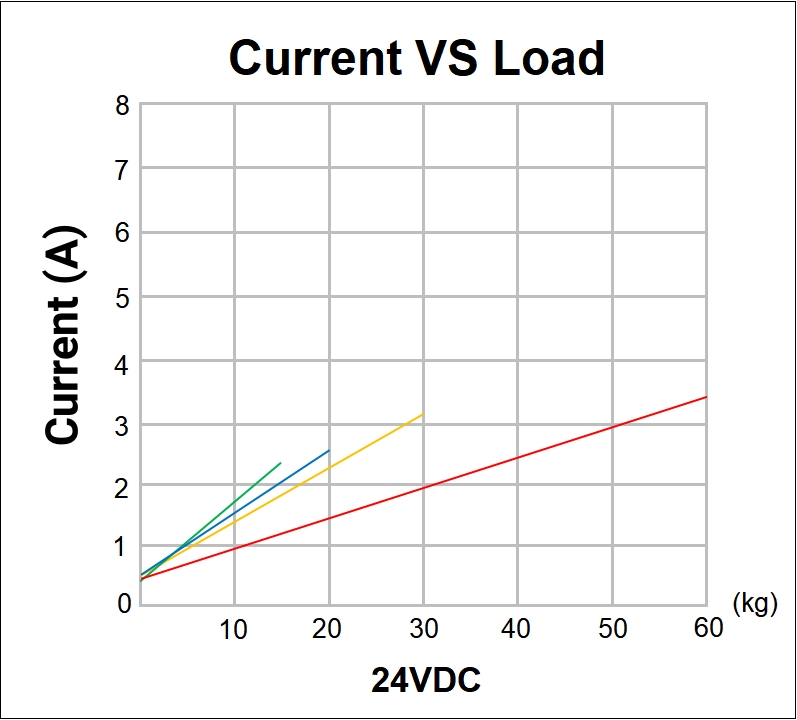

Two separate graphs detail the current draw under varying loads for 12VDC and 24VDC operation. The current consumption increases linearly with the load, providing a clear indication of the power requirements for different operational conditions. This data is crucial for sizing the power supply and ensuring the system’s electrical safety.
