FD17-W Miniature Linear Actuator
Basic Parameter
Basic Parameter
- Input Voltage (V): 12 / 24
- Max. Load Capacity (N): 188
- Max. Load in pull (N): 150
- No Load Speed (mm/s): 4 ~30
- Stroke Length-S (mm): 10mm ~ 150mm (stroke could be customized )
- Installation Distance-A (mm): Stroke + 55/60/70mm
- Operating Temperature: -10℃ ~ +50℃
- Limit Switch: Built-in, factory present
- Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes
- Noise Level (dB): ≤55dB
- Material: Aluminum Alloy, Plastic, Stainless Steel
- Color: Black
- IP Degree: IP54
- Certificate: CE

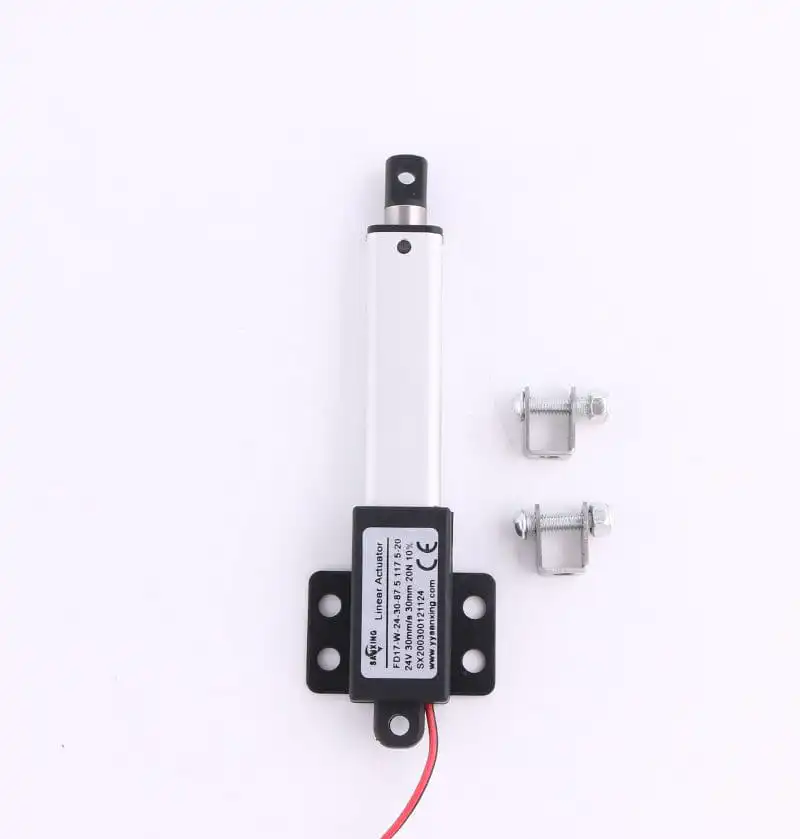

- Accessory: Brackets ( Top&End )—Optional
[wpforms id=”1330″]
Product overview

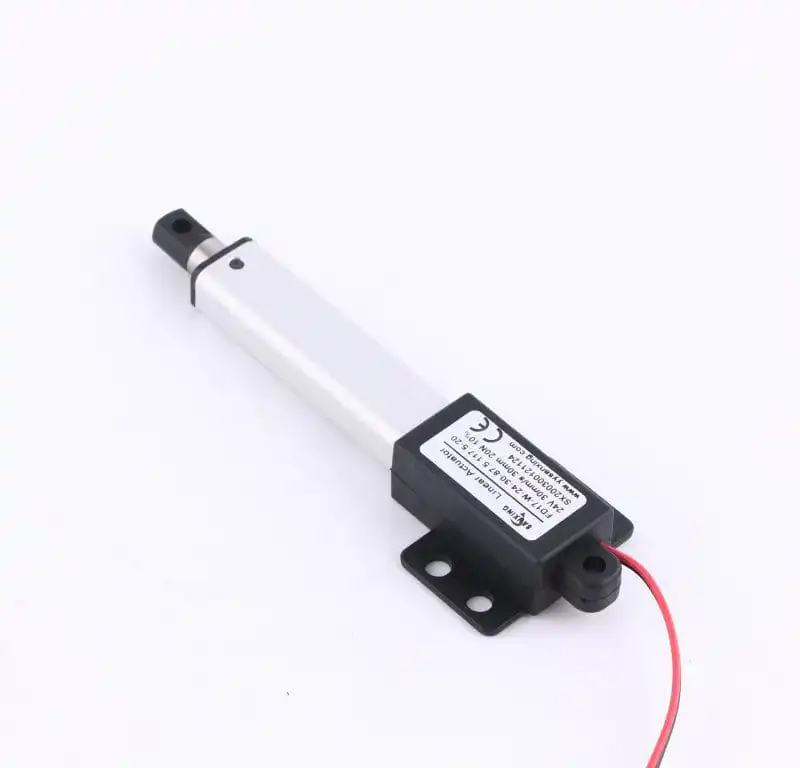

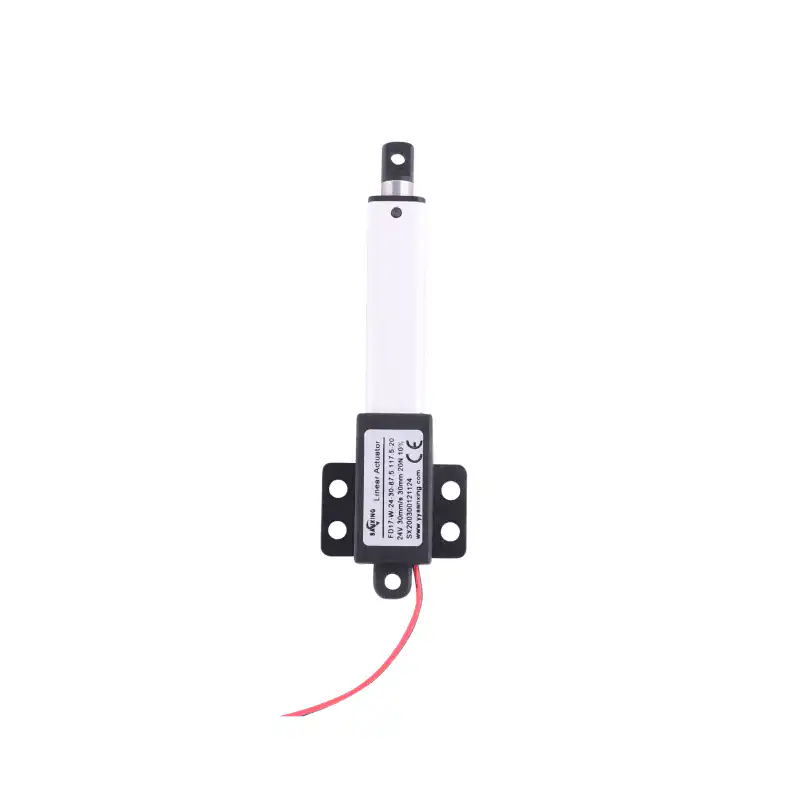

The FD17-W linear actuator, manufactured by SANXING, is a compact, high-performance electric linear motion component designed for small-space driving and precision linear displacement applications. It operates on 12VDC/24VDC, featuring a miniature structure, stable performance, and reliable operation, widely used in automated small devices, intelligent equipment, home appliances, automotive accessories, and industrial micro-drive scenarios. Its appearance is similar with the FD17 type, their function and specifications are totally the same. The only difference is the FD17-W type have side 4 mounting holes.
Features and Benefits
1.Compact and lightweight structure with all dimensions in mm, suitable for micro-space installation and integration.
2.Dual voltage optional (12VDC/24VDC), with multiple load and speed specifications to match different application scenarios.
3.Built-in factory preset limit switch, safe and reliable, with no need for additional external limit devices.
4.IP54 protection grade, adapting to conventional indoor and semi-outdoor working environments.
5.Robust construction with aluminum alloy, plastic and stainless steel, durable and long service life.
6.Standard stroke range of 10-150mm, customizable stroke available; optional top/end mounting brackets for flexible assembly.
7.Strictly compliant with CE certification, stable performance, and in line with international safety and quality standards.
Control options
These micro actuators feature a simple 2-wire configuration. Simply supply a 12/24V DC power source to activate the actuator, and reversing the polarity will change its direction. They are most
commonly operated by a rocker switch or a two-button (Up and Down) remote control system.
Product specifications
| Parameter | Specification Details |
| Input Voltage | 12VDC / 24VDC |
| Max. Load Capacity | 188N, 120N, 60N, 30N |
| No Load Speed | 4mm/s, 7mm/s, 15mm/s, 30mm/s |
| Full Load Speed | 2.4mm/s, 4.9mm/s, 10mm/s, 21mm/s |
| Stroke Length | Standard: 10mm, 15mm, 30mm, 50mm, 75mm, 100mm, 150mm;
Customizable strokes available |
| Installation Distance | Stroke + 55/60/70mm |
| Operating Temperature | -10℃ ~ +50℃ |
| Limit Switch | Built-in, factory preset |
| Duty Cycle | 10%: Stop for 18 minutes after continuously working for 2 minutes |
| Noise Level | ≤55dB |
| Material | Aluminum Alloy, Plastic, Stainless Steel |
| Color | Black |
| IP Degree | IP54 |
| Accessory | Brackets (Top & End) – Optional |
| Certificate | CE Certified |
Product dimension
The FD17-W linear actuator is equipped with standardized structural dimension drawings (in mm) covering overall length, installation hole spacing, stroke correspondence size, outer diameter, mounting bracket dimensions, and core mechanical structure parameters. The installation distance is matched to the stroke: Stroke + 55/60/70mm, with strict dimensional coordination to meet diversified fixed installation and embedded assembly requirements. The compact outline design ensures flexible installation in limited spaces, with two conventional mounting styles
Mounting points

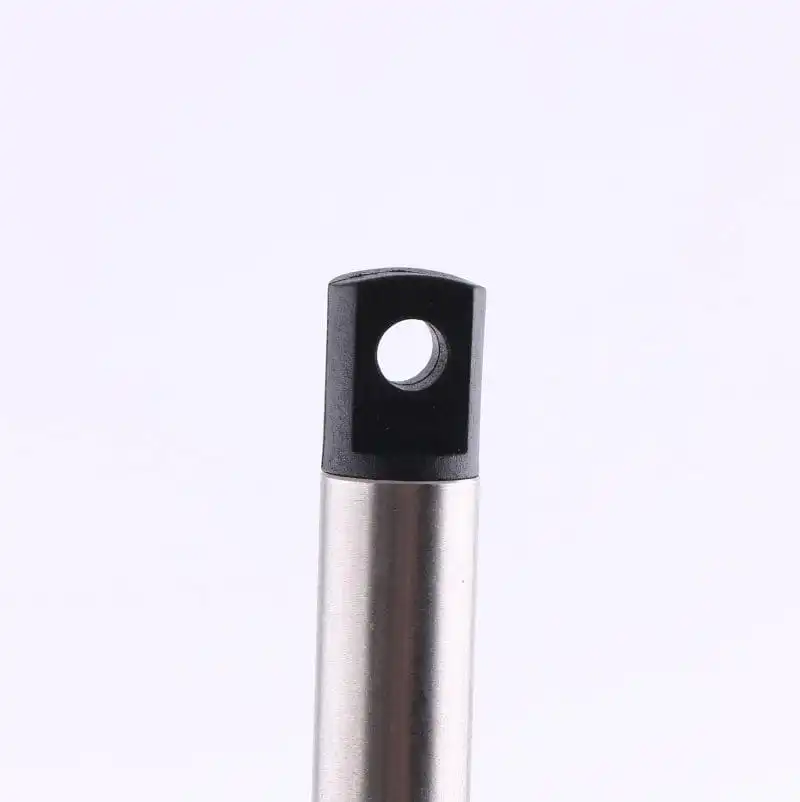

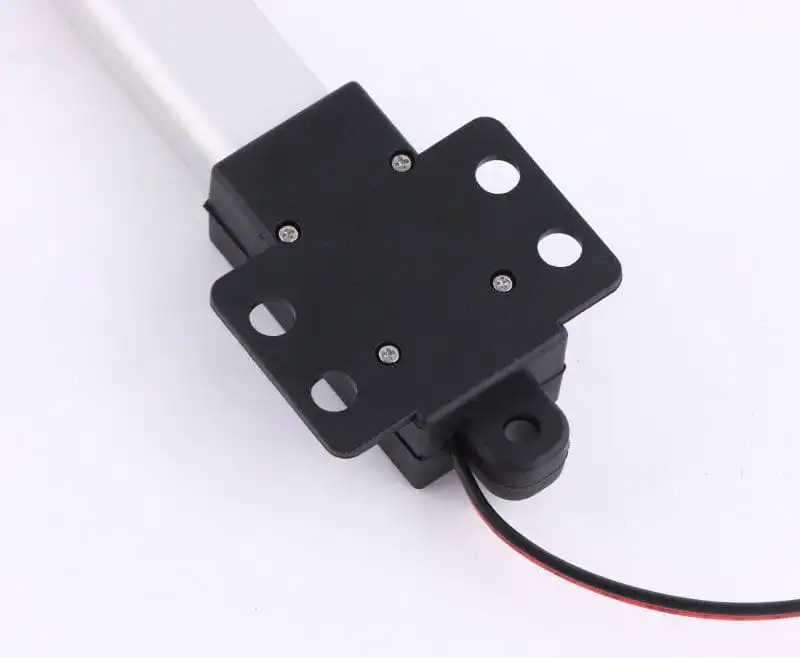

Mounting these Micro Actuators is simple. Each end of the Actuator has 2 clevis holes that are 4.1mm dia (0.16″ dia) so that a 4mm screw can be used to secure them. Another, this type with side 4 mounting holes for firm installation. In addition, the moving end shaft of the Micro Actuator is able to rotate up to 180 degrees so that the holes do not need to line up with the motor end of the Actuator body.
Performance characteristic curves
The FD17-W linear actuator is equipped with three sets of professional characteristic curves to reflect its electrical and mechanical performance under load:

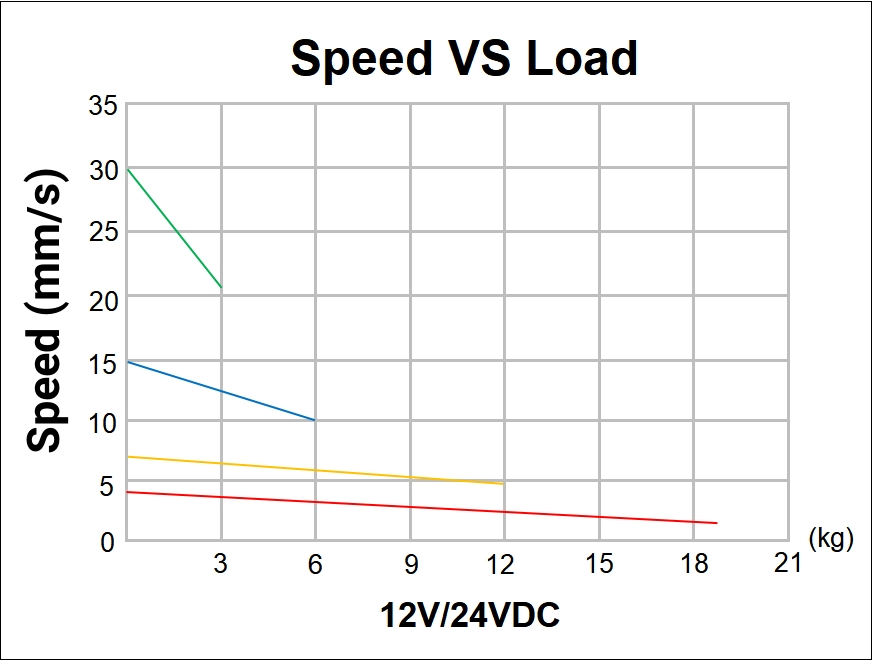

Speed VS Load (12/24VDC): Shows the linear relationship between operating speed and load force. The actuator’s speed decreases gradually as the external load increases, presenting a stable negative correlation curve for 12V and 24V voltage modes, ensuring predictable speed regulation under different load conditions.

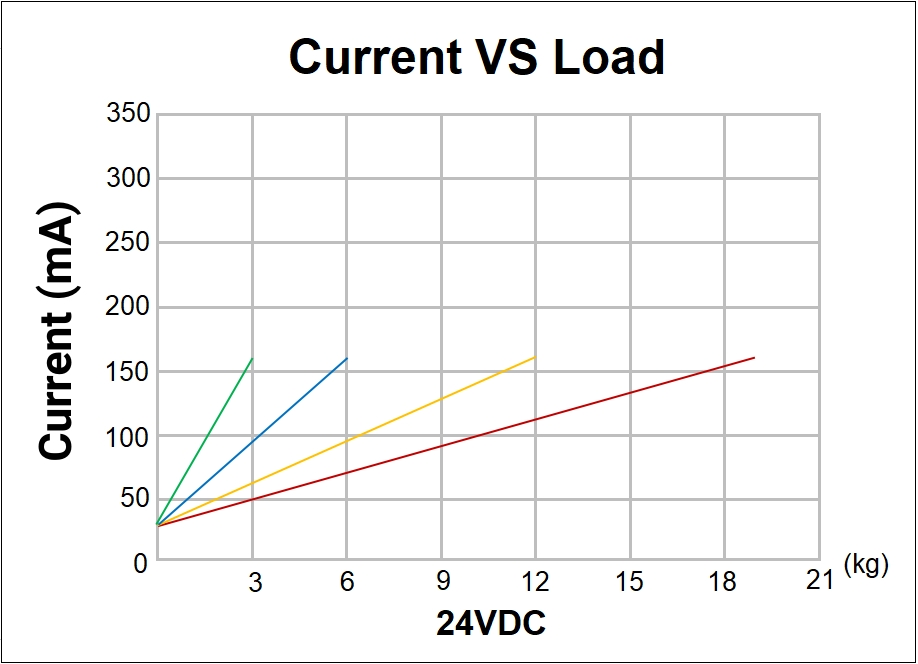

Current VS Load (24VDC): Reflects the change in working current with load under 24VDC input. The working current rises steadily with the increase of load, presenting a smooth positive correlation curve, which provides a reference for circuit matching and power supply configuration.

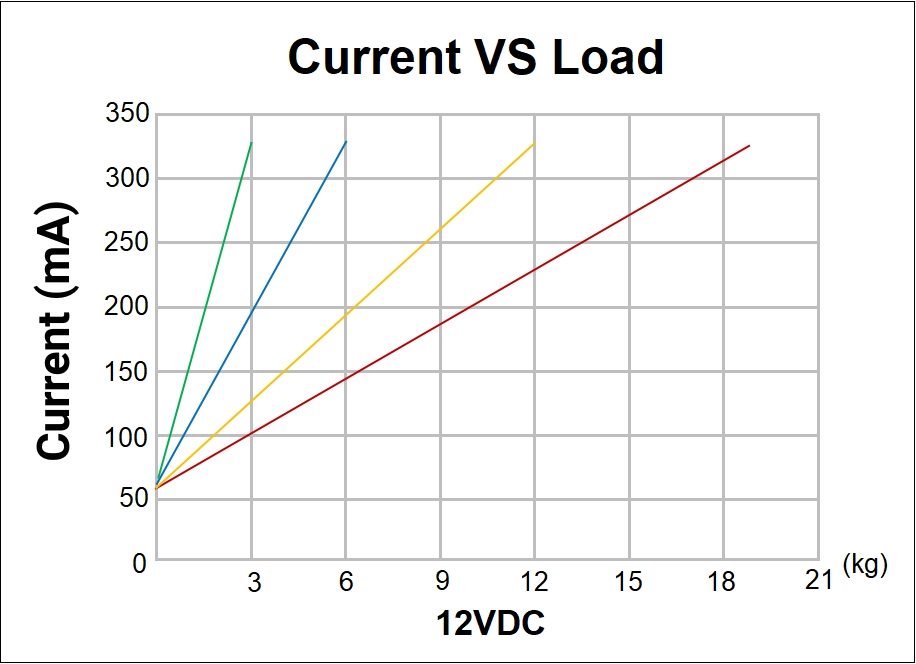

Current VS Load (12VDC): Displays the current-load characteristic under 12VDC input. The current changes linearly with the load, consistent with the actuator’s low-voltage high-efficiency operation law, supporting stable current output under different load pressures.
Need Help Selecting?
Our experts can help you choose the right actuator for your application.
Customers say
We need a very special Actuator unlike ones sold anywhere. Sophie at Sanxing was incredibly helpful and able to understand what we were looking for and able to effectively get us on the right path to a solution. We got samples quickly for us to test quality and fit, Cads/drawings for our custom order, and excellent pricing! We could not be more pleased at this time.
OMG, this has been the best online customer service I have ever received. Maria Z. has been in contact with me every step of the way from start to delivery. The product was made to my exact specifications. It arrived on time in a properly pack box. No shipping damaged whatsoever. All items work perfectly. I am a raving fan and will use Yuyao Sanxing again. It was such an awesome sales experience.
I am highly satisfied with the quick and professional fulfilment of my order. After our initial dispair over the loss of functionality of the remote control for our mother’s favourite TV-chair, we are now extremely happy that the manufacturer of the original item has acted helpful and fast with the replacement. Shipment was – naturally – more expensive than the item itself, but it was well worth it.
FAQs
All actuators come with a 12 month warranty. User error and misuse will not be covered under warranty. Please contact with us to supply you the best solution.
Of course, sample orders are accept.
Please send us your inquiry, including the input voltage, load capacity, speed and stroke ( extending distance ) of the actuator, as well as the order quantity, it would be helpful to us to recommend you with a right actuator and offer a more accurate quotation.
Usually shipping by express, by air and by sea. Express is normally the most quickest but also most expensive way. It’s the usual way for samples. By sea is the best solution for big amounts. We could arrange the shipping for you, or you can use your own forwarder to arrange the shipping. Please contact us for further information.
Yes, of course we can. We are OEM supplier for years and professional to make. But you need to give us the authorization if it is necessary.
