IP66 Waterproof FD13 Heavy Duty Linear Actuator For Harsh Industrial Equipment & Outdoor Machinery Motion Control
1. Market Demand Background for Rugged Heavy Duty Linear Actuator in Industrial Automation
Global industrial manufacturing, outdoor engineering machinery, and outdoor automated equipment have raised stricter standards for motion drive components in recent years. Ordinary linear actuators with low IP ratings and weak load capacity fail to work stably in dusty, splashing water, high-load continuous operation industrial environments. Equipment maintenance costs rise sharply due to frequent actuator burnout, water ingress damage, and insufficient thrust failure. A reliable Heavy Duty Linear Actuator must integrate ultra-high load output, high-level waterproof dustproof protection, stable low-temperature operation, and customized stroke flexibility to adapt to complex industrial working conditions.

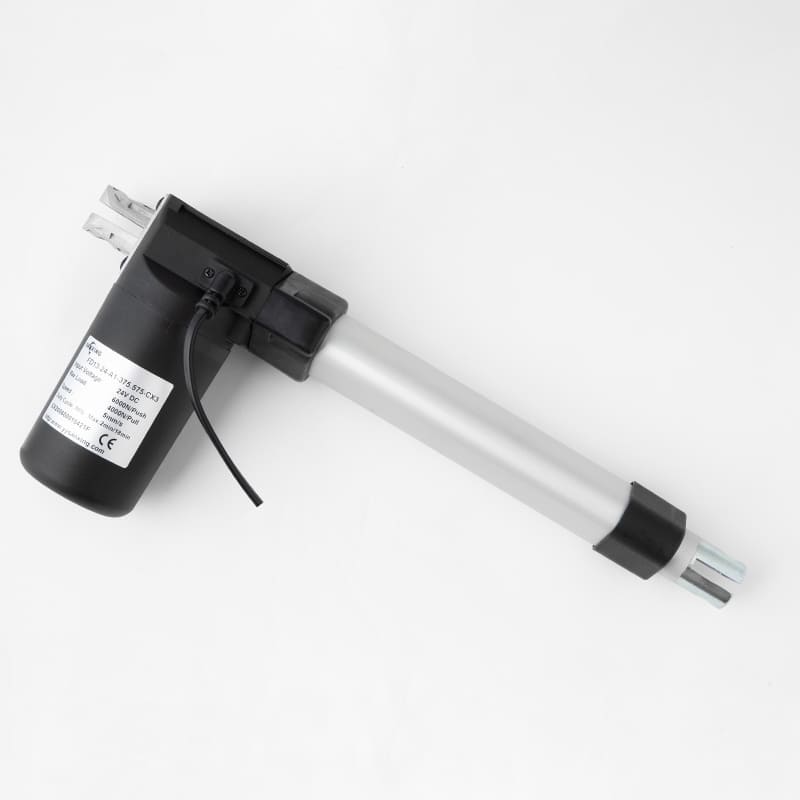

The FD13 Heavy Duty Linear Actuator is tailor-made for harsh industrial and outdoor mechanical scenarios. It breaks the performance bottleneck of conventional medium-load actuators, delivering up to 6000N peak push force paired with IP66 top-tier protection grade, solving two core pain points for industrial equipment manufacturers: insufficient thrust for heavy-duty pushing tasks and premature failure caused by dust and liquid erosion. Compared with small-sized indoor actuators such as the FD10 compact linear actuator, which focuses on low-noise indoor furniture use, the FD13 Heavy Duty Linear Actuator abandons lightweight plastic-oriented structure design and adopts zinc alloy, thickened aluminum alloy and iron structural parts to achieve robust mechanical rigidity for long-term heavy-load operation.
For large-scale industrial automation assembly lines, agricultural outdoor machinery, construction equipment auxiliary adjustment structures, and outdoor smart gate lifting systems, selecting a qualified Heavy Duty Linear Actuator directly determines the overall equipment stability and after-sales maintenance cycle. Many factory procurement engineers choose standardized FD13 Heavy Duty Linear Actuator for batch assembly because of its standardized technical parameters, CE certification, and optional synchronous linkage function, which greatly shortens the prototype verification cycle for new industrial equipment.
2. Core Hardware Advantages of FD13 Heavy Duty Linear Actuator
2.1 Class-Leading IP66 Dustproof & Waterproof Protection Structure
Protection grade is the decisive indicator for a Heavy Duty Linear Actuator deployed in outdoor and wet industrial workshops. Most general linear actuators only reach IP54 protection, which can only resist indoor dust and occasional water splashes, unable to withstand high-pressure water flushing, heavy dust accumulation, or long-term outdoor rainy environment exposure. The FD13 Heavy Duty Linear Actuator is designed with fully sealed shell structure, internal wiring waterproof rubber ring, and telescopic rod dustproof sleeve to achieve official IP66 protection certification.
IP66 rating enables this Heavy Duty Linear Actuator to resist powerful water jet flushing from any direction and prevent fine dust from penetrating into the motor and gearbox core components. This performance is critical for food processing machinery (high-pressure water cleaning), agricultural field machinery, construction site auxiliary actuators, and outdoor vehicle-mounted automation equipment. Users no longer need to add additional waterproof protective covers for the actuator, simplifying equipment structural design and reducing extra production costs. The actuator shell uses black and grey two-color anti-corrosion coating to resist chemical mist and rust in industrial workshops.
The composite material combination of aluminum alloy, plastic, zinc alloy, and iron balances sealing performance and structural strength. The zinc alloy gearbox shell improves compression resistance, avoiding gearbox deformation under heavy load impact, which is a common failure point of thin-shell heavy-duty actuators on the market.
2.2 Maximum 6000N Push Force High-Load Output Performance
Load capacity is the core value of a Heavy Duty Linear Actuator. The FD13 Heavy Duty Linear Actuator provides multiple load gear configurations for customers to select freely, including maximum push force 6000N, 4000N, 3000N, 1500N and 500N options; the matched maximum pull force reaches 4000N at peak. Such graded load design covers light auxiliary pushing to super-heavy industrial jacking work, allowing engineers to select accurate load specifications instead of blindly choosing oversized actuators to save power consumption and equipment volume.
Under full-load operation, the FD13 Heavy Duty Linear Actuator maintains stable linear movement without gear slipping or motor stalling. The internal reinforced gear set undergoes 500-hour continuous heavy-load fatigue testing before delivery to eliminate early gear wear failure. For industrial equipment such as large fixture clamping, hydraulic auxiliary push replacement, dump truck tailgate lifting, and industrial baffle opening and closing, the 6000N top thrust of this Heavy Duty Linear Actuator completely replaces bulky manual screw jacks and small hydraulic cylinders, realizing all-electric clean drive without hydraulic oil leakage pollution.
No-load speed ranges from 5mm/s to 35mm/s, and full-load speed is matched according to load to ensure effective working efficiency under heavy load. High-thrust low-speed models are suitable for precise heavy clamping positioning, while low-thrust high-speed versions adapt to frequent fast switching actions of industrial baffles.
2.3 Wide Operating Temperature Adaptability for Complex Environments
Industrial and outdoor equipment faces drastic temperature changes: low-temperature freezing in northern winter construction sites, high-temperature heat accumulation in summer outdoor agricultural machinery, and constant temperature fluctuation inside factory workshops. The FD13 Heavy Duty Linear Actuator supports stable operation within -20°C to +40°C, covering most global outdoor industrial working temperature ranges. Special low-temperature grease is filled inside the gearbox to avoid gear grease solidification and startup difficulty under minus-temperature conditions, a common fault of ordinary Heavy Duty Linear Actuator used in cold regions.
Built-in factory pre-installed limit switches are configured at both ends of the stroke to cut off the power supply automatically when the actuator extends to the maximum stroke or retracts to the shortest position. This hard limit protection prevents motor burnout caused by over-travel collision even under heavy-load rigid top pressure, greatly improving the safety of automated industrial equipment.
3. Stroke, Voltage & Synchronization Customization Capacity of FD13 Heavy Duty Linear Actuator
3.1 Customizable Stroke Length 30mm to 1000mm

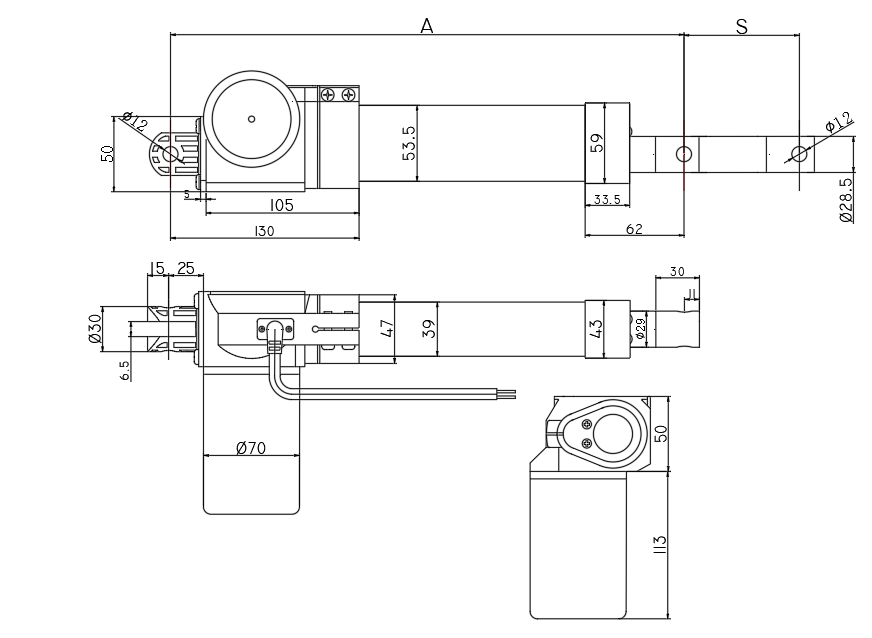

Standard fixed-stroke actuators cannot adapt to personalized travel requirements of special industrial machinery. The FD13 Heavy Duty Linear Actuator supports customized effective stroke length from 30mm to 1000mm, which can be processed according to customer 2D/3D drawings. The minimum installation distance of this Heavy Duty Linear Actuator follows the fixed calculation formula: Stroke + 160mm. Mechanical designers can accurately reserve installation space in the equipment frame in advance based on this parameter to avoid rework caused by size mismatch.
Short-stroke customized versions (30mm–150mm) are widely used for industrial fixture clamping and short-distance positioning adjustment; medium stroke (200mm–600mm) applies to equipment door opening and closing, lifting platform auxiliary adjustment; long-stroke (700mm–1000mm) is used for outdoor large gate lifting, agricultural equipment turnover adjustment. Unlike the FD5 small linear actuator which targets short-stroke indoor low-load synchronization, the FD13 Heavy Duty Linear Actuator’s synchronization function is oriented to multi-point heavy-load synchronous lifting platforms.
3.2 Dual 12VDC / 24VDC Standard Voltage & Custom Power Support
DC 12V and 24V are the two most mainstream power supply voltages for industrial vehicle-mounted equipment, outdoor battery-powered machinery, and low-voltage industrial control cabinets. The FD13 Heavy Duty Linear Actuator uses these two voltages as standard power input, perfectly matching vehicle battery power, industrial DC switching power supplies, and mobile power stations for field operation. For special industrial control systems with customized voltage needs, our engineering team can adjust the motor winding for non-standard voltage bulk orders.
When multiple FD13 Heavy Duty Linear Actuator units need to perform synchronous lifting for large industrial platforms, users can select the actuator’s built-in optional synchronous structure for paired installation. Please be clarified that our FD13 Heavy Duty Linear Actuator is not equipped with Hall sensors, and there is no matched independent linear actuator synchronous control unit for high-precision synchronous adjustment. Complete zero-error synchronous operation cannot be realized, and a natural position error of 1–2mm will be generated during the stretching operation of two linked actuators. For industrial lifting equipment that does not require ultra-rigorous synchronous positioning accuracy, two FD13 Heavy Duty Linear Actuator units can be directly assembled and used together. Even with minor 1–2mm position deviation, obvious platform tilt, frame deflection and concentrated overload damage caused by large asynchronous deviation can be avoided, meeting the stable operation needs of conventional heavy-duty lifting platforms and multi-column industrial lifting frames with ordinary synchronous precision requirements.
4. Key Application Scenarios of FD13 Heavy Duty Linear Actuator
4.1 Outdoor Construction & Agricultural Engineering Machinery
Outdoor construction machinery auxiliary adjustment is the core application of this Heavy Duty Linear Actuator. Construction vehicle carriage turnover, engineering baffle angle adjustment, agricultural harvester turnover mechanism, irrigation equipment electric push adjustment all rely on the IP66 waterproof and high-thrust advantages of the FD13 Heavy Duty Linear Actuator. Field working environments are full of mud, rain, crop debris dust, and the IP66 sealing structure ensures long-term trouble-free operation without regular disassembly maintenance.
4.2 Factory Heavy-Duty Automated Production Line Equipment
Inside the industrial workshop, heavy fixture clamping, production line baffle switching, heavy material lifting auxiliary mechanisms use the FD13 Heavy Duty Linear Actuator for electric drive. The 10% duty cycle specification (continuous work 2 minutes, rest 18 minutes for heat dissipation) matches the intermittent action logic of automated production line actuators, avoiding long-time continuous operation overheating failure. CE certification supports direct export to EU industrial equipment manufacturers for assembly.
4.3 Outdoor Smart Infrastructure & Sanitation Equipment
Outdoor garbage truck tailgate lifting, smart flood gate opening and closing, outdoor large advertising screen angle adjustment, and new energy solar panel angle adjustment all adopt the FD13 Heavy Duty Linear Actuator. The low-noise operation below 48dB avoids excessive mechanical noise interference for urban public equipment, balancing high power output and moderate working noise. For fixed installation on equipment frames, users can select matched heavy duty linear actuator mounting brackets to achieve hinge-type fixed installation at both ends to bear bidirectional push-pull load stably.
5. Performance Parameter Analysis & Professional Engineering Reference

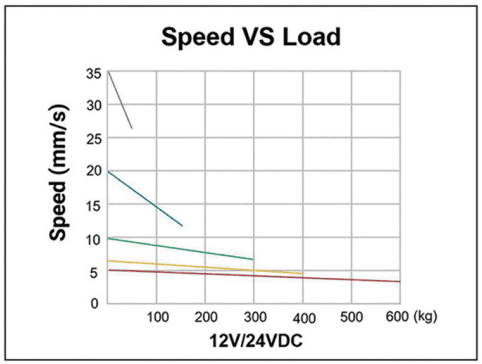

All performance test data of the FD13 Heavy Duty Linear Actuator is recorded in the Speed VS Load and Current VS Load characteristic curves attached to the product specification sheet. As the pushing load increases, the telescopic speed decreases linearly, and the operating current rises synchronously. Electrical engineers can refer to these curves to calculate the rated current of the supporting DC power supply to prevent power supply undercurrent leading to insufficient actuator thrust during startup.
To verify the mechanical design rationality of a Heavy Duty Linear Actuator applied to industrial equipment, engineers can refer to authoritative mechanical design knowledge published on Engineering ToolBox. For global verified industrial actuator supplier comparison and component procurement reference, Thomasnet provides massive industrial drive component case data to optimize equipment selection decisions.
The overall material configuration of the FD13 Heavy Duty Linear Actuator focuses on wear resistance and impact resistance. The iron output shaft undergoes quenching treatment to improve surface hardness and resist lateral shear force during heavy-load operation. Zinc alloy gearbox effectively absorbs vibration during heavy-load startup to reduce internal gear impact wear and extend the overall service life of the Heavy Duty Linear Actuator.
6. Installation, Commissioning & Daily Maintenance Guide
6.1 Standard Installation Steps
The two ends of the FD13 Heavy Duty Linear Actuator are reserved with standard hinge mounting holes for direct pin connection or fixed installation with matching mounting brackets. Ensure the actuator runs along a straight telescopic axis during installation; avoid long-term lateral force on the output shaft, which will cause eccentric wear of the guide sleeve and shorten the service life of the Heavy Duty Linear Actuator. The parallel motor layout will not collide with the equipment frame during stroke movement, simplifying spatial layout design for heavy machinery.
6.2 Routine Maintenance for Service Life Extension
- Regularly wipe the telescopic rod surface to remove dust, mud and industrial oil stains to prevent abrasive particles from entering the internal sealing ring and damaging the IP66 waterproof performance;
- Strictly follow the 10% duty cycle working rule, prohibit continuous operation exceeding 2 minutes to prevent motor overheating burnout;
- Check the wiring terminals and waterproof connectors quarterly to ensure tight connection and no water ingress at the wiring position;
- For synchronous multi-actuator systems, calibrate the zero stroke position of each Heavy Duty Linear Actuator every six months to maintain synchronous accuracy.
7. Core Product Advantages Summary for Purchasers
- IP66 high-level waterproof and dustproof, adapting to outdoor and wet industrial harsh working conditions;
- Up to 6000N maximum push force, multi-gear load options to cover all heavy-load industrial push-pull demands;
- Customizable stroke 30mm–1000mm and 12V/24V dual voltage to meet personalized equipment design;
- Optional synchronous linkage function for multi-point heavy-load synchronous lifting platforms;
- CE certified, stable quality batch delivery, low after-sales failure rate for industrial complete machine manufacturers.
8. RFQ
Q: Can this FD13 heavy duty linear actuator work normally in rainy outdoor environments?
A: Yes, IP66 waterproof grade supports rain and high-pressure water flushing outdoor use.
Q: What is the maximum pushing force of the FD13 heavy duty linear actuator?
A: Peak push force reaches 6000N for super heavy industrial jacking tasks.
Q: Can I customize the stroke length of the FD13 heavy duty linear actuator?
A: Stroke customizable from 30mm to 1000mm according to your mechanical drawing.
Q: What is the protection rating of the FD13 heavy duty linear actuator?
A: Official IP66 dustproof and waterproof protection level.
Q: Will the 1–2mm synchronization error of dual FD13 heavy duty linear actuator cause platform deformation?
A: No, the tiny error will not cause frame tilt or overload damage for ordinary lifting equipment.
