SANXING FD1 Linear Actuator – 8000N Heavy-Duty Linear Motion Solution for Medical, Healthcare, and Home Automation
The FD1 Linear Actuator stands out among numerous electric actuators with its super 8000N heavy thrust, optional Hall position sensing function and dual-scenario adaptability for medical and home use. This heavy-duty electric actuator abandons the bulky design of traditional high-thrust actuators, integrates silent operation, waterproof and dustproof performance, and customizable parameters, and is the preferred motion drive component for medical bed electric actuator and smart home lifting equipment.
Different from ordinary small linear actuators, the FD1 Linear Actuator balances extreme thrust performance and application flexibility. It can not only bear heavy load lifting in medical equipment for a long time, but also meet the silent and durable use requirements of household intelligent furniture. Equipped with an optional high-precision Hall sensor, this actuator realizes real-time position feedback and synchronous linkage of multiple devices, solving the pain points of inaccurate positioning and asynchronous operation of traditional electric push rods.
Core Technical Specifications of FD1 Linear Actuator
The excellent performance of the FD1 Linear Actuator comes from standardized and precise parameter configuration. All specifications are optimized for medical scenario safety and home scenario applicability, with strong compatibility and stable fault tolerance, fully meeting the customization needs of OEM manufacturers and engineering projects. The detailed parameters are as follows:
| Parameter | Details |
|---|---|
| Input Voltage | 12VDC / 24VDC (dual voltage compatibility for global applications) |
| Max. Push Force | 8000N (peak performance for heavy-duty lifting tasks) |
| Max. Pull Force | 6000N (robust pulling power for balanced motion) |
| Speed Options | No-load speeds from 4mm/s to 35mm/s, with full-load speeds ranging from 2.2mm/s to 22mm/s (varies by force rating) |
| Stroke Length | 26mm to 1000mm (customizable to fit your project requirements) |

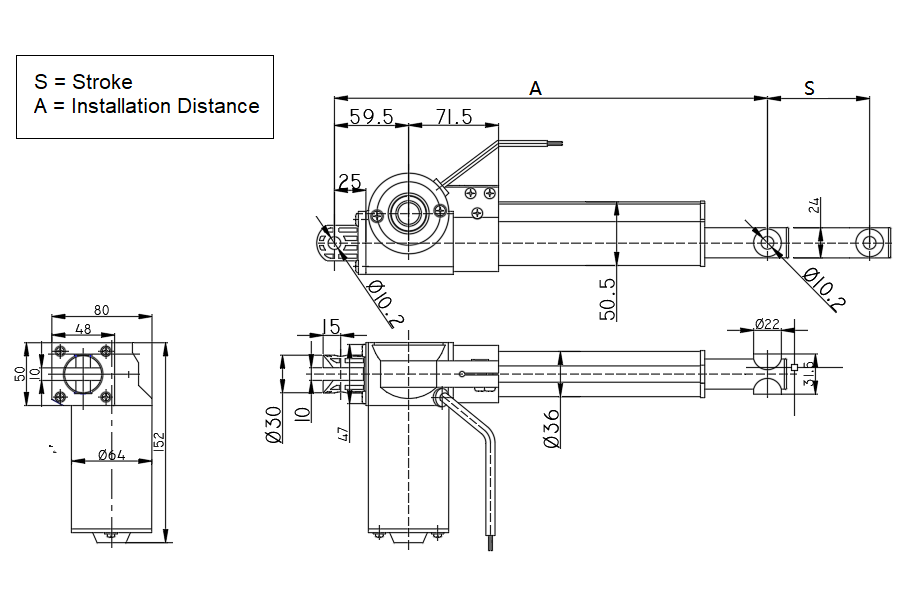

| Min. Installation Distance | Stroke + 150mm (compact footprint for tight spaces) |
| Operating Temperature | -20°C to +40°C (designed for consistent performance in diverse environments) |
| Limit Switches | Built-in, factory-calibrated for safety and precision control |
| Duty Cycle | 10% (2 minutes continuous operation, 18 minutes rest) – optimized for typical automation cycles |
| Noise Level | ≤48dB (quiet operation ideal for healthcare and residential settings) |
| Material | Aluminum alloy housing, plastic components, zinc alloy brackets, and iron drive parts (lightweight yet durable construction) |
| IP Rating | IP44 (dust and water-resistant for reliable use in various environments) |
| Certifications | CE-approved (meets international safety standards for medical and consumer applications) |
| Optional Features | Hall sensor for position feedback, synchronization capability for multi-actuator systems |
Among all 8000N heavy-duty linear actuator products on the market, the FD1 Linear Actuator has a more scientific force-speed matching ratio. Under full 8000N load, it still maintains a stable running speed of 2.2mm/s, which ensures stable lifting of heavy equipment without jitter. The built-in limit switch design effectively avoids equipment damage caused by over-travel, and the IP44 dustproof and waterproof grade adapts to complex indoor use environments, which is far more practical than ordinary low-power electric push rods.
Core Advantages of FD1 Linear Actuator
1. 8000N Super Heavy Thrust, Strong Load-Bearing Capacity
The core advantage of the FD1 Linear Actuator is its industry-leading 8000N maximum thrust, which can easily cope with various heavy-load lifting scenarios. Whether it is lifting a fully loaded medical nursing bed or driving large intelligent household furniture, it can maintain stable power output. Compared with hydraulic transmission equipment, this electric actuator has no oil leakage risk, low later maintenance cost, and higher safety, which is very suitable for long-term continuous use in public medical places and family spaces. As professional motion control industry analysis shows, high-load electric linear actuators with stable mechanical structure are gradually replacing traditional hydraulic and pneumatic drive solutions in civilian and medical scenarios, thanks to their zero-maintenance and high-safety characteristics. Professional motion control research indicates that screw-driven electric actuators stand out in civilian and medical automation scenarios for their stable load-bearing and maintenance-free features, perfectly matching the structural design advantages summarized by igus, a global authoritative linear motion component brand.
2. Optional Hall Sensor, Precise Position Synchronization Control
The customizable linear actuator with Hall sensor function is a major highlight of the FD1 Linear Actuator. The Hall sensor can monitor the real-time operating position of the push rod with high precision, feed back data to the control system in real time, and realize accurate positioning and stroke memorization. In multi-rod linkage equipment such as double-support medical beds and intelligent reclining sofas, multiple FD1 Linear Actuators can realize synchronous operation, effectively avoiding equipment deviation and jitter caused by asynchronous movement, and greatly improving the running accuracy of automated equipment. According to the classification and performance comparison of linear actuators summarized by authoritative motion control institutions, lead-screw electric actuators equipped with precise position feedback sensors have obvious advantages in synchronous linkage and precision positioning, and are the mainstream choice of high-end automation equipment. As analyzed in the professional technical blog of Kollmorgen, lead screw actuators feature stable self-locking performance and strong load resistance, which perfectly explains the excellent positioning and synchronous operation performance of the FD1 Linear Actuator in complex linkage scenarios.
3. Ultra-Quiet Operation, Fit for Medical and Household Scenarios
The whole running noise of the FD1 Linear Actuator is less than 48dB, which is lower than daily conversation noise. This ultra-quiet design perfectly adapts to the quiet environment requirements of hospitals, nursing homes and family bedrooms. Different from traditional noisy mechanical actuators, it will not cause noise interference to patients and family members when adjusting equipment height and angle, and is one of the most suitable drive components for smart home lifting actuator systems. Modern smart home and medical care scenarios have extremely strict requirements on equipment noise, and low-noise linear drive components have become the standard configuration of high-quality intelligent equipment.
4. Durable & Safe, Meet International Certification Standards
The FD1 Linear Actuator adopts high-strength aluminum alloy shell and wear-resistant transmission parts, which has strong compression resistance and impact resistance. The IP44 waterproof and dustproof grade can resist daily dust erosion and accidental water splashing. At the same time, it has passed CE international safety certification, which fully complies with the safety production standards of medical equipment and household electrical appliances, and has higher stability and safety than non-standard actuators. Adopting self-lubricating structural design, the actuator avoids frequent lubrication maintenance, and the integrated wear-resistant parts greatly extend the service life, matching the durability standards of mainstream industrial-grade linear motion components.
Wide Application Scenarios of FD1 Linear Actuator
1. Medical and Healthcare Industry Applications

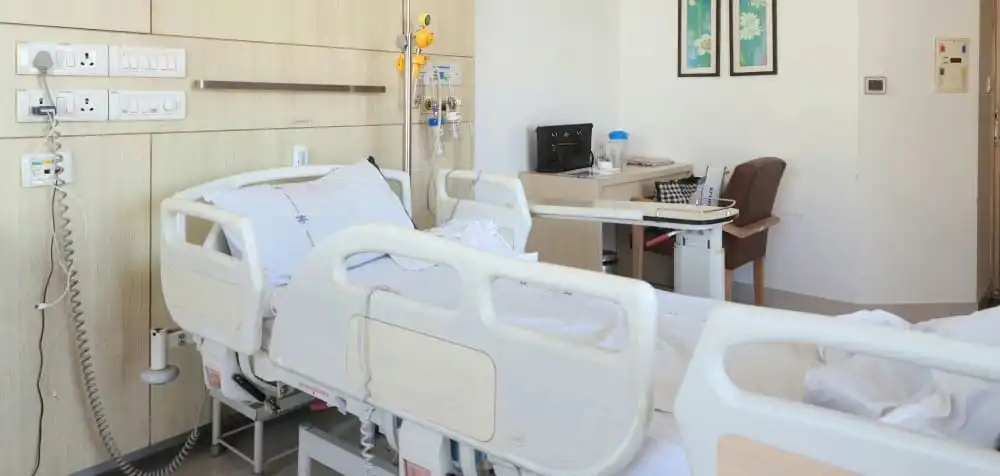

The medical industry has extremely strict requirements on the stability, safety and silence of motion components. Relying on 8000N high thrust and precise control performance, the FD1 Linear Actuator is widely used in various medical auxiliary equipment. It can drive the height adjustment, backrest reclining and leg support lifting of hospital nursing beds, easily bearing the weight of patients and mattresses, and bringing convenient nursing operation for medical staff. In addition, it is also applicable to dental treatment chairs, physical therapy rehabilitation beds, medical lifting platforms and other equipment, and is a stable and reliable medical dedicated linear actuator. Its maintenance-free, low-noise and high-safety features fully meet the long-term operation needs of medical institutions, and can adapt to 24-hour intermittent work in nursing homes and hospitals.
2. Smart Home Automation Applications

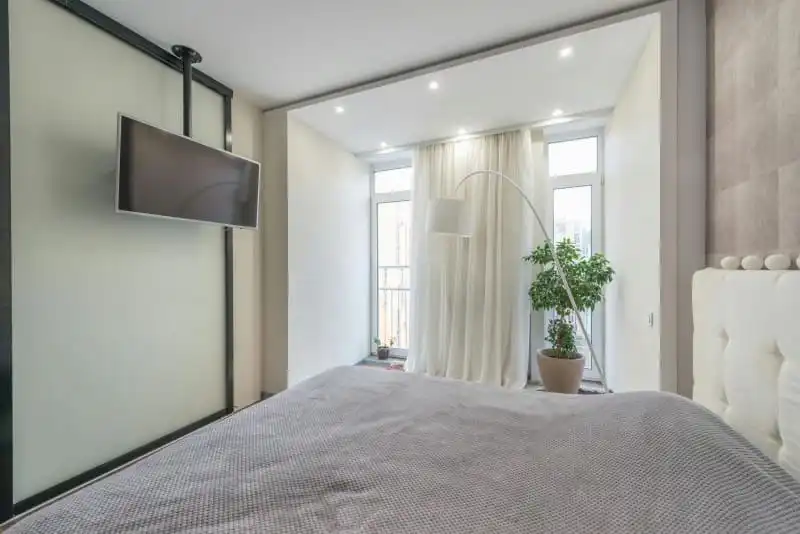

In the field of smart home, the FD1 Linear Actuator relies on its silent operation, compact structure and customizable stroke to empower various intelligent furniture. It can be used for electric adjustable beds, smart reclining sofas, motorized TV lifts, hidden cabinet lifting mechanisms, automatic window openers and other equipment. Its flexible parameter configuration can meet the personalized transformation needs of home automation, and create a more intelligent and convenient home living environment for users. The modular design of the actuator ensures simple installation and strong compatibility, which can be perfectly integrated with various civilian intelligent furniture and home automation systems.
Professional Installation and Use Suggestions
To give full play to the performance advantages of the FD1 Linear Actuator, standardized installation and parameter debugging are essential. First of all, ensure that the installation base is firm enough to bear the 8000N maximum thrust to avoid displacement during operation. Secondly, select 12VDC or 24VDC matching power supply according to the actual equipment power demand to ensure stable current output. For equipment that needs synchronous linkage, it is recommended to select the Hall sensor configuration and support it with a professional synchronous controller to ensure accurate and consistent operation of multiple actuators. In addition, daily use should follow the 10% duty cycle standard to avoid long-term continuous operation leading to motor overheating and affecting the service life. Reasonable installation and standardized use can effectively extend the service life of the linear actuator and maintain stable precision operation for a long time.
Why Choose FD1 Linear Actuator?
In the market of medium and heavy-duty linear actuators, the FD1 Linear Actuator has obvious comprehensive advantages. It breaks the industry dilemma that high-thrust actuators are bulky and low-thrust actuators have insufficient load capacity. It realizes the perfect integration of 8000N super thrust, silent operation, precise control and multi-scenario adaptation. With optional Hall sensing function, dual-voltage compatibility and CE safety certification, it is more cost-effective than competing products of the same grade. Whether it is medical equipment engineering supporting or smart home DIY transformation, it can provide stable and long-lasting linear motion power support.
Conclusion
As a high-performance heavy-duty motion component, the FD1 Linear Actuator relies on 8000N maximum thrust, optional Hall precise positioning function, ultra-quiet operation and IP44 waterproof and dustproof performance to fully cover the dual application scenarios of medical healthcare and smart home automation. Its customizable stroke, dual-voltage design and international safety certification make it adaptable to diverse engineering and civilian use needs. For users who pursue high stability, high precision and high cost performance, the FD1 Linear Actuator is the optimal choice for linear motion system upgrading and equipment supporting.
