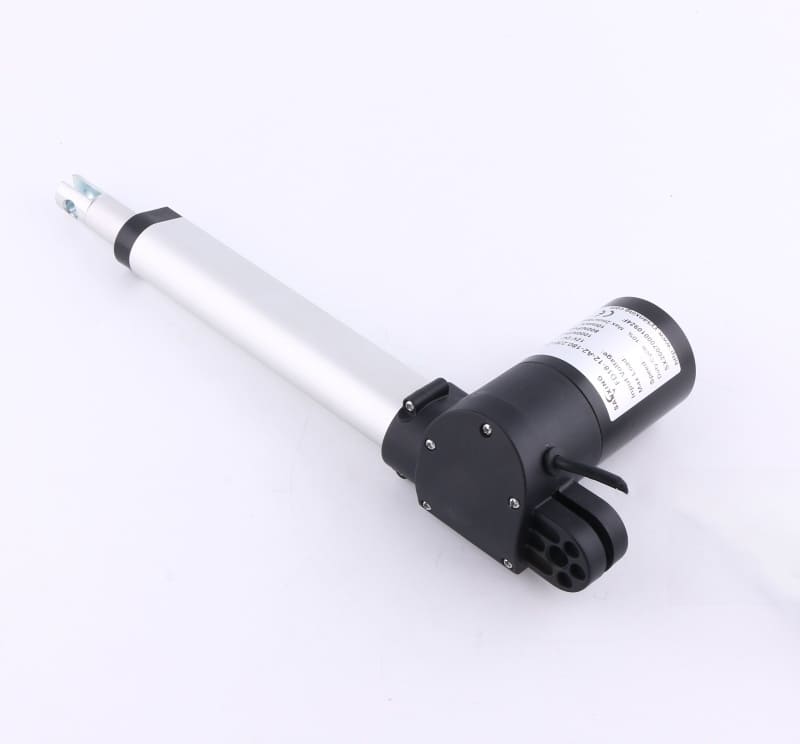

3000N electric linear motor actuator 12v 24v

3000N electric linear motor actuator 12v 24v represented by FD18 model is an economical medium-load telescopic driving component specially developed for medium thrust automation demands, balancing stable 3000N peak push force, dual 12V/24V universal voltage and ultra-cost competitive pricing. Different from high-thrust heavy-duty actuators like FD13 and FD15 with 6000N maximum load which bring higher production cost, 3000N electric linear motor actuator 12v 24v accurately targets equipment projects that do not require ultra-heavy thrust but pursue stable performance and lower procurement budget. Built with lightweight aluminum alloy shell, standard IP44 dustproof and splash-proof protection, multi-grade adjustable speed and optional synchronous linkage function, 3000N electric linear motor actuator 12v 24v becomes the mainstream cost-effective replacement option for low to medium load intelligent furniture, home rehabilitation equipment and light industrial adjustment machinery. With built-in factory pre-installed bidirectional limit switches and ultra-low running noise below 48dB, 3000N electric linear motor actuator 12v 24v can meet long-term intermittent cyclic operation of civil and light medical equipment, and its standardized structural design greatly simplifies assembly work for furniture and automation manufacturers.

In the global linear actuator procurement market, many equipment developers face a common dilemma: FD1, FD13 and FD15 series have excellent load and waterproof performance, but their high material cost will compress product profit margin when the actual equipment only needs thrust within 3000N. At this time, 3000N electric linear motor actuator 12v 24v fills this market blank perfectly. FD18 series of 3000N electric linear motor actuator 12v 24v retains all practical core functions of high-end heavy-duty actuators including synchronous control customization, customizable stroke length and low-noise transmission structure, while optimizing internal material configuration and mold design to cut unnecessary cost waste brought by redundant high-thrust structure. Whether it is mass-produced elderly lift chairs, home rehabilitation beds or small light industrial adjustment frames, 3000N electric linear motor actuator 12v 24v can provide reliable linear motion output without overspending on excess load performance, greatly improving product market competitiveness for finished equipment brands.

For buyers with limited budget and medium load demand, compared with FD1, FD13 and FD15 linear actuator series, FD18 3000N electric linear motor actuator 12v 24v is a highly recommended balanced choice. If your finished equipment does not need over 3000N heavy push force, choosing FD18 can effectively reduce single-unit procurement cost while retaining complete functional configurations such as synchronous linkage, customizable stroke and built-in limit protection. While FD13 and FD15 adopt reinforced thickened gear and thick shell structure to support 6000N super thrust with higher material cost, 3000N electric linear motor actuator 12v 24v uses reasonably matched gear and shell thickness according to 3000N rated load, which cuts redundant production cost without sacrificing safety and service life under rated working condition. In mass wholesale market competition, finished products equipped with 3000N electric linear motor actuator 12v 24v have obvious price advantage over competitors using FD13/FD15, helping brands seize more medium-end home care and light industrial equipment market share.

Complete Technical Specifications of FD18 3000N electric linear motor actuator 12v 24v

All parameter configurations of FD18 are calibrated centering on the medium-load cost-effective positioning of 3000N electric linear motor actuator 12v 24v, balancing thrust, speed, installation space and budget control:

表格

Parameter Item	Specific Specification Data
Rated Working Voltage	Dual optional 12VDC / 24VDC, universal for civil automation equipment
Maximum Push Thrust	Four optional grades: 3000N / 2000N / 1000N / 500N, core flagship 3000N
Maximum Pull Thrust	Matched with push force: 2000N / 1500N / 800N / 300N
No-Load Telescopic Speed	8 / 10 / 17 / 30 mm/s four graded speed selection
Full-Load Stable Speed	4 / 5 / 10 / 20 mm/s, no jitter under rated load
Customizable Stroke Range	30mm ~ 1000mm arbitrary stroke customized per client drawing

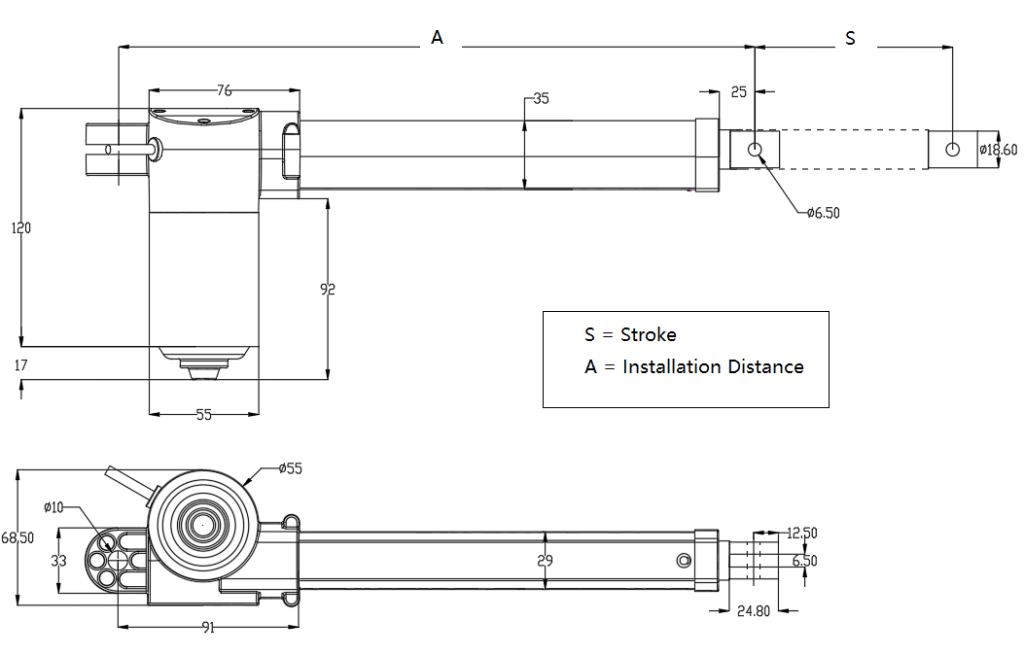

Minimum Installation Distance	Stroke +130mm, ultra-compact mounting size saving equipment internal layout space
Operating Temperature Scope	-20℃ ~ +40℃, adapt indoor constant temperature and mild outdoor environment
Built-in Safety Protection	Double-end mechanical limit switch, auto power-off to avoid over-travel damage
Standard Duty Cycle	10% working cycle: continuous work 2 minutes + rest 18 minutes
Running Noise Level	≤48dB ultra-quiet operation, suitable for bedroom and ward quiet environment
Housing Raw Material	Lightweight high-strength aluminum alloy + engineering plastic + wear-resistant iron internal gears
Outer Shell Color	Black / Grey two mainstream color options matching furniture appearance
IP Protection Grade	IP44 standard dustproof and anti-splash, meet daily cleaning and dust prevention demand
International Certification	CE safety certification, comply with civil and light medical equipment export standards
Optional Expanded Function	Synchronization control module, support multi-actuator simultaneous linkage lifting

Four groups of graded thrust and speed matching is the core cost-control highlight of this 3000N electric linear motor actuator 12v 24v, allowing purchasers to select corresponding load and speed model according to actual equipment demand, avoiding extra cost brought by purchasing high-thrust models such as FD13 and FD15 blindly.

Core Application Scenarios of 3000N electric linear motor actuator 12v 24v

1. Elderly Lift Recliners & Home Care Adjustable Chairs

Medium-load elderly lift chairs and multi-angle nursing recliners are the largest downstream application of 3000N electric linear motor actuator 12v 24v. As a medium thrust synchronized linear drive, its maximum 3000N push force fully supports the whole chair and elderly user’s weight to complete sitting-up, lying-down and leg rest lifting actions stably. The dual 12V/24V voltage can match both built-in rechargeable power supply and household transformer power supply of furniture. IP44 splash-proof grade resists daily beverage spills and dust accumulation in living room, and ≤48dB mute operation will not disturb family rest during adjustment. Compared with matching FD13 or FD15 heavy-duty actuators for lift chairs which only need 2000-3000N thrust, adopting FD18 3000N electric linear motor actuator 12v 24v can greatly reduce furniture production cost, making finished lift chairs have more competitive selling price in offline physical stores and e-commerce platforms. Mass furniture manufacturers prefer this model to balance product quality and profit space.

2. Home Rehabilitation & Light Medical Beds

Household rehabilitation beds, auxiliary physiotherapy stretching frames and lightweight nursing beds do not require 6000N super heavy thrust, making 3000N electric linear motor actuator 12v 24v the optimal cost-effective driving choice. It can realize multi-angle adjustment of bed backrest, leg support and whole bed height, helping patients with limited mobility adjust body posture independently to relieve pressure sores and improve blood circulation. The compact minimum installation dimension of Stroke+130mm saves more internal bed frame space than FD13 and FD15 series with longer installation distance, which is more suitable for small-size home rehabilitation beds placed in narrow bedrooms. Optional synchronous control function supports double-actuator balanced lifting of bed body to prevent tilt during adjustment, and CE certification meets export standards of home medical equipment to European and American markets. For small and medium-sized home medical equipment factories with tight budget, replacing high-cost FD13 with 3000N electric linear motor actuator 12v 24v will not reduce product use experience, but significantly improve gross profit margin of each set of rehabilitation bed.

3. Smart Custom Furniture & Adjustable Sofa Beds

Custom intelligent storage cabinets, height-adjustable sofa beds and hidden TV lifting frames all belong to medium-load short-stroke automation scenes, perfectly matching the performance positioning of 3000N electric linear motor actuator 12v 24v. Multi-speed optional configuration can meet fast pop-up of cabinet doors and slow stable lifting of sofa bed frame respectively. Aluminum alloy slim shell can be embedded inside furniture without destroying interior decoration style, IP44 dustproof structure avoids internal gear jam caused by long-term indoor floating dust. Since smart furniture generally bears load below 3000N, purchasing FD18 instead of FD1, FD13 and FD15 can effectively control raw material cost, so furniture brands can set more attractive retail prices to attract mass consumer groups and occupy more market share in medium-end custom furniture track.

4. Small Light Industrial Adjustment Equipment

Mini packaging machine baffle adjustment, laboratory small test bench displacement correction and workshop miniature lifting platform all need medium-thrust linear driving components, and 3000N electric linear motor actuator 12v 24v can provide stable and repeatable telescopic output. Wide temperature range of -20℃~+40℃ adapts indoor workshop constant temperature working environment, built-in limit switch reduces equipment failure rate caused by overtravel operation. As a cost-effective medium-load linear drive, it is favored by small automation equipment manufacturers who pursue stable performance and low procurement cost, and has obvious price advantage compared with FD13 and FD15 heavy-duty actuators with redundant high-thrust performance.

5. RV Mini Auxiliary Automation Structures

Recreational vehicle hidden storage cabinet doors, miniature lifting dining tables and small sunshade expansion mechanisms use medium-load linear actuators as power core, and dual 12V/24V voltage of 3000N electric linear motor actuator 12v 24v is fully compatible with RV vehicle-mounted battery power supply system. Compact installation size adapts narrow internal layout space of RV, low-noise operation will not produce harsh mechanical sound during vehicle rest period, and IP44 protection grade resists outdoor wind dust and occasional rain splash during parking. RV modification manufacturers widely select FD18 to reduce the overall transformation cost of vehicle intelligent auxiliary structures.

Comprehensive Cost Performance Advantage: FD18 VS FD1 / FD13 / FD15 Linear Actuator

For equipment purchasers confused about model selection under medium-thrust demand, we systematically sort out the core competitive edge of FD18 3000N electric linear motor actuator 12v 24v compared with FD1, FD13 and FD15 series:

1. Thrust matching without performance waste: FD13 and FD15 peak thrust reach 6000N, which far exceeds the load demand of most home care furniture and light industrial equipment within 3000N. Excessive heavy-load structure leads to higher material and processing cost, while 3000N electric linear motor actuator 12v 24v adopts targeted load design, cutting redundant cost without affecting rated load working stability.
2. More compact installation space: FD18 minimum installation length is Stroke+130mm, shorter than FD13 and FD15’s Stroke+160mm design, which brings greater structural design freedom for finished equipment developers, especially small-size home furniture and miniature automation equipment with limited internal space.
3. More favorable unit price under mass order: Under the premise of retaining core functions such as customizable stroke, synchronous option and built-in limit protection, FD18 optimizes internal gear thickness, shell wall thickness and mold process according to 3000N rated load, so its wholesale unit price is obviously lower than FD13 and FD15, and the cost advantage will be more prominent when placing bulk orders of thousands of units.
4. Complete functional configuration without simplification: Unlike partial simplified low-cost FD1 model with single speed and no synchronous option, 3000N electric linear motor actuator 12v 24v reserves multi-speed selection and synchronous linkage customization function, which can meet diversified personalized modification demands of finished equipment manufacturers, balancing low price and complete functional richness.

In the current fiercely competitive linear actuator wholesale market, finished products equipped with 3000N electric linear motor actuator 12v 24v can maintain the same use experience as products using FD13/FD15, while having lower overall production cost, so they can set more competitive retail prices to win more customer groups in medium-end market segments. As analyzed by professional industry media Automation World, medium-load targeted actuators represented by FD18 have become a major development trend in the civil linear actuator industry, because they solve the pain point of cost waste caused by blindly matching high-thrust actuators for medium-load equipment.

Core Product Strengths of FD18 3000N electric linear motor actuator 12v 24v

1. Balanced medium thrust + controllable cost

The core competitive advantage of 3000N electric linear motor actuator 12v 24v is precise medium-load positioning. It breaks the market polarization that high-thrust actuators are expensive and low-thrust actuators have single performance, providing a balanced choice for manufacturers who need stable 3000N thrust and budget control.

2. Dual universal 12V/24V DC voltage

One model adapts two mainstream civil power supply specifications, reducing the inventory pressure of finished equipment factories without purchasing two different voltage actuator models separately, further lowering comprehensive procurement and storage cost.

3. Ultra-compact mounting dimension

Stroke+130mm minimum installation distance is smaller than FD13 and FD15 series, which is convenient for embedded hidden installation of various narrow-space furniture and miniature automation equipment, optimizing the overall appearance design of finished products.

4. Optional synchronous linkage function

Supports multi-unit synchronous lifting customization, meeting the balanced adjustment demand of double-actuator bed bodies, lifting platforms and large recliners, a configuration that many low-cost simplified actuators on the market cannot provide.

5. ≤48dB mute running performance

Precision matched gear and lead screw transmission structure effectively reduce friction vibration noise, suitable for quiet scenes such as bedroom, ward and living room, improving end-user experience of furniture and medical equipment.

6. IP44 daily dust and splash protection

Standard sealing structure can resist indoor dust, beverage spills and daily disinfectant wiping, fully meeting the hygiene maintenance demand of home care and light medical equipment, no need to upgrade high IP grade with extra cost for indoor use scenes.

Standard Installation & Long-Term Maintenance Guidelines for 3000N electric linear motor actuator 12v 24v

To extend the service life and maintain stable output performance of 3000N electric linear motor actuator 12v 24v in furniture and light industrial equipment, follow standardized operation and maintenance rules:

1. Mounting specification: Fix the actuator on flat and rigid equipment support frame, strictly avoid long-term lateral eccentric load, side force will aggravate internal gear wear and reduce actual output thrust of 3000N electric linear motor actuator 12v 24v.
2. Power supply matching: Select stabilized 12V or 24V DC power supply matching the actuator rated voltage, unstable voltage fluctuation will cause inconsistent telescopic speed and accelerate motor aging.
3. Strictly abide by 10% duty cycle: Do not carry out continuous long-hour overload operation beyond 2 minutes, to prevent internal motor overheating burnout and permanent damage of transmission structure.
4. Daily cleaning maintenance: Wipe aluminum alloy shell dust and stains regularly with dry cloth, IP44 grade allows short-time damp cloth wiping and disinfection, but prohibit long-term soaking in liquid to avoid sealing failure.
5. Synchronous linkage calibration: If multiple 3000N electric linear motor actuator 12v 24v are used together with synchronous function, uniformly calibrate controller signal before formal operation to eliminate height difference during simultaneous stretching.
6. Regular safety inspection: Check wiring tightness and limit switch sensitivity every three months, timely replace aging wiring to avoid equipment stalling and abnormal shutdown during use.

As a economical home care linear actuator, FD18 has extremely low daily maintenance threshold, no regular lubrication and complex disassembly maintenance required, greatly reducing the after-sales service pressure of furniture and medical equipment manufacturers. According to the test data released by Machine Design, medium-load targeted linear actuators with reasonable structural optimization have longer average service life than simplified low-cost actuators under the same medium load working condition, and the comprehensive cost performance is far higher than blindly purchasing high-thrust heavy-duty actuators such as FD1 big thrust linear actuator, FD13 IP66 electric linear actuator and FD15 6000N linear motor actuator.

Conclusion

3000N electric linear motor actuator 12v 24v represented by FD18 model is a cost-effective medium-load linear motion component specially developed for home care furniture, light medical rehabilitation equipment and miniature light industrial automation scenes. It retains complete practical functions including dual 12V/24V universal voltage, customizable stroke, optional synchronous control and built-in limit safety protection, while optimizing internal material and mold design according to 3000N medium-thrust demand to cut redundant procurement cost compared with FD13 and FD15 6000N heavy-duty actuators.

For equipment manufacturers whose finished products do not need ultra-heavy thrust above 3000N, 3000N electric linear motor actuator 12v 24v is a highly competitive alternative choice. It can maintain stable, quiet and safe linear adjustment performance consistent with high-thrust models, and bring obvious price advantage to finished products in market sales, helping brands seize more medium-end home care and small automation equipment market share. Whether applied to elderly lift recliners, home rehabilitation beds, custom smart furniture or miniature industrial adjustment equipment, 3000N electric linear motor actuator 12v 24v balances performance, function and budget perfectly, and will become the mainstream preferred medium-load linear drive accessory in the cost-sensitive civil automation industry in the long run.
