Installing your SXTL TV lift system is a straightforward process that brings professional results. This guide outlines the key steps. Always consult the official manual first.
Pre-Installation: Planning & Tools
Check the Kit: Ensure you have the lift mechanism, power supply, remote control(s), and all mounting hardware.
Measure Twice: Verify the internal dimensions of your cabinet or wall cavity. You need depth and width clearance for the lift mechanism itself plus the TV’s thickness. Remember the required stroke length to achieve your desired viewing height.
Tools Needed: Drill, screwdrivers, level, measuring tape, stud finder (for wall mounts), and basic wiring tools.
Installation Steps Overview

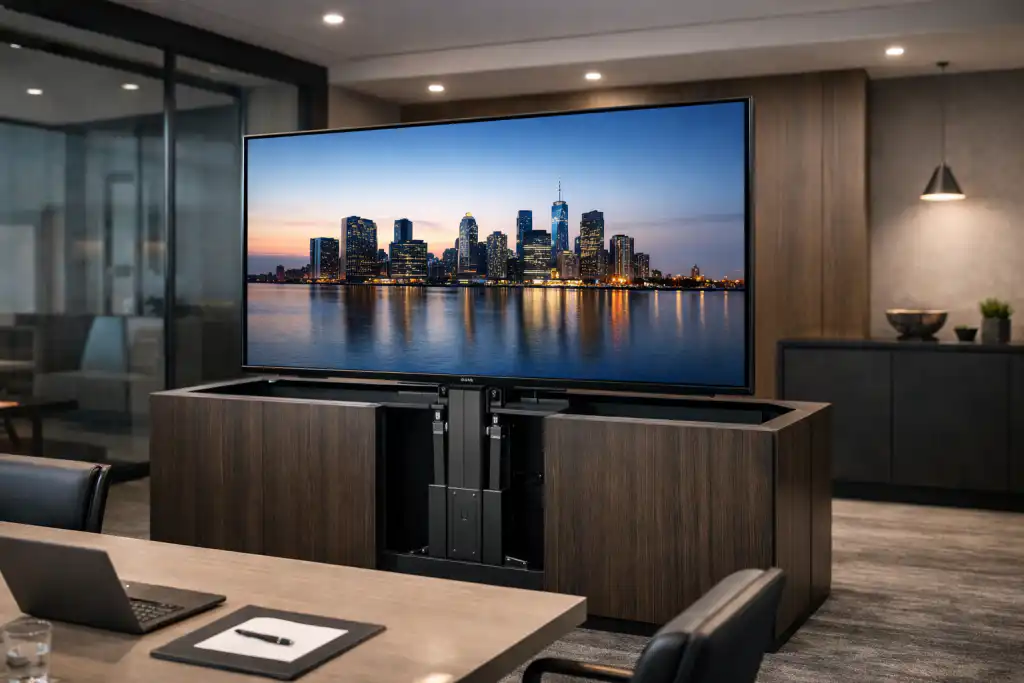

Mount the Lift Mechanism: Secure the lift to a solid, level base inside your furniture or wall framing. This base must support the entire system weight (TV weight + mechanism weight).
Attach the TV Bracket: Fix the provided bracket securely to the VESA mounting pattern on the back of your TV. Then, hang this bracket onto the lift mechanism.
Wire the System: Connect the lift motor to the control box/power supply as per the wiring diagram. Route cables safely to avoid pinching during movement. Connect the remote control receiver.
Set Limits & Test: Power on the system. Use the remote to test full extension and retraction. The built-in limit switches are pre-set, but fine-tuning may be possible (refer to manual).
Crucial Safety Tips
Structural Integrity is Key: The mounting surface must be absolutely rigid. For heavy TVs near the 100kg limit, reinforce the cabinet structure if necessary.
Respect the Duty Cycle: The system is rated for a 10% duty cycle (2 mins on, 18 mins off). Avoid continuous cycling during setup to prevent motor overheating.Clearance is Crucial: Ensure zero interference between the TV, its bracket, and the surrounding cabinet throughout the entire travel path.
