FD5-DW Linear Actuator
Basic Parameter
Basic Parameter
- Input Voltage (V): 12 / 24
- Max. Load Capacity (N): 900
- Max. Load in pull (N): 500
- No Load Speed (mm/s): 5~39
- Stroke Length-S (mm): 50mm ~ 600mm (stroke could be customized )
- Installation Distance-A (mm): Stroke + 140mm
- Operating Temperature: -25℃ ~ +65℃
- Limit Switch: Built-in, factory present
- Duty Cycle: 15%, stop for 17 minutes after continuously working 3 minutes
- Material: Aluminum Alloy, Zinc Alloy, Iron
- Color: Sliver
- IP Degree: IP54
- Certificate: CE
- With The Potentiometer: Can feedback the stroke position exactly
Product overview

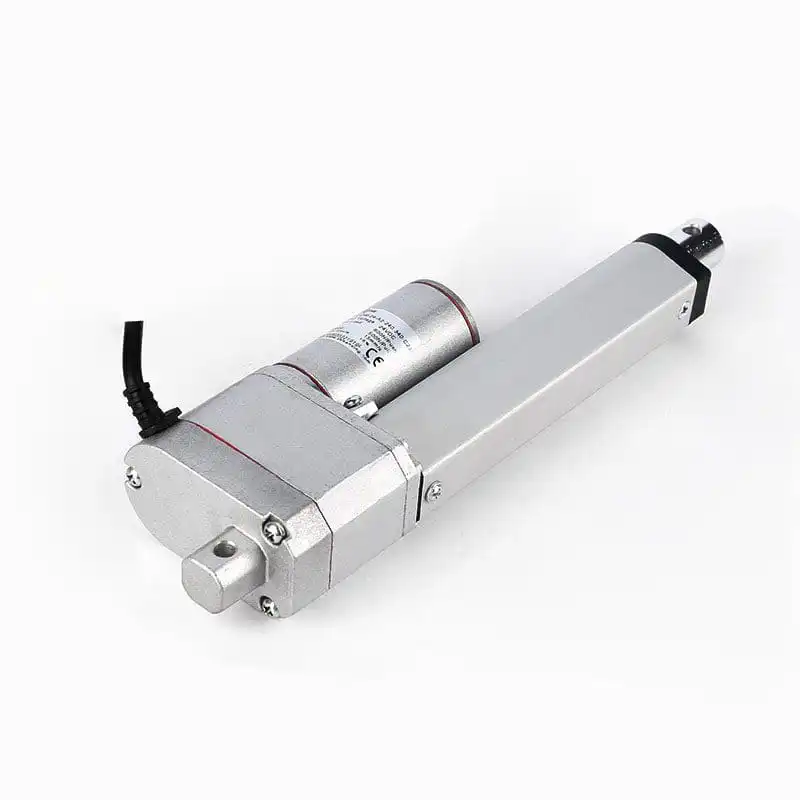

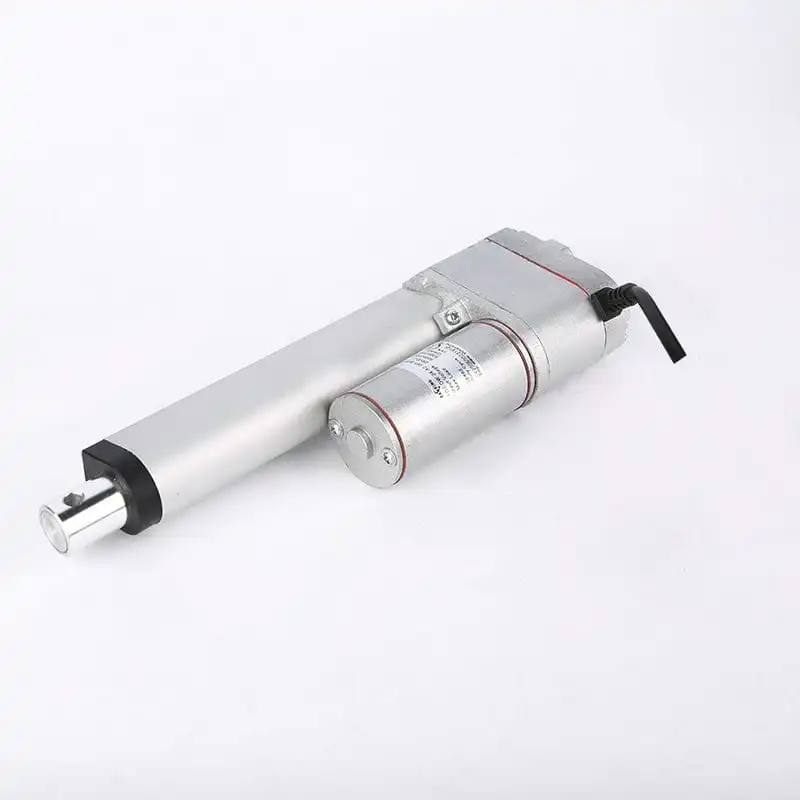

The FD5-DW is a high-performance linear actuator from SANXING, engineered for reliable linear motion control in a wide range of industrial and commercial applications. Featuring a robust aluminum alloy construction and a compact design, this actuator delivers precise and efficient movement with built-in safety features and position feedback capabilities. Its appearance is similar with the FD5 type, the biggest difference is the FD5-DW type with the potentiometer function.
Features and Benefits
High Load Capacity: Delivers a maximum push force of up to 900N and pull force of up to 500N, making it suitable for heavy-duty applications.
Customizable Stroke: Stroke length can be customized from 50mm to 600mm, offering flexibility for diverse project requirements.
Precise Positioning: Integrated potentiometer provides accurate stroke position feedback, while built-in limit switches ensure safe and reliable end-of-stroke control.
Durable Construction: Made from robust aluminum alloy, zinc alloy, and iron, with an IP54 rating, it withstands harsh operating environments (-25°C to +65°C).
Versatile Compatibility: Operates on 12V/24V DC power, easily integrating with switches, relays, or PLCs for flexible control.
Compliant and Reliable: CE-certified and designed with a 15% duty cycle, ensuring long-term performance and safety.
Control options
The FD5-DW linear actuator operates on a 12V/24V DC power supply, with direction of movement (extension/retraction) controllable via switches, relays, or programmable logic controllers (PLCs).
It is equipped with built-in limit switches that automatically stop the actuator at the end of its stroke, preventing over-travel and mechanical damage.
An integrated potentiometer enables precise stroke position feedback, supporting closed-loop control for applications requiring accurate positioning.
Applications
The FD5-DW linear actuator is ideal for a variety of applications that require reliable and precise linear motion, including:
Industrial automation
Agricultural machinery
Home automation (e.g., window openers, adjustable furniture)
Robotics and positioning systems
Product specifications
| Parameter | Details |
| Input Voltage | 12V / 24V DC |
| Max. Load-in-push | 900N, 750N, 600N, 450N, 350N, 300N, 100N |
| Max. Load-in-pull | 500N, 400N, 300N, 200N, 100N, 80N, 50N |
| No Load Speed | 5, 10, 16, 20, 27, 30, 39 mm/s |
| Full Load Speed | 3.5, 7, 9, 15, 18, 21, 29 mm/s |
| Stroke Length | 50mm ~ 600mm (customizable) |
| Min. Installation Distance | Stroke + 140mm |
| Operating Temperature | -25°C ~ +65°C |
| Duty Cycle | 15% (17 minutes continuous operation, followed by a 3-minute rest) |
| Material | Aluminum Alloy, Zinc Alloy, Iron |
| Color | Silver |
| IP Degree | IP54 |
| Certification | CE |
| Potentiometer | Included for precise stroke position feedback |
| Limit Switch | Built-in, factory preset |
Product dimension

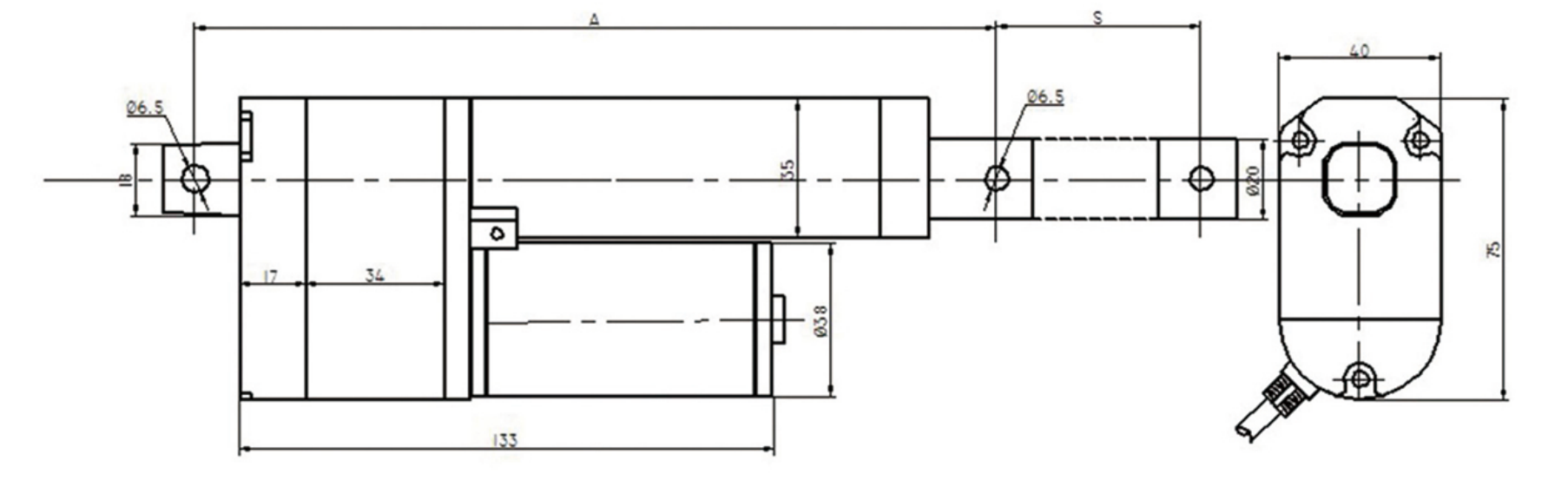

The actuator’s compact and versatile design is detailed in the included dimension drawings. These technical drawings provide precise measurements for all critical components, ensuring seamless integration into your system. The minimum installation distance is calculated as the stroke length plus 140mm, simplifying the design and planning process for engineers and system integrators.
Mounting points

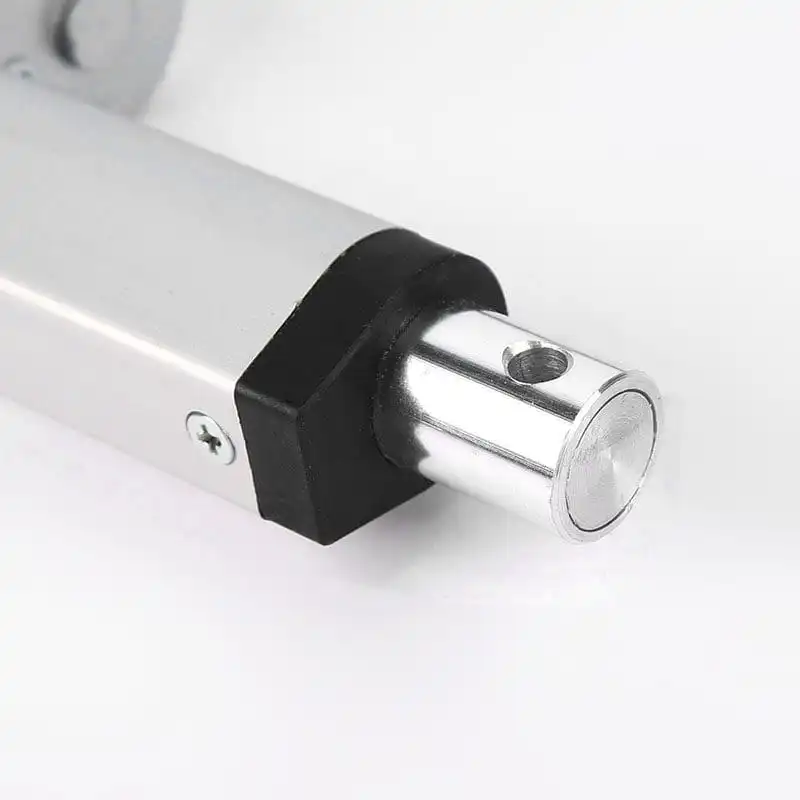

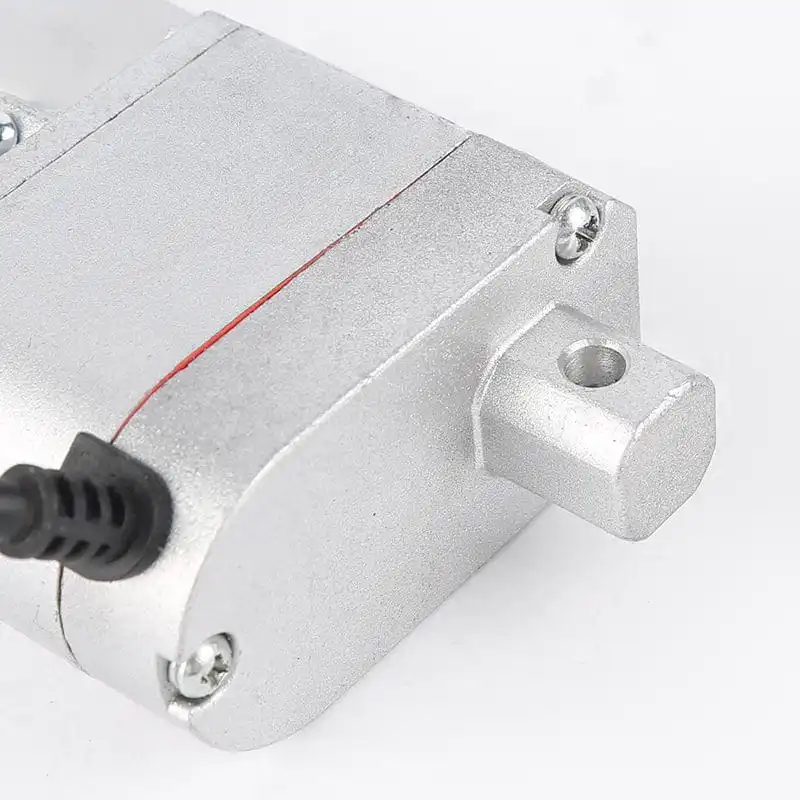

The actuator is typically mounted using clevis and trunnion-style brackets at both ends, allowing secure attachment to mating structures and accommodating minor alignment adjustments.
The minimum installation distance is calculated as the stroke length plus 140mm, ensuring sufficient space for full extension and retraction.
Custom mounting configurations can be adapted to meet specific application requirements.
Performance characteristic curves
The FD5-DW’s performance is defined by two key characteristic curves:

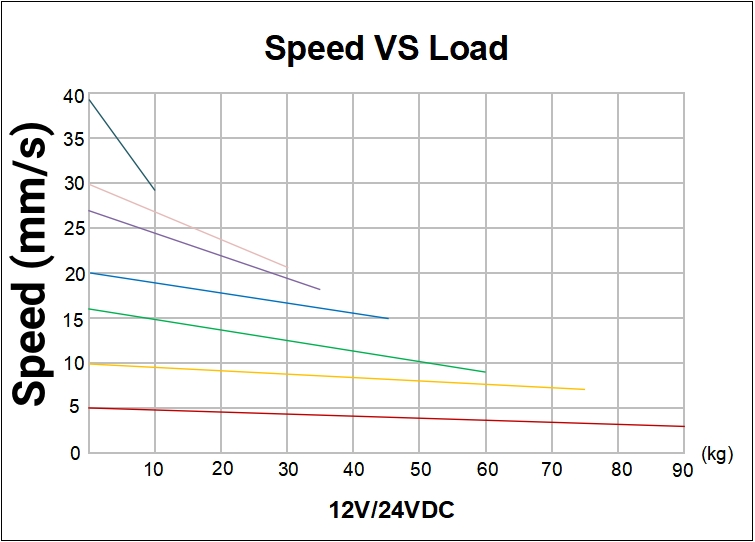

1.Speed vs. Load Curve: This graph illustrates the actuator’s speed (mm/s) decreasing as the applied load (kg) increases, a common behavior in linear motion systems. The data is provided for both 12V and 24V DC input voltages.

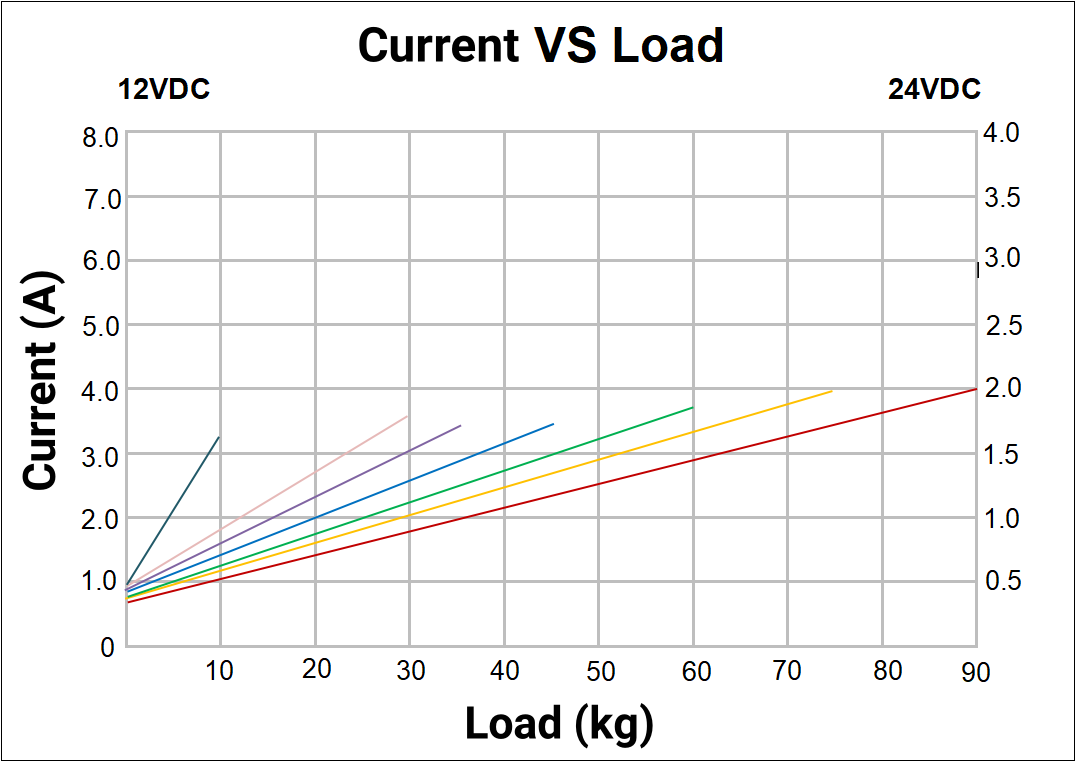

2.Current vs. Load Curve: This curve shows the relationship between the electrical current draw (A) and the applied load (kg). It clearly demonstrates that the current consumption increases proportionally with the load, with separate data points for 12V and 24V DC operation.
