FD9

Basic Parameter

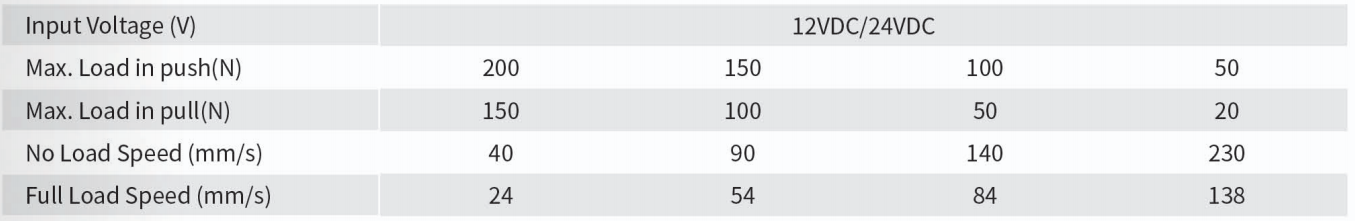

• Input Voltage (V):     12 / 24
• Max. Load Capacity (N):     200
• Max. Load in pull (N):     150
• No Load Speed (mm/s):     40~230
• Stroke Length-S (mm):     50mm ~ 300mm (stroke could be customized )

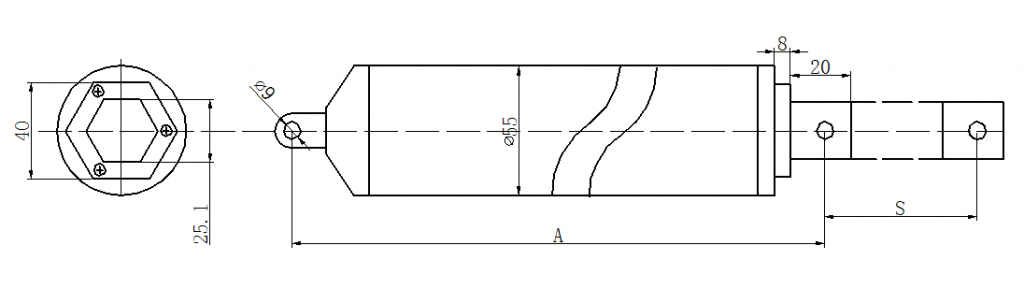

• Installation Distance-A (mm):     Stroke + 235mm
• Operating Temperature:     -26℃ ~ +65℃
• Limit Switch:     Built-in, factory present
• Duty Cycle:     20%, stop for 8 minutes after continuously working 2 minutes
• Material:     Aluminum Alloy, Plastic
• Color:     Sliver
• IP Degree:     IP54
• Certificate:   CE
