FD6

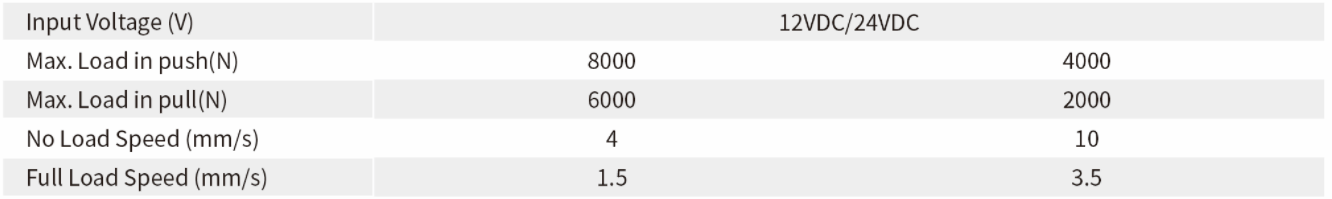

Basic Parameter

• Input Voltage (V):     12 / 24
• Max. Load Capacity (N):     8000 / 4000
• Max. Load in pull (N):     6000 / 2000
• No Load Speed (mm/s):     4 / 10
• Stroke Length-S (mm):     50mm ~ 450mm (stroke could be customized )

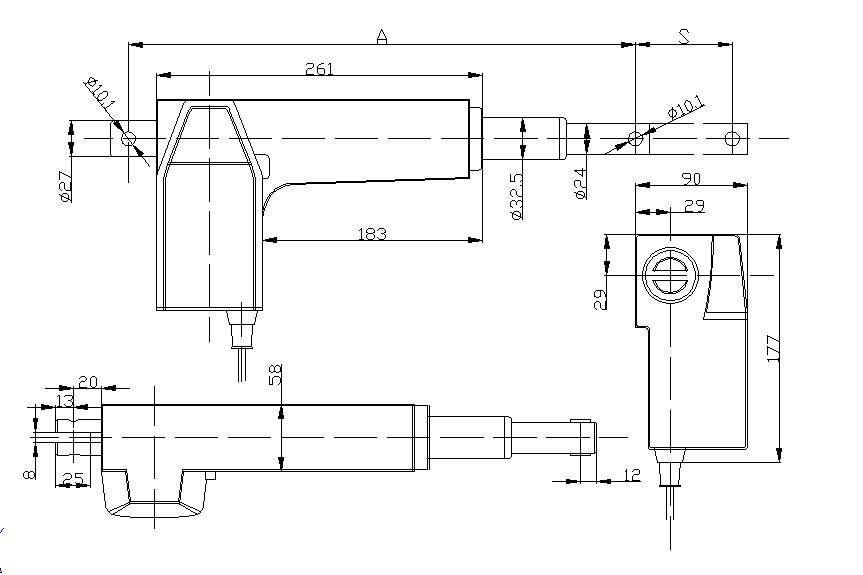

• Installation Distance-A (mm):     Stroke + 175mm ( ≥325mm )
• Operating Temperature:     -20℃ ~ +40℃
• Limit Switch:     Built-in, factory present
• Duty Cycle:     10%, stop for 18 minutes after continuously working 2 minutes
• Noise Level (dB):     ≤48dB
• Material:     Plastic, Iron
• Color:     Black / Grey
• IP Degree:     IP54
• Certificate:   CE
