FD5-DW

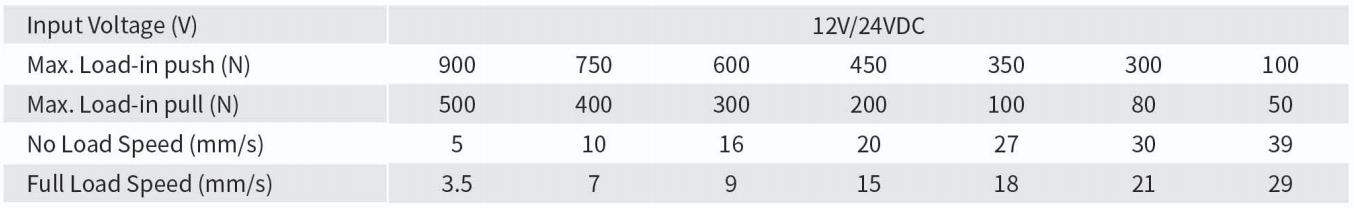

Basic Parameter

• Input Voltage (V):     12 / 24
• Max. Load Capacity (N):     900
• Max. Load in pull (N):     500
• No Load Speed (mm/s):     5~39
• Stroke Length-S (mm):     50mm ~ 600mm (stroke could be customized )

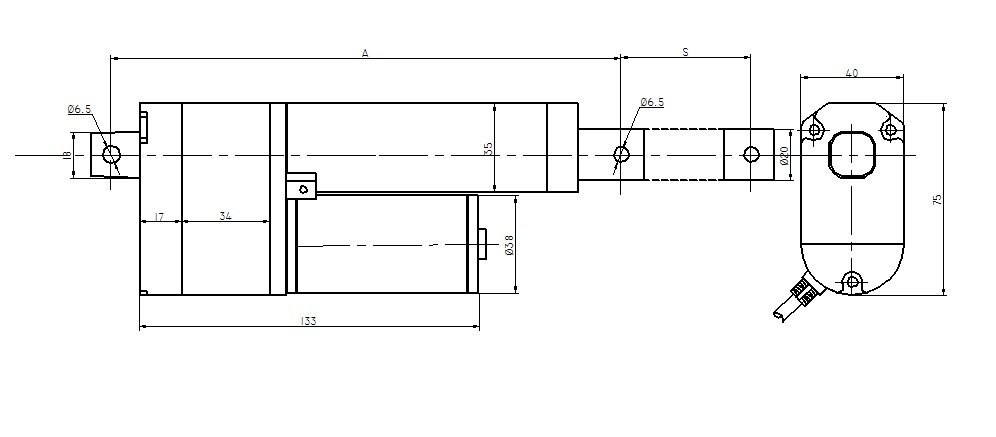

• Installation Distance-A (mm):     Stroke + 140mm
• Operating Temperature:     -25℃ ~ +65℃
• Limit Switch:     Built-in, factory present
• Duty Cycle:     15%, stop for 17 minutes after continuously working 3 minutes
• Material:     Aluminum Alloy, Zinc Alloy, Iron
• Color:     Sliver
• IP Degree:     IP54
• Certificate:     CE
• With The Potentiometer:      Can feedback the stroke position exactly
