FD3

Basic Parameter

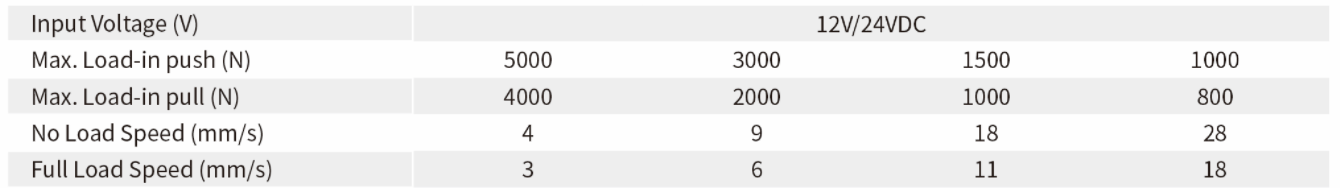

• Input Voltage (V):     12 / 24
• Max. Load Capacity (N):     5000
• Max. Load in pull (N):     4000
• No Load Speed (mm/s):     4 ~28
• Stroke Length-S (mm):     30mm ~ 1000mm (stroke could be customized )

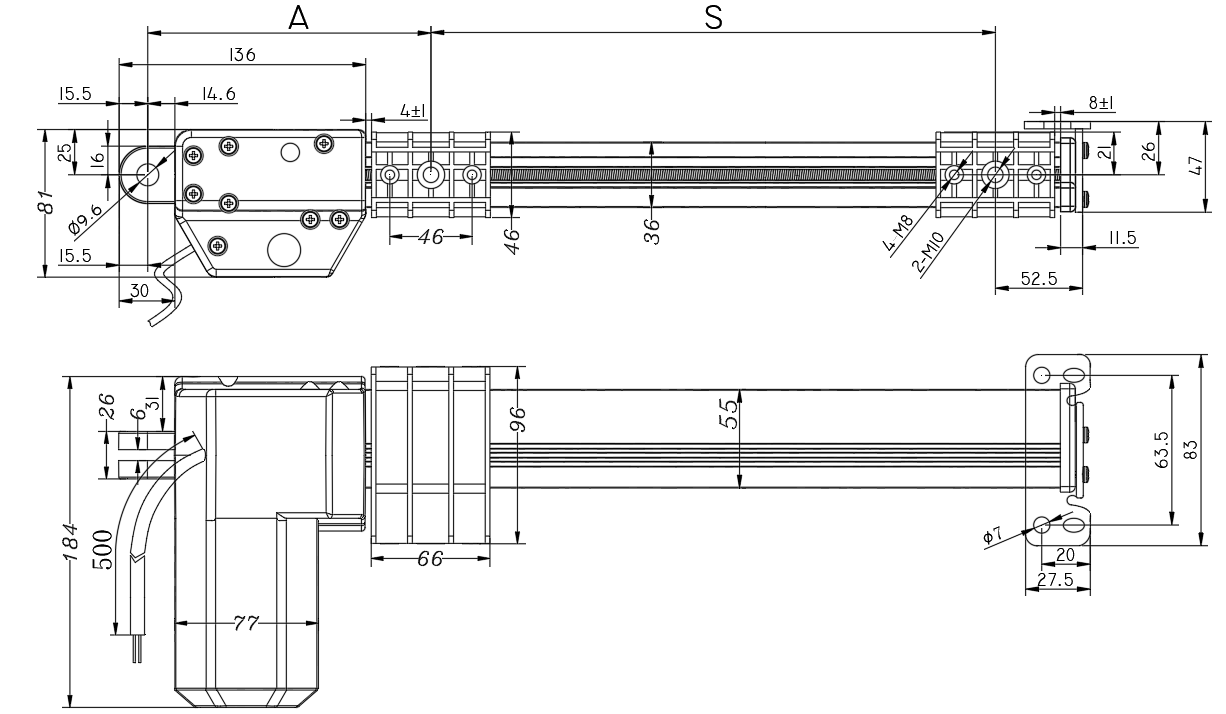

• Installation Distance-A (mm):     Stroke + 155mm
• Operating Temperature:     -20℃ ~ +40℃
• Limit Switch:     Built-in, factory present
• Duty Cycle:     10%, stop for 18 minutes after continuously working 2 minutes
• Noise Level (dB):     ≤48dB
• Material:     Aluminum Alloy, Plastic, Iron
• Color:     Black
• IP Degree:     IP40
• Certificate:   CE
• Function:     Synchronization (option)
