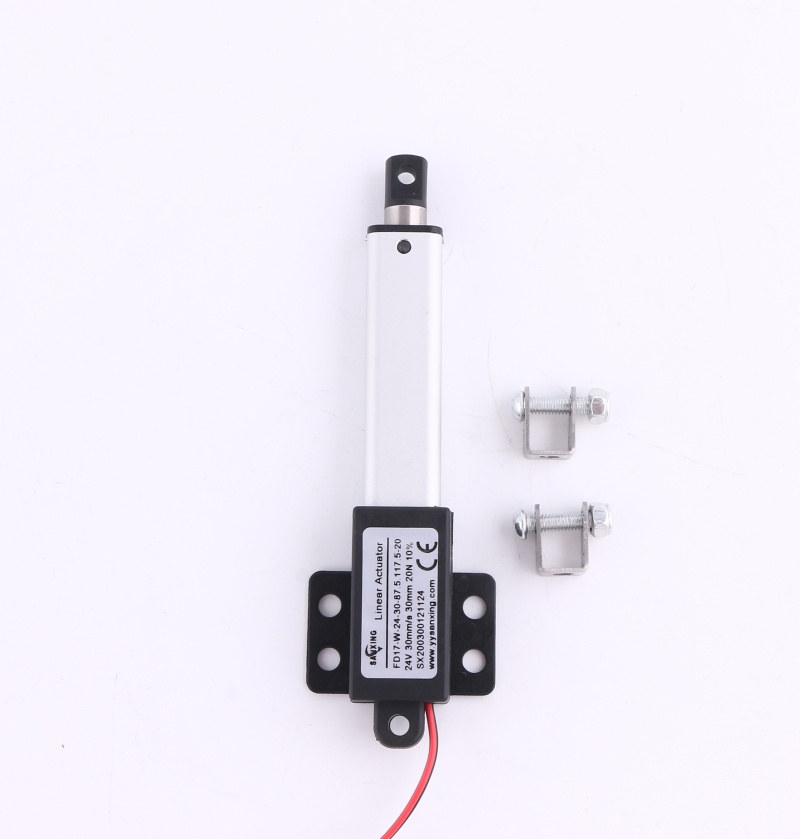

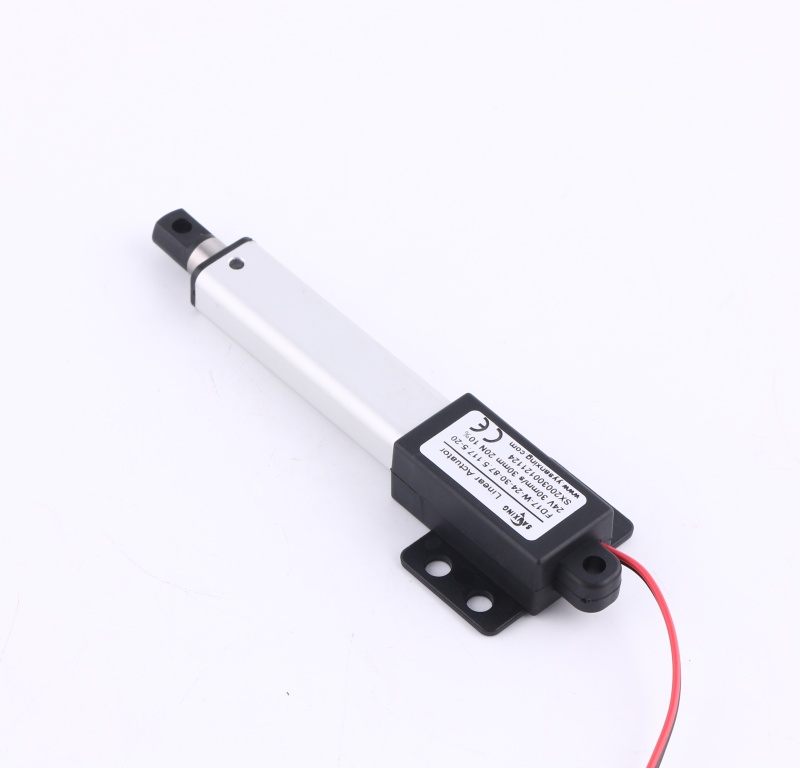

FD17-W

Basic Parameter

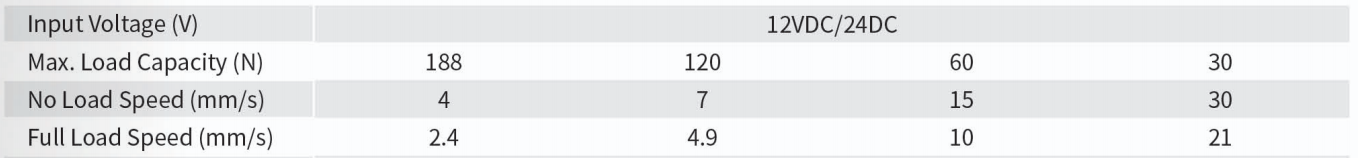

• Input Voltage (V):     12 / 24
• Max. Load Capacity (N):     188
• Max. Load in pull (N):     150
• No Load Speed (mm/s):     4 ~30
• Stroke Length-S (mm):     10mm ~ 150mm (stroke could be customized )
• Installation Distance-A (mm):     Stroke + 55/60/70mm
• Operating Temperature:     -10℃ ~ +50℃
• Limit Switch:     Built-in, factory present
• Duty Cycle:     10%, stop for 18 minutes after continuously working 2 minutes
• Noise Level (dB):     ≤55dB
• Material:     Aluminum Alloy, Plastic, Stainless Steel
• Color:     Black
• IP Degree:     IP54
• Certificate:   CE
• Accessory:    Brackets ( Top&End )—Optional
