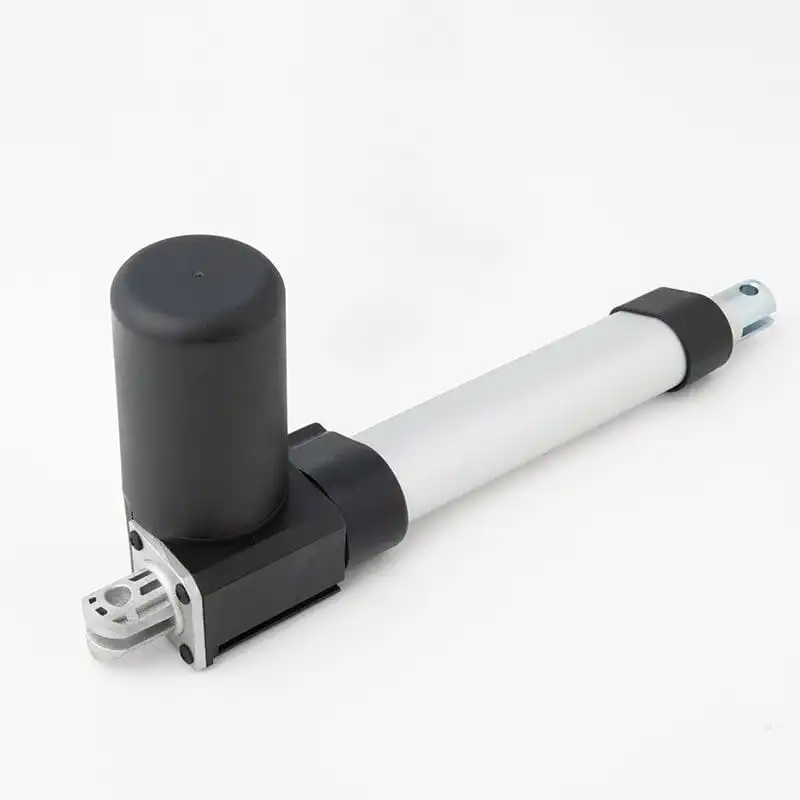

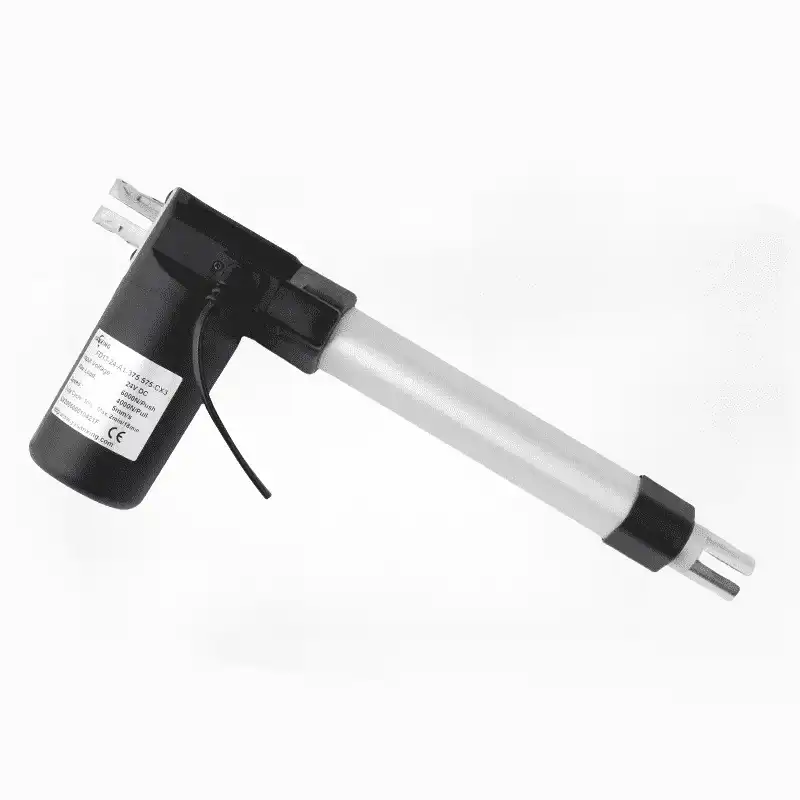

FD13 Electric Linear Actuator
Basic Parameter
Basic Parameter
- Input Voltage (V): 12 / 24
- Max. Load Capacity (N): 6000
- Max. Load in pull (N): 4000
- No Load Speed (mm/s): 5 ~ 35
- Stroke Length-S (mm): 30mm ~ 1000mm (stroke could be customized )
- Installation Distance-A (mm): Stroke + 160mm
- Operating Temperature: -20℃ ~ +40℃
- Limit Switch: Built-in, factory present
- Duty Cycle: 10%, stop for 18 minutes after continuously working 2 minutes
- Noise Level (dB): ≤48dB
- Material: Aluminum Alloy, Plastic, Zinc Alloy, Iron
- Color: Black/Grey
- IP Degree: IP66
- Certificate: CE
- Function: Synchronization (option)
Product overview
The FD13 is a heavy-duty electric linear actuator from SANXING, engineered for reliable linear motion control in industrial, medical and furniture applications. It combines robust construction, high load capacity, and smooth operation, making it ideal for scenarios requiring precise and powerful linear movement.
Features and Benefits
High load capacity: Up to 6000N maximum thrust, suitable for heavy-duty applications.
IP66 protection: Dust-tight and water-resistant, ideal for harsh industrial or outdoor environments.
Low noise operation: ≤48dB for quiet performance in noise-sensitive settings.
Customizable stroke: 30mm–1000mm options to meet specific application requirements.
CE certification: Complies with European safety standards for global market access.
Control options
Built-in limit switches (factory non-adjustable) for automatic stop at stroke endpoints.
Optional synchronization function enables coordinated movement of multiple actuators.
Compatible with standard control systems: manual switches, remote controls, or PLC-based automation for precise operation.
Applications
The FD13 electric linear actuator is suitable for a wide range of industrial and commercial applications, including:
Industrial automation equipment
Medical devices
Agricultural machinery
Furniture adjustment systems
Marine and outdoor equipment
Product specifications
| Parameter | Details |
| Input Voltage | 12V / 24V DC |
| Max. Thrust (N) | 6000, 4000, 3000, 1500, 500 |
| Max. Pull Force (N) | 4000, 3000, 2000, 1000, 300 |
| No-Load Speed (mm/s) | 5, 6.5, 10, 20, 35 |
| Loaded Speed (mm/s) | 3.5, 4.5, 7, 12.5, 26 |
| Stroke | 30mm – 1000mm (customizable) |
| Min. Installation Distance | Stroke + 160mm |
| Operating Temperature | -20°C to +40°C |
| Limit Switches | Built-in (factory non-adjustable) |
| Duty Cycle | 10% (2 minutes operation, 18 minutes rest) |
| Noise Level | ≤48dB |
| Materials | Aluminum alloy, plastic, zinc alloy, steel |
| Color | Black / Gray |
| IP Rating | IP66 |
| Certifications | CE |
| Optional Feature | Synchronization function |
Product dimension

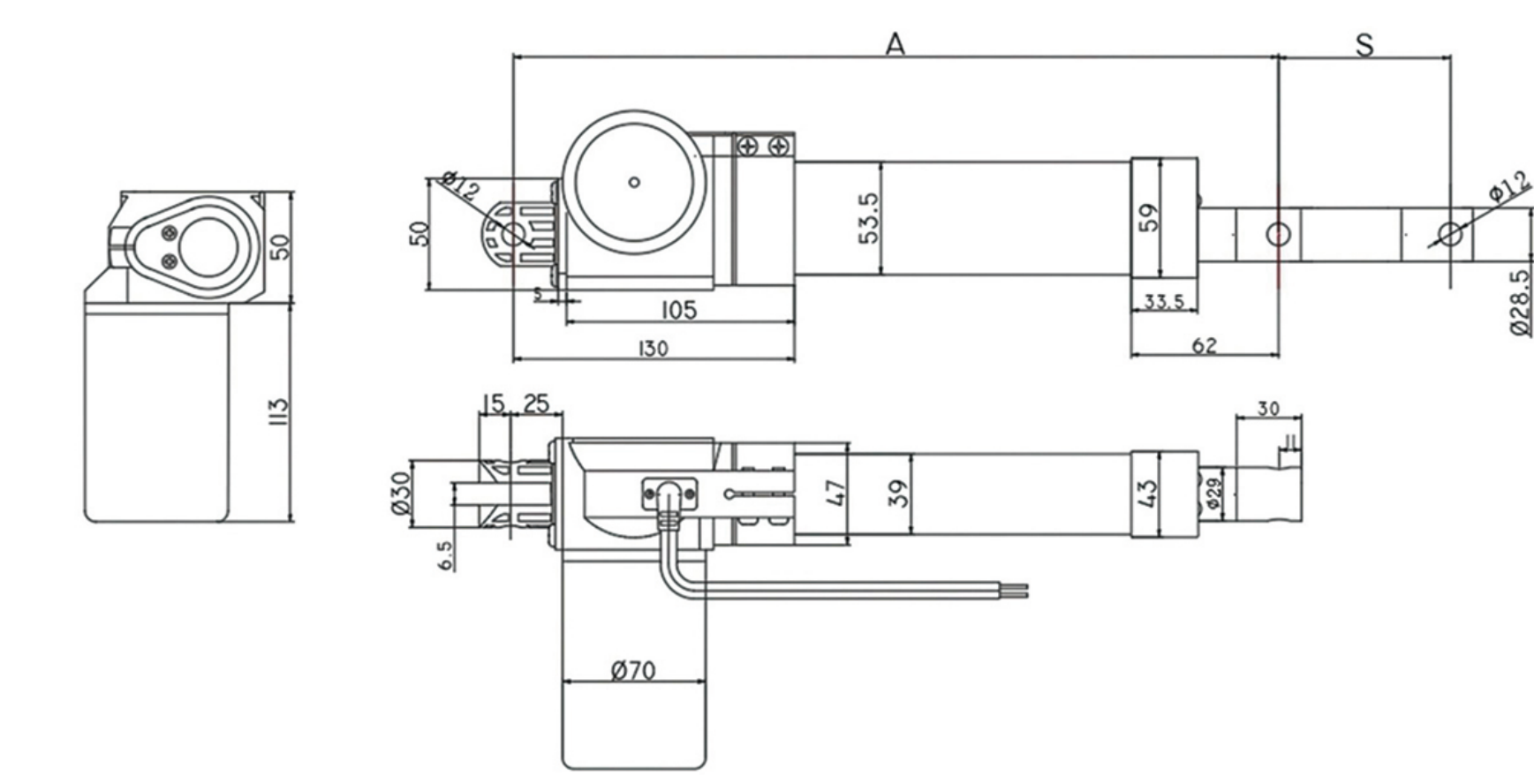

The FD13 features a compact and versatile design with detailed dimensional specifications (refer to the technical drawing for precise measurements). Key dimensions include:
Overall length (S): Dependent on stroke length
Minimum installation distance: Stroke + 160mm
Detailed mounting hole positions and body dimensions are provided in the technical drawing for seamless integration into your system.

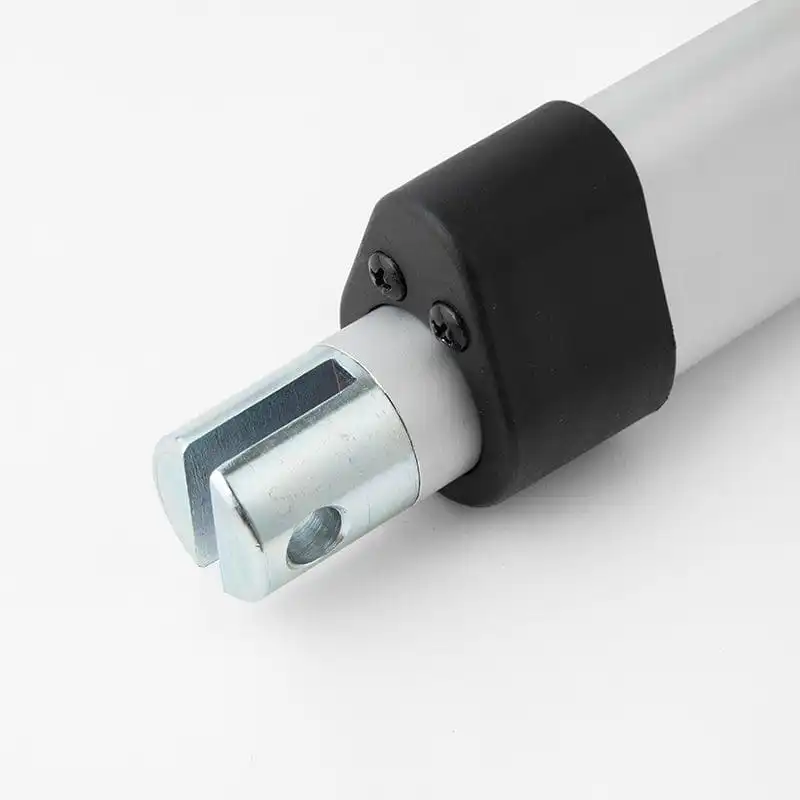

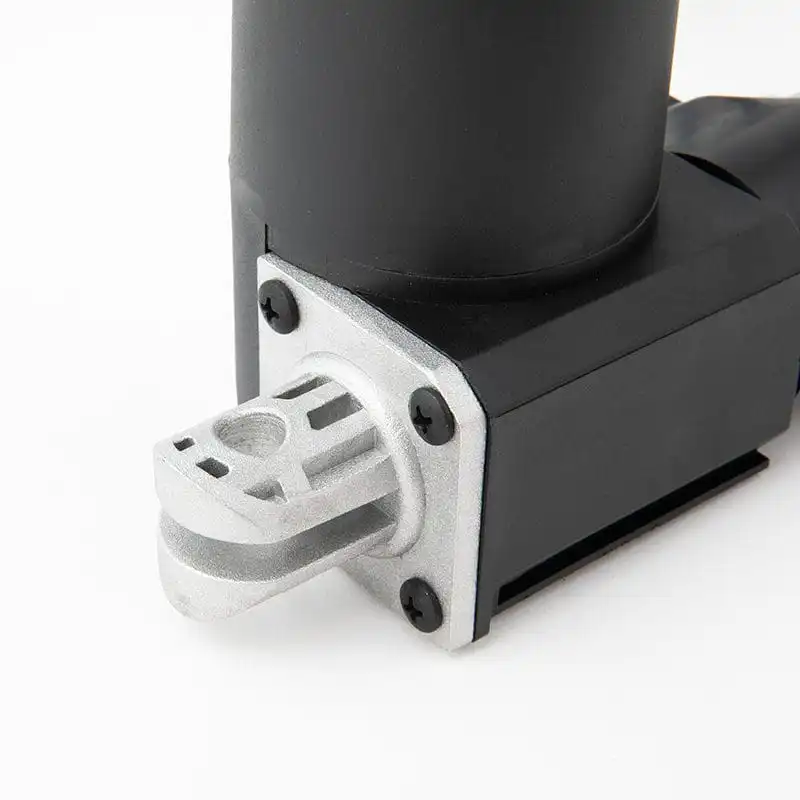

Mounting points
Flexible mounting options: front/rear flange, clevis, or trunnion brackets (detailed in dimensional drawings).
Minimum installation distance: stroke + 160mm, ensuring easy integration into existing systems.
Compact design allows installation in confined spaces while maintaining robust performance.
Performance characteristic curves

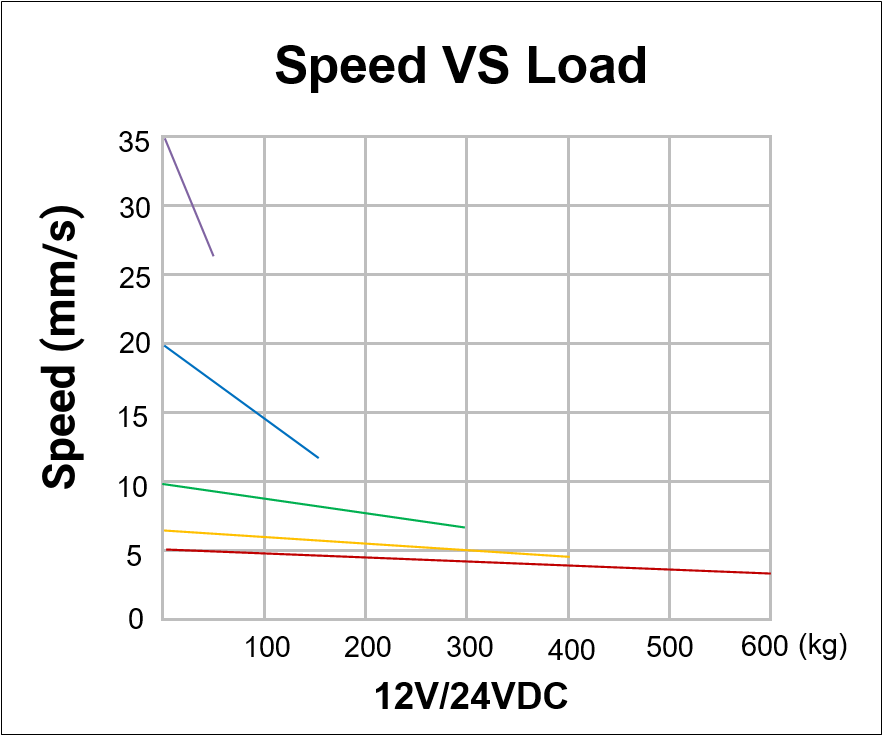

Speed vs. Load (12V/24V DC):This curve illustrates the inverse relationship between load weight and actuation speed. As the applied load increases, the actuation speed decreases, with different voltage options (12V/24V) affecting the overall performance profile.

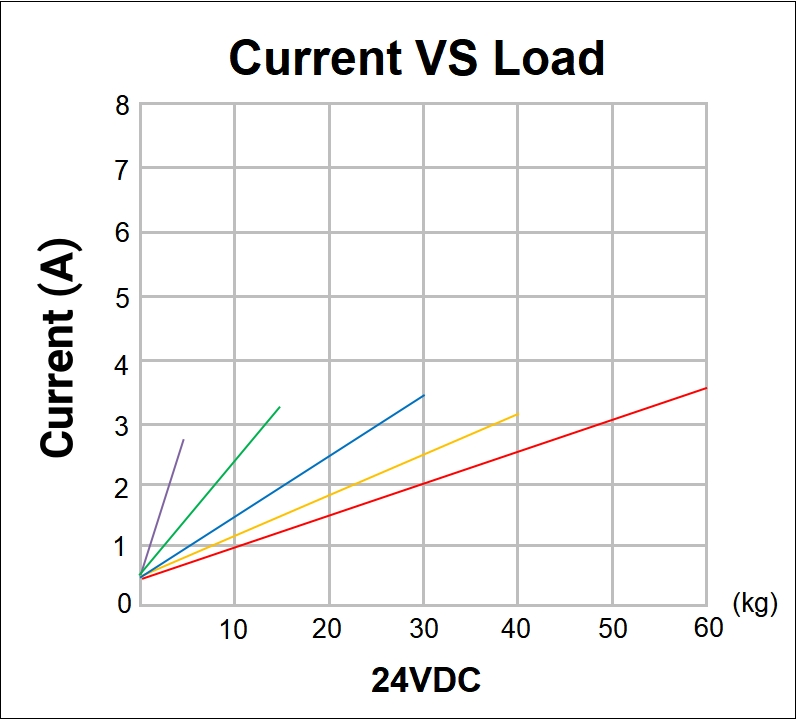

Current vs. Load (24V DC):This curve shows how the electrical current draw increases proportionally with the applied load when operating on 24V DC, providing a clear reference for power system design.

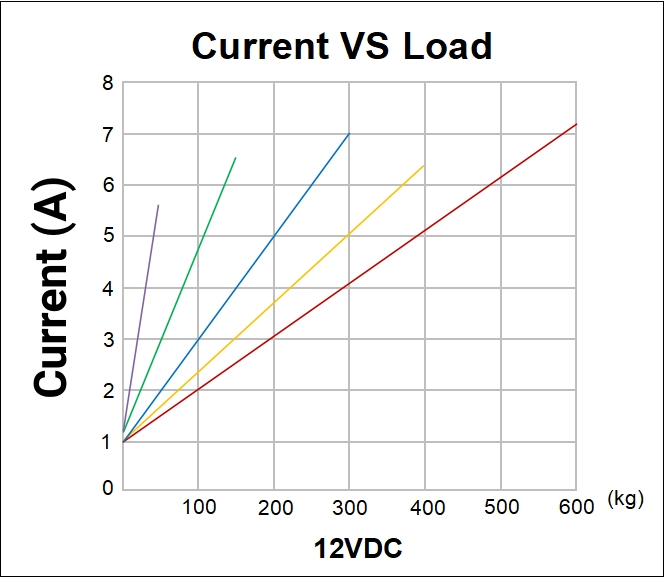

Current vs. Load (12V DC):Similar to the 24V curve, this graph depicts the current-load relationship for 12V DC operation, enabling accurate power consumption estimation for low-voltage applications.
